NSN 4730-00-819-9162 33054, 3305-4, 00-819-9162

Product Details | QUICK DISCONNECT COUPLING HALF

4730-00-819-9162 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: 33054, 3305-4, 4730-00-819-9162, 00-819-9162, 4730008199162, 008199162

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1962	00-819-9162	18681 ( COUPLING HALF, QUICK DISCONNECT )

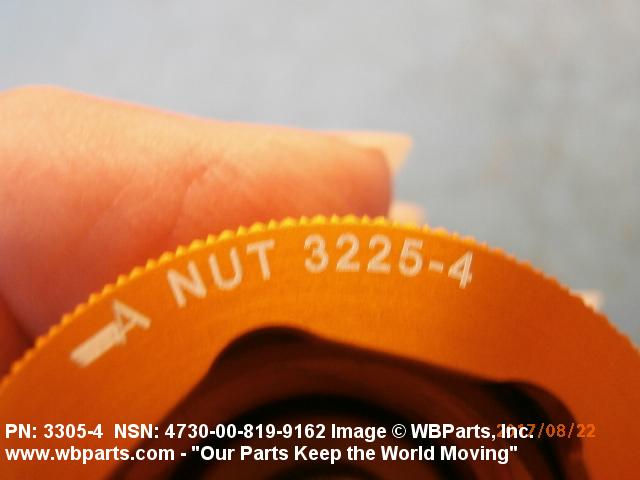

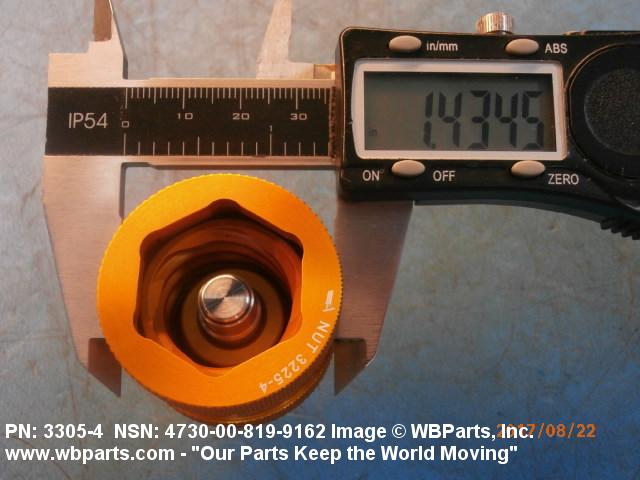

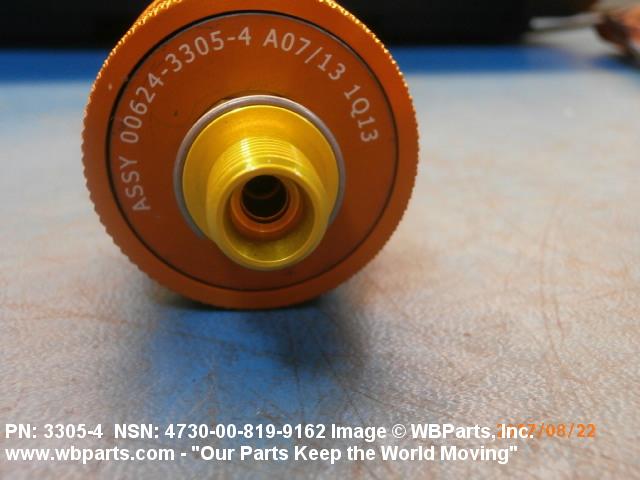

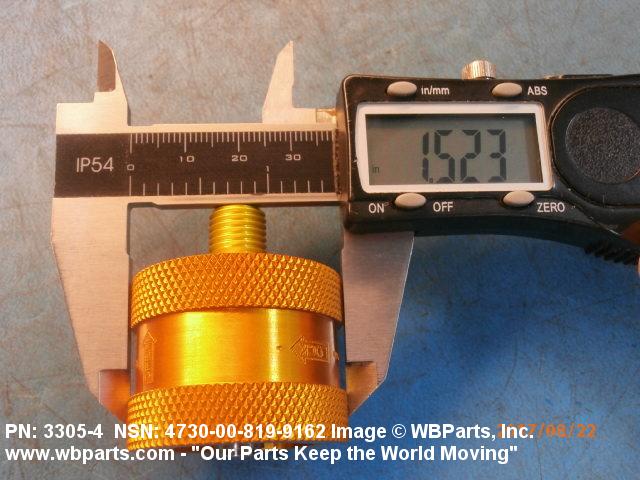

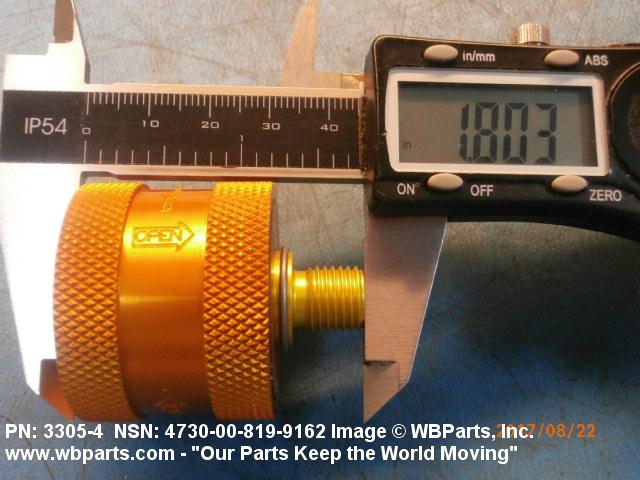

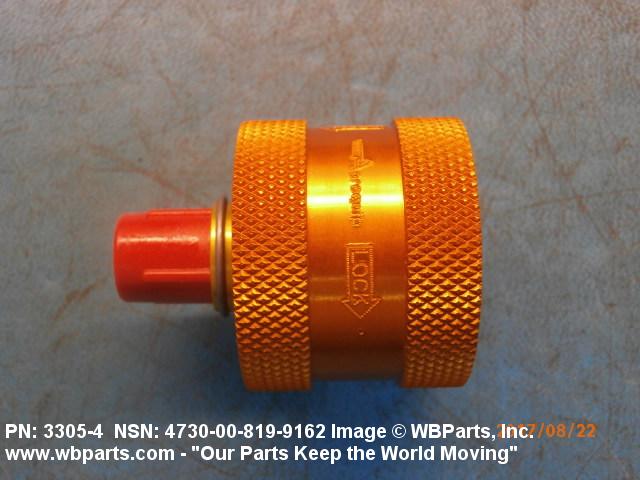

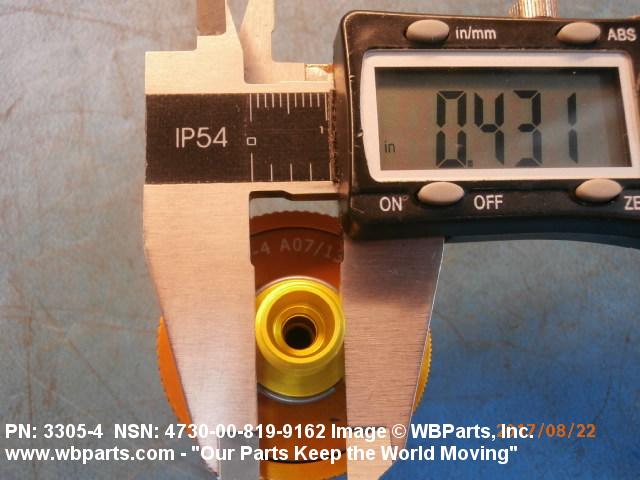

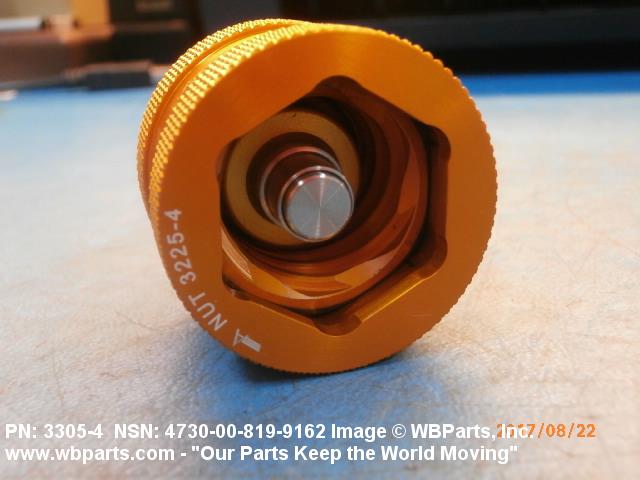

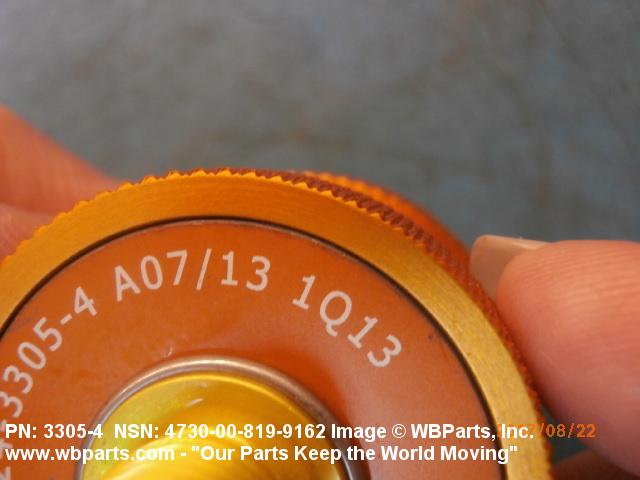

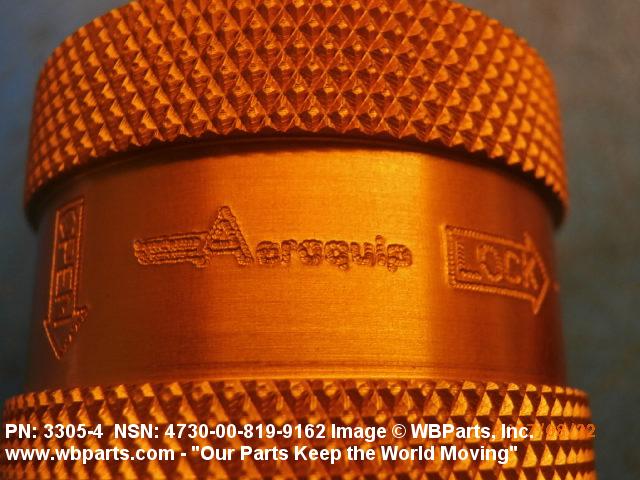

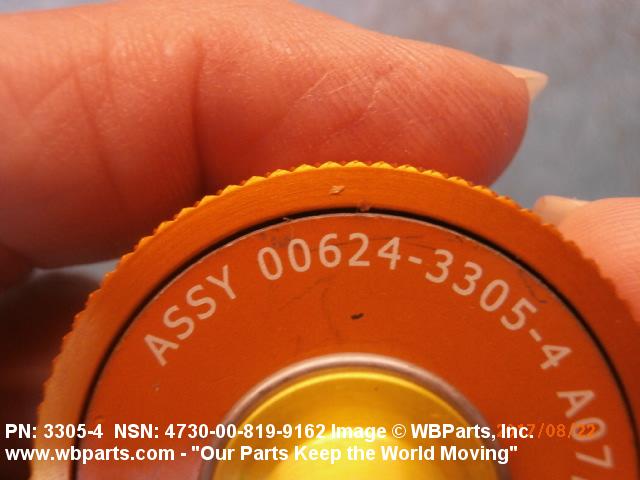

Drawings & Photos | NSN 4730-00-819-9162

Part Number	Request Date	QTY	Origin
3305-4	2025-10-289	254	DIBBS
3305-4	2025-06-173	72	DIBBS
4730-00-819-9162	2025-04-118	1	Taiwan
4730-00-819-9162	2025-04-118	1	Taiwan
3305-4	2025-02-51	105	DIBBS
4730-00-819-9162	2025-02-42	1	Taiwan
3305-4	2024-09-260	49	DIBBS
3305-4	2024-06-168	201	DIBBS
33054	2023-08-233	10	ID
33054	2023-08-233	10	ID
4730-00-819-9162	2023-08-233	2	US
4730-00-819-9162	2023-02-38	7	us
3305-4	2023-01-19	16	DIBBS
3305-4	2022-09-251	44	DIBBS
3305-4	2022-08-240	44	DIBBS
3305-4	2022-08-227	44	DIBBS
3305-4	2022-06-181	17	DIBBS
4730-00-819-9162	2021-12-340	8	US
33054	2021-05-134	1	United States
33054	2020-11-325	2	US
33054	2020-11-325	2	US
33054	2020-10-296	2	TW
4730-00-819-9162	2020-08-244	10	United States
33054	2019-07-206	2	US
4730-00-819-9162	2019-06-176	1	NZ
4730-00-819-9162	2018-07-205	2	US
4730-00-819-9162	2018-05-143	10	US
3305-4	2017-05-139	3	Taiwan
4730-00-819-9162	2017-05-139	3	MANUAL
4730-00-819-9162	2017-02-51	1	US
4730-00-819-9162	2017-02-48	13	US
4730-00-819-9162	2014-11-321	130	DIBBS
4730-00-819-9162	2014-11-308	130	DIBBS
4730-00-819-9162	2014-07-187	268	DIBBS
4730-00-819-9162	2014-04-104	208	DIBBS
4730-00-819-9162	2014-04-93	208	DIBBS
4730-00-819-9162	2013-05-136	342	DIBBS
4730-00-819-9162	2013-05-121	342	DIBBS
4730-00-819-9162	2010-11-319	3	United States
4730-00-819-9162	2010-02-34	360	DIBBS
4730-00-819-9162	2009-05-146	440	DIBBS

Cross Reference | NSN 4730-00-819-9162

Part Number	Cage Code	Manufacturer
3305-4	00620	UNION IRON WORKS OF NEW JERSEY
3305-4	00624	EATON CORPORATION DBA AEROSPACE DIV
3305-4	R1120	SATAIR A/S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-819-9162

Compare

Related Products | NSN 4730-00-819-9162

4730-00-819-9583, 4730-00-819-9585, 4730-00-819-9999, 4730-00-820-0000, 4730-00-820-0009

Technical Data | NSN 4730-00-819-9162

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY BODY
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE BODY
SURFACE TREATMENT	ANODIZE BODY
STYLE DESIGNATOR	A1 MALE COUPLING HALF
OVERALL LENGTH	2.043 INCHES MINIMUM AND 2.109 INCHES MAXIMUM
CONNECTION TYPE	THREADED EXTERNAL TUBE FIRST FLUID END CONNECTION
CONNECTION STYLE	D8 FLARELESS ALL ENDS
SEAT ANGLE	12.0 DEGREES
QUICK DISCONNECT METHOD	QUICK LEAD THREAD ALL ENDS
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNF ALL ENDS
NOMINAL THREAD SIZE	0.438 INCHES ALL ENDS
THREAD CLASS	3A ALL ENDS
FEATURES PROVIDED	SELF-SEALING
(NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED	135.0 DEG CELSIUS HYDRAULIC FLUID, PETROLEUM BASE
(NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED	3000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, PETROLEUM BASE

Restrictions/Controls & Freight Information | NSN 4730-00-819-9162

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-819-9162

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
