Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-928-4506 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 22405391, 2240539-1, 4730-00-928-4506, 00-928-4506, 4730009284506, 009284506
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 APR 1968 | 00-928-4506 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

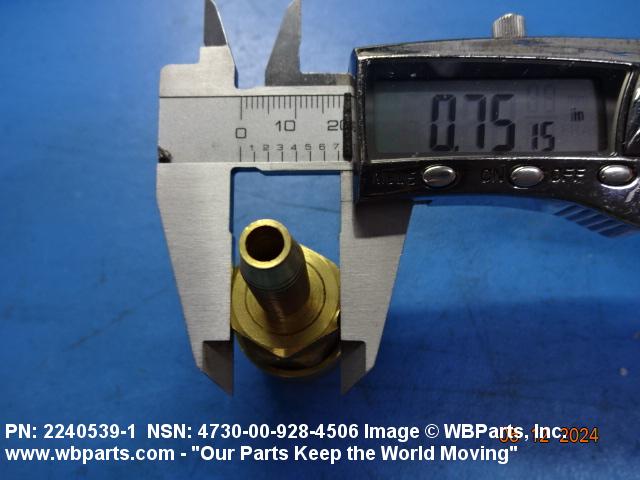

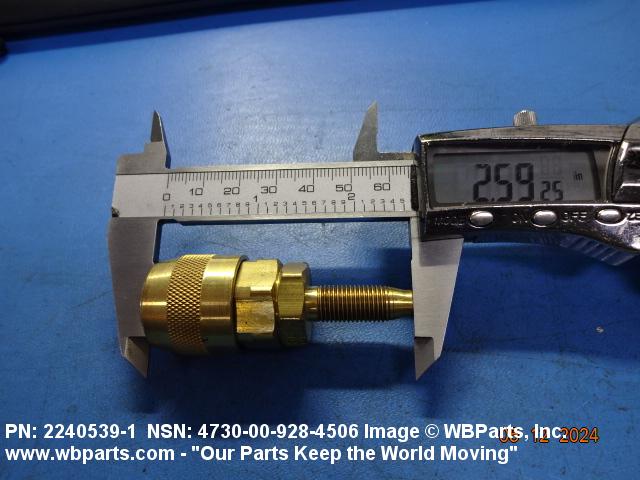

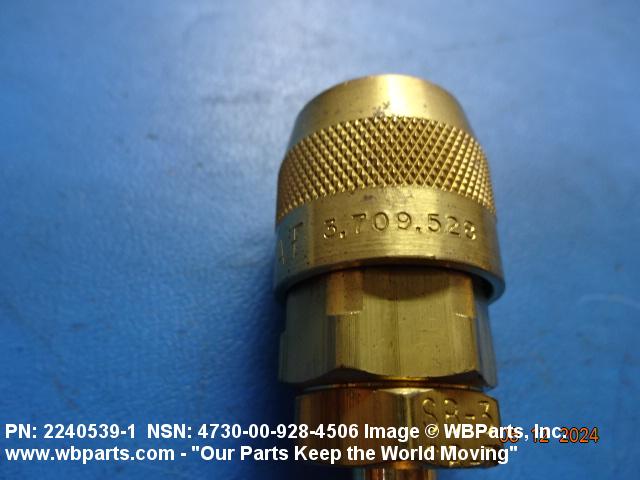

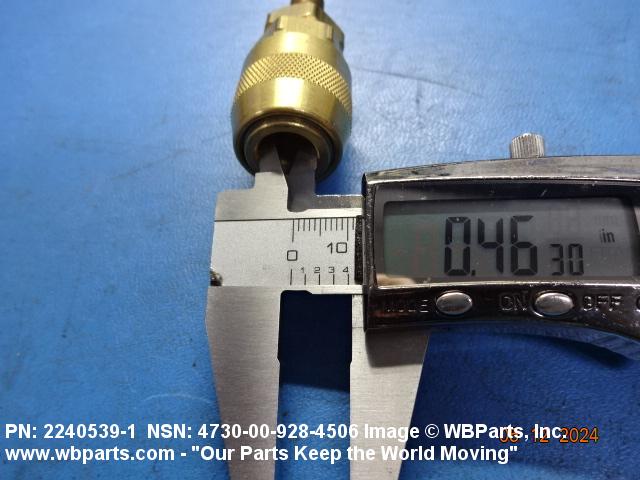

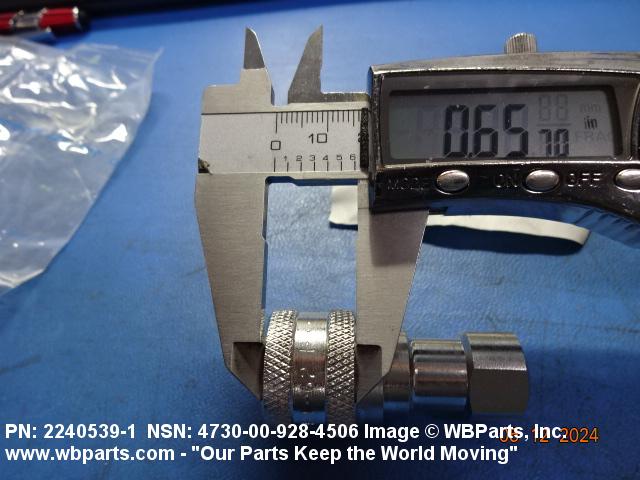

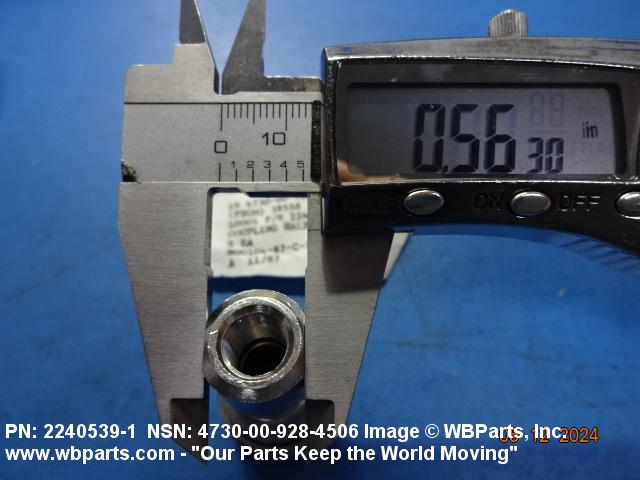

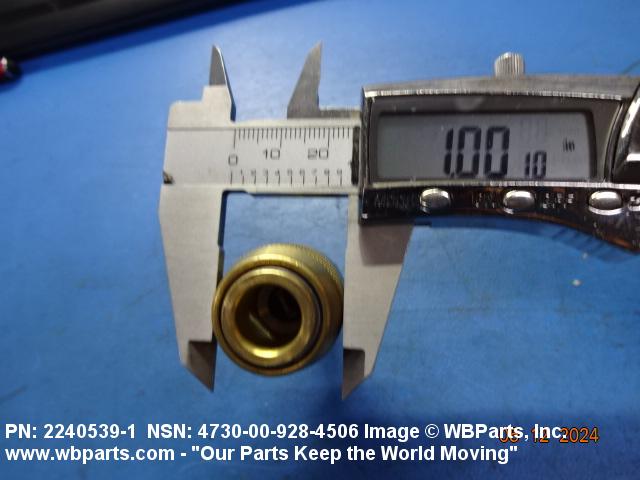

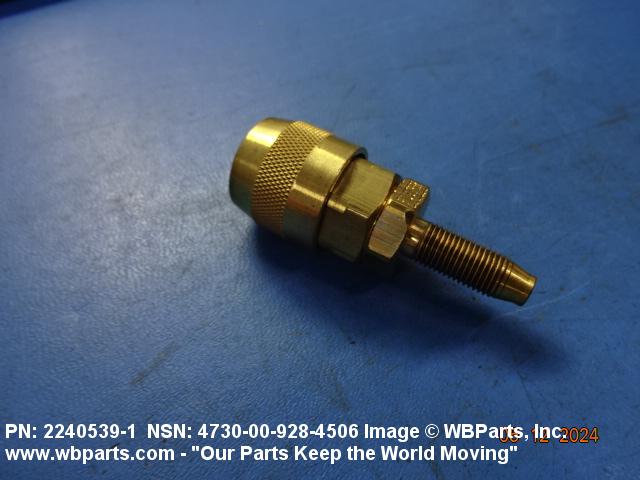

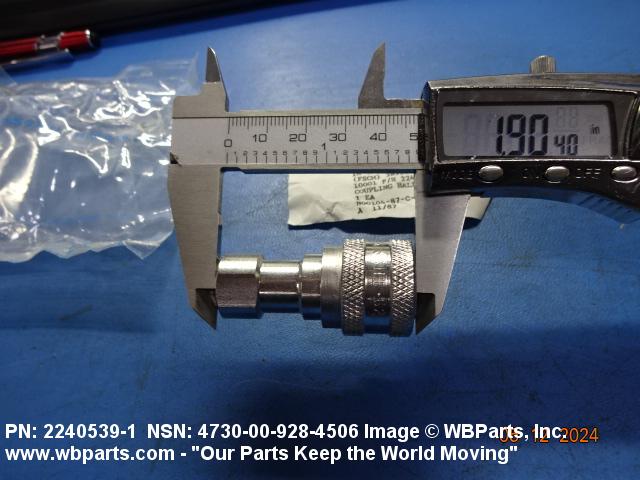

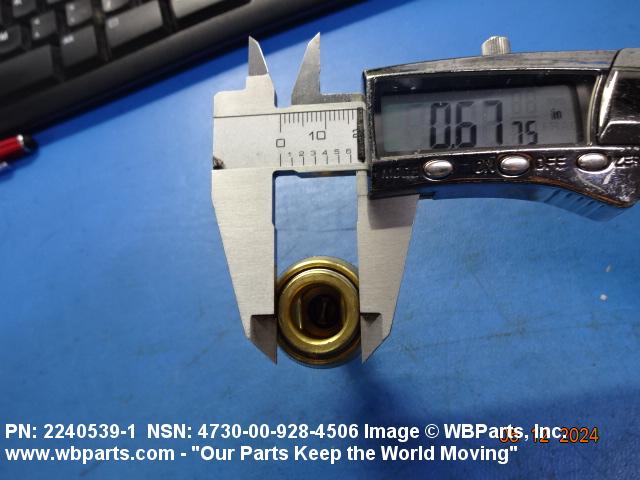

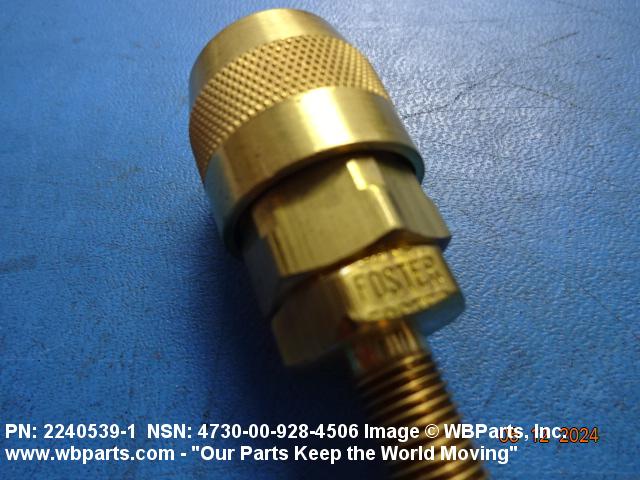

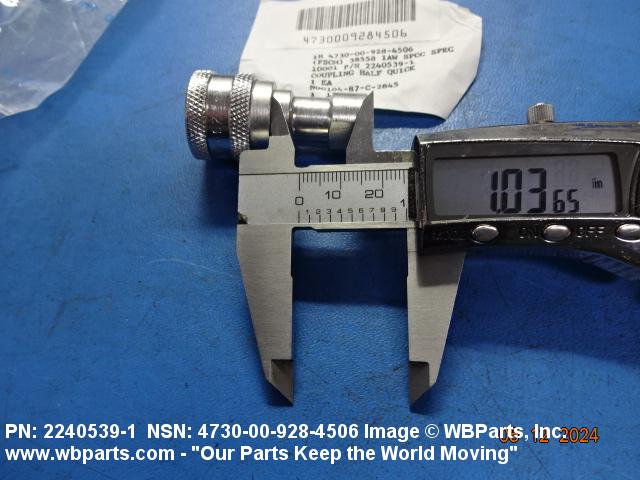

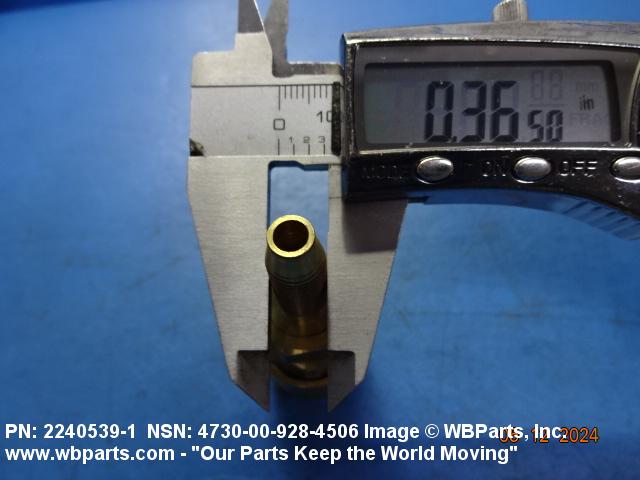

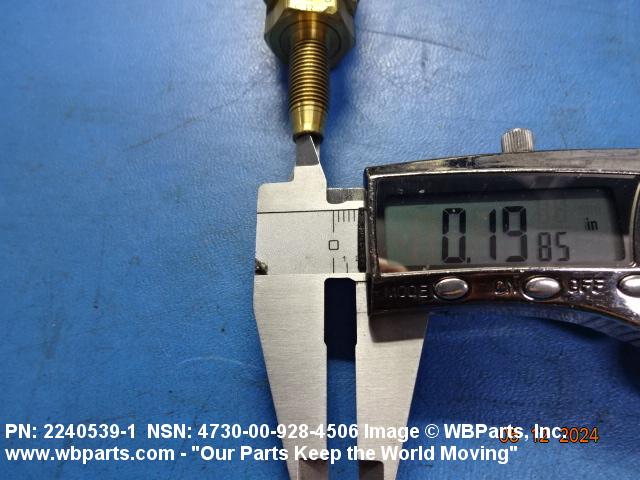

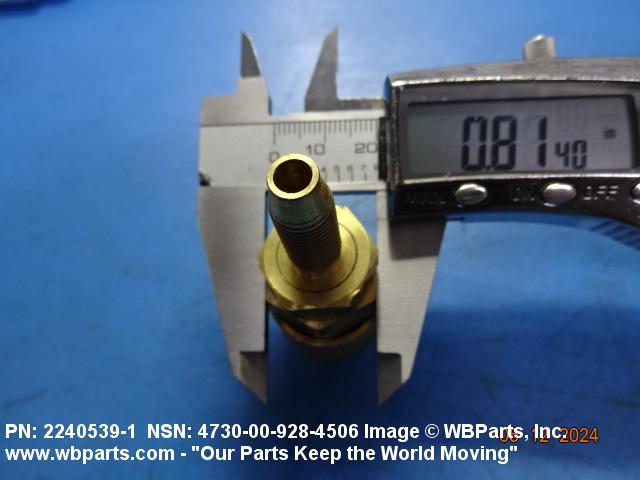

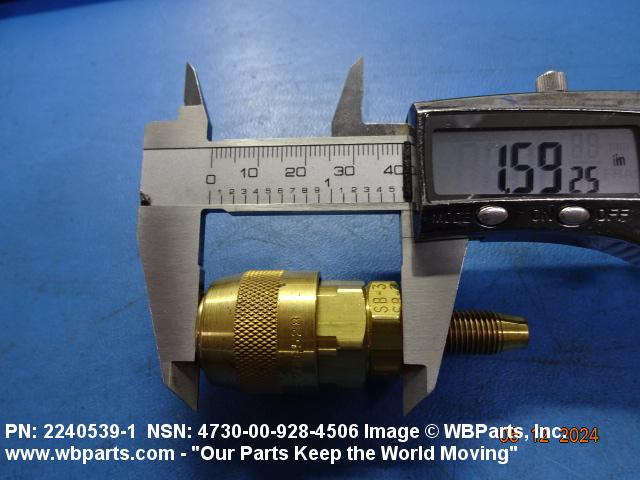

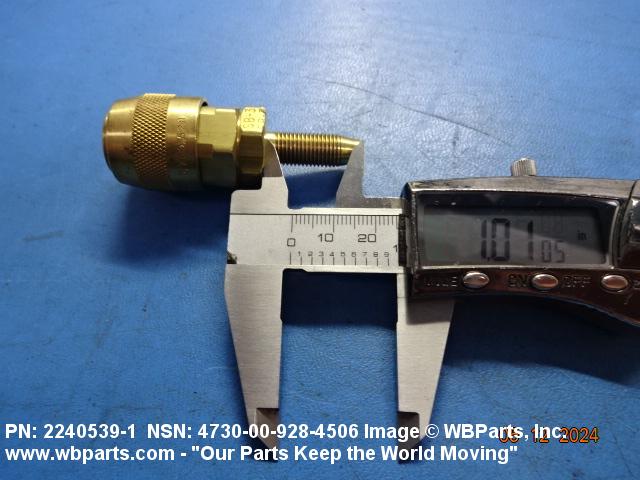

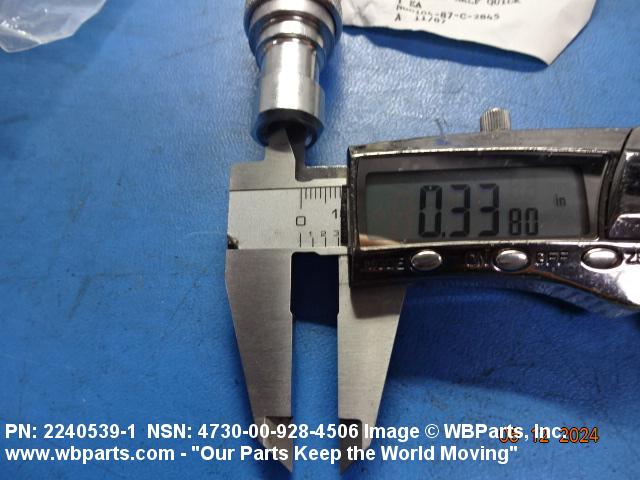

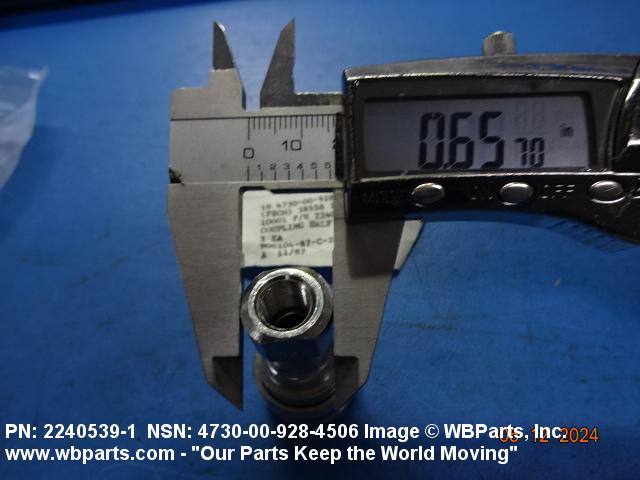

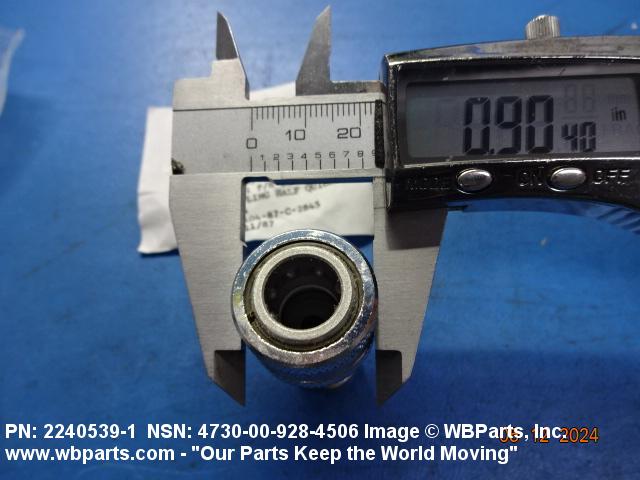

Drawings & Photos | NSN 4730-00-928-4506
Demand History | NSN 4730-00-928-4506
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-928-4506 | 2025-11-324 | 88 | DIBBS |
| 4730-00-928-4506 | 2025-08-226 | 1 | United States |
| 4730-00-928-4506 | 2025-04-108 | 2 | United States |
| 4730-00-928-4506 | 2025-03-72 | 62 | DIBBS |
| 4730-00-928-4506 | 2025-01-22 | 1 | United States |
| 22405391 | 2024-09-256 | 4 | United States |
| 22405391 | 2024-06-158 | 1 | United States |
| 4730-00-928-4506 | 2024-04-102 | 1 | United States |
| 4730-00-928-4506 | 2023-09-271 | 87 | DIBBS |
| 4730-00-928-4506 | 2022-09-270 | 45 | DIBBS |
| 4730-00-928-4506 | 2022-09-269 | 16 | DIBBS |
| 4730-00-928-4506 | 2022-08-237 | 106 | DIBBS |
| 4730-00-928-4506 | 2021-06-161 | 95 | DIBBS |
| 4730-00-928-4506 | 2021-05-146 | 95 | DIBBS |
| 4730-00-928-4506 | 2019-04-104 | 140 | DIBBS |
| 4730-00-928-4506 | 2019-03-79 | 137 | DIBBS |
| 4730-00-928-4506 | 2017-12-362 | 170 | DIBBS |
| 4730-00-928-4506 | 2017-07-198 | 142 | DIBBS |
| 4730-00-928-4506 | 2017-03-89 | 142 | DIBBS |
| 4730-00-928-4506 | 2014-06-163 | 176 | DIBBS |
| 4730-00-928-4506 | 2014-04-93 | 106 | DIBBS |
| 4730-00-928-4506 | 2013-09-262 | 98 | DIBBS |
| 4730-00-928-4506 | 2012-08-233 | 175 | DIBBS |
| 4730-00-928-4506 | 2010-12-351 | 116 | DIBBS |
| 22405391 | 2010-09-259 | 24 | US |
| 4730-00-928-4506 | 2010-08-238 | 92 | DIBBS |
| 4730-00-928-4506 | 2009-02-33 | 50 | DIBBS |
| 4730-00-928-4506 | 2009-02-33 | 85 | DIBBS |
| 4730-00-928-4506 | 2009-01-29 | 50 | DIBBS |
| 4730-00-928-4506 | 2009-01-29 | 85 | DIBBS |
Cross Reference | NSN 4730-00-928-4506
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2240539-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-928-4506
Related Products | NSN 4730-00-928-4506
Technical Data | NSN 4730-00-928-4506
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL CORROSION RESISTING |
| BODY STYLE | 1 COUPLING HALF |
| FIRST LEG LENGTH | 0.422 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 1500.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | NOT RATED |
| OVERALL LENGTH | 1.906 INCHES NOMINAL |
| FIRST FLUID END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | B14 PLAIN |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.500 INCHES |
| FIRST END THREAD SERIES DESIGNATOR | NPT |
| FIRST END NOMINAL THREAD SIZE | 0.125 INCHES |
| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |
| QUICK DISCONNECT END CONNECTION TYPE | EXTERNAL ALL ENDS |
| III MATING END IDENTIFICATION | HANSEN MFG CO. COUPLING HALF,QUICK DISCONNECT,PART NO.ML1H11NV |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2240539-1 |
