NSN 4730-00-928-6589 190103-2-32, 66190103232, 66-190103-2-32
Product Details | FLANGE TO HOSE ELBOW
4730-00-928-6589 A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. It has a flange connection on one end designed to connect with another flange connection, or a compression type mounting pad. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed toaccommodate a hose. It may have side and/or heel inlet(s).
Part Alternates: 190103-2-32, 66190103232, 66-190103-2-32, 90EFB1488FL43232, 90EF-B1488FL4-3232, 4730-00-928-6589, 00-928-6589, 4730009286589, 190103232, 009286589
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 26 AUG 1966 | 00-928-6589 | 29666 ( ELBOW, FLANGE TO HOSE ) |

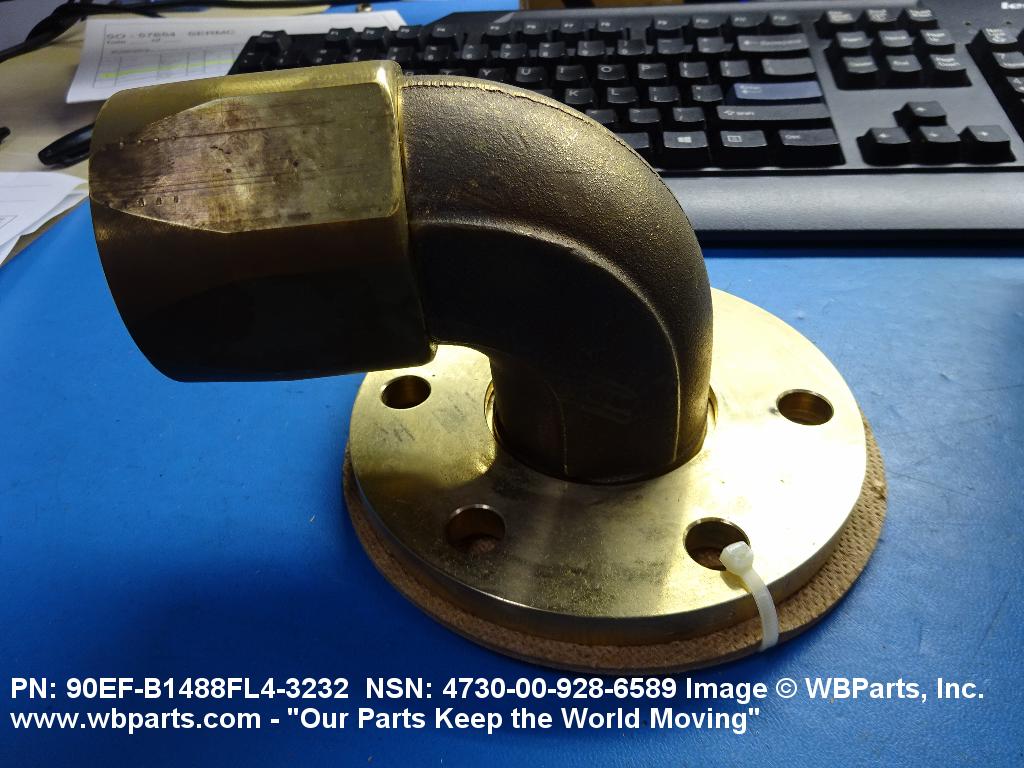

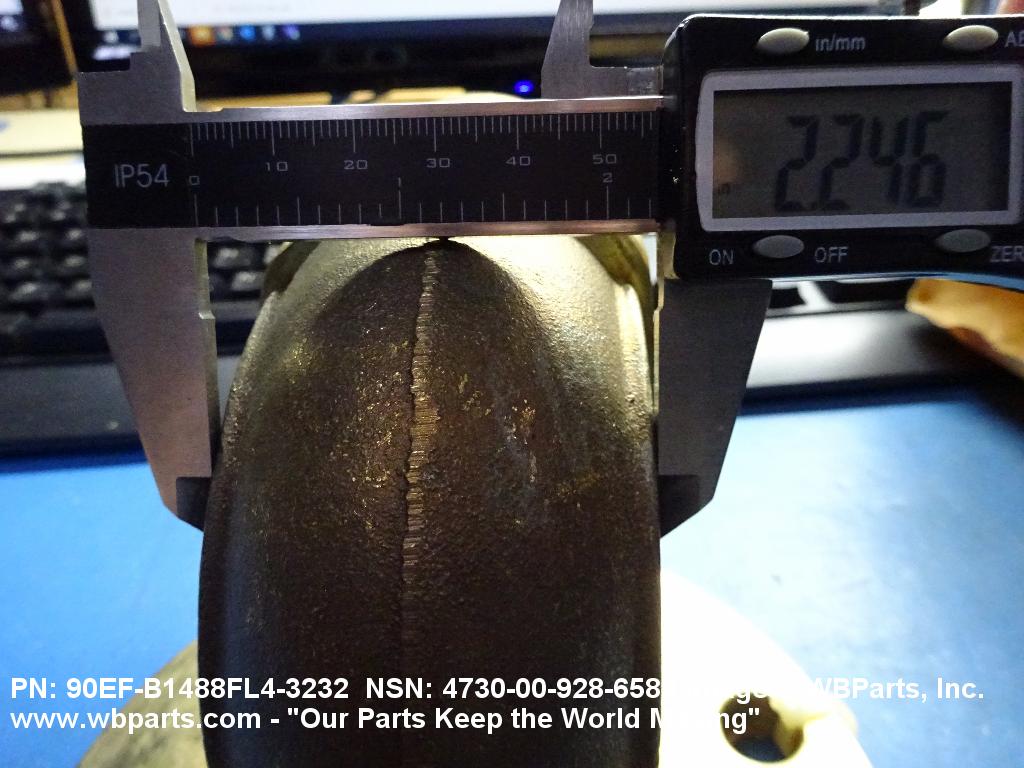

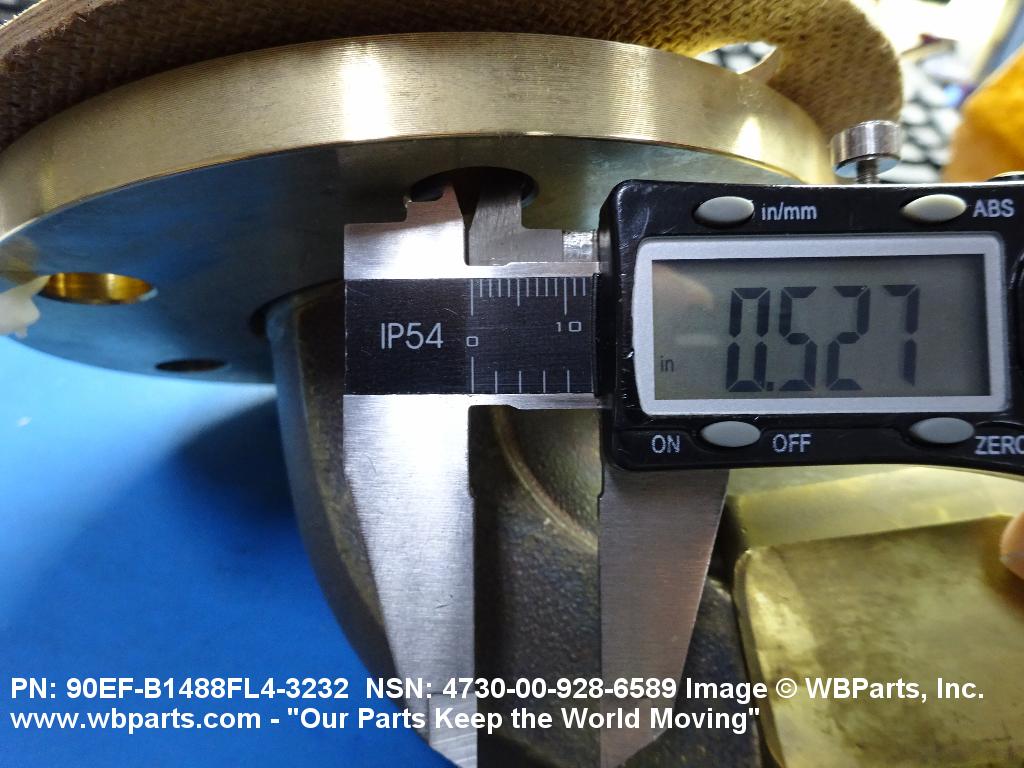

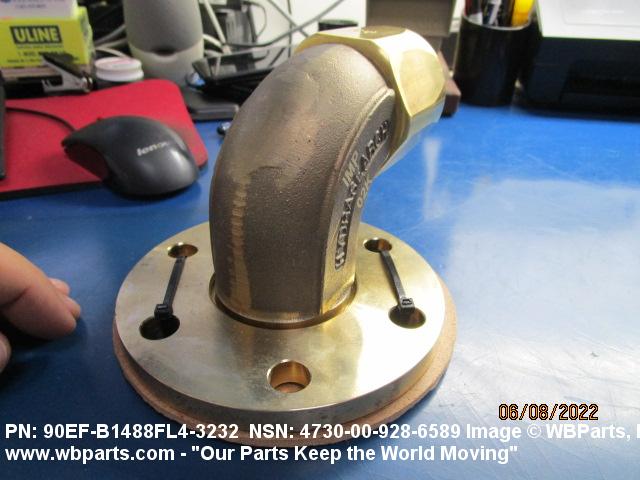

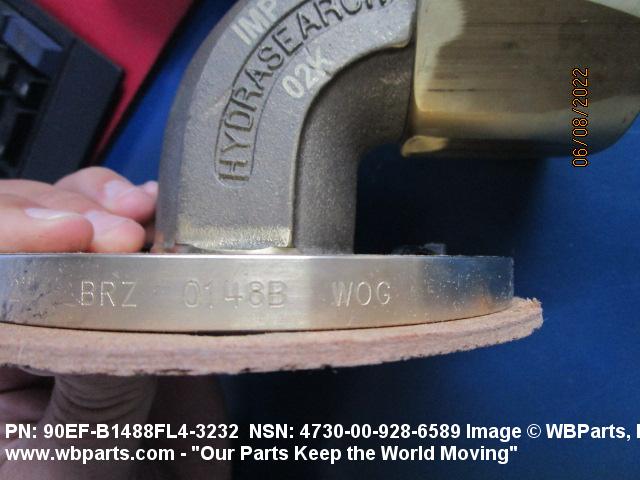

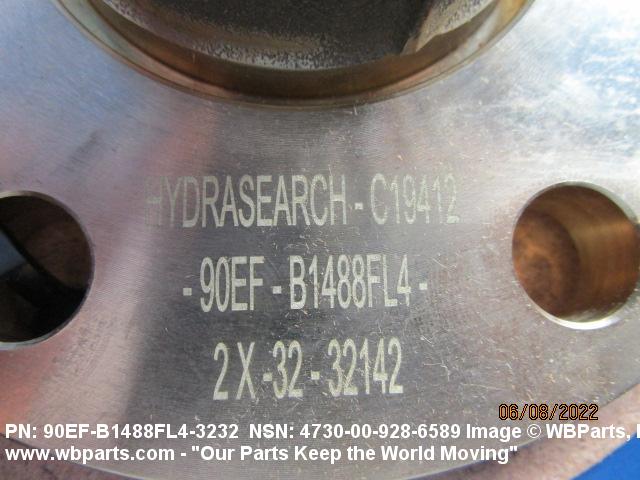

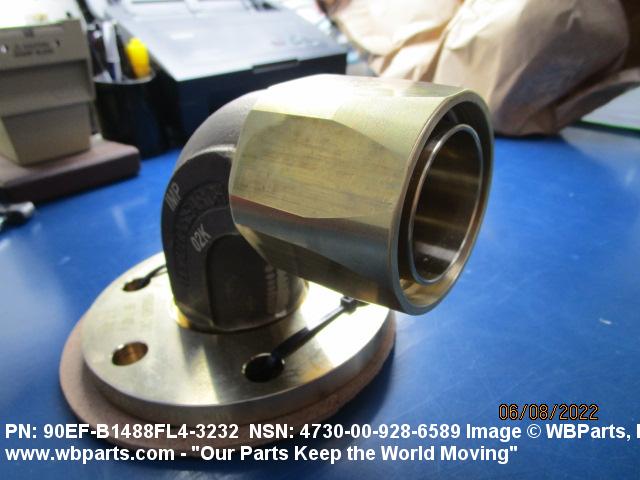

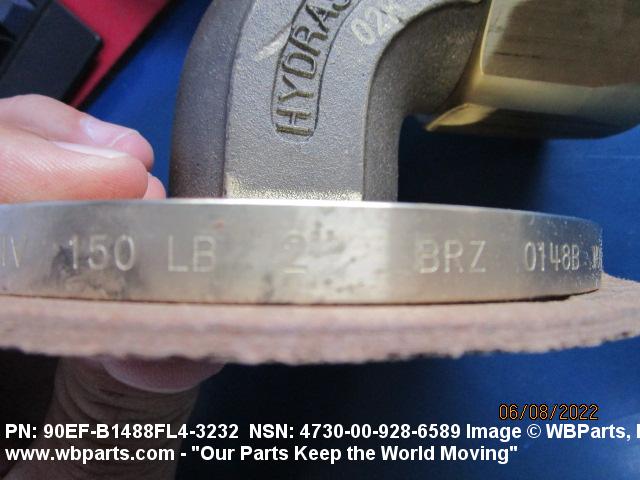

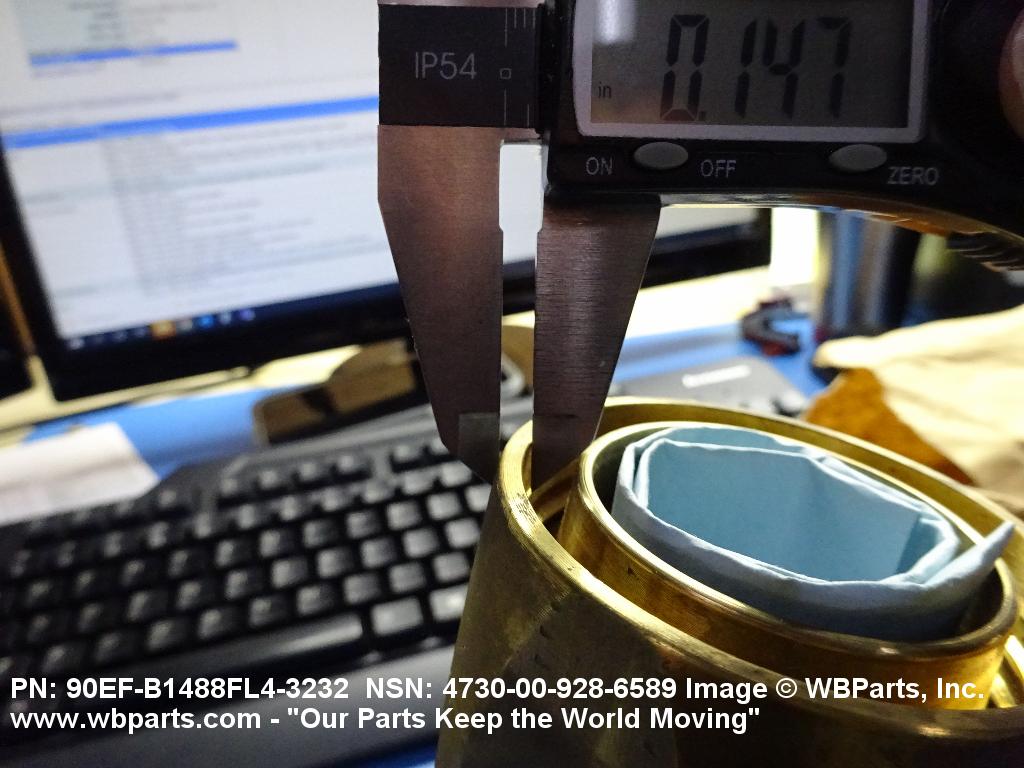

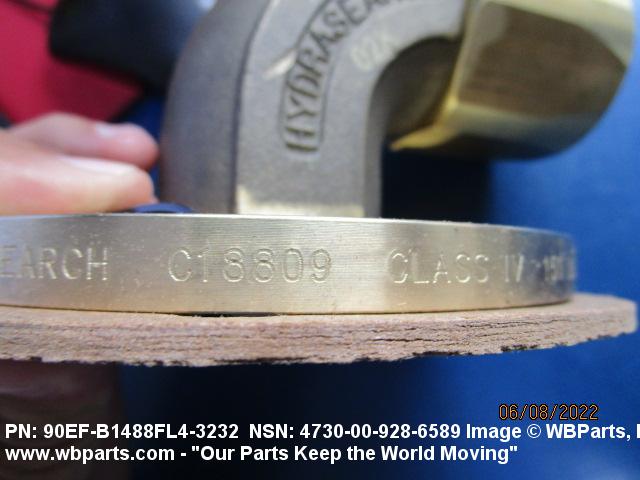

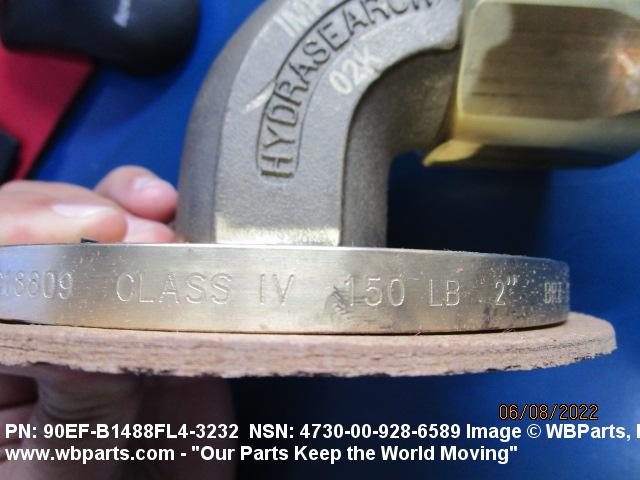

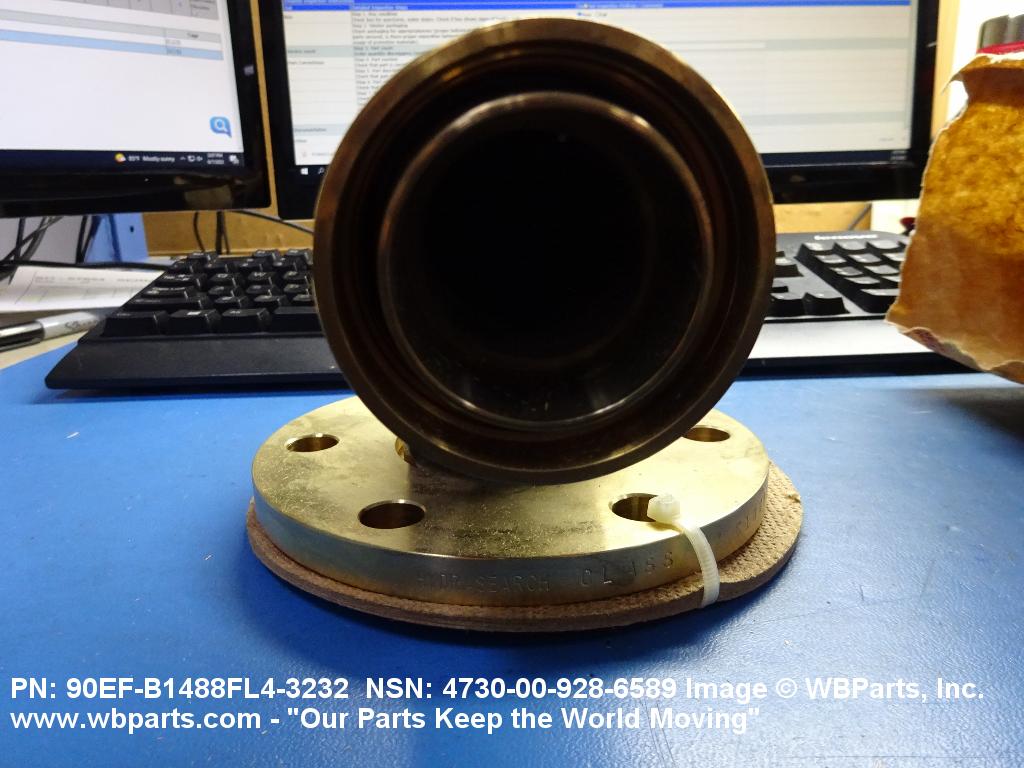

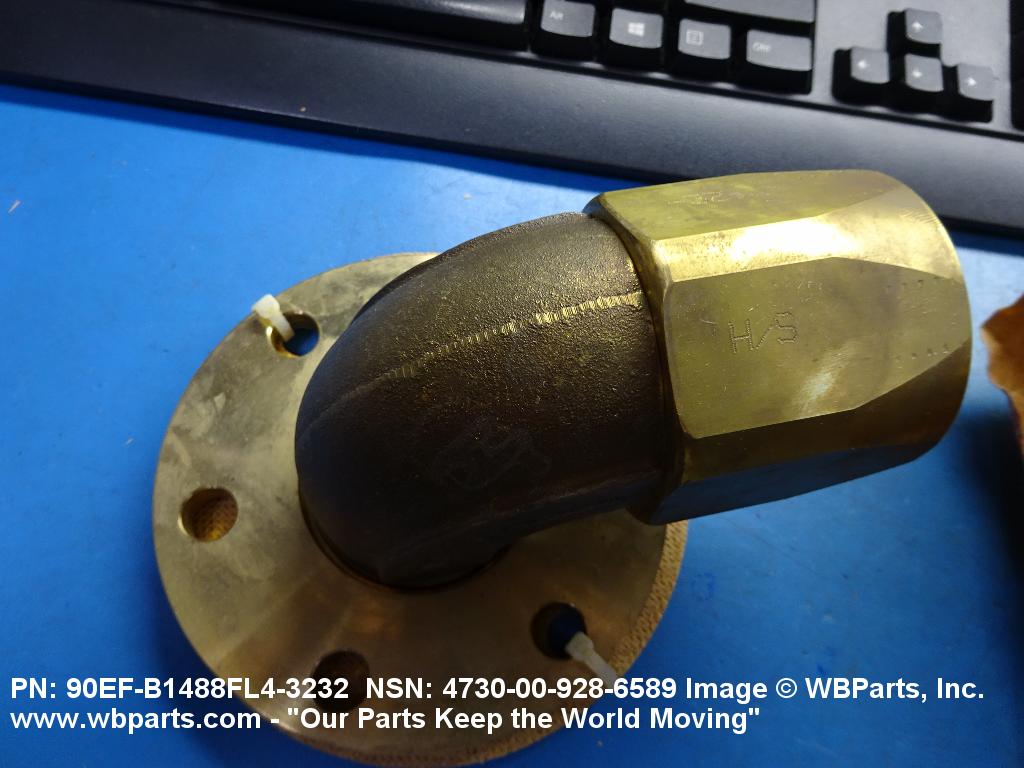

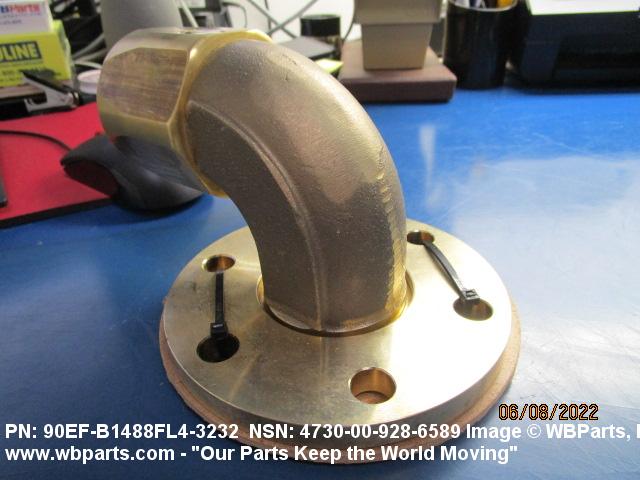

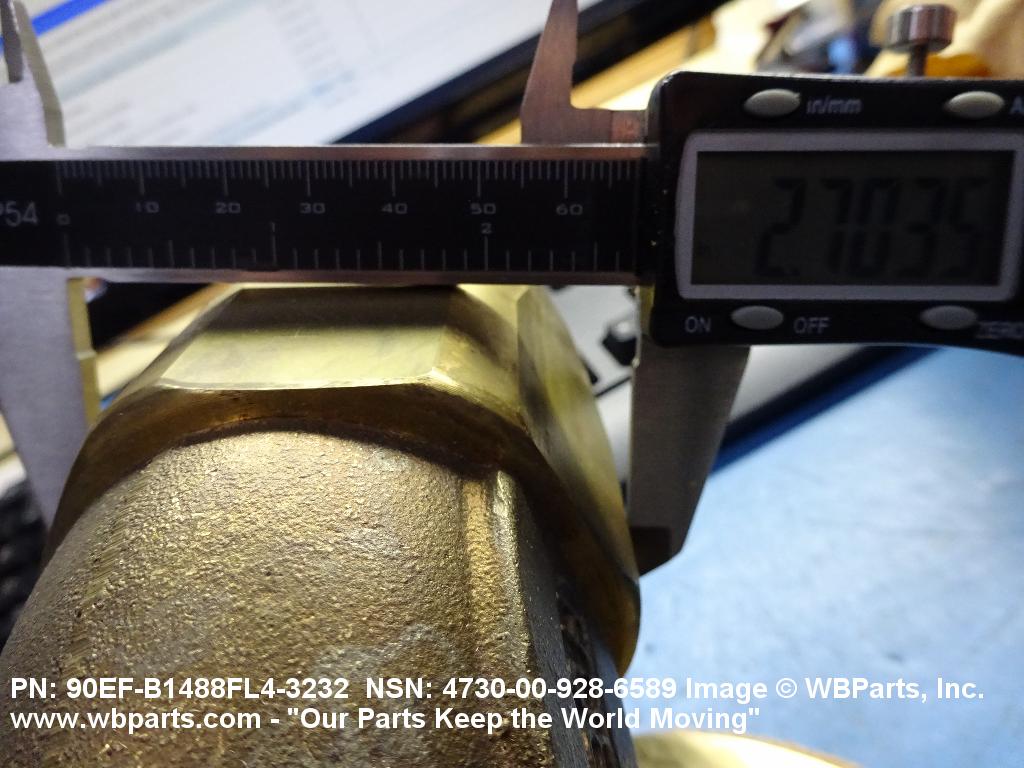

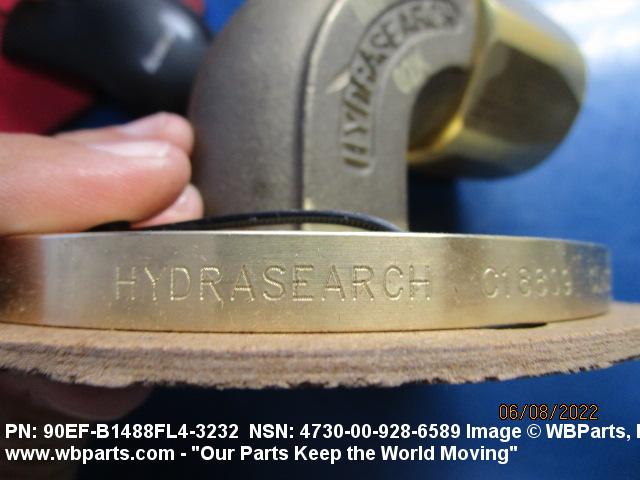

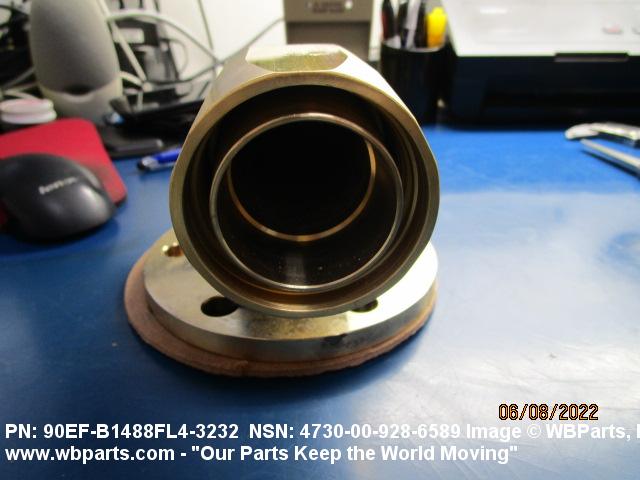

Drawings & Photos | NSN 4730-00-928-6589
Demand History | NSN 4730-00-928-6589
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 66-190103-2-32 | 2025-07-198 | 10 | DIBBS |
| 90EF-B1488FL4-3232 | 2025-07-198 | 10 | DIBBS |
| 66-190103-2-32 | 2024-10-289 | 3 | DIBBS |
| 90EF-B1488FL4-3232 | 2024-10-289 | 3 | DIBBS |
| 66-190103-2-32 | 2024-08-234 | 10 | DIBBS |
| 90EF-B1488FL4-3232 | 2024-08-234 | 10 | DIBBS |
| 66-190103-2-32 | 2023-08-242 | 4 | DIBBS |
| 90EF-B1488FL4-3232 | 2023-08-242 | 4 | DIBBS |
| 4730-00-928-6589 | 2022-05-139 | 4 | United States |
| 66-190103-2-32 | 2021-08-229 | 6 | DIBBS |
| 90EF-B1488FL4-3232 | 2021-08-229 | 6 | DIBBS |
| 66-190103-2-32 | 2021-02-59 | 4 | DIBBS |
| 90EF-B1488FL4-3232 | 2021-02-59 | 4 | DIBBS |
| 66-190103-2-32 | 2020-09-266 | 4 | DIBBS |
| 90EF-B1488FL4-3232 | 2020-09-266 | 4 | DIBBS |
| 66-190103-2-32 | 2019-02-44 | 3 | DIBBS |
| 90EF-B1488FL4-3232 | 2019-02-44 | 3 | DIBBS |
| 4730-00-928-6589 | 2015-08-224 | 10 | DIBBS |
| 4730-00-928-6589 | 2012-02-56 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-928-6589
Technical Data | NSN 4730-00-928-6589
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 903 FLANGE COPPER ALLOY 903 NIPPLE COPPER ALLOY 377 SOCKET |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-390 FED SPEC SINGLE MATERIAL RESPONSE FLANGE QQ-C-390 FED SPEC SINGLE MATERIAL RESPONSE NIPPLE SAE ASSN STD SINGLE MATERIAL RESPONSE SOCKET |
| MAXIMUM OPERATING PRESSURE | 350.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 200.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | FLANGE 1ST END THREADED EXTERNAL HOSE GRIPPING 2ND END |
| CONNECTION STYLE | B61 GRIPPING NIPPLE 2ND END |
| FLANGE SHAPE | ROUND WITH HOLES 1ST END |
| NOMINAL OUTSIDE DIAMETER | 5.560 INCHES 1ST END |
| NOMINAL THICKNESS | 0.440 INCHES 1ST END |
| BOLT HOLE QUANTITY | 6 1ST END |
| BOLT HOLE NOMINAL DIAMETER | 0.560 INCHES 1ST END |
| BOLT CIRCLE NOMINAL DIAMETER | 4.440 INCHES 1ST END |
| FLANGE FACE DESIGN | RAISED STRAIGHT 1ST END |
| RAISED FACE NOMINAL HEIGHT | 0.010 INCHES 1ST END |
| RAISED FACE NOMINAL DIAMETER | 2.740 INCHES 1ST END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 1.810 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED | 2.220 INCHES 2ND END |
| LEG LENGTH | 3.060 INCHES NOMINAL 1ST END 3.890 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
Restrictions/Controls & Freight Information | NSN 4730-00-928-6589
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-928-6589
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
