NSN 4730-01-017-0802 00699067573017, 5157446, 5157-446
Product Details | PIPE REDUCER
4730-01-017-0802 A straight pipe fitting having a different size connection on each end. It is designed to join two pipes of different sizes or two pipe fittings of different sizes. Excludes BUSHING (as modified).
Part Alternates: 00699067573017, 5157446, 5157-446, 4730-01-017-0802, 01-017-0802, 4730010170802, 010170802
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 MAR 1976 | 01-017-0802 | 08505 ( REDUCER, PIPE ) |

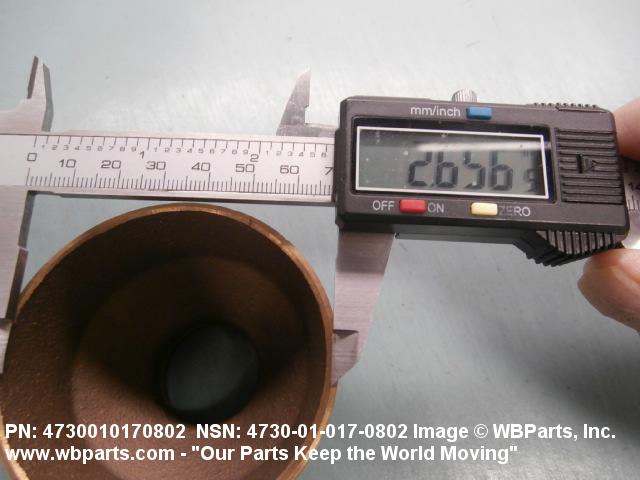

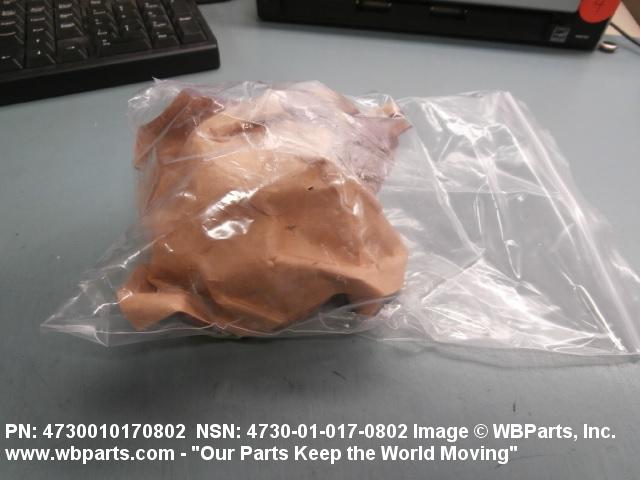

Drawings & Photos | NSN 4730-01-017-0802
Demand History | NSN 4730-01-017-0802
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5157-446 | 2024-04-113 | 1 | DIBBS |
| 4730-01-017-0802 | 2018-01-31 | 1 | DIBBS |
| 4730-01-017-0802 | 2016-05-126 | 10 | DIBBS |
| 4730-01-017-0802 | 2016-04-95 | 4 | DIBBS |
| 4730-01-017-0802 | 2014-07-209 | 1 | United States |
| 4730-01-017-0802 | 2014-07-199 | 1 | United States |
| 4730-01-017-0802 | 2014-06-159 | 1 | DIBBS |
| 4730-01-017-0802 | 2014-04-96 | 5 | DIBBS |
| 4730-01-017-0802 | 2013-09-272 | 5 | DIBBS |
| 4730-01-017-0802 | 2012-10-296 | 20 | DIBBS |
| 4730-01-017-0802 | 2012-07-208 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-017-0802
Related Products | NSN 4730-01-017-0802
Technical Data | NSN 4730-01-017-0802
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY COPPER ALLOY OR COPPER ALLOY 360 BRAZING RING |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTMB61 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | STEAM 1ST RESPONSE WATER-OIL-GAS 2ND RESPONSE FLUID 3RD RESPONSE |
| MAXIMUM OPERATING PRESSURE | 200.0 POUNDS PER SQUARE INCH 1ST RESPONSE 400.0 POUNDS PER SQUARE INCH 2ND RESPONSE |
| MAXIMUM OPERATING TEMP | 384.0 DEG FAHRENHEIT 1ST RESPONSE 148.0 DEG FAHRENHEIT 2ND RESPONSE |
| CONNECTION TYPE | UNTHREADED INTERNAL PIPE 1ST END UNTHREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B41B SOCKET BRAZING RING 1ST END B100B PLAIN 2ND END |
| NOMINAL PIPE SIZE ACCOMMODATED | 1.000 INCHES 1ST END 2.500 INCHES 2ND END |
| NOMINAL OVERALL LENGTH | 2.125 INCHES |
| REDUCER TYPE | CONCENTRIC |
Restrictions/Controls & Freight Information | NSN 4730-01-017-0802
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-017-0802
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
