NSN 4730-01-080-5815 AE80230Z, 4053946, 01-080-5815

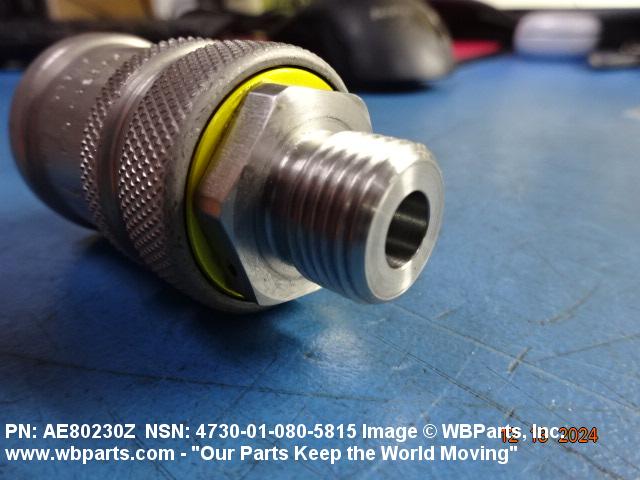

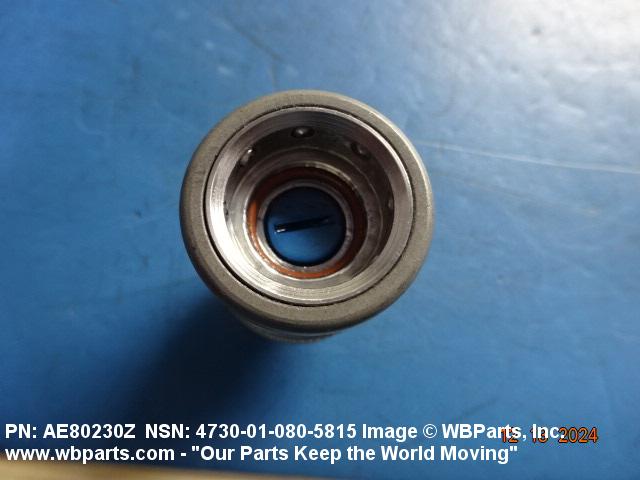

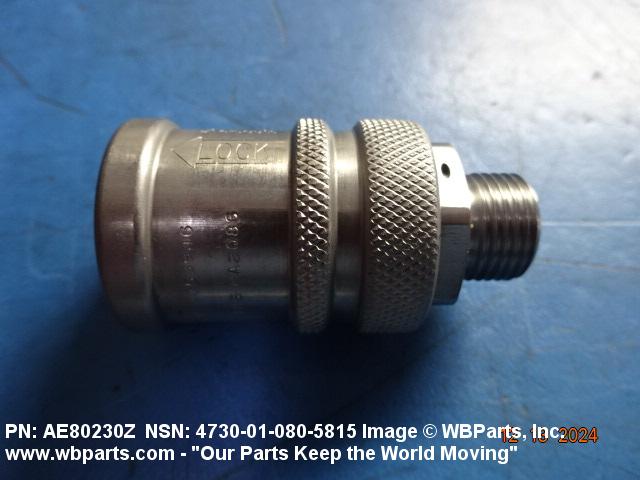

Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-080-5815 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AE80230Z, 4053946, 4730-01-080-5815, 01-080-5815, 4730010805815, 010805815
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 JUL 1979 | 01-080-5815 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-080-5815
Demand History | NSN 4730-01-080-5815
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AE80230Z | 2025-12-351 | 1 | United States |
| 4730-01-080-5815 | 2025-12-344 | 1 | United States |
| AE80230Z | 2025-04-111 | 2 | us |
| 4730-01-080-5815 | 2024-12-340 | 2 | us |
| 4730-01-080-5815 | 2024-12-340 | 2 | us |
Cross Reference | NSN 4730-01-080-5815
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4053946 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 4053946 | 11449 | TURBO POWER & MARINE SYSTEM INC SUB OF UNITED TECHNOLOGIES CORP |
| 4053946 | 52661 | UNITED TECHNOLOGIES CORPORATION DBA PRATT & WHITNEY |
| 4053946 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| AE80230Z | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AE80230Z | 4N674 | EATON AEROQUIP INC ENGINEERED SYSTEMS DIV |
