NSN 4730-01-084-4064 MS5184210SS, MS51842-10SS, MS5184230SS
Product Details | TUBE TO BOSS ELBOW

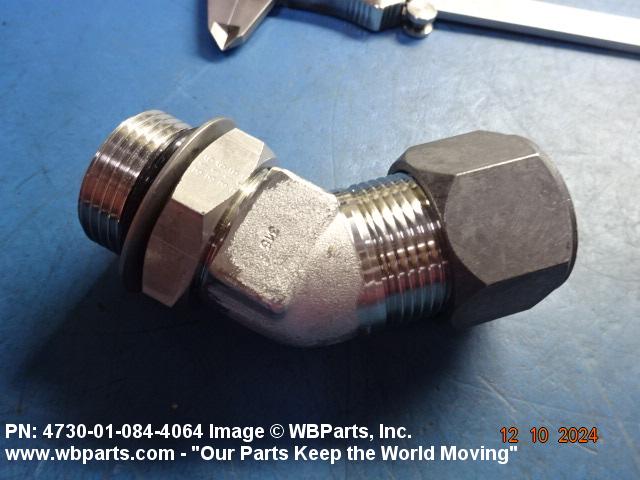

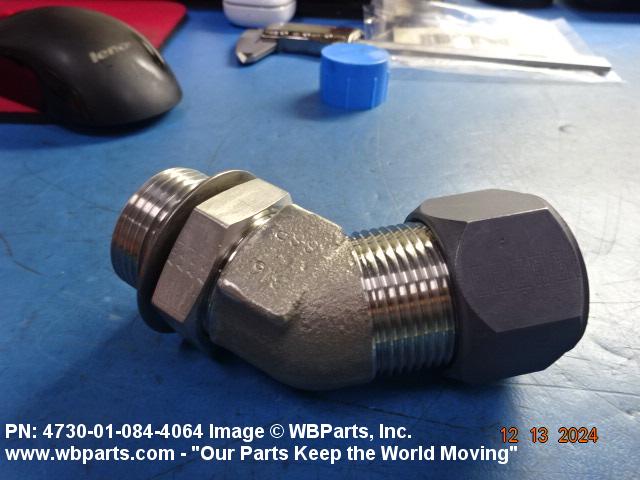

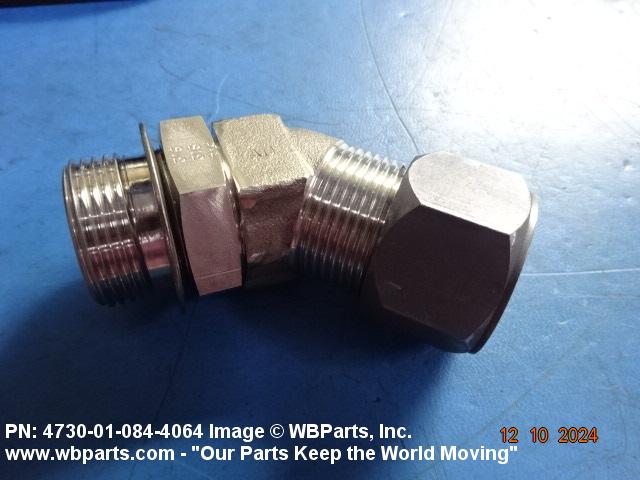

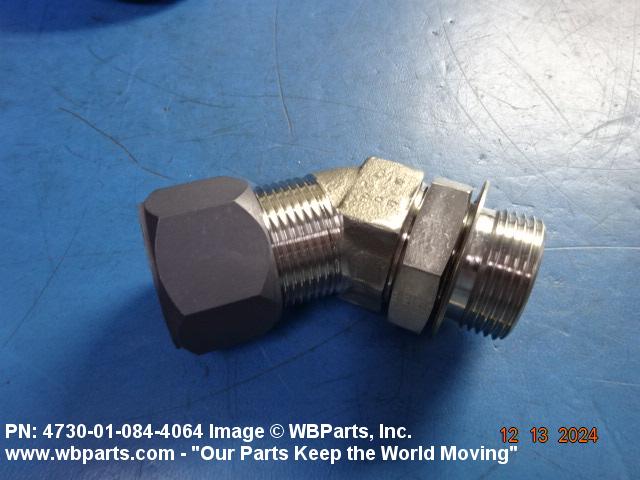

4730-01-084-4064 A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like.
Part Alternates: MS5184210SS, MS51842-10SS, MS5184230SS, MS51842-30SS, 16V5BUSS, 16V5BU-SS, 4730-01-084-4064, 01-084-4064, 4730010844064, 010844064
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 OCT 1979 | 01-084-4064 | 22679 ( ELBOW, TUBE TO BOSS ) |
Drawings & Photos | NSN 4730-01-084-4064
Demand History | NSN 4730-01-084-4064
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-084-4064 | 2025-03-71 | 2 | KR |
| MS5184210SS | 2024-11-320 | 12 | us |
| MS5184210SS | 2024-11-312 | 12 | us |
| MS5184210SS | 2024-11-306 | 12 | us |
| 4730-01-084-4064 | 2024-07-193 | 131 | DIBBS |
| 4730-01-084-4064 | 2022-10-279 | 77 | DIBBS |
| 4730-01-084-4064 | 2014-01-30 | 209 | DIBBS |
| 4730-01-084-4064 | 2013-11-330 | 59 | DIBBS |
| 4730-01-084-4064 | 2013-11-326 | 57 | DIBBS |
| 4730-01-084-4064 | 2013-11-315 | 59 | DIBBS |
| 4730-01-084-4064 | 2013-11-311 | 57 | DIBBS |
Cross Reference | NSN 4730-01-084-4064
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16V5BU-SS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 16V5BU-SS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| MS51842-10SS | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51842-30SS | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-084-4064
Related Products | NSN 4730-01-084-4064
Technical Data | NSN 4730-01-084-4064
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE 1 FED SPEC SINGLE TREATMENT RESPONSE OR QQ-P-35,TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B66 FLARELESS 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END |
| SEAT ANGLE | 12.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UN ALL ENDS |
| NOMINAL THREAD SIZE | 1.312 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD CLASS | 2A ALL ENDS |
| LEG LENGTH | 1.360 INCHES NOMINAL 1ST END 1.860 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 45.0 DEGREES |
| FURNISHED ITEMS AND QUANTITY | 1 BULKHEAD NUT AND 1 TUBE COUPLING NUT W/SLEEVE AND 1 FLAT WASHER |
| SPECIFICATION/STANDARD DATA | 96906-MS51842 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51842-10SS |
