NSN 4730-01-086-4064 AN783D20 , AS1031D202020, AS1031E
Product Details | PIPE TO TUBE ELBOW
4730-01-086-4064 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AN783D20 , AS1031D202020, AS1031E , AS4875/1 , AS48751, BC10008464, SAE J246 4-4 100202BA, SAEJ24644100202BA, SK60066, SK-6006-6, SW262671, SW26267-1, 7315 , 90321469X4X4, 9032-1469X4X4 , J246, 001813V002, 01358103A0, 013581-03A0, 1000600 , 10519379, 11763FX, 13270544, 132705-4-4 , 1469X4X4 , 2222645, 222-2645, 269NTA44, 269NTA-4-4, 4-4 100202BA, 44100202BA, 4469F04X04, 4-469-F-04X04, 4730-01-086-4064, 01-086-4064, 4730010864064, 010864064
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 NOV 1979 | 01-086-4064 | 03770 ( ELBOW, PIPE TO TUBE ) |

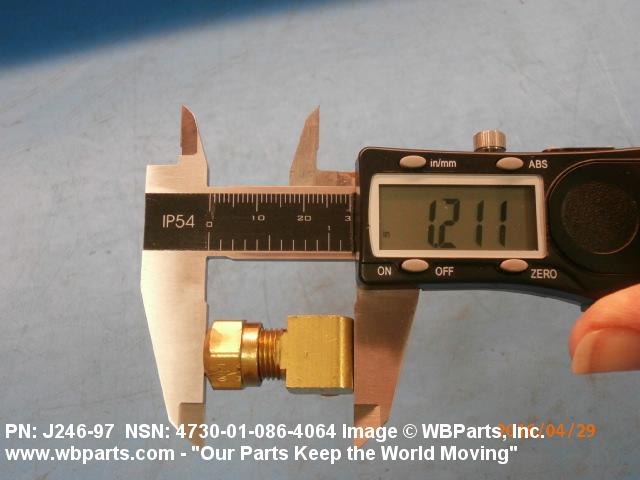

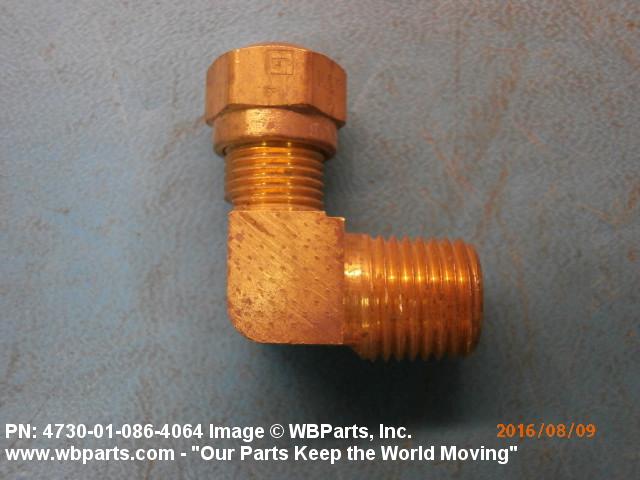

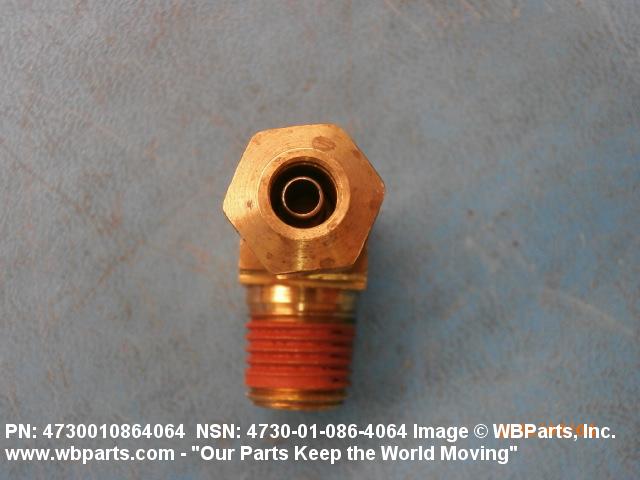

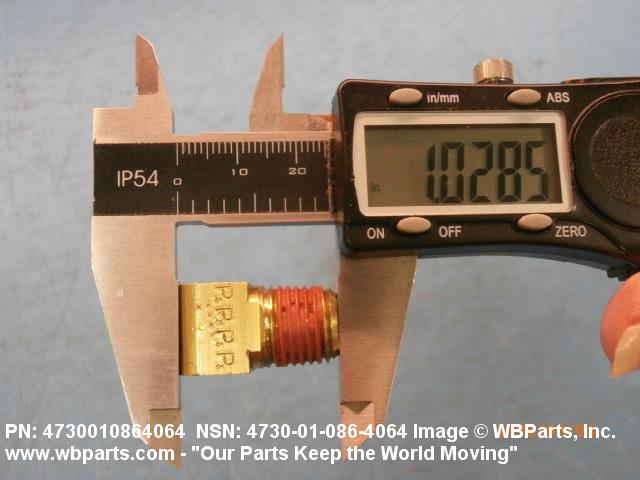

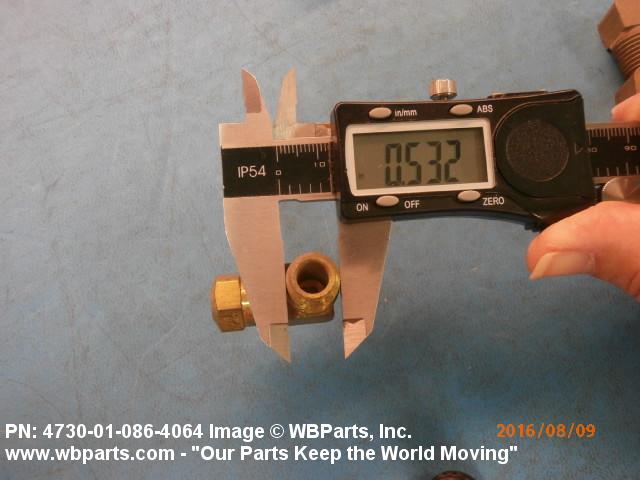

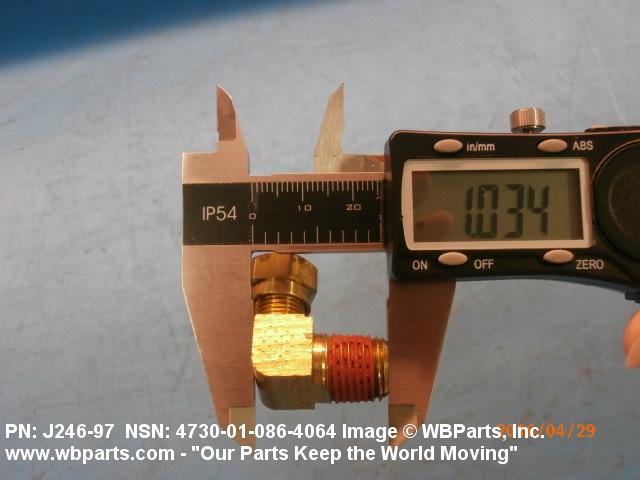

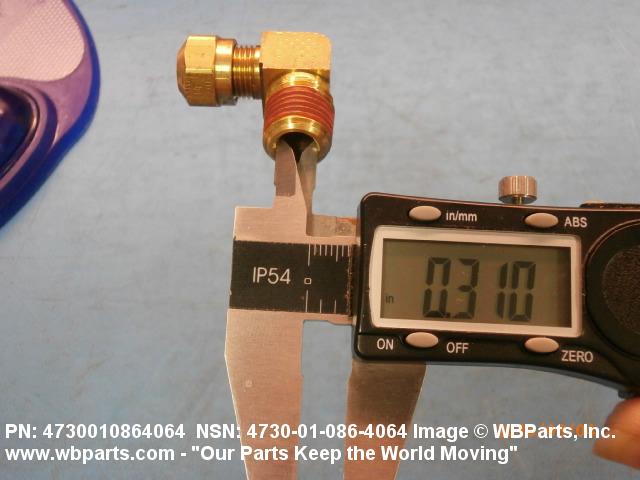

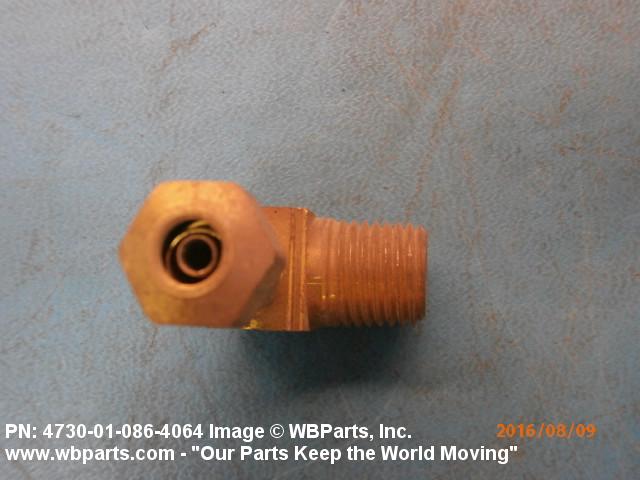

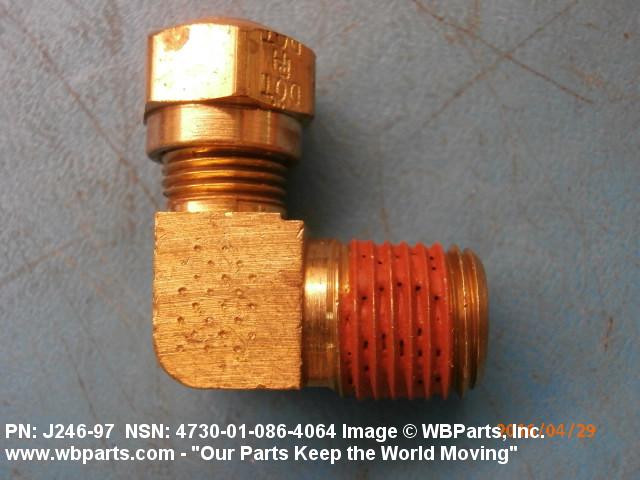

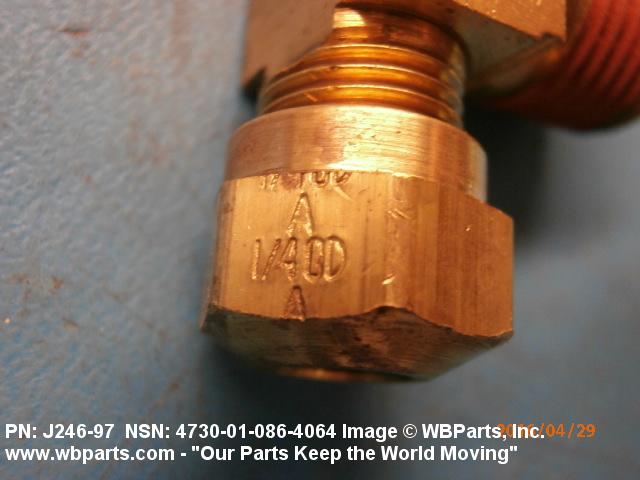

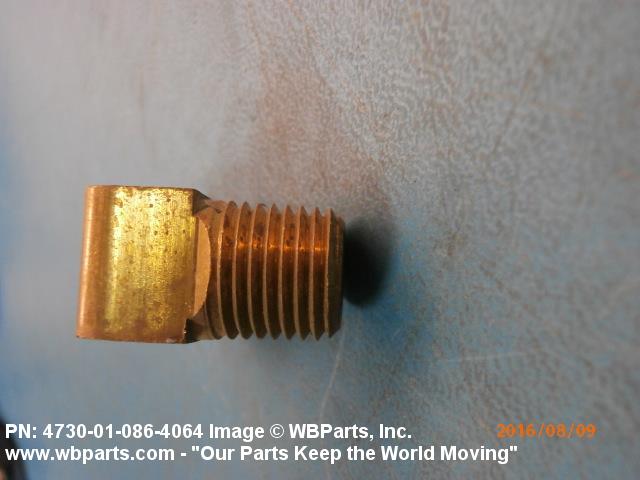

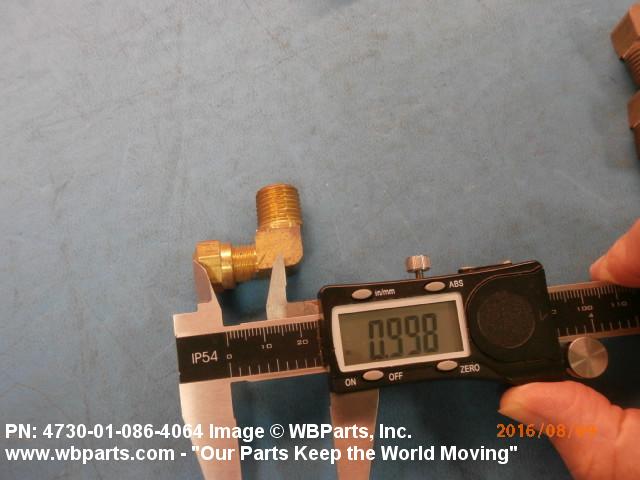

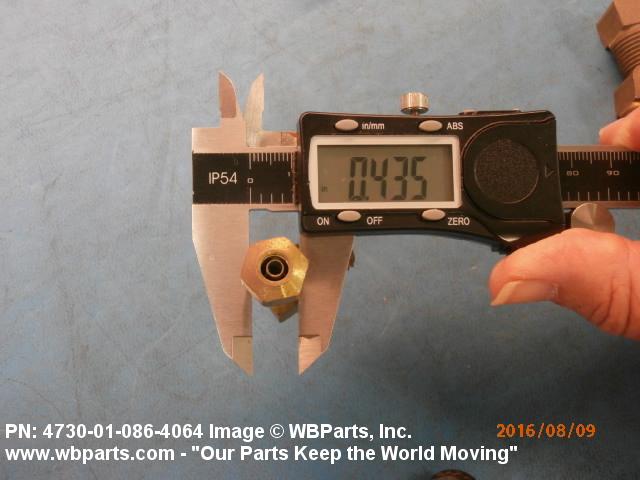

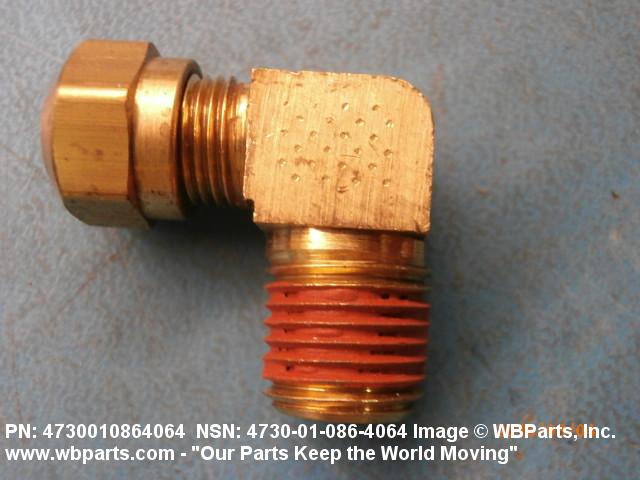

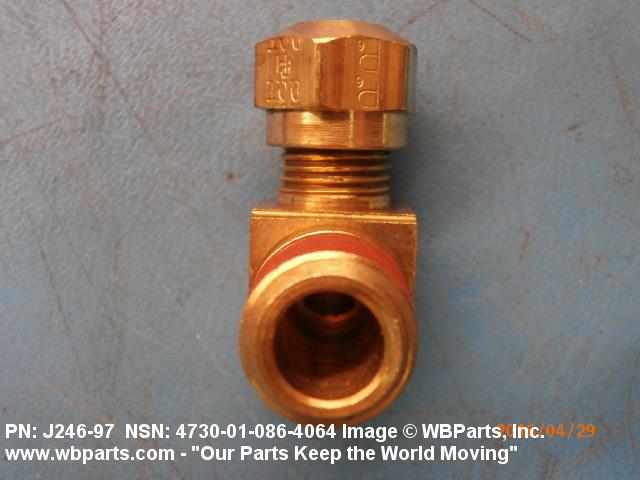

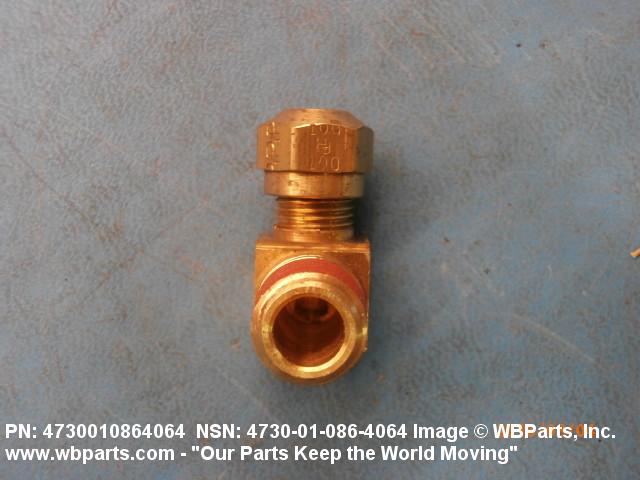

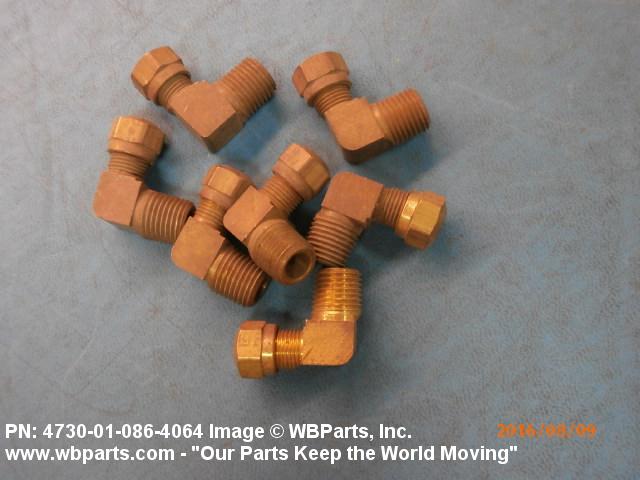

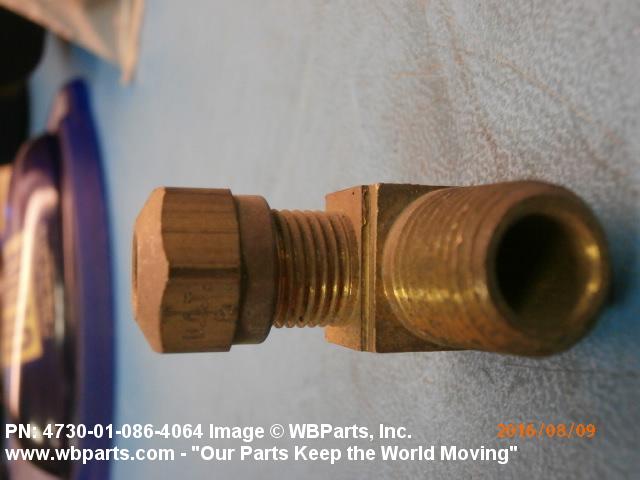

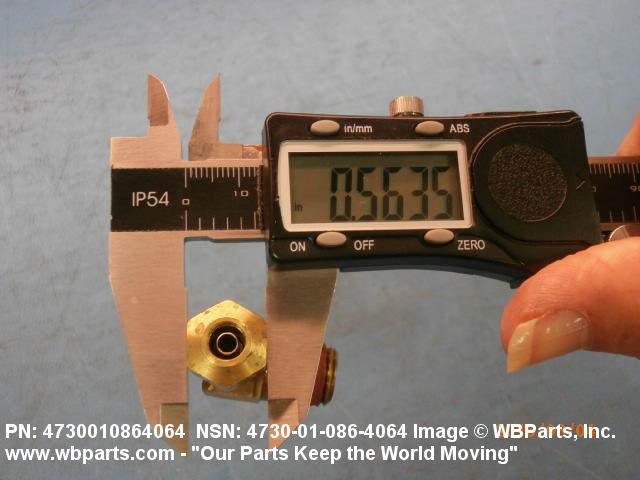

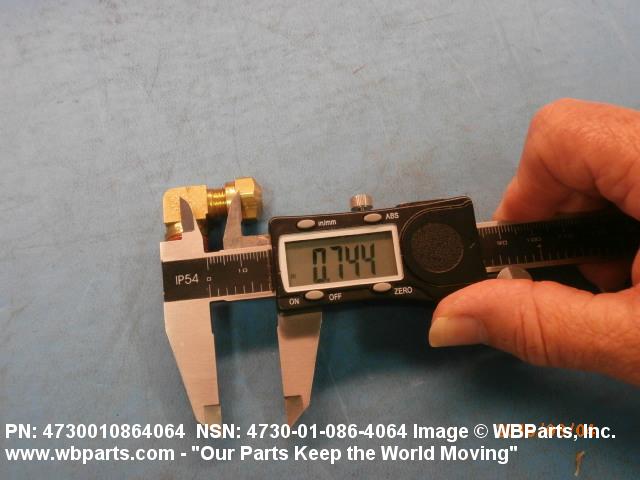

Drawings & Photos | NSN 4730-01-086-4064
Demand History | NSN 4730-01-086-4064
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-086-4064 | 2025-11-306 | 935 | DIBBS |
| 4730-01-086-4064 | 2024-09-255 | 190 | US |
| 4730-01-086-4064 | 2024-09-255 | 1267 | DIBBS |
| SAEJ24644100202BA | 2024-01-24 | 1 | us |
| 4730-01-086-4064 | 2023-09-272 | 1801 | DIBBS |
| 4730-01-086-4064 | 2023-09-257 | 1801 | DIBBS |
| 4730-01-086-4064 | 2023-08-242 | 1801 | DIBBS |
| 4730-01-086-4064 | 2023-08-233 | 1206 | DIBBS |
| 4730-01-086-4064 | 2023-04-103 | 452 | DIBBS |
| 4730-01-086-4064 | 2023-02-47 | 520 | DIBBS |
| 4730-01-086-4064 | 2022-10-293 | 343 | DIBBS |
| 4730-01-086-4064 | 2022-08-227 | 2319 | DIBBS |
| 4730-01-086-4064 | 2022-07-212 | 2319 | DIBBS |
| 4730-01-086-4064 | 2021-08-214 | 258 | US |
| 4730-01-086-4064 | 2021-08-214 | 258 | DIBBS |
| 4730-01-086-4064 | 2020-10-282 | 1 | DIBBS-RFPs |
| 4730-01-086-4064 | 2020-09-259 | 1 | DIBBS-RFPs |
| 4730-01-086-4064 | 2020-08-220 | 1162 | DIBBS |
| 4730-01-086-4064 | 2020-08-219 | 996 | DIBBS |
| 4730-01-086-4064 | 2020-07-205 | 1162 | DIBBS |
| 4730-01-086-4064 | 2020-05-149 | 4491 | DIBBS |
| 4730-01-086-4064 | 2019-05-136 | 2887 | DIBBS |
| 4730-01-086-4064 | 2018-10-291 | 5474 | DIBBS |
| 4730-01-086-4064 | 2017-10-295 | 2000 | DIBBS |
| 4730-01-086-4064 | 2017-03-88 | 1000 | DIBBS |
| 4730-01-086-4064 | 2016-08-214 | 12 | United States |
| 4730-01-086-4064 | 2016-05-125 | 2000 | DIBBS |
| 11763FX | 2016-04-116 | 12 | United States |
| 4730-01-086-4064 | 2014-01-23 | 5109 | DIBBS |
| 4730-01-086-4064 | 2014-01-08 | 5109 | DIBBS |
| 4730-01-086-4064 | 2013-01-31 | 3402 | DIBBS |
| 4730-01-086-4064 | 2013-01-23 | 3300 | DIBBS |
| 4730-01-086-4064 | 2012-10-277 | 2354 | DIBBS |
| 4730-01-086-4064 | 2012-06-181 | 2142 | DIBBS |
| 4730-01-086-4064 | 2012-03-68 | 2606 | DIBBS |
| 4730-01-086-4064 | 2012-01-27 | 1245 | DIBBS |
| 4730-01-086-4064 | 2009-09-261 | 2271 | DIBBS |
Cross Reference | NSN 4730-01-086-4064
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 001813V002 | 59556 | KOVATCH CORP. |
| 013581-03A0 | 44185 | NMC/WOLLARD, INC. |
| 1000600 | 1EFH8 | GENERAL DYNAMICS LAND SYSTEMS - FORCE PROTECTION INC. |
| 10519379 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 11763FX | 45152 | OSHKOSH CORPORATION |
| 11763FX | 75Q65 | OSHKOSH DEFENSE, LLC |
| 132705-4-4 | 10237 | CADILLAC GAGE TEXTRON INC. |
| 1469X4X4 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 1469X4X4 | 79470 | DANA CORP WEATHERHEAD DIV |
| 1469X4X4 | Z0FG6 | DRIVETRAIN AUSTRALIA PTY LTD |
| 222-2645 | 10988 | CNH INDUSTRIAL AMERICA LLC |
| 269NTA-4-4 | 009L1 | CONNECTOR SPECIALISTS, INC. |
| 269NTA-4-4 | 09990 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC VALVE DIV |
| 269NTA-4-4 | 61424 | PARKER-HANNIFIN CORPORATION DBA PARFLEX DIV |
| 269NTA-4-4 | 93061 | PARKER-HANNIFIN, CORPORATION DBA BRASS PRODUCTS DIV |
| 4-4 100202BA | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
| 4-4 100202BA | 65459 | LANDOLL CORPORATION |
| 4-4 100202BA | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 4-469-F-04X04 | 09505 | DAYCO INDUSTRIAL |
| 7315 | 58499 | U.W.D. MFG., INC. |
| 9032-1469X4X4 | Z4117 | VOLVO GROUP AUSTRALIA PTY LTD |
| BC10008464 | 44185 | NMC/WOLLARD, INC. |
| J246 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| SAE J246 4-4 100202BA | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| SK-6006-6 | 0EAK3 | GSE MANAGEMENT CO |
| SW26267-1 | 98255 | DRS SUSTAINMENT SYSTEMS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-086-4064
Related Products | NSN 4730-01-086-4064
Technical Data | NSN 4730-01-086-4064
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 344 OR COPPER ALLOY 360 OVERALL |
| MAXIMUM OPERATING PRESSURE | 150.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 200.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B65 COMPRESSION 1ST END B67B PLAIN 2ND END |
| SEAT NOMINAL RADIUS | 0.312 INCHES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNS 1ST END NPTF 2ND END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 24 1ST END |
| THREAD CLASS | 2A 1ST END |
| LEG LENGTH | 0.688 INCHES NOMINAL 1ST END 0.875 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| FURNISHED ITEMS AND QUANTITY | 1 TUBE COUPLING NUT AND 1 COUPLING SLEEVE |
| SPECIAL FEATURES | TUBE SUPPORT |
| SPECIFICATION/STANDARD DATA | 81343-J246 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 7A FIGURE |
Restrictions/Controls & Freight Information | NSN 4730-01-086-4064
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-086-4064
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
