NSN 4730-01-090-7579 SEC07C4, SEC07-C-4, DY90C4
Product Details | FLARED TUBE FITTING CONICAL SEAL
4730-01-090-7579 A cylindrical soft metallic crush item used to seal high pressure flared tube connections. It is designed to be inserted between the conical surface of a flared tube fitting and the inner surface of the flared end of the connecting tube.
Part Alternates: SEC07C4, SEC07-C-4, DY90C4, DY90-C-4, GS570AB, GS570ABC4, GS570AB-C4, DY90, 4730-01-090-7579, 01-090-7579, 4730010907579, 010907579
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 23 FEB 1980 | 01-090-7579 | 32837 ( SEAL, CONICAL, FLARED TUBE FITTING ) |

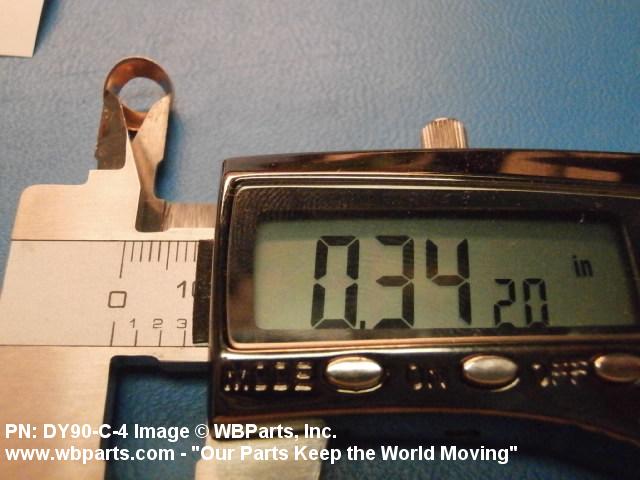

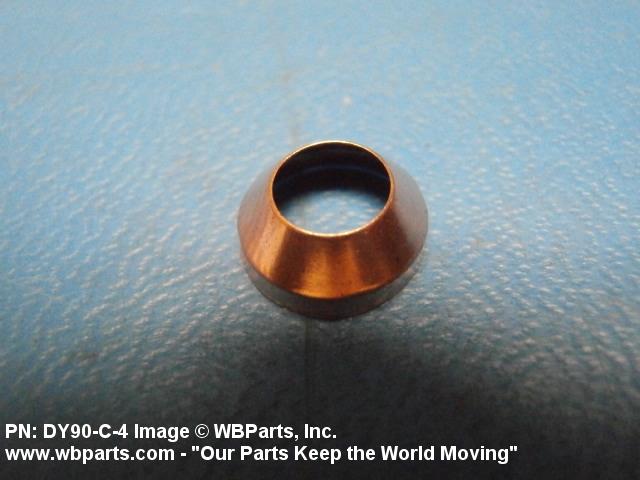

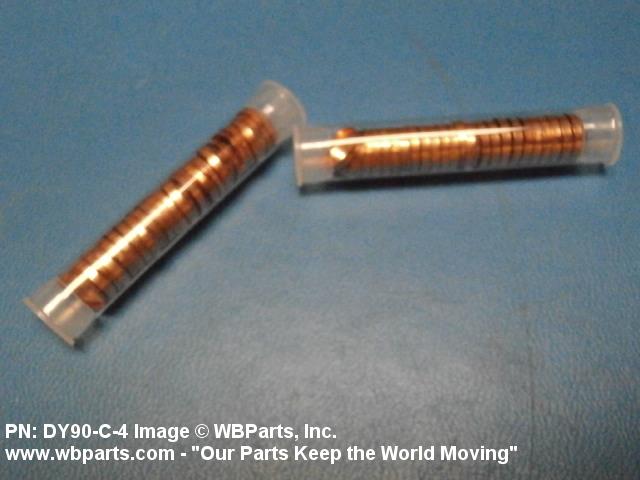

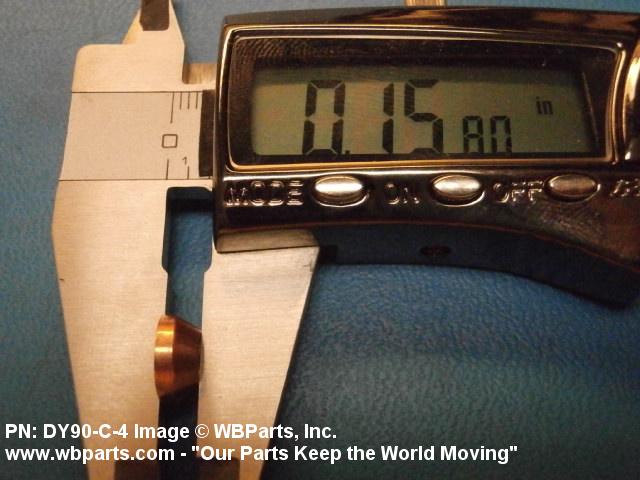

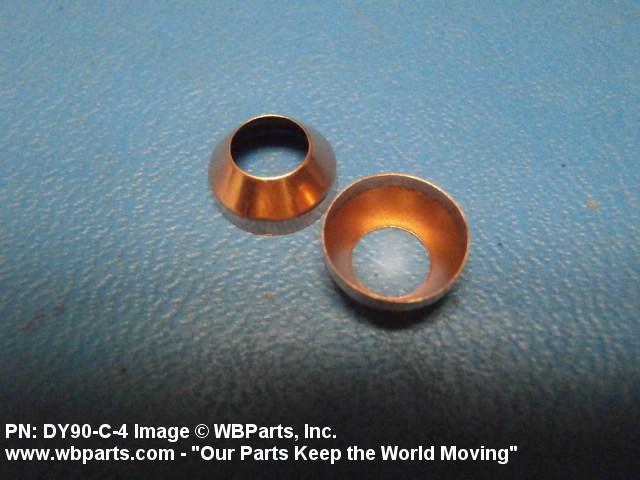

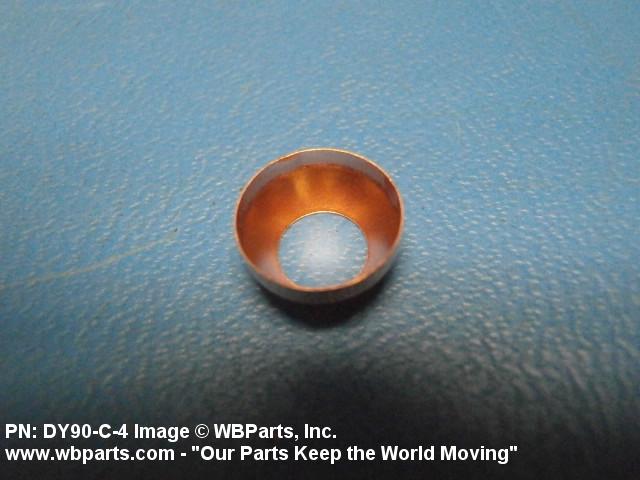

Drawings & Photos | NSN 4730-01-090-7579
Demand History | NSN 4730-01-090-7579
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-090-7579 | 2022-06-165 | 500 | United States |
| SEC07C4 | 2021-07-197 | 20 | Croatia |
| 4730-01-090-7579 | 2021-02-39 | 10 | US |
| DY90C4 | 2015-04-115 | 50 | United States |
| DY90C4 | 2014-08-213 | 100 | United States |
| DY90C4 | 2010-09-252 | 8 | US |
Cross Reference | NSN 4730-01-090-7579
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DY90 | 64162 | DEL AEROSPACE, INC. |
| DY90-C-4 | 64162 | DEL AEROSPACE, INC. |
| GS570AB | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| GS570AB-C4 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| SEC07-C-4 | 33447 | SECO SEALS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-090-7579
Technical Data | NSN 4730-01-090-7579
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY, QQ-C-576, SOFT ANNEALED |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
| STYLE DESIGNATOR | M5 SEAL |
| WALL THICKNESS | 0.005 INCHES NOMINAL |
| OVERALL LENGTH | ANY ACCEPTABLE |
| OUTSIDE DIAMETER | 0.359 INCHES NOMINAL |
| BODY LENGTH | 0.075 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 37.0 |
| SPECIAL FEATURES | NOT LOX CLEANED |
Restrictions/Controls & Freight Information | NSN 4730-01-090-7579
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-090-7579
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
