NSN 4730-01-096-3170 MS51504A54, MS51504A5-4, MS51504B54
Product Details | PIPE TO TUBE ELBOW
4730-01-096-3170 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS51504A54, MS51504A5-4, MS51504B54, MS51504B5-4, C5405X5X4, MILF18866, MIL-F-18866, J514, 202445S, 2024-4-5S, 26020787, 26-0207-87, 401078-006, 44Z591D6, 4-5 070202C, 45070202C, 5020287, 502-0287, 5-4 070202C, 54070202C, 54CBTXS, 5-4CBTXS, 54CTXS, 5-4CTXS, 582254, 5822-5-4, 610916R1, 668386, 7011096, 70-1109-6, 71484206, 71-4842-06, 82254S, 822-5-4S, 849FS-5/16FLX1/4NPT, 849FS516FLX14NPT, 4730-01-096-3170, 01-096-3170, 4730010963170, 401078006, 010963170
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 JUN 1980 | 01-096-3170 | 03770 ( ELBOW, PIPE TO TUBE ) |

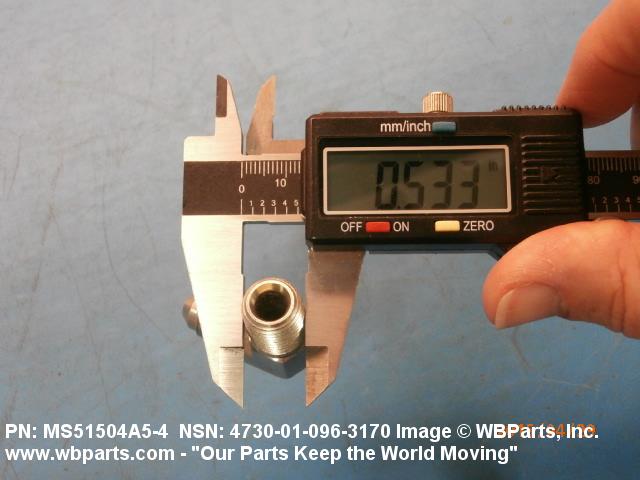

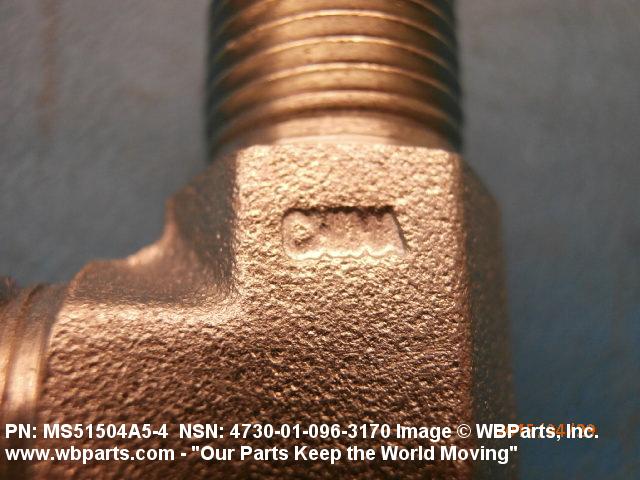

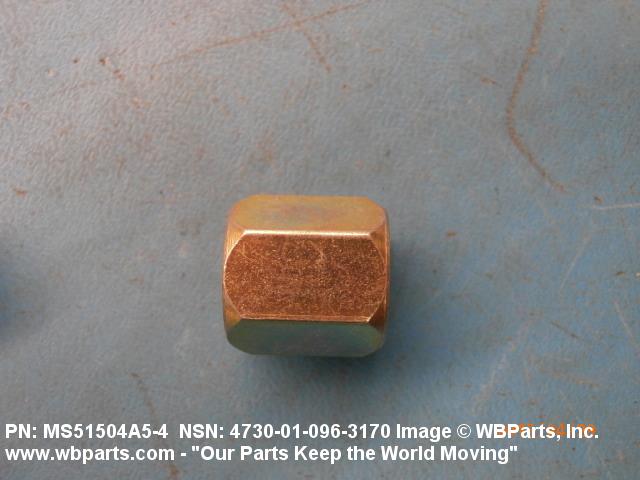

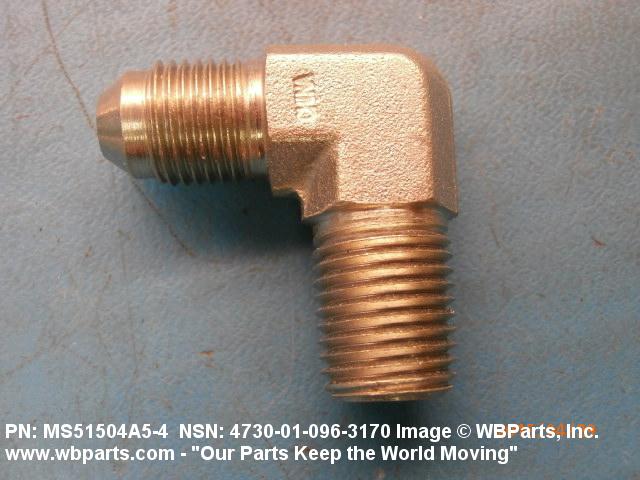

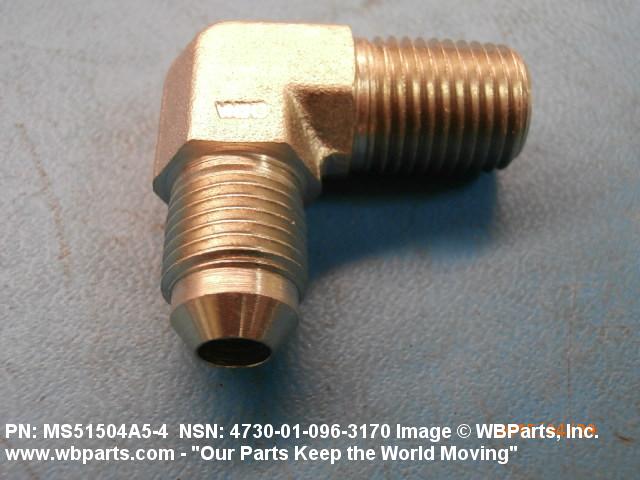

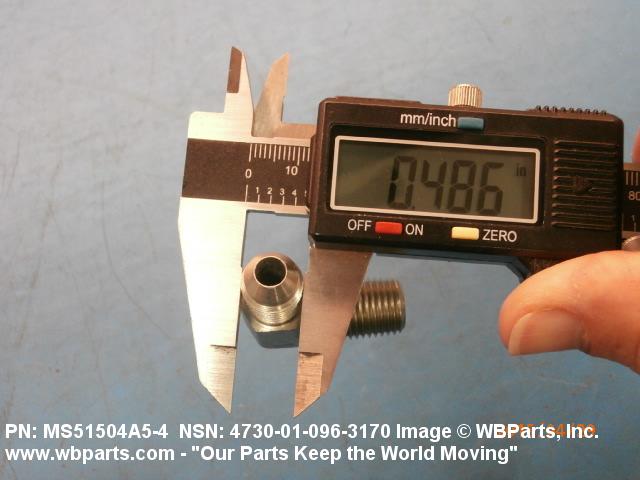

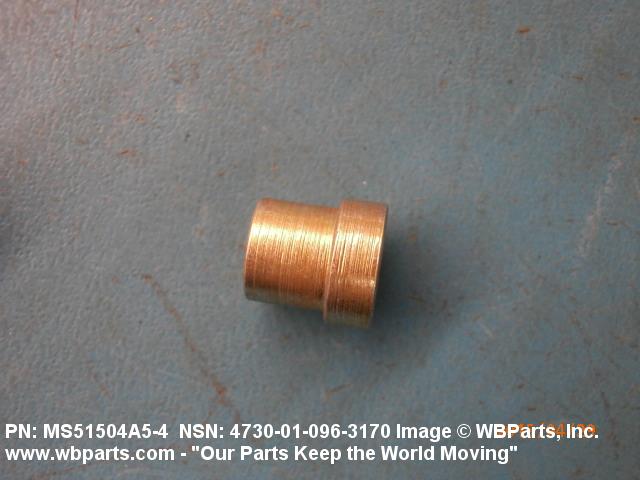

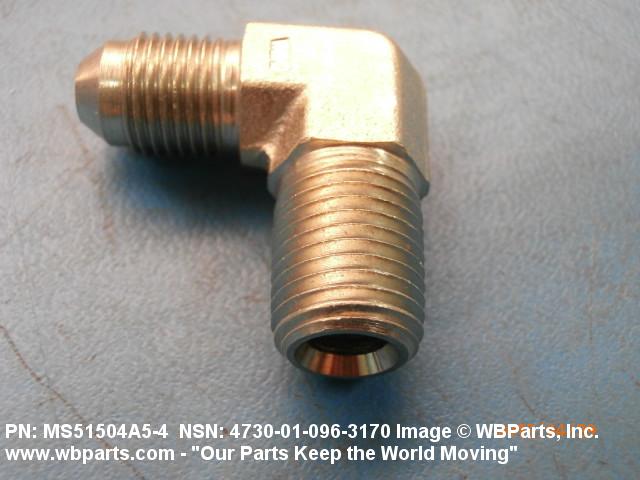

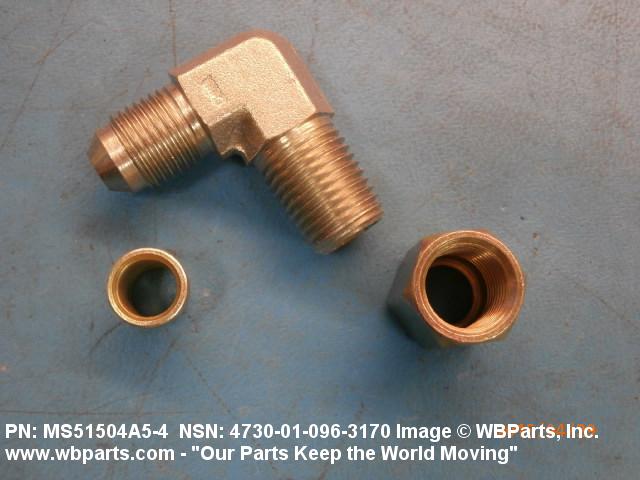

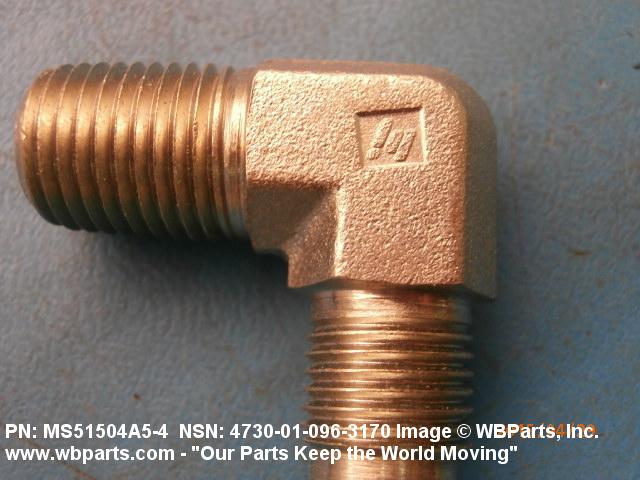

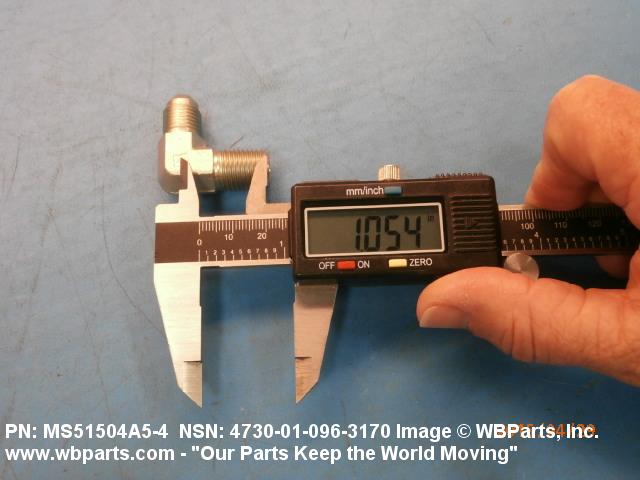

Drawings & Photos | NSN 4730-01-096-3170
Demand History | NSN 4730-01-096-3170
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-096-3170 | 2015-04-99 | 40 | Saudi Arabia |
| MS51504A54 | 2015-03-89 | 40 | Saudi Arabia |
| J514 | 2015-02-48 | 1 | us |
| 4730-01-096-3170 | 2014-10-279 | 649 | DIBBS |
| 4730-01-096-3170 | 2010-08-215 | 80 | DIBBS |
| J514 | 2010-02-47 | 20 | us |
Cross Reference | NSN 4730-01-096-3170
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2024-4-5S | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 26-0207-87 | 02978 | L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS |
| 4-5 070202C | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 401078-006 | 93742 | ENGINEERED ELECTRIC COMPANY DBA DRS FERMONT |
| 44Z591D6 | 27315 | MORRIS MATERIAL HANDLING, INC. |
| 5-4 070202C | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 5-4CBTXS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 5-4CBTXS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 5-4CTXS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 502-0287 | 44940 | CUMMINS POWER GENERATION INC. |
| 5822-5-4 | 79470 | DANA CORP WEATHERHEAD DIV |
| 610916R1 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 668386 | 12603 | CLARK EQUIPMENT CO |
| 70-1109-6 | 30554 | DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER |
| 71-4842-06 | 30554 | DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER |
| 822-5-4S | 54214 | BOWES MFG INC |
| 849FS-5/16FLX1/4NPT | 30327 | IMPERIAL |
| C5405X5X4 | 62502 | GOODMAN BALL, INC. DBA GBI |
| C5405X5X4 | 79470 | DANA CORP WEATHERHEAD DIV |
| J514 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-18866 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS51504A5-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51504B5-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SAE J514 5-4 070202C | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-096-3170
Restrictions/Controls & Freight Information | NSN 4730-01-096-3170
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC SUB2 |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | YS | Saudi Arabia YT YV |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
