Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-190-7984 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AE98509G, 2348W099, 4120215, 412021-5, 4730-01-190-7984, 01-190-7984, 4730011907984, 011907984
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 02 OCT 1984 | 01-190-7984 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

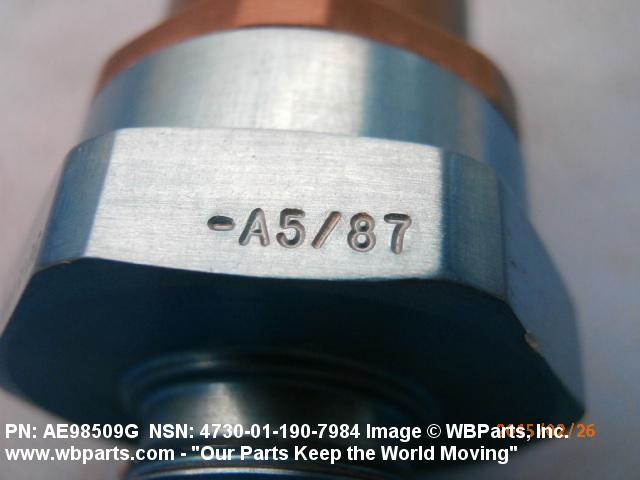

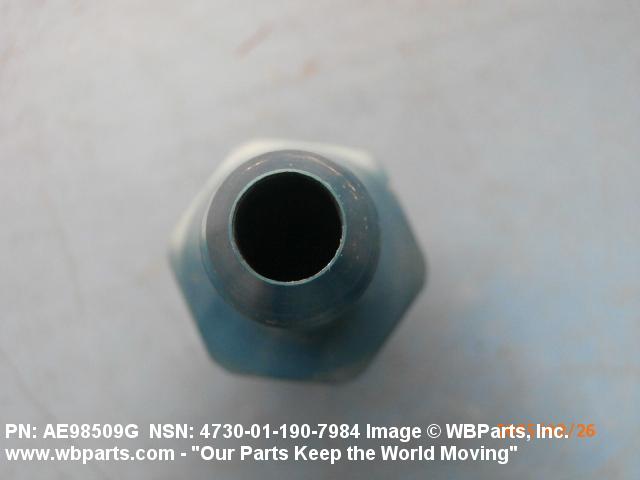

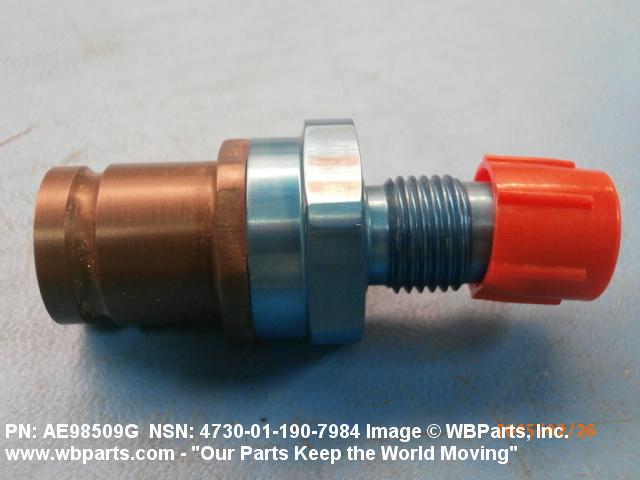

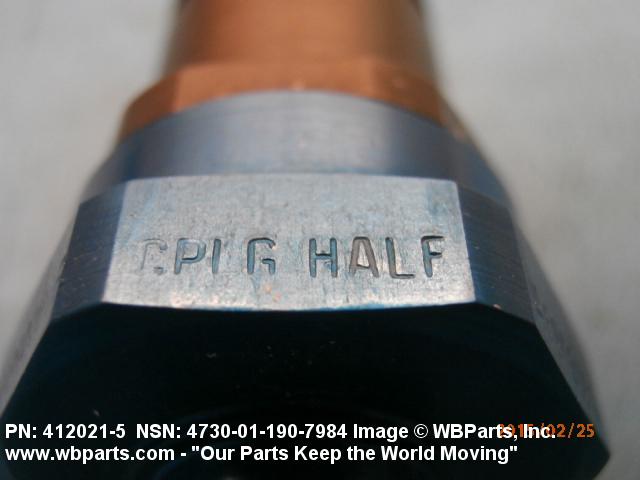

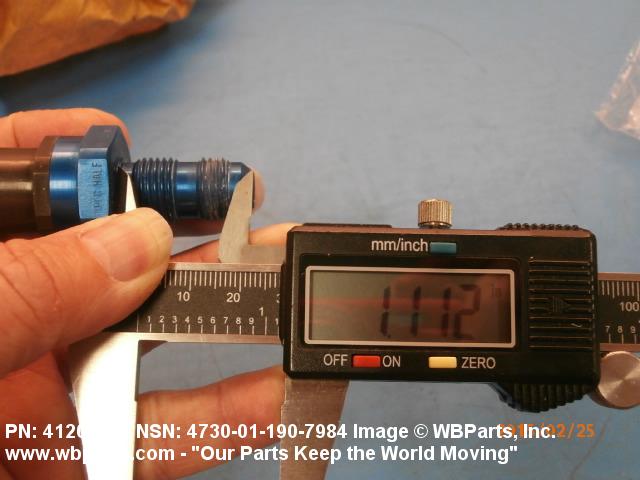

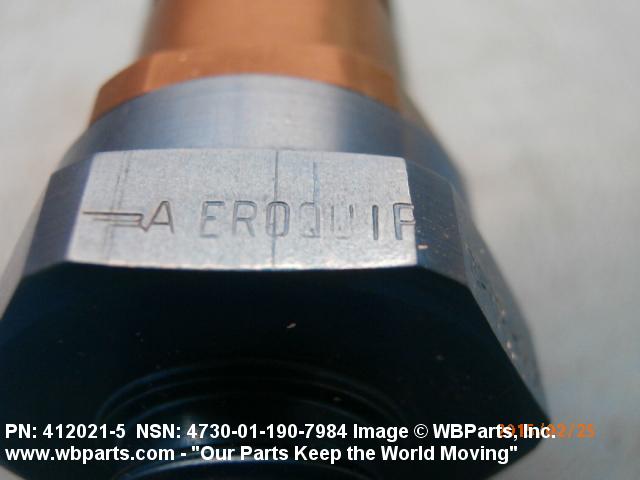

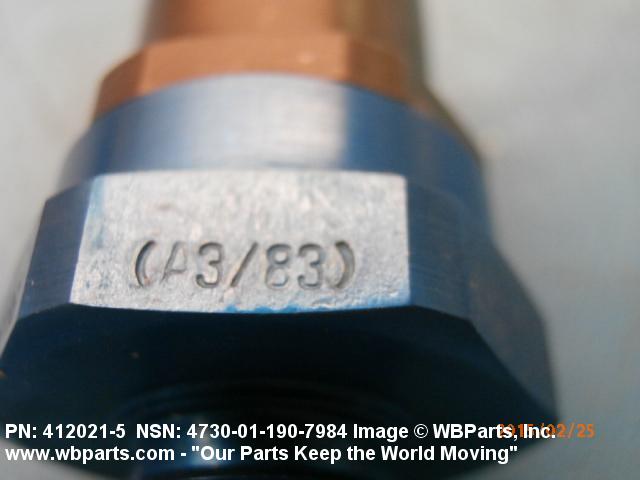

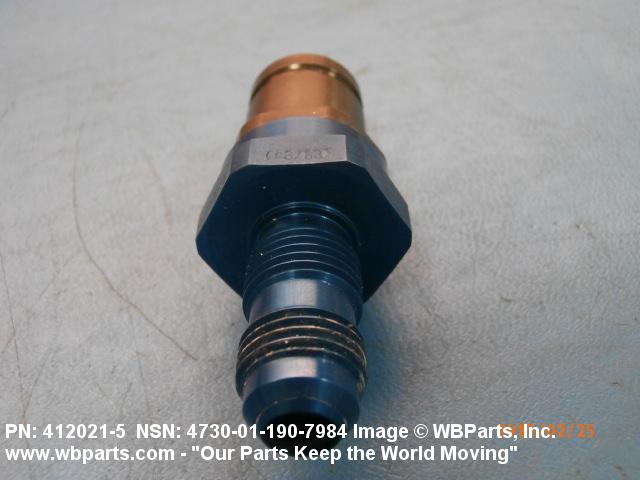

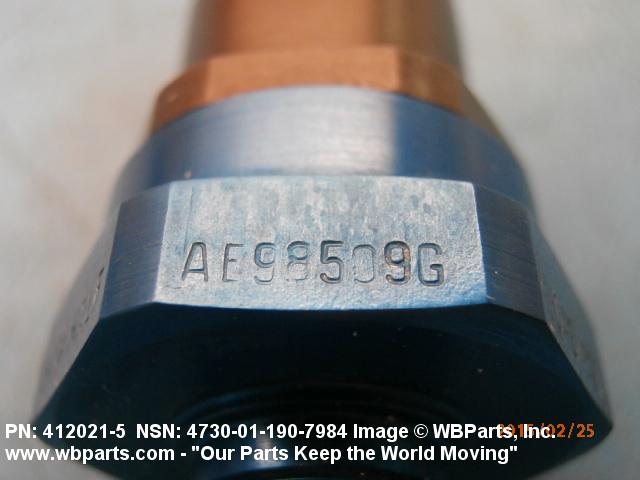

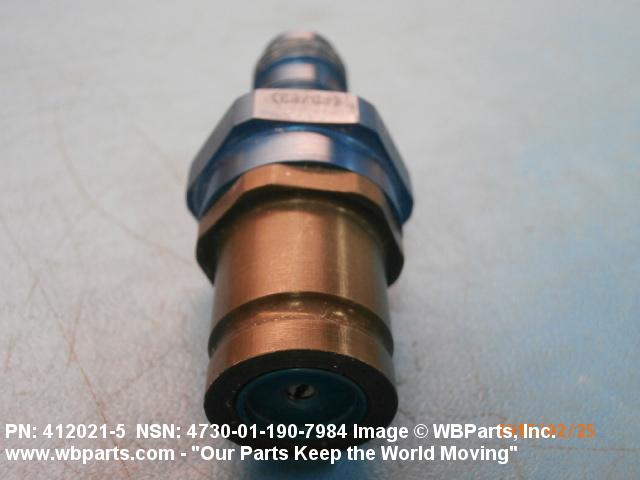

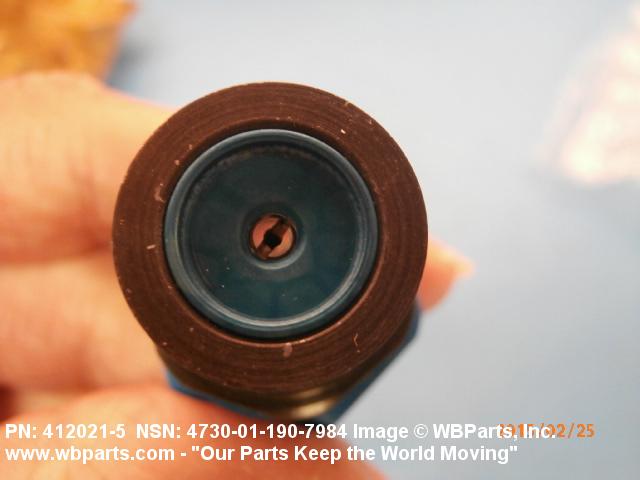

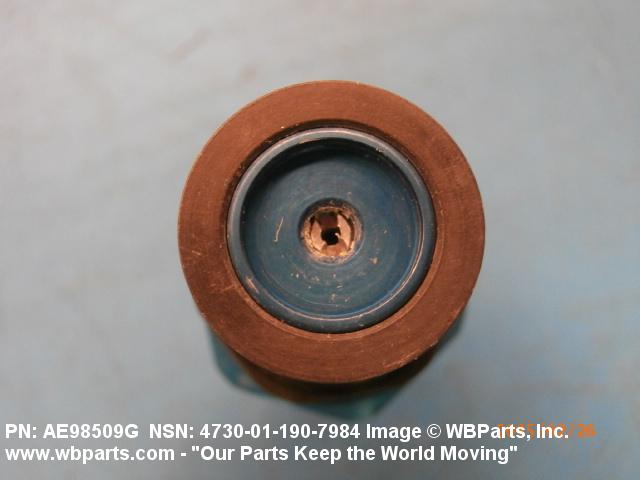

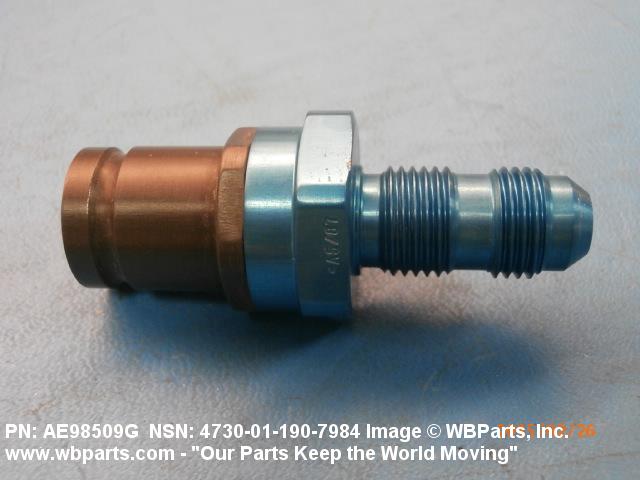

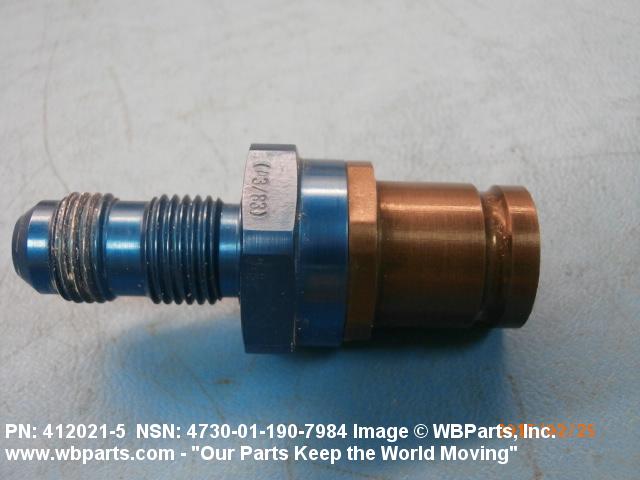

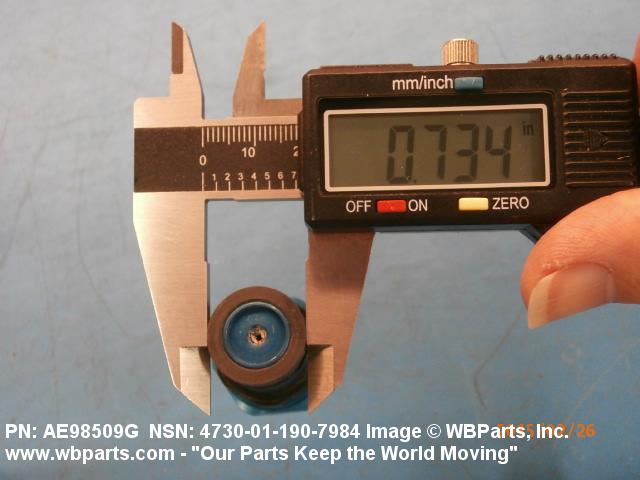

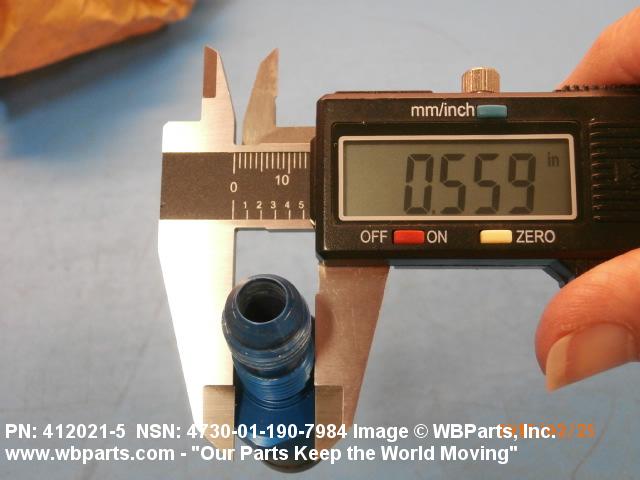

Drawings & Photos | NSN 4730-01-190-7984
Demand History | NSN 4730-01-190-7984
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AE98509G | 2025-09-247 | 13 | DIBBS |
| AE98509G | 2025-08-233 | 13 | DIBBS |
| 4730-01-190-7984 | 2016-05-124 | 17 | DIBBS |
| 4730-01-190-7984 | 2015-12-342 | 1 | DIBBS |
| 4730-01-190-7984 | 2015-01-21 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-190-7984
Technical Data | NSN 4730-01-190-7984
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 6061 |
| BODY MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,T351 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-225/8,T651 FED SPEC 2ND MATERIAL RESPONSE |
| BODY STYLE | 1 COUPLING HALF |
| FIRST LEG LENGTH | 0.438 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 500.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, SILICATE-ESTER BASE |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 275.0 DEG FAHRENHEIT HYDRAULIC FLUID, SILICATE-ESTER BASE |

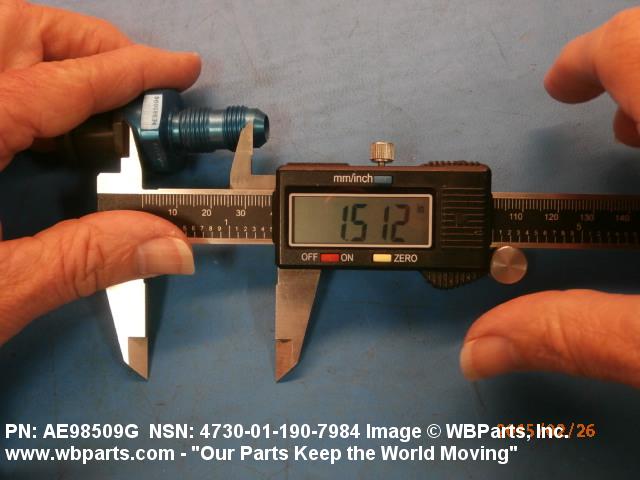

| OVERALL LENGTH | 1.518 INCHES NOMINAL |
| FIRST FLUID END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | D6 FLARED |
| FIRST END SEAT ANGLE | 37.0 DEGREES NOMINAL |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD CLASS | 3A |
| QUICK DISCONNECT METHOD | SPRING PUSH-PULL ALL ENDS |
| QUICK DISCONNECT END CONNECTION TYPE | INTERNAL ALL ENDS |
| III END ITEM IDENTIFICATION | AN/ALQ-161 |
