NSN 4730-01-247-2166 EC255D8, 3001398, 3001-398
Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-247-2166 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: EC255D8, 3001398, 3001-398, 4730-01-247-2166, 01-247-2166, 4730012472166, 012472166
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 DEC 1986 | 01-247-2166 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

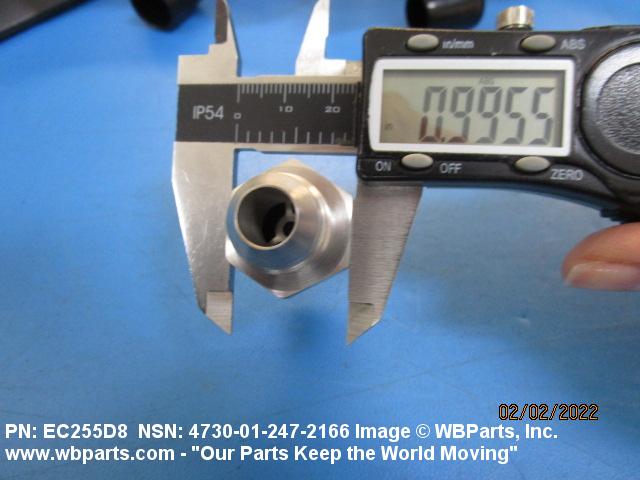

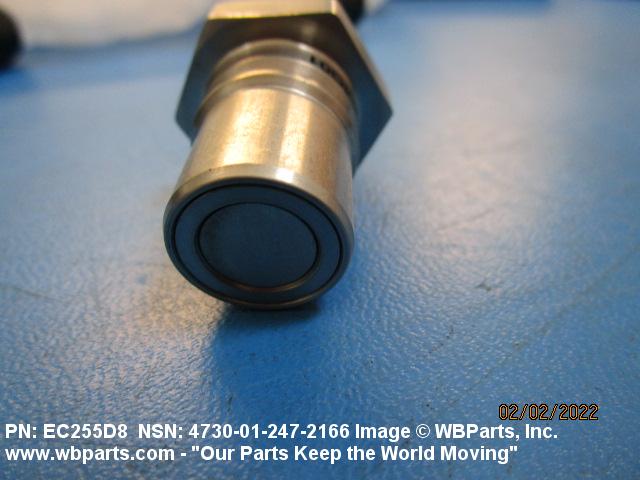

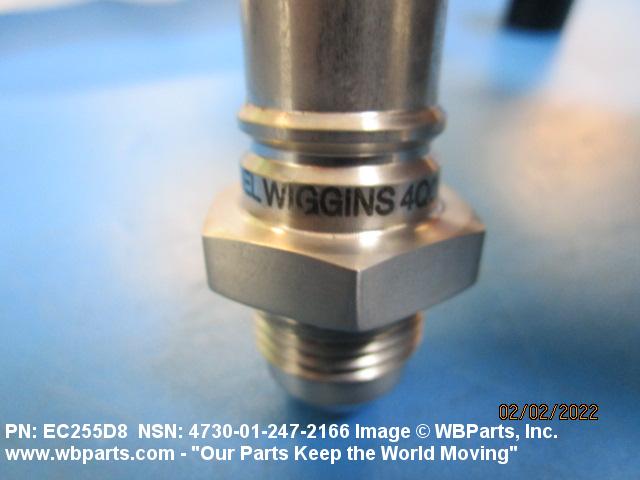

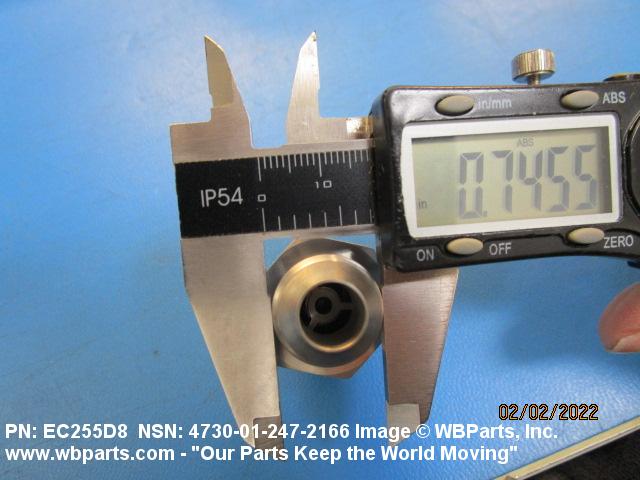

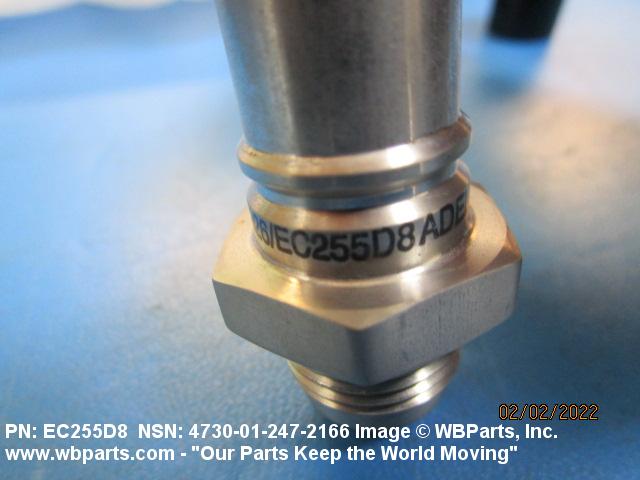

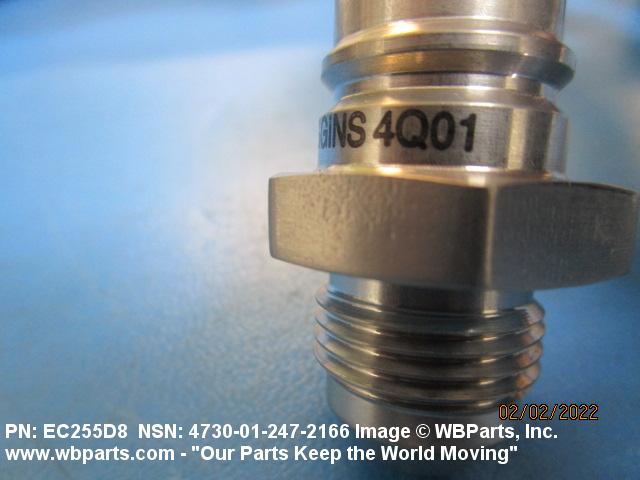

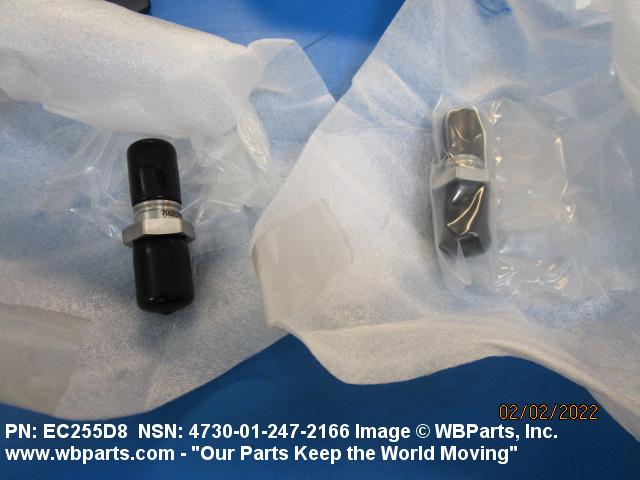

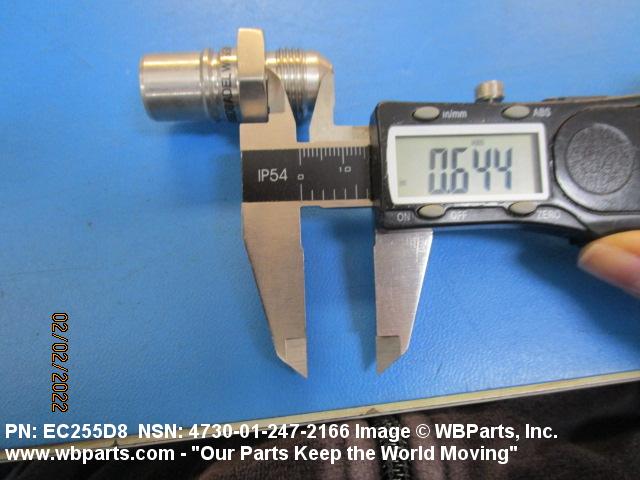

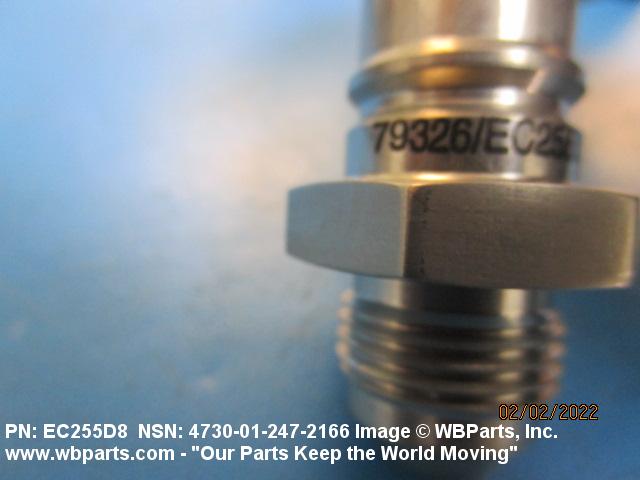

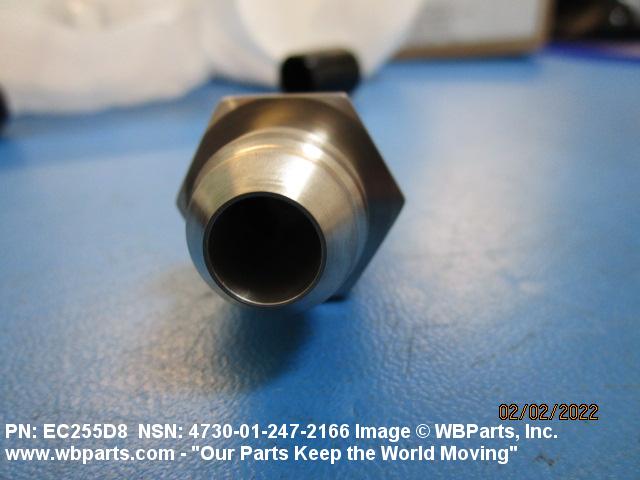

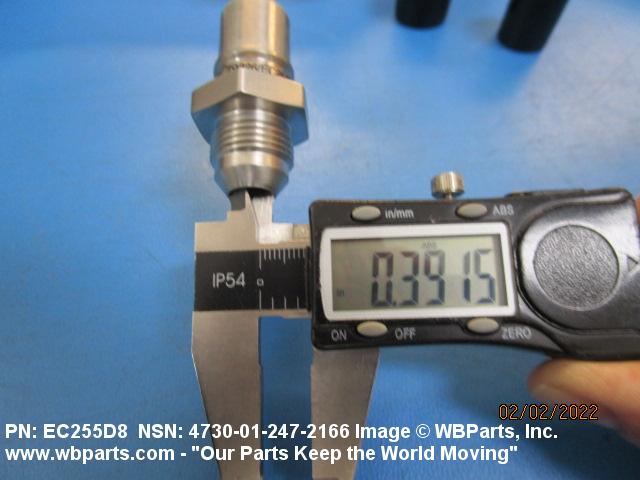

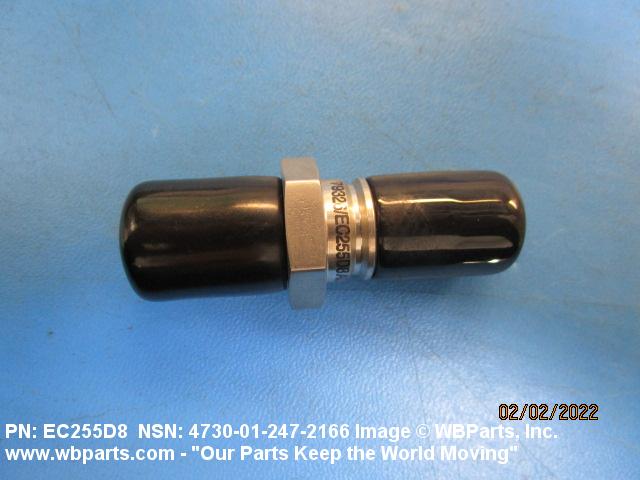

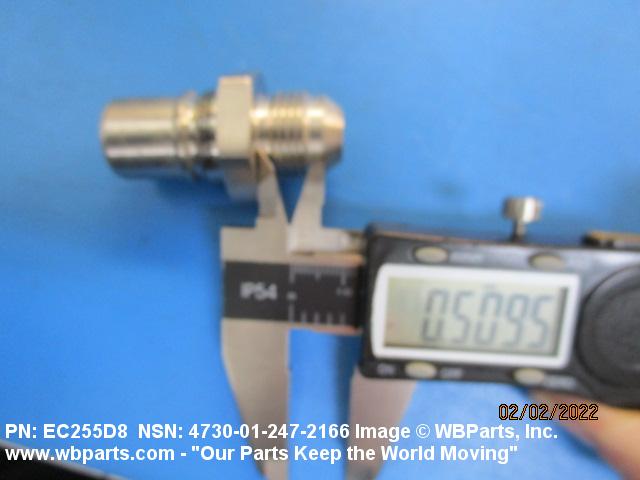

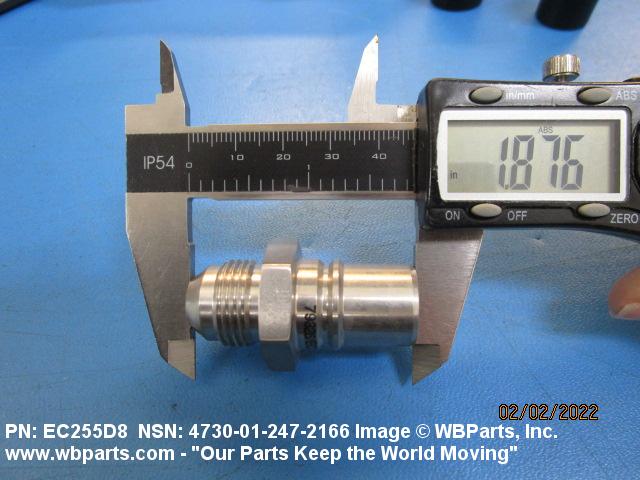

Drawings & Photos | NSN 4730-01-247-2166
Demand History | NSN 4730-01-247-2166
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-247-2166 | 2022-01-27 | 2 | United States |
| 4730-01-247-2166 | 2022-01-18 | 2 | US |
| 4730-01-247-2166 | 2021-03-60 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-247-2166
Technical Data | NSN 4730-01-247-2166
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL COMP 303 |
| BODY MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE |
| BODY SURFACE TREATMENT | PASSIVATE |
| BODY STYLE | 1 COUPLING HALF |
| FIRST LEG LENGTH | 0.642 INCHES MINIMUM AND 0.672 INCHES MAXIMUM |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 500.0 POUNDS PER SQUARE INCH ETHYLENE GLYCOL/WATER MIXTURE 500.0 POUNDS PER SQUARE INCH WATER, DEMINERALIZED |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 70.0 DEG FAHRENHEIT ETHYLENE GLYCOL/WATER MIXTURE 70.0 DEG FAHRENHEIT WATER, DEMINERALIZED |
| OVERALL LENGTH | 1.900 INCHES NOMINAL |
| FIRST FLUID END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | D6 FLARED |
| FIRST END SEAT ANGLE | 37.0 DEGREES NOMINAL |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UNJF |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD CLASS | 3A |
| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |
| QUICK DISCONNECT END CONNECTION TYPE | EXTERNAL ALL ENDS |
| FEATURES PROVIDED | SELF-SEALING |
Restrictions/Controls & Freight Information | NSN 4730-01-247-2166
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
