NSN 4730-01-286-4362 37550624, 375506-24, 01-286-4362
Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-286-4362 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 37550624, 375506-24, 4730-01-286-4362, 01-286-4362, 4730012864362, 012864362
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 OCT 1988 | 01-286-4362 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

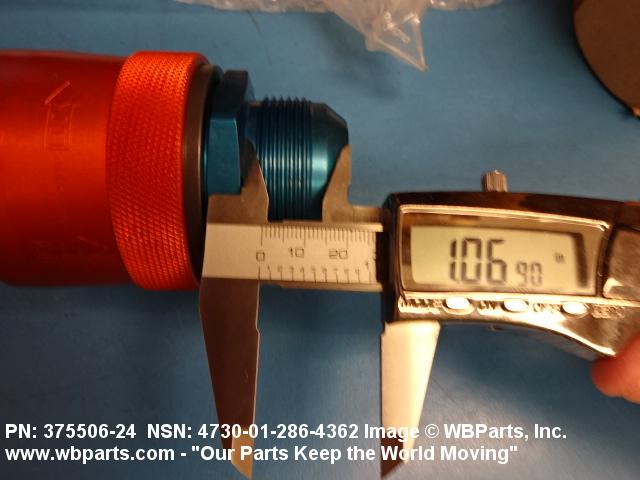

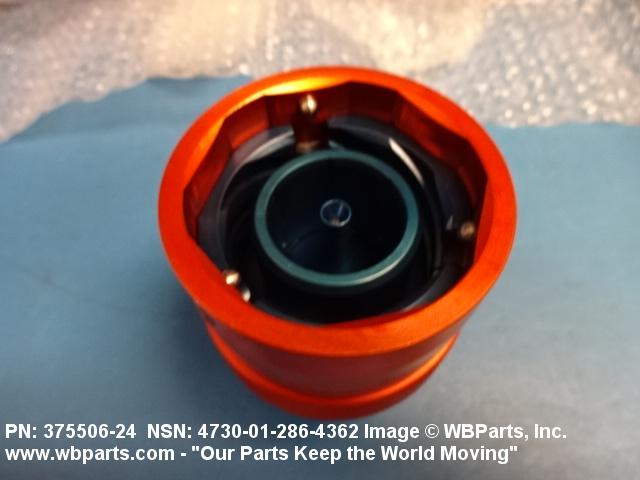

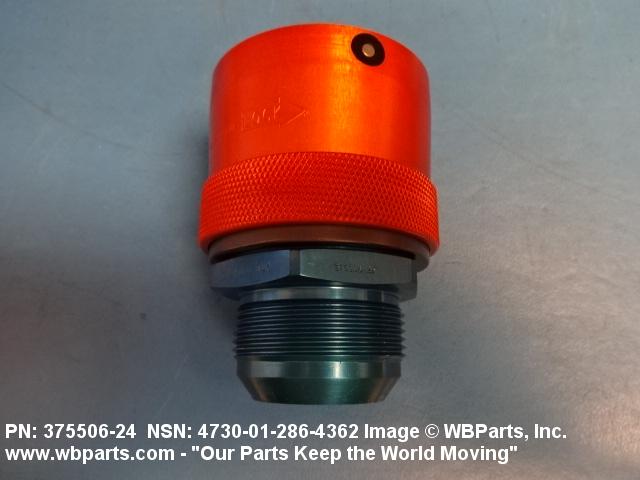

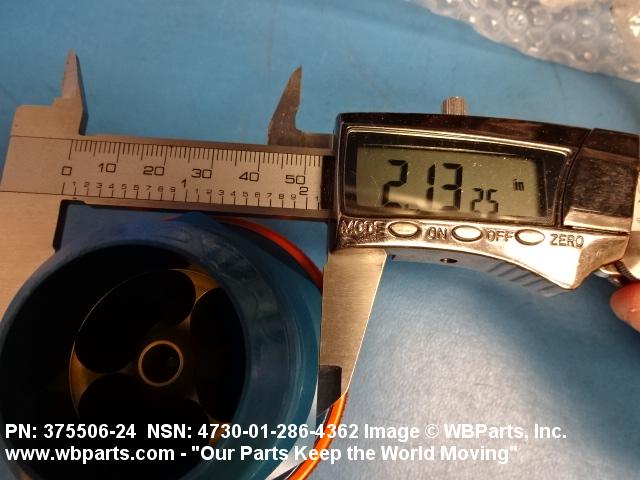

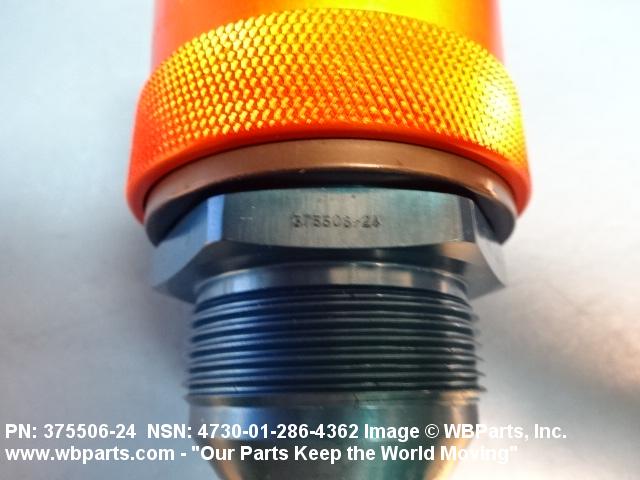

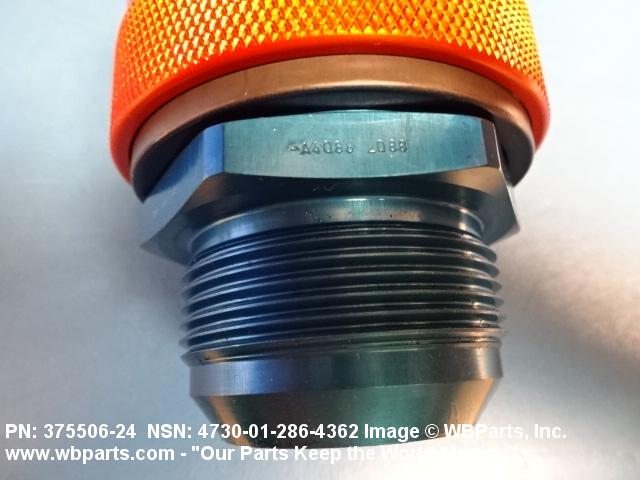

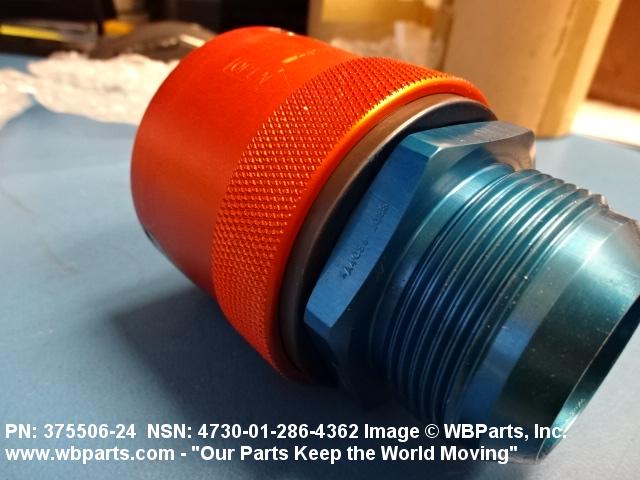

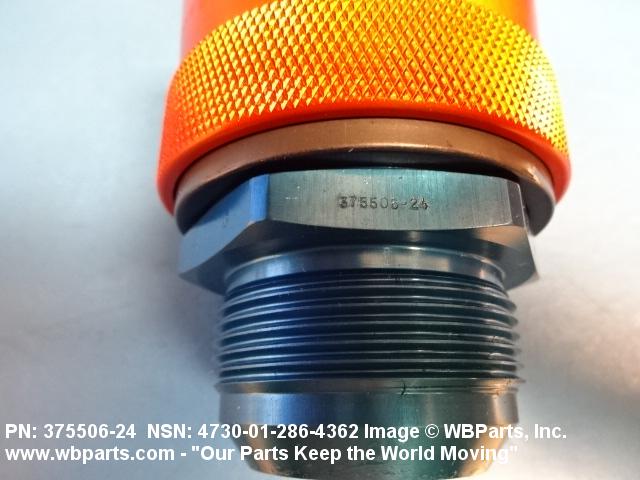

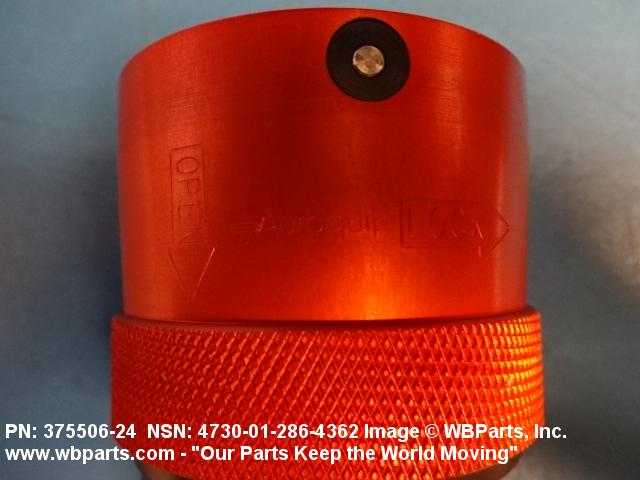

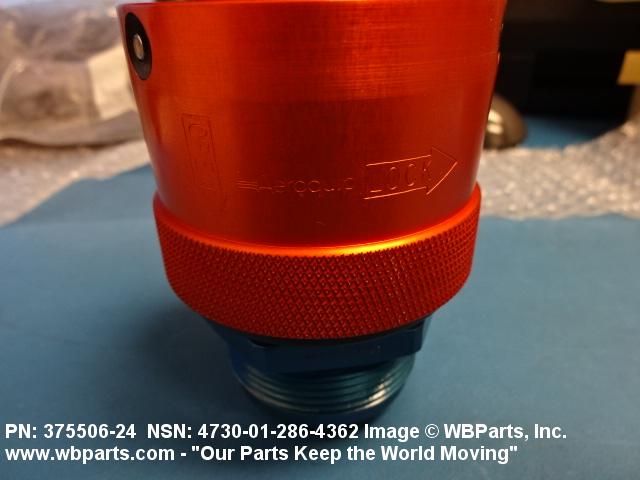

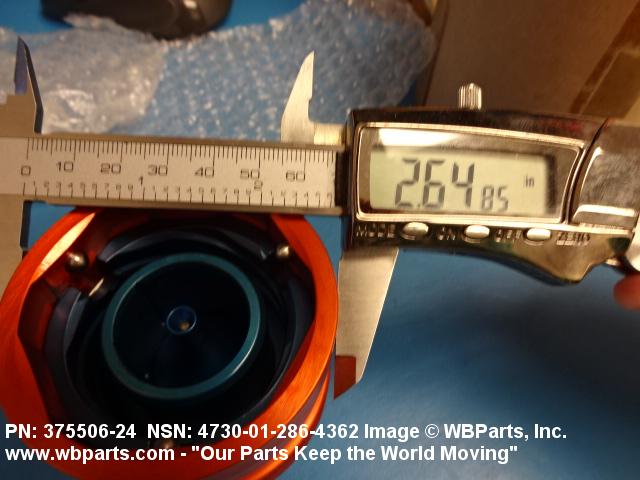

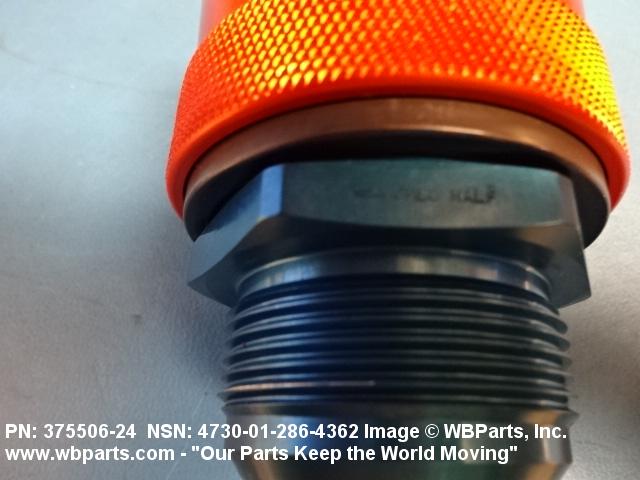

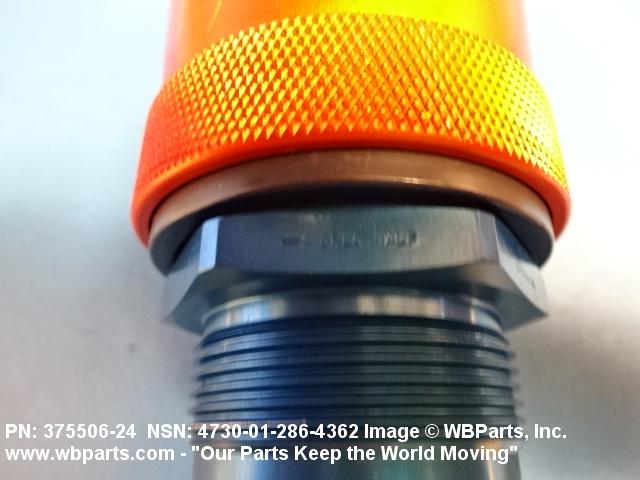

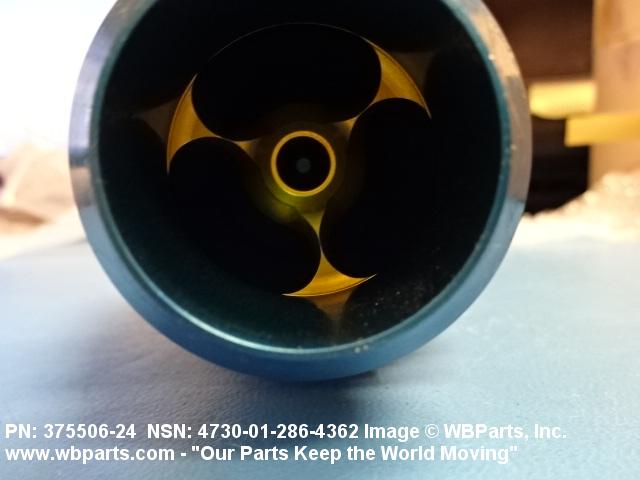

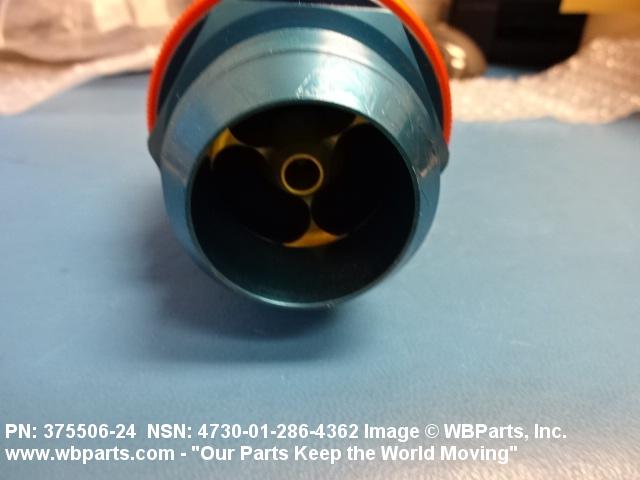

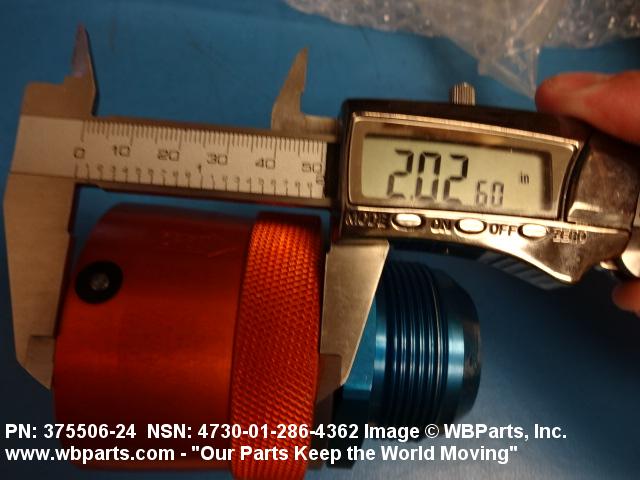

Drawings & Photos | NSN 4730-01-286-4362
Demand History | NSN 4730-01-286-4362
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 37550624 | 2020-08-218 | 10 | Germany |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-286-4362
Technical Data | NSN 4730-01-286-4362
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY 2024 |
| BODY MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4120,T4 ASSN STD ALL MATERIAL RESPONSES |
| BODY STYLE | 1 COUPLING HALF |
| FIRST LEG LENGTH | 0.875 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 1000.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 350.0 DEG FAHRENHEIT FUEL/OIL, HYDROCARBON |

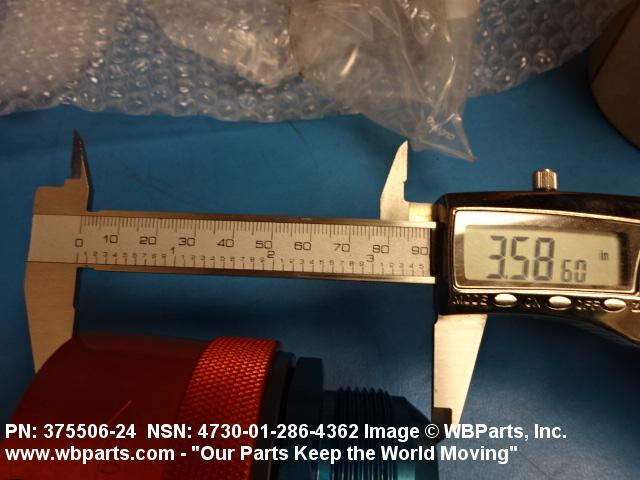

| OVERALL LENGTH | 3.607 INCHES MAXIMUM |
| FIRST FLUID END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | D6 FLARED |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES MAXIMUM |
| FIRST END THREAD SERIES DESIGNATOR | UN |
| FIRST END NOMINAL THREAD SIZE | 0.875 INCHES |
| FIRST END THREAD CLASS | 3A |
| QUICK DISCONNECT METHOD | QUICK LEAD THREAD ALL ENDS |
| QUICK DISCONNECT END CONNECTION TYPE | INTERNAL ALL ENDS |
| QUICK DISCONNECT NOMINAL SIZE | 0.075 INCHES ALL ENDS |
Restrictions/Controls & Freight Information | NSN 4730-01-286-4362
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
