NSN 4730-01-344-7739 ML1K11, ML1-K11, 01-344-7739
Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-344-7739 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: ML1K11, ML1-K11, 4730-01-344-7739, 01-344-7739, 4730013447739, 013447739
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 SEP 1991 | 01-344-7739 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

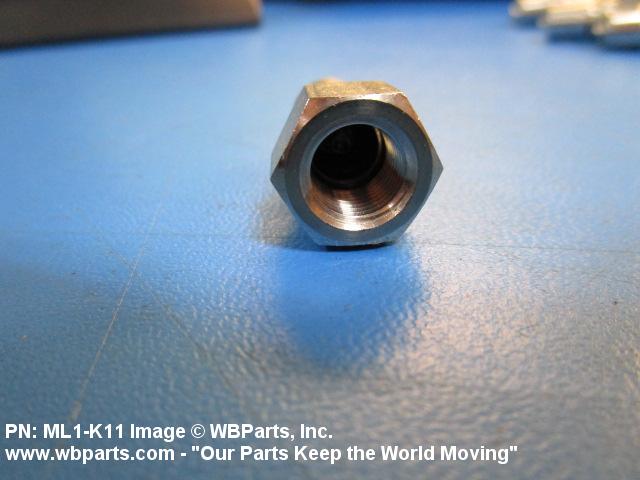

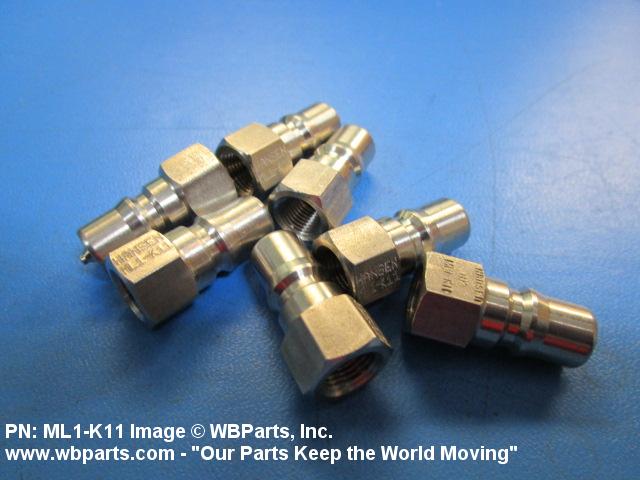

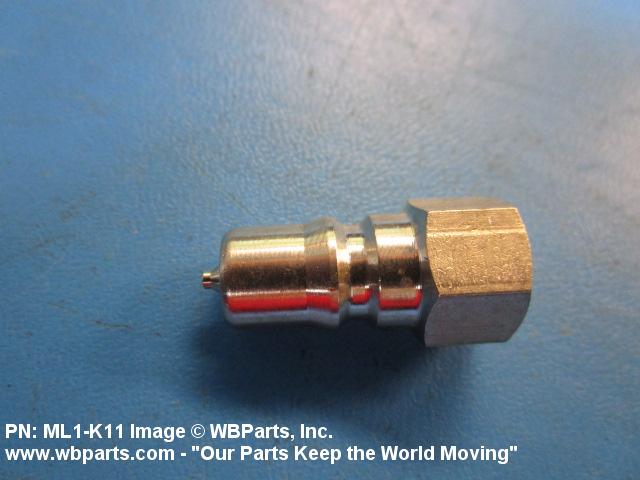

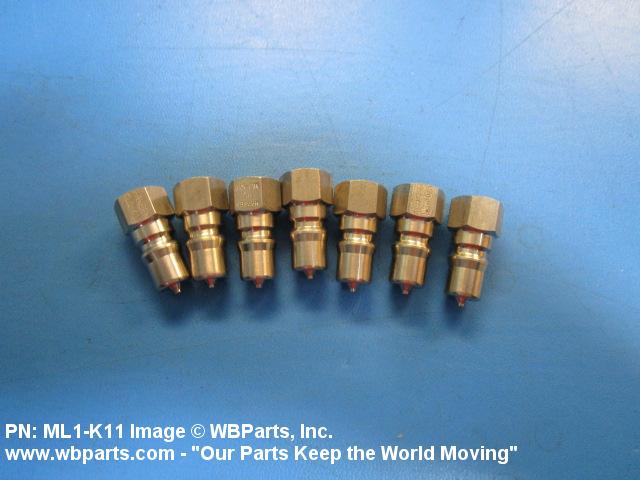

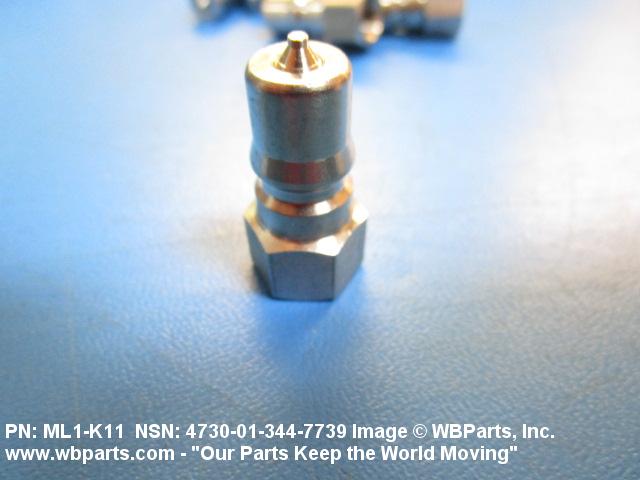

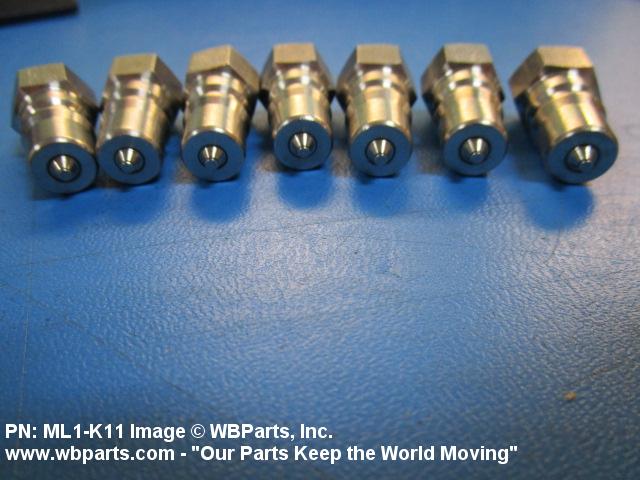

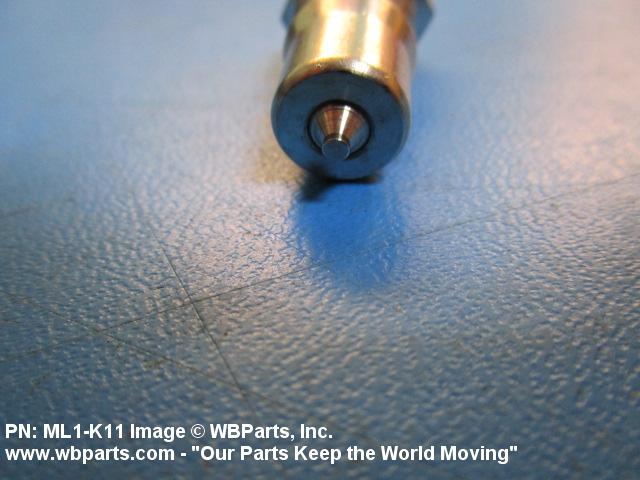

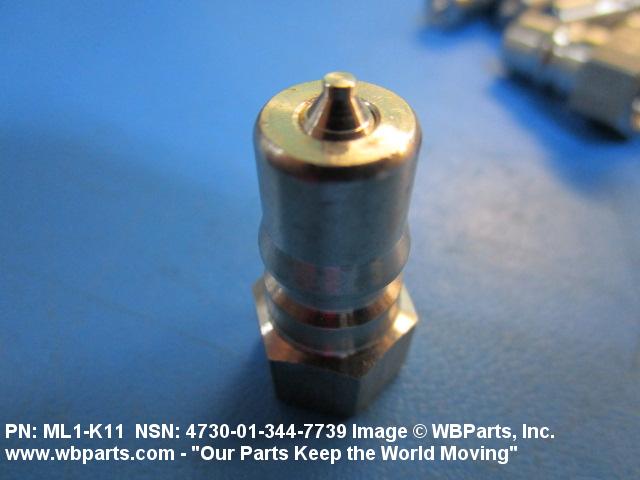

Drawings & Photos | NSN 4730-01-344-7739
Demand History | NSN 4730-01-344-7739
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-344-7739 | 2021-10-279 | 7 | United States |
Cross Reference | NSN 4730-01-344-7739
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ML1-K11 | 73992 | TUTHILL CORP HANSEN COUPLING DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-344-7739
Technical Data | NSN 4730-01-344-7739
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL COMP 316 |
| BODY STYLE | 1 COUPLING HALF |

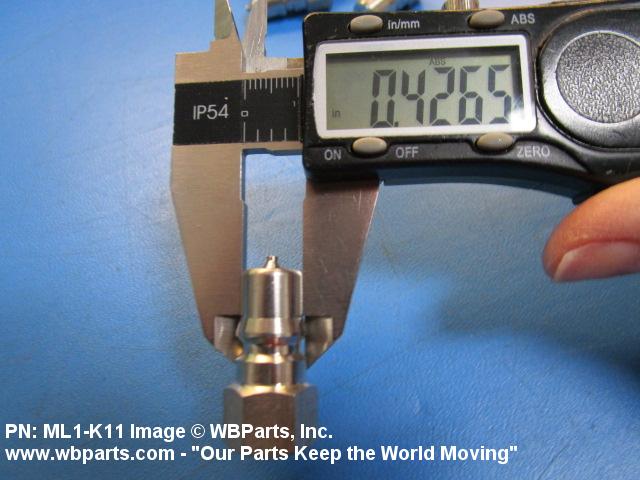

| FIRST LEG LENGTH | 0.420 INCHES NOMINAL |
| FIRST FLUID END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | B14 PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | NPTF |
| FIRST END NOMINAL THREAD SIZE | 0.125 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-01-344-7739
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
