NSN 4730-01-399-6265 MS9483, MS948316, MS9483-16
Product Details | TUBE FITTING BRAZING FERRULE
4730-01-399-6265 A flanged cylindrical metallic item designed to be slipped over tubing and brazed in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union.
Part Alternates: MS9483, MS948316, MS9483-16, 4730-01-399-6265, 01-399-6265, 4730013996265, 013996265
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 DEC 1994 | 01-399-6265 | 18024 ( FERRULE, BRAZING, TUBE FITTING ) |

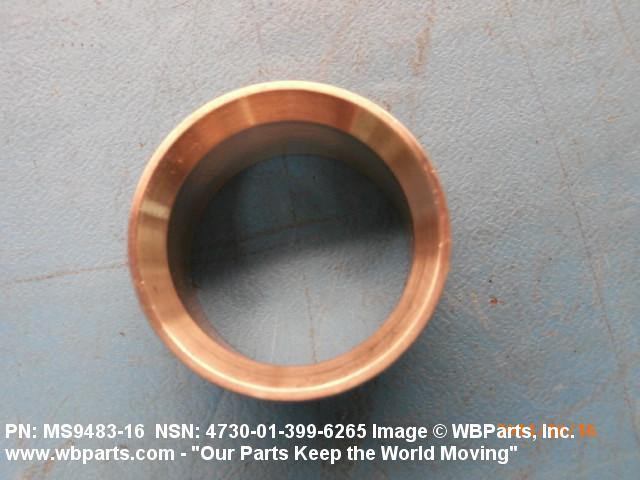

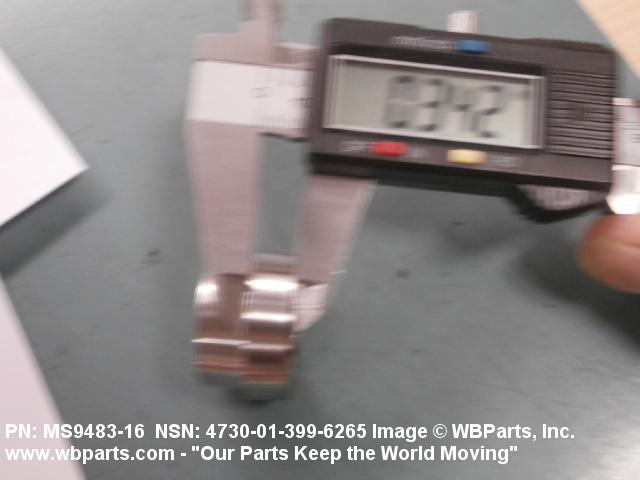

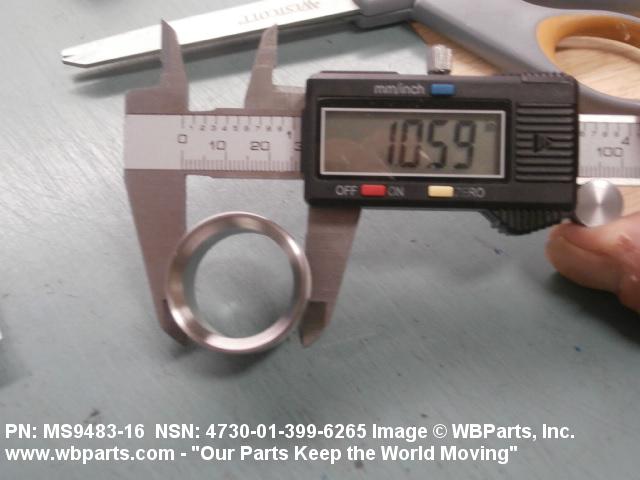

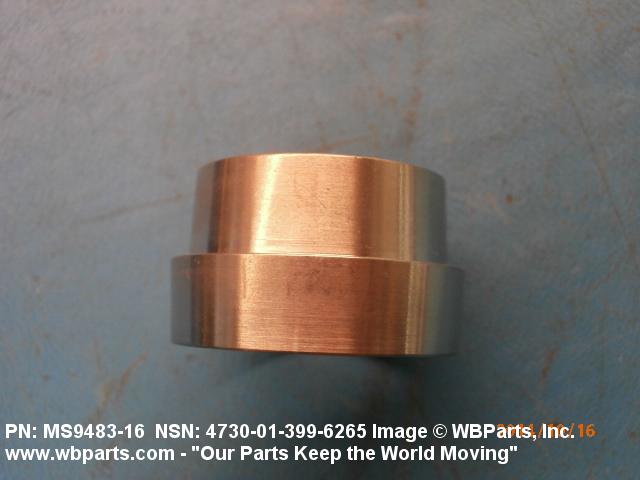

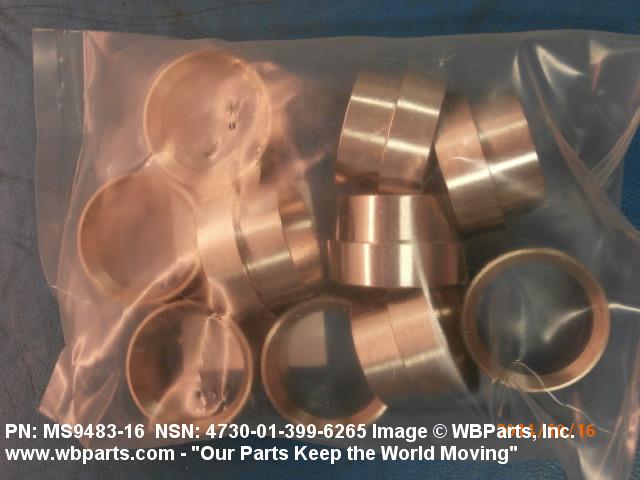

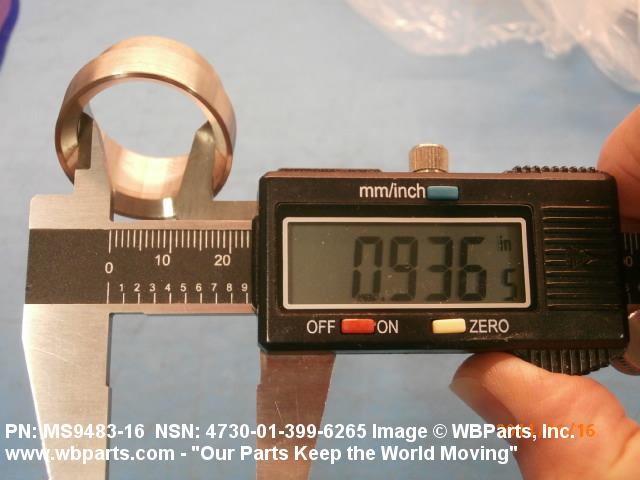

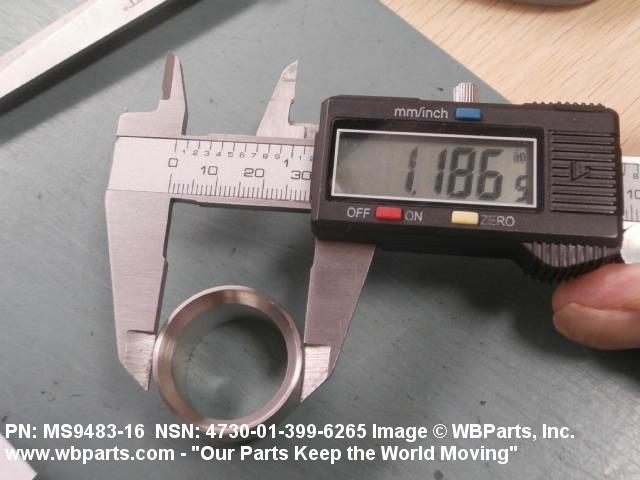

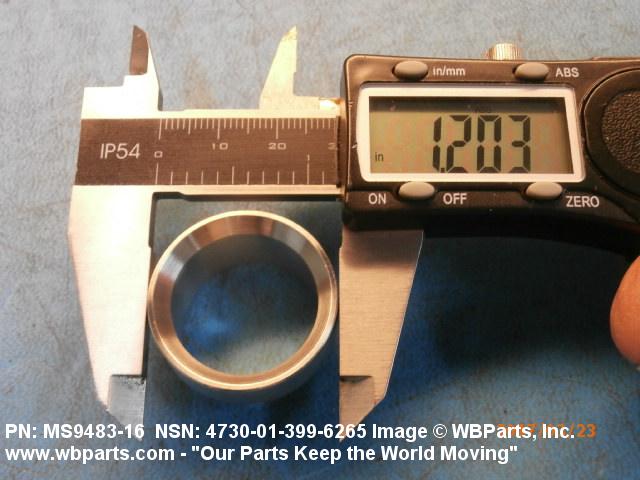

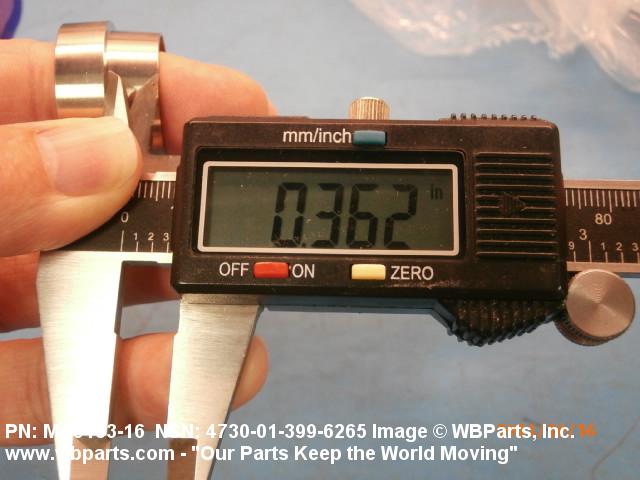

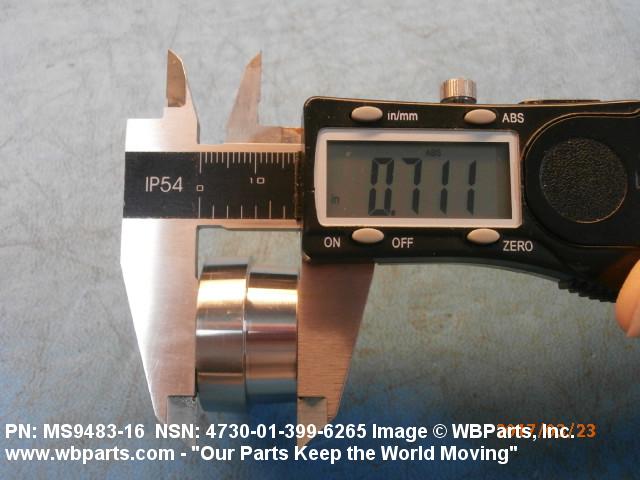

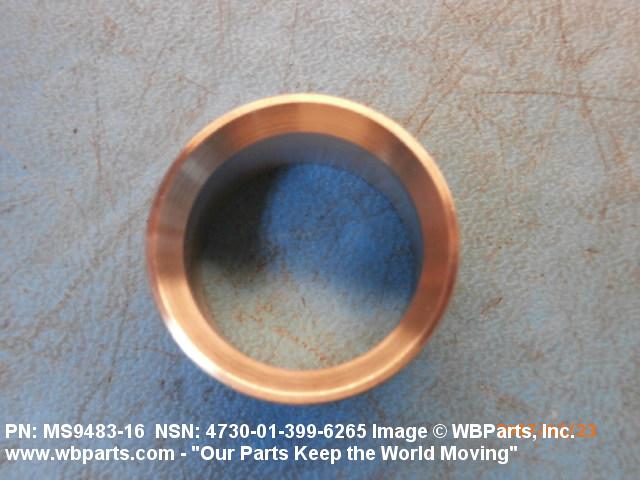

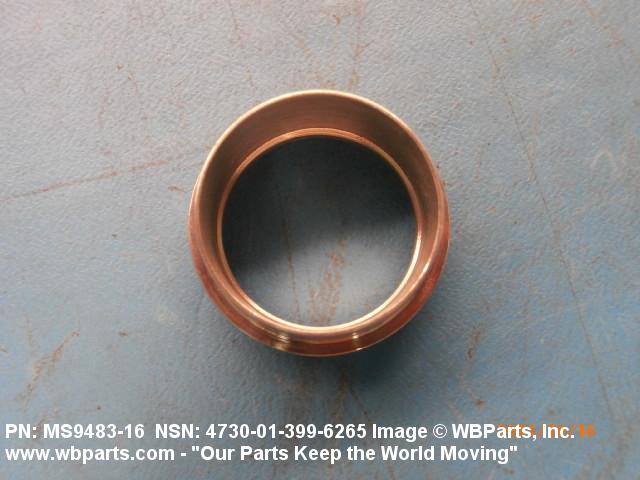

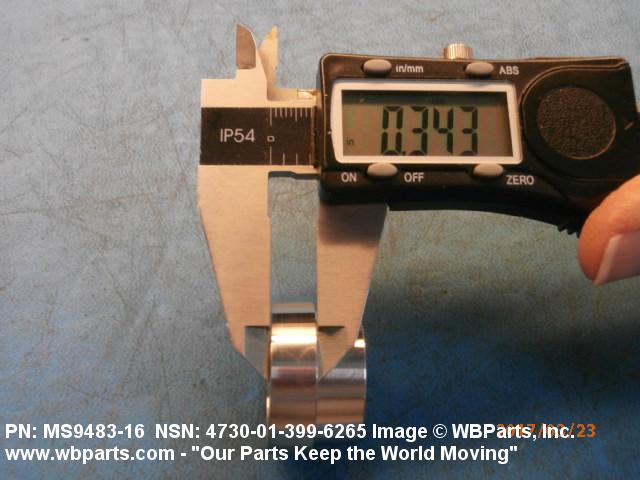

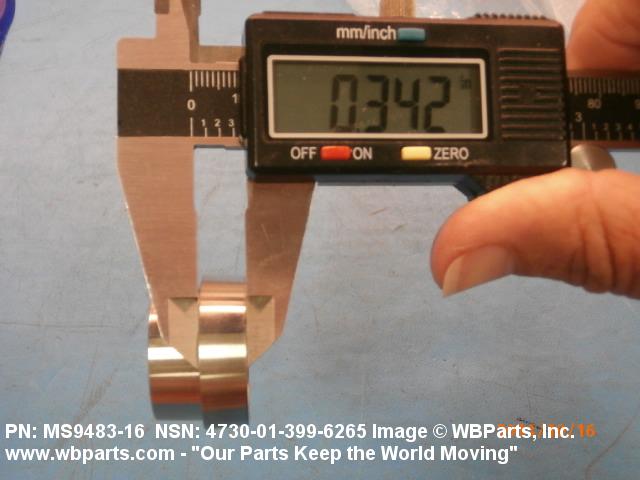

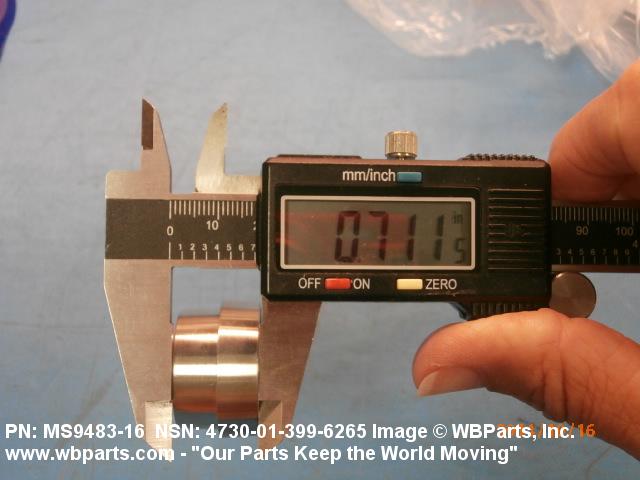

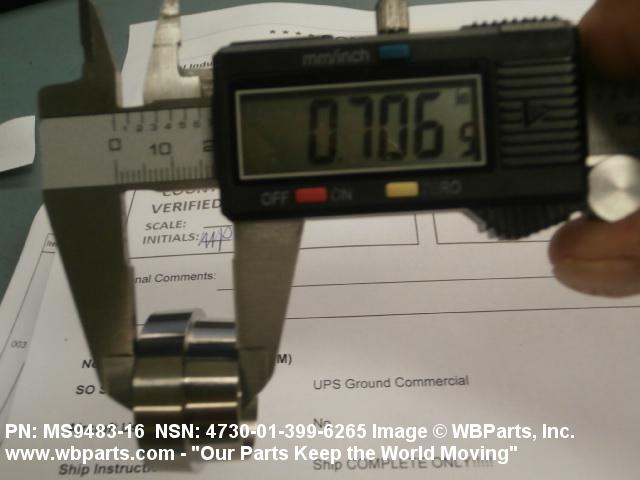

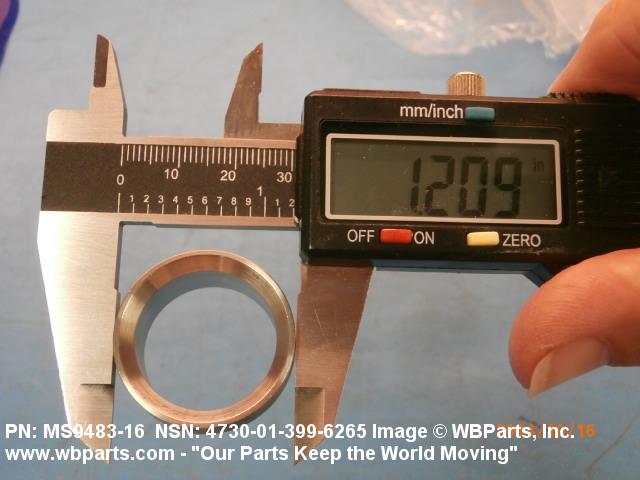

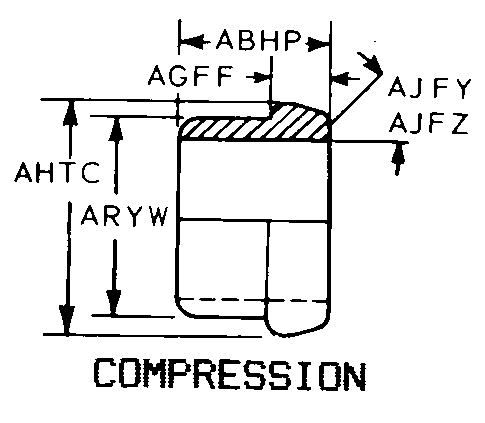

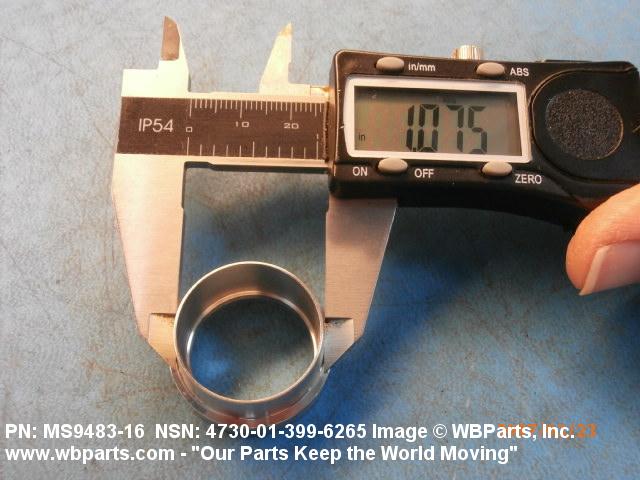

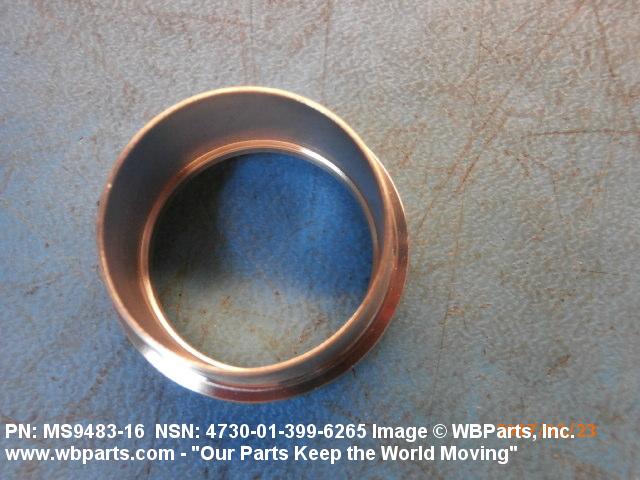

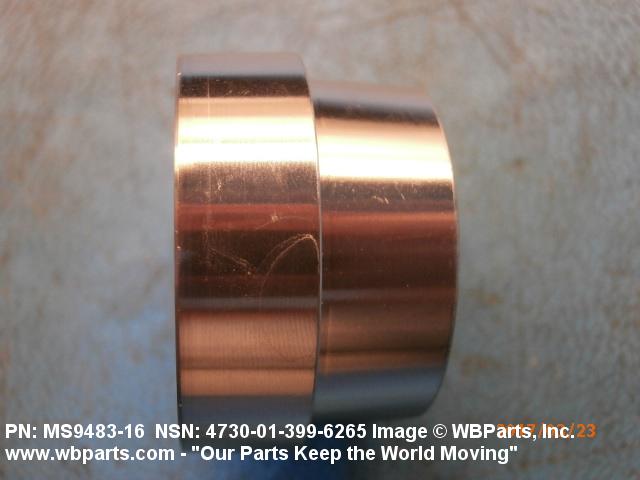

Drawings & Photos | NSN 4730-01-399-6265
Demand History | NSN 4730-01-399-6265
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS948316 | 2025-04-115 | 450 | US |
| MS948316 | 2023-11-333 | 200 | US |
| MS948316 | 2020-09-260 | 200 | United States |
| 4730-01-399-6265 | 2019-10-276 | 120 | US |
| MS948316 | 2017-03-69 | 10 | South Korea |
| MS948316 | 2017-01-15 | 2 | South Korea |
| 4730-01-399-6265 | 2016-12-362 | 8 | South Korea |
| MS948316 | 2014-09-269 | 50 | United States |
| MS948316 | 2014-04-100 | 600 | United States |
| MS948316 | 2014-04-100 | 300 | United States |
| MS948316 | 2014-04-99 | 160 | United States |
| 4730-01-399-6265 | 2011-09-249 | 6 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-399-6265
Technical Data | NSN 4730-01-399-6265
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| CASEHARDENING INDICATOR | CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.000 INCHES NOMINAL |
| STYLE DESIGNATOR | J2 COMPRESSION |
| OVERALL LENGTH | 0.718 INCHES NOMINAL |
| FLANGE WIDTH | 0.376 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 1.222 INCHES NOMINAL |
| SEAT RADIUS | 0.989 INCHES NOMINAL |
| SLEEVE OUTSIDE DIAMETER | 1.222 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9483 |
Restrictions/Controls & Freight Information | NSN 4730-01-399-6265
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-399-6265
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
