NSN 4730-01-458-7779 MS51504B6Z, 01-458-7779, 014587779

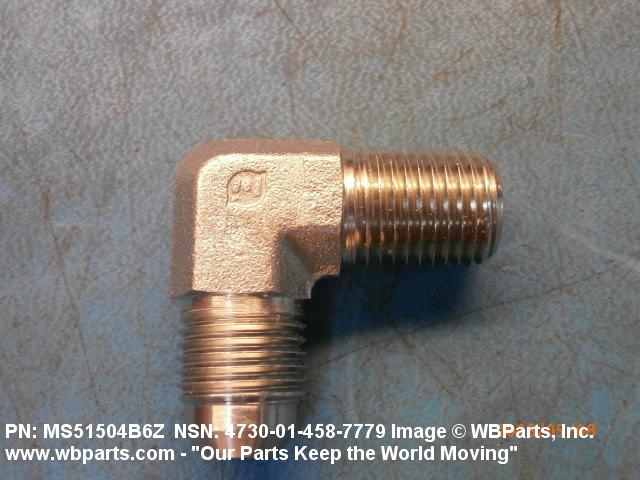

Product Details | PIPE TO TUBE ELBOW
4730-01-458-7779 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS51504B6Z, 4730-01-458-7779, 01-458-7779, 4730014587779, 014587779
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 SEP 1998 | 01-458-7779 | 03770 ( ELBOW, PIPE TO TUBE ) |

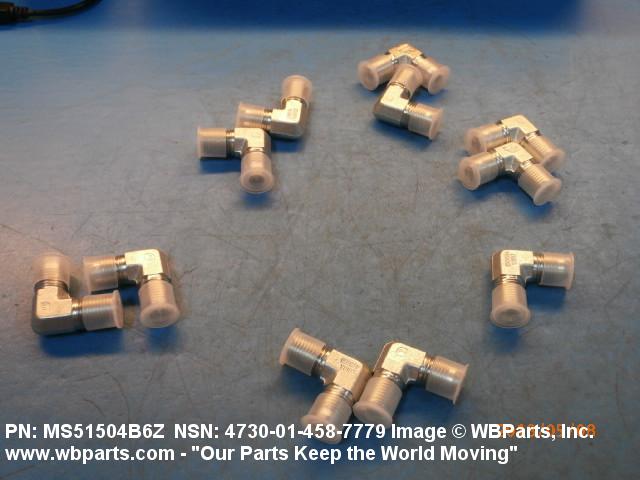

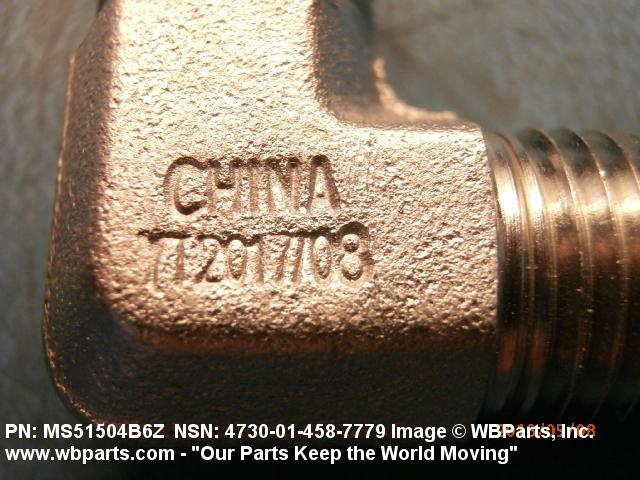

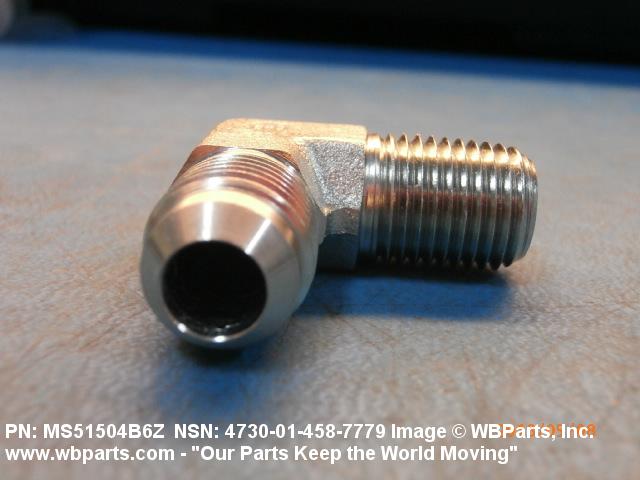

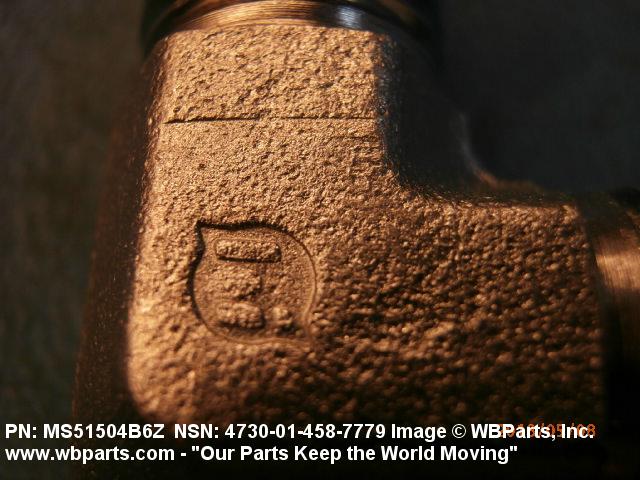

Drawings & Photos | NSN 4730-01-458-7779
Demand History | NSN 4730-01-458-7779
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-458-7779 | 2017-12-338 | 4 | United States |
| 4730-01-458-7779 | 2017-11-311 | 1 | United States |
| 4730-01-458-7779 | 2012-06-163 | 25 | Canada |
Cross Reference | NSN 4730-01-458-7779
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51504B6Z | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-458-7779
Related Products | NSN 4730-01-458-7779
Technical Data | NSN 4730-01-458-7779

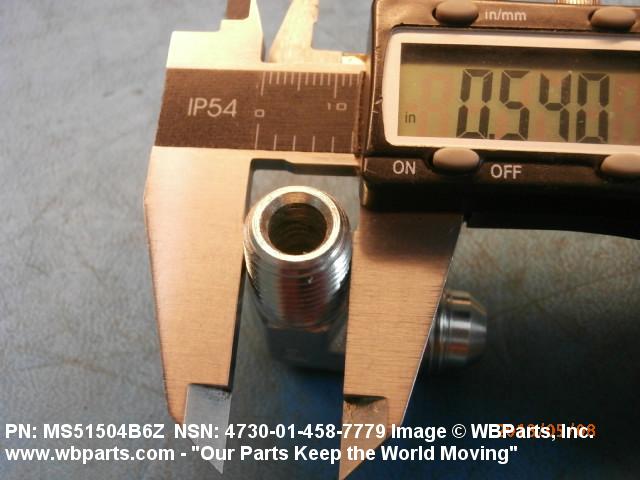

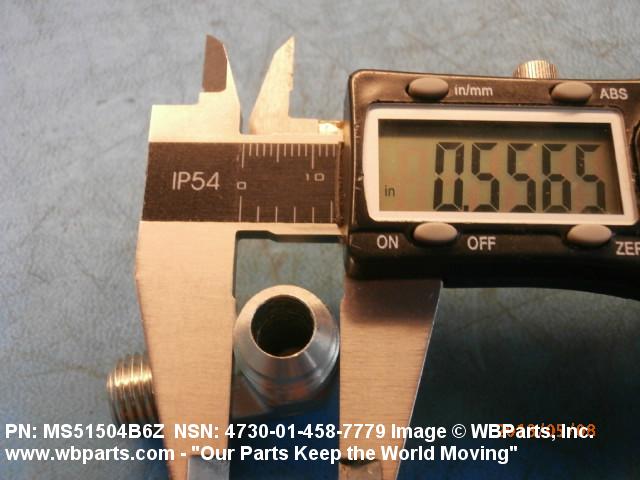

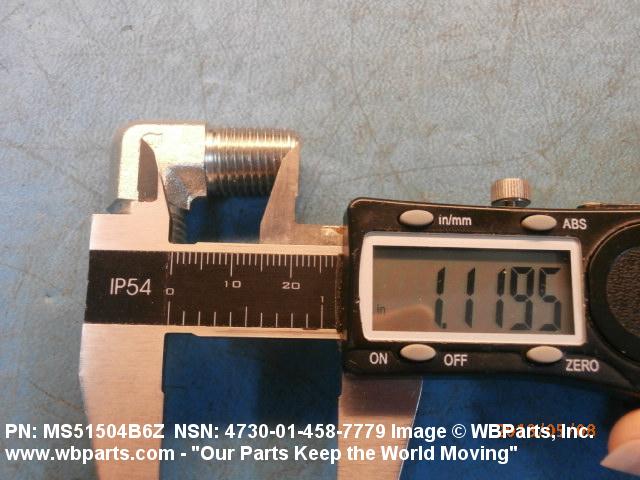

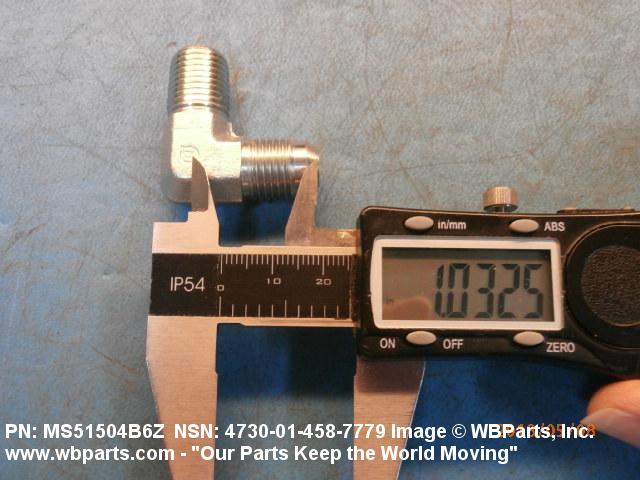

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 12L14 OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 250.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B67B PLAIN 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END NPTF 2ND END |
| NOMINAL THREAD SIZE | 0.562 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 18 1ST END |
| THREAD CLASS | 2A 1ST END |
| LEG LENGTH | 1.090 INCHES MAXIMUM 1ST END 1.120 INCHES MAXIMUM 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51504B6Z |
