NSN 4730-01-495-7493 2491FHD44, 2491FHD-4-4, 01-495-7493
Product Details | PIPE TO TUBE ELBOW
4730-01-495-7493 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 2491FHD44, 2491FHD-4-4, 4730-01-495-7493, 01-495-7493, 4730014957493, 014957493
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 23 MAR 2002 | 01-495-7493 | 03770 ( ELBOW, PIPE TO TUBE ) |

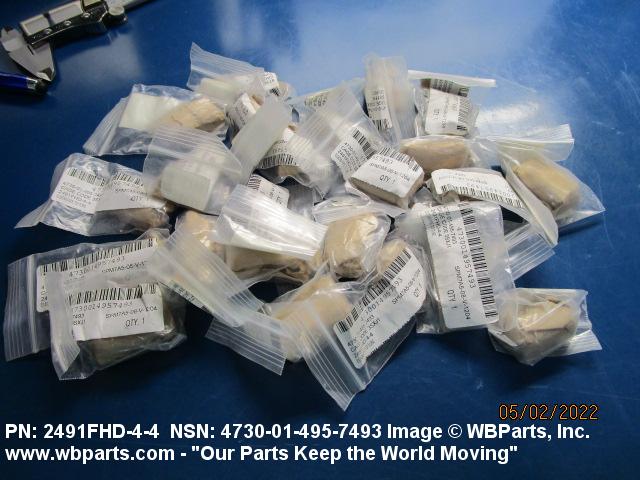

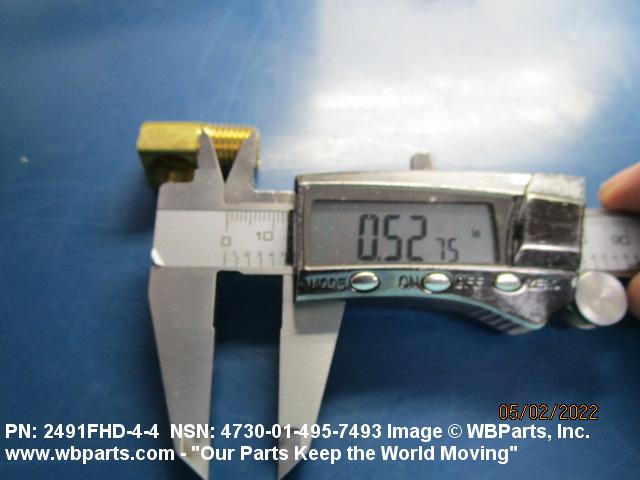

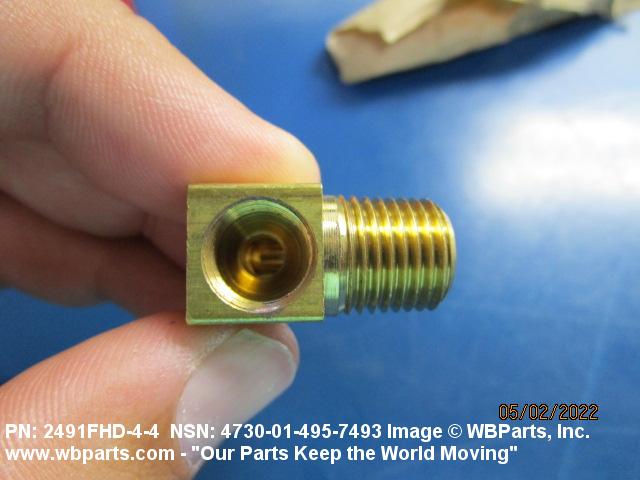

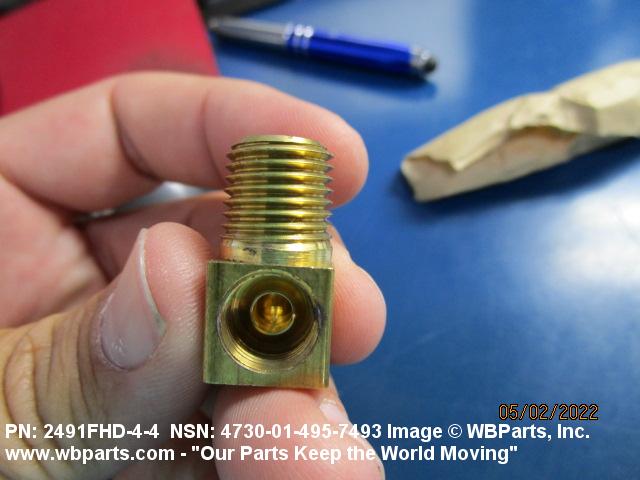

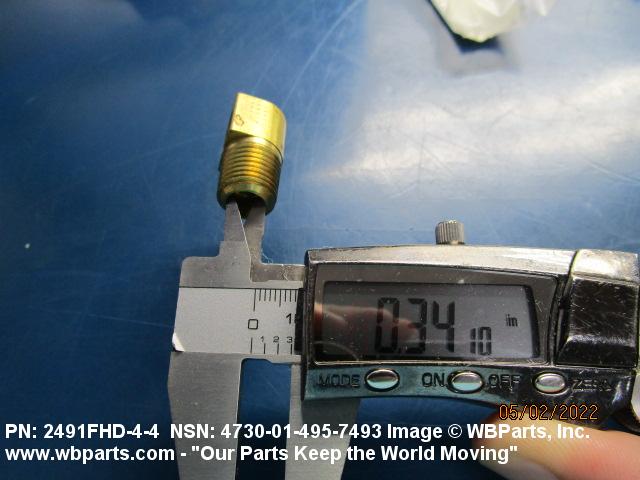

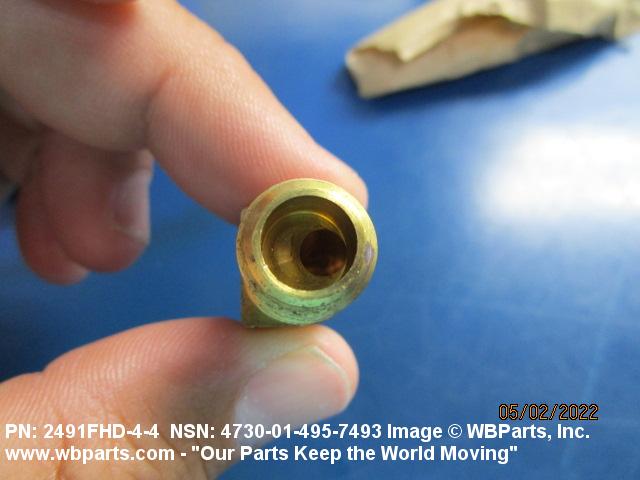

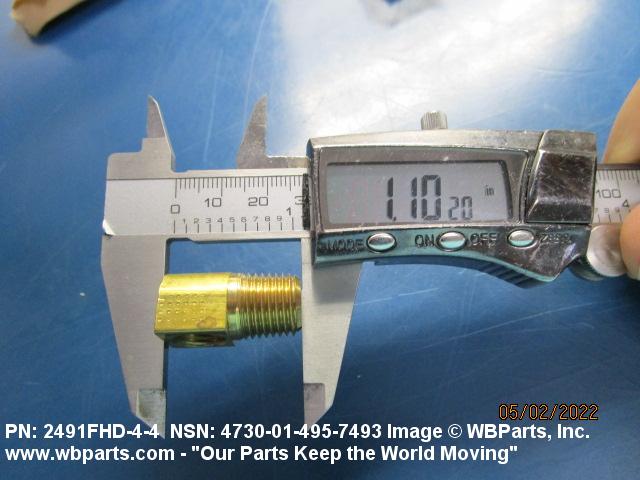

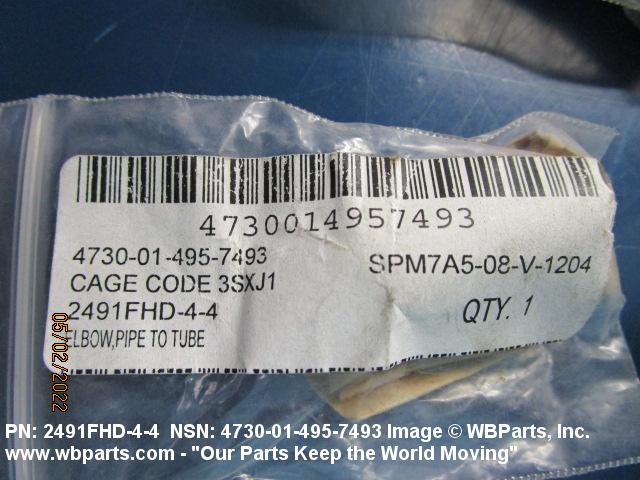

Drawings & Photos | NSN 4730-01-495-7493
Demand History | NSN 4730-01-495-7493
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2491FHD-4-4 | 2025-07-205 | 253 | DIBBS |
| 2491FHD-4-4 | 2023-11-332 | 308 | DIBBS |
| 2491FHD-4-4 | 2022-09-254 | 205 | DIBBS |
| 4730-01-495-7493 | 2022-05-123 | 10 | United States |
| 4730-01-495-7493 | 2022-04-115 | 20 | United States |
| 4730-01-495-7493 | 2022-04-115 | 24 | United States |
| 4730-01-495-7493 | 2022-04-96 | 24 | United States |
| 2491FHD-4-4 | 2022-01-06 | 205 | DIBBS |
| 2491FHD-4-4 | 2020-10-282 | 125 | DIBBS |
| 4730-01-495-7493 | 2016-07-195 | 252 | DIBBS |
| 4730-01-495-7493 | 2015-05-125 | 108 | DIBBS |
| 4730-01-495-7493 | 2015-03-68 | 10 | DIBBS |
| 4730-01-495-7493 | 2015-02-54 | 12 | DIBBS |
| 4730-01-495-7493 | 2014-02-37 | 5 | DIBBS |
Cross Reference | NSN 4730-01-495-7493
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2491FHD-4-4 | 93061 | PARKER-HANNIFIN, CORPORATION DBA BRASS PRODUCTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-495-7493
Related Products | NSN 4730-01-495-7493
Technical Data | NSN 4730-01-495-7493
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | LAV-25 SLEP 2320-01-123-1602 |
Restrictions/Controls & Freight Information | NSN 4730-01-495-7493
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-495-7493
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
