NSN 4730-01-496-1352 AP50N16, AP50N-16, 01-496-1352
Product Details | FLARED TUBE FITTING CONICAL SEAL
4730-01-496-1352 A cylindrical soft metallic crush item used to seal high pressure flared tube connections. It is designed to be inserted between the conical surface of a flared tube fitting and the inner surface of the flared end of the connecting tube.
Part Alternates: AP50N16, AP50N-16, 4730-01-496-1352, 01-496-1352, 4730014961352, 014961352
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 04 APR 2002 | 01-496-1352 | 32837 ( SEAL, CONICAL, FLARED TUBE FITTING ) |

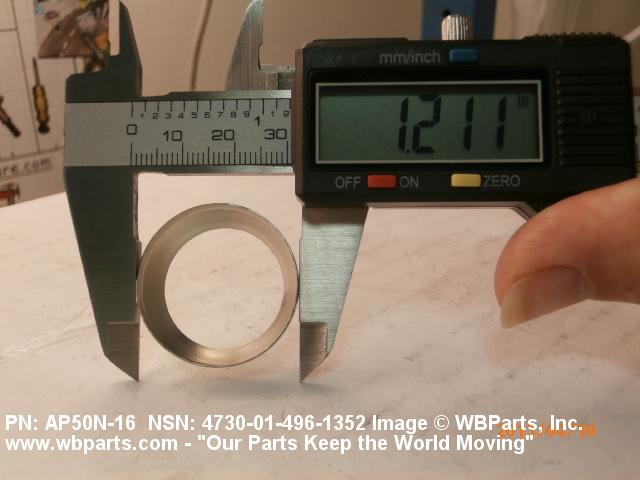

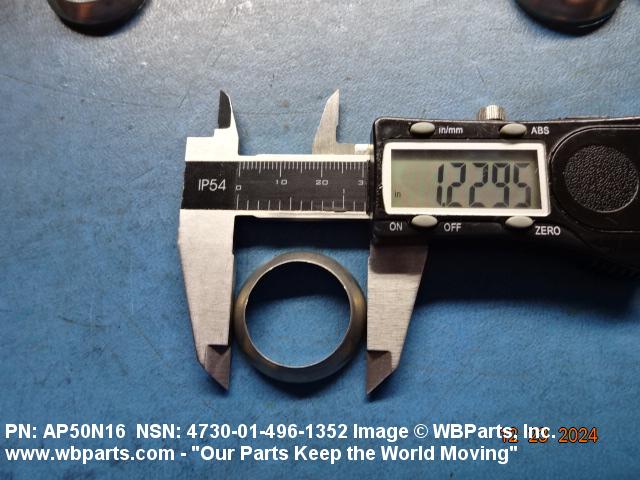

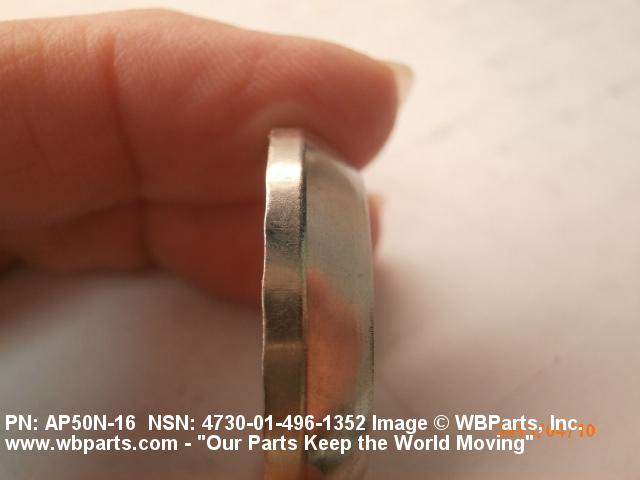

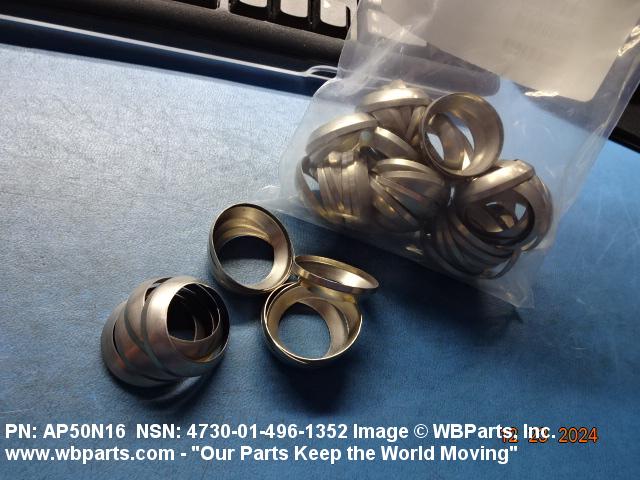

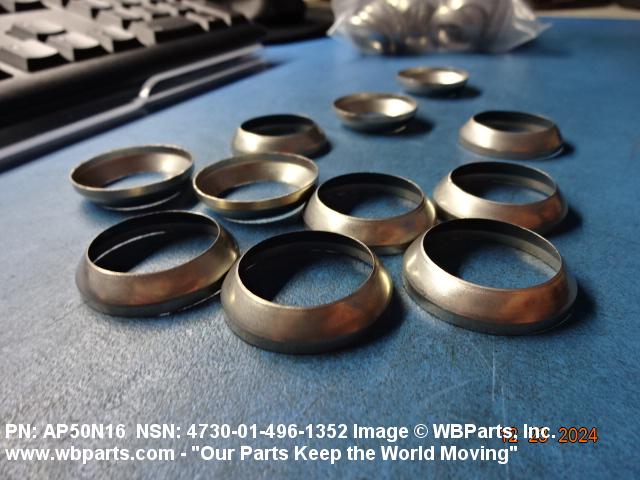

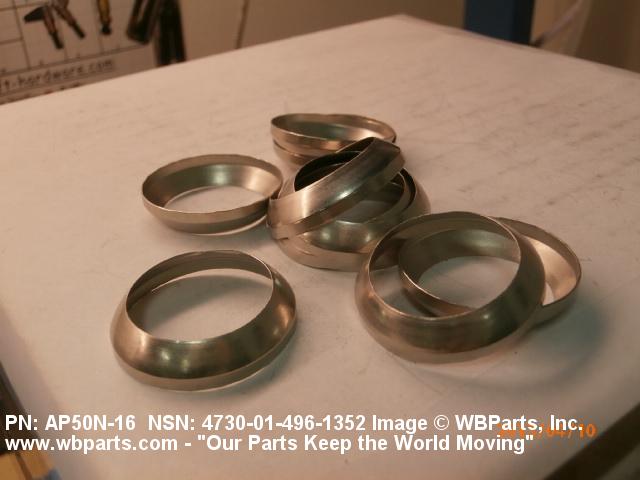

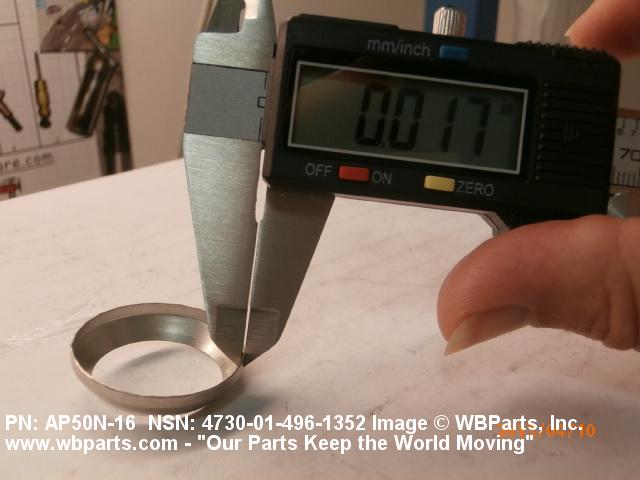

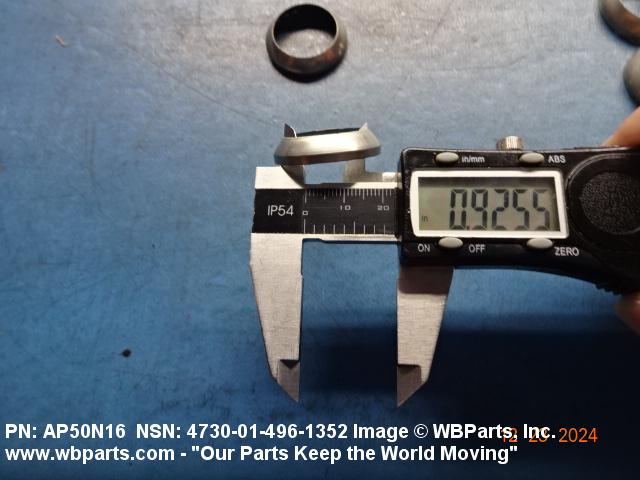

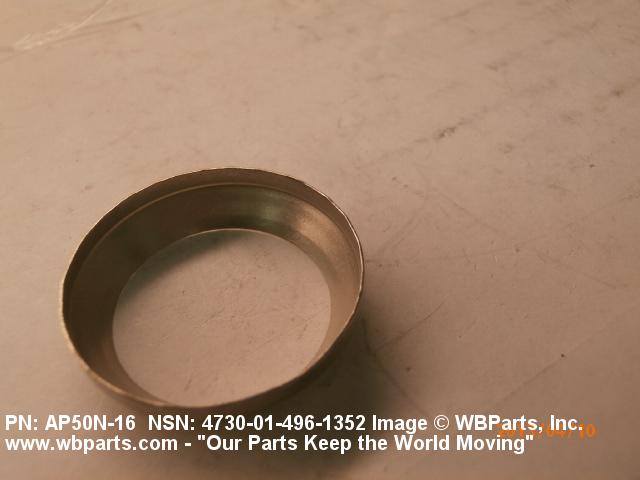

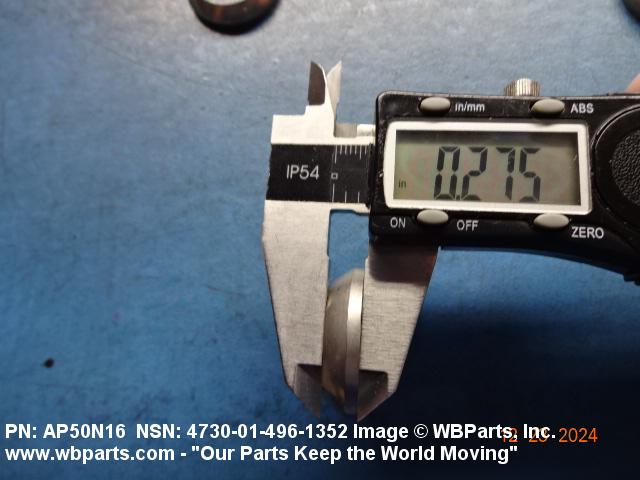

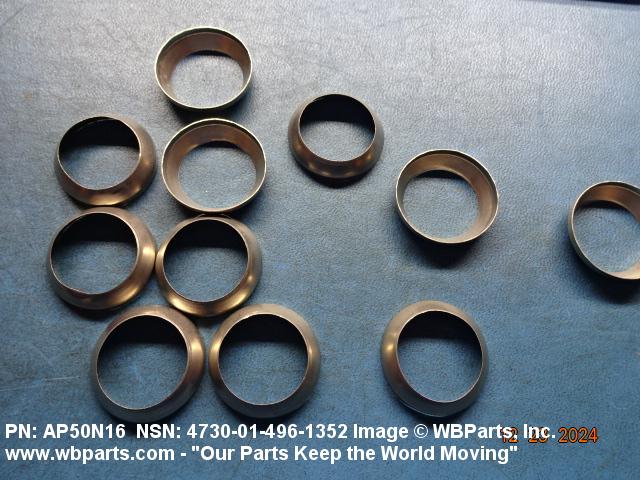

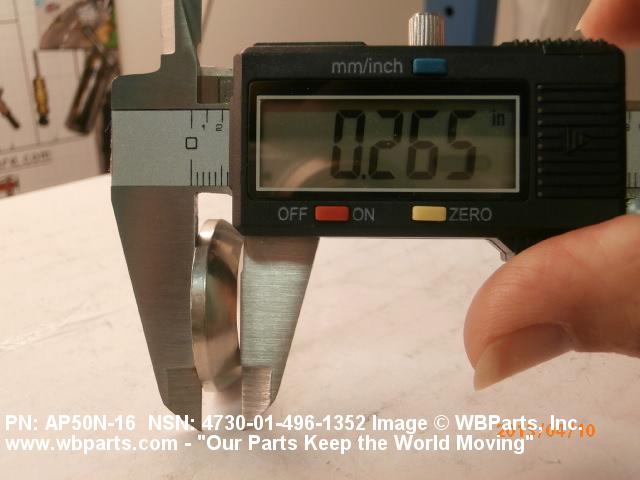

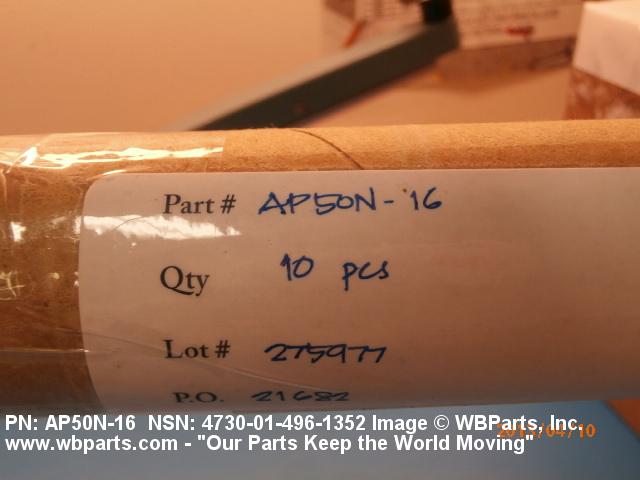

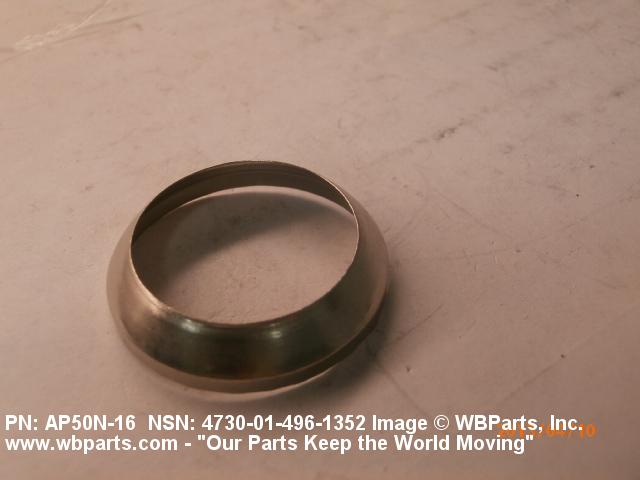

Drawings & Photos | NSN 4730-01-496-1352
Demand History | NSN 4730-01-496-1352
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-496-1352 | 2025-05-125 | 100 | United States |
| AP50N16 | 2024-12-351 | 4 | Japan |
| 4730-01-496-1352 | 2024-11-327 | 50 | us |
| AP50N16 | 2024-11-327 | 50 | us |
| AP50N-16 | 2022-05-126 | 506 | DIBBS |
| 4730-01-496-1352 | 2022-04-116 | 300 | US |
| AP50N-16 | 2022-03-90 | 506 | DIBBS |
| AP50N-16 | 2020-10-297 | 113 | DIBBS |
| AP50N-16 | 2020-09-247 | 113 | DIBBS |
| AP50N16 | 2014-11-314 | 12 | US |
| AP50N16 | 2014-11-311 | 1 | US |
| 4730-01-496-1352 | 2013-04-91 | 10 | United States |
| 4730-01-496-1352 | 2013-04-91 | 100 | United States |
| 4730-01-496-1352 | 2013-04-91 | 1000 | United States |
Cross Reference | NSN 4730-01-496-1352
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AP50N-16 | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-496-1352
Related Products | NSN 4730-01-496-1352
Technical Data | NSN 4730-01-496-1352
| Characteristic | Specifications |
|---|---|
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH NAVICP ACTIVITY HX QUALITY CONTROL, MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 01673 |
| DESIGN CONTROL REFERENCE | AP50N-16 |
Restrictions/Controls & Freight Information | NSN 4730-01-496-1352
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | F | Munitions List Item or Commerce Control List Item. Demilitarization required. Demilitarization Instructions to be furnished by the Item/Technical Manager. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-496-1352
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X3 | Nuclear Reactor Plant (NRP) material under the technical cognizance of the NAVSEA 08 special designed, manufactured and/or treated for use in a NRP or controls thereof. This category includes all other NRP items which are not coded X2 or X4. |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
