NSN 4730-01-497-5578 6322189, 01-497-5578, 014975578
Product Details | TUBE TO BOSS ELBOW
4730-01-497-5578 A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like.
Part Alternates: 6322189, 4730-01-497-5578, 01-497-5578, 4730014975578, 014975578
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 23 MAY 2002 | 01-497-5578 | 22679 ( ELBOW, TUBE TO BOSS ) |

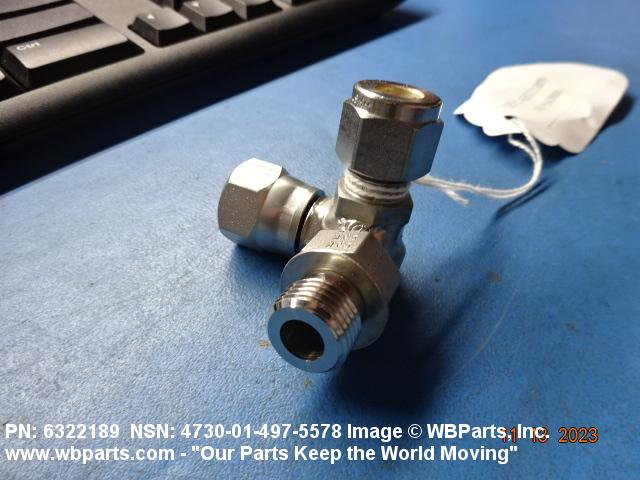

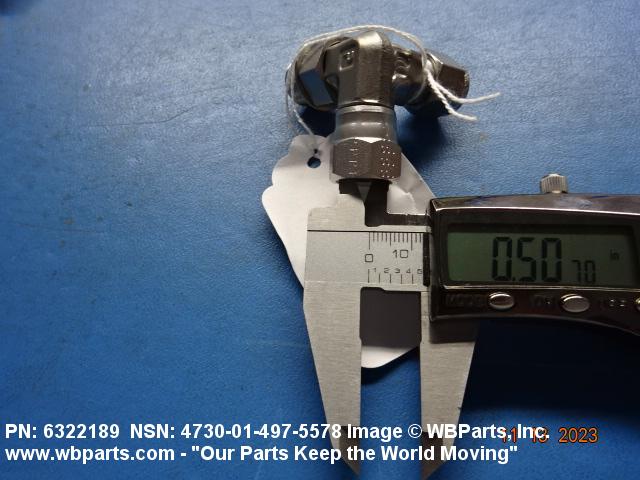

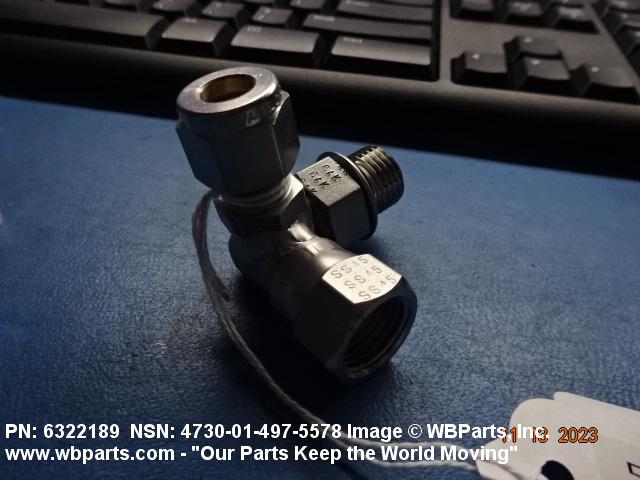

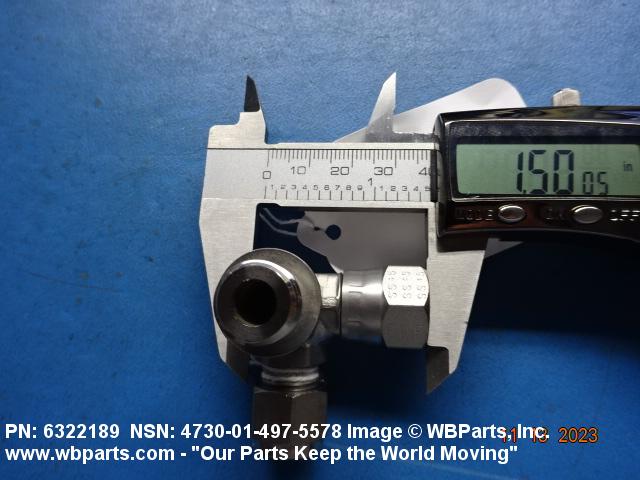

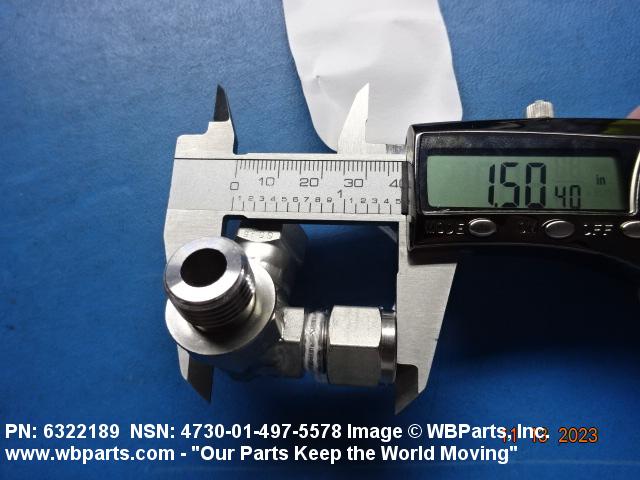

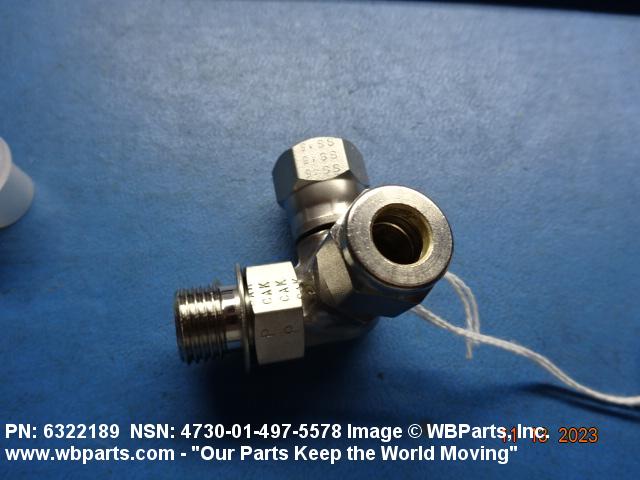

Drawings & Photos | NSN 4730-01-497-5578
Demand History | NSN 4730-01-497-5578
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-497-5578 | 2025-08-219 | 59 | DIBBS |
| 4730-01-497-5578 | 2024-06-161 | 24 | DIBBS |
| 4730-01-497-5578 | 2023-10-283 | 3 | United States |
| 4730-01-497-5578 | 2020-10-294 | 31 | DIBBS |
| 4730-01-497-5578 | 2018-06-164 | 41 | DIBBS |
| 4730-01-497-5578 | 2013-06-163 | 19 | DIBBS |
| 4730-01-497-5578 | 2013-03-65 | 28 | DIBBS |
| 4730-01-497-5578 | 2012-09-265 | 15 | DIBBS |
| 4730-01-497-5578 | 2012-04-117 | 7 | DIBBS |
| 4730-01-497-5578 | 2012-01-05 | 10 | DIBBS |
| 4730-01-497-5578 | 2010-02-57 | 9 | DIBBS |
| 4730-01-497-5578 | 2008-11-324 | 5 | DIBBS |
Cross Reference | NSN 4730-01-497-5578
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6322189 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-497-5578
Technical Data | NSN 4730-01-497-5578
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 225.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END THREADED EXTERNAL BOSS INLET |
| CONNECTION STYLE | B3 SWIVEL NUT, FLARE 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END B71A EXTERNAL SEAT FOR GASKET SEAL INLET |
| SEAT ANGLE | 37.0 DEGREES 1ST END |

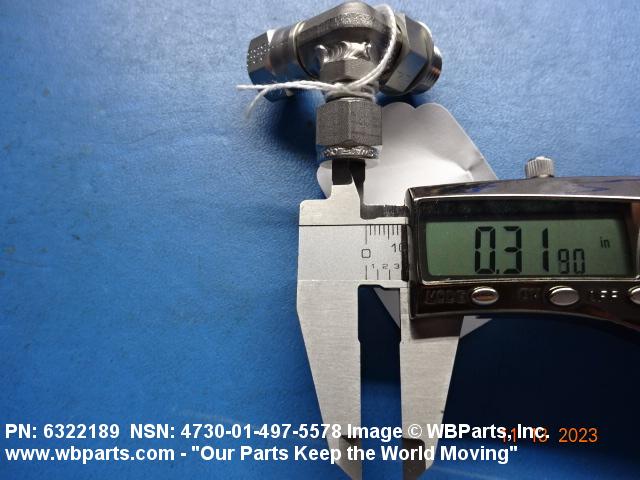

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END 0.375 INCHES 2ND END 0.3125 INCHES INLET |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END UNF INLET |

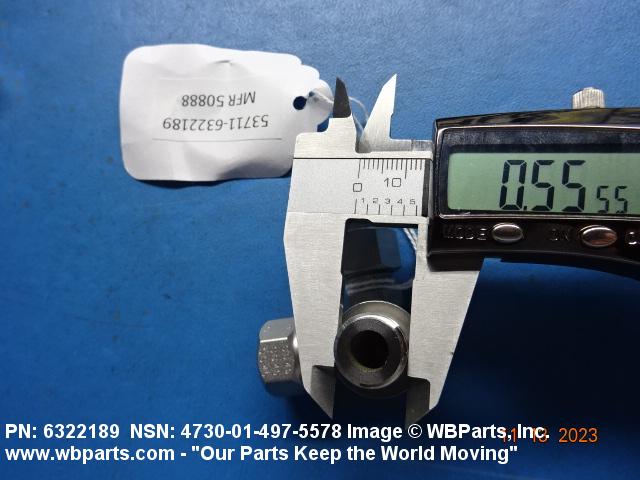

| NOMINAL THREAD SIZE | 0.562 INCHES 1ST END 0.562 INCHES 2ND END 0.500 INCHES INLET |
| THREAD CLASS | 2B 1ST END 2A 2ND END 2A INLET |

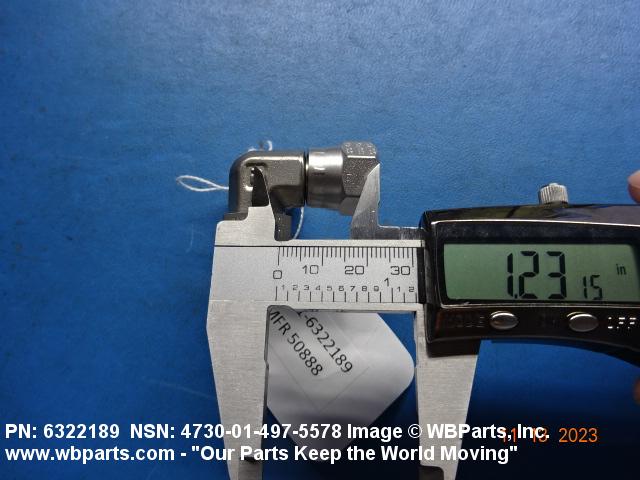

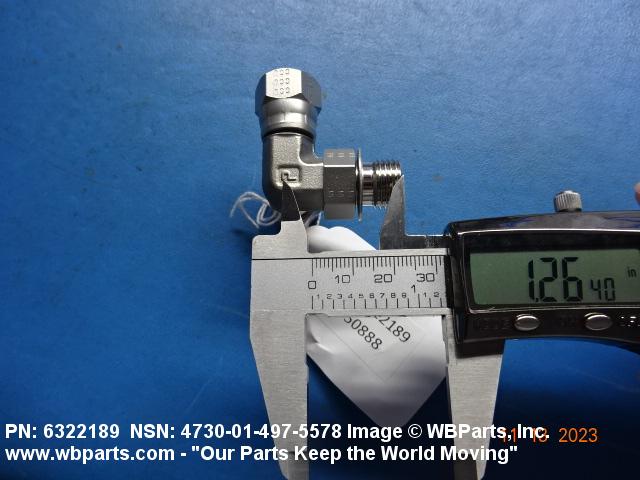

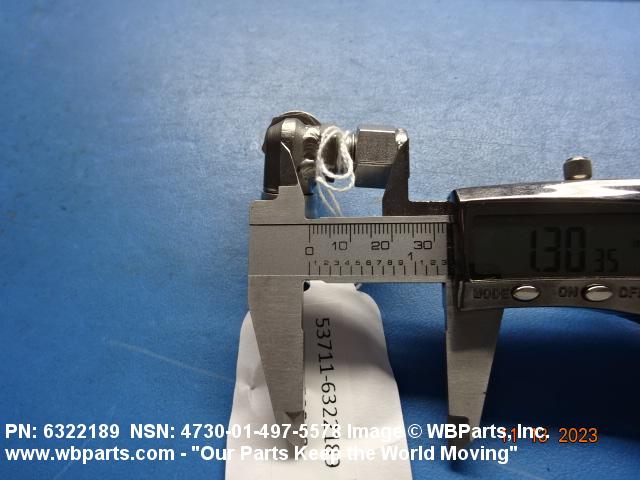

| LEG LENGTH | 1.220 INCHES MINIMUM AND 1.280 INCHES MAXIMUM 1ST END 1.190 INCHES MINIMUM AND 1.310 INCHES MAXIMUM 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| SPECIAL FEATURES | 3/16IN REDUCER WELDED TO 3/8IN ELBOW, STAINLESS |
| III END ITEM IDENTIFICATION | AM7159 F100 |
Restrictions/Controls & Freight Information | NSN 4730-01-497-5578
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-497-5578
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
