NSN 4730-01-542-7616 MS2191324, MS21913-24 , MS21913V249
Product Details | THREADED TUBE FITTING PLUG
4730-01-542-7616 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: MS2191324, MS21913-24 , MS21913V249 , MS21913V24P, AS18280, AS21913, 4730-01-542-7616, 01-542-7616, 4730015427616, 015427616
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 AUG 2006 | 01-542-7616 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

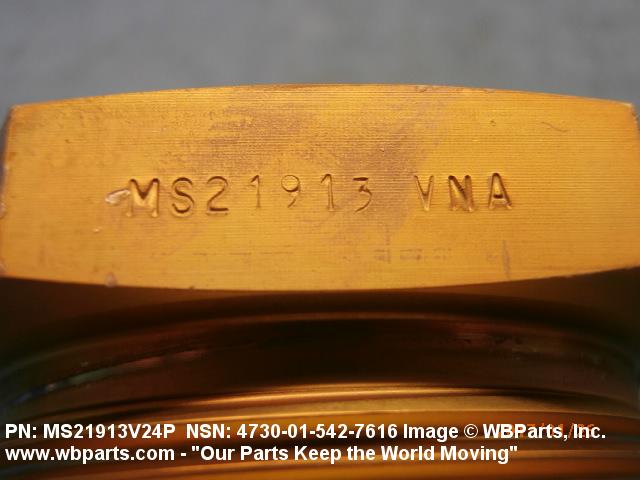

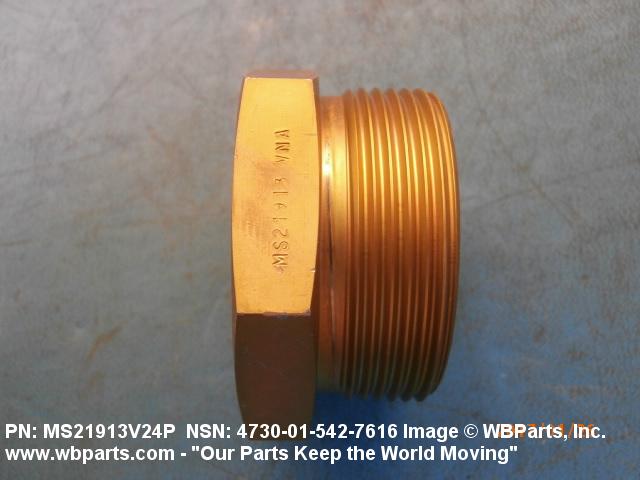

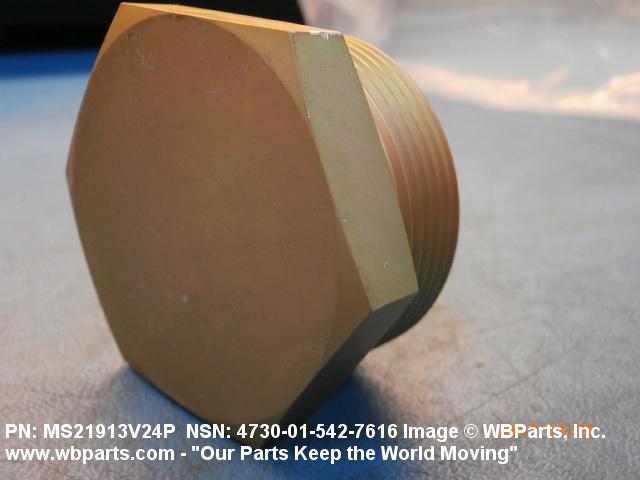

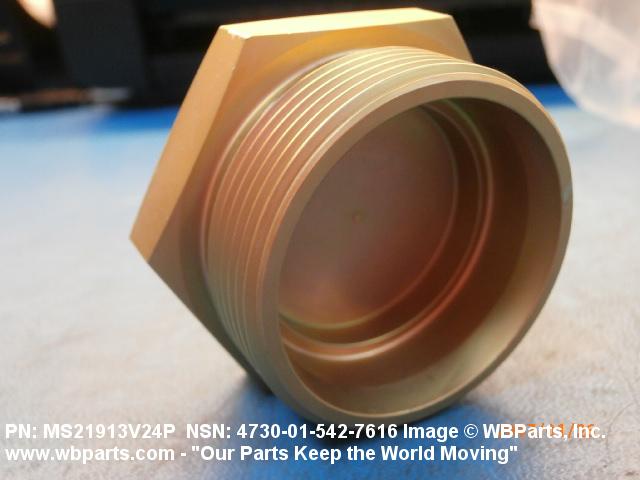

Drawings & Photos | NSN 4730-01-542-7616
Demand History | NSN 4730-01-542-7616
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-542-7616 | 2025-07-212 | 5 | United States |
| 4730-01-542-7616 | 2025-07-206 | 5 | United States |
| 4730-01-542-7616 | 2025-02-35 | 2 | Greece |
| MS2191324 | 2023-11-317 | 4 | US |
| 4730-01-542-7616 | 2022-06-153 | 178 | DIBBS |
| MS2191324 | 2022-05-131 | 1 | United States |
| 4730-01-542-7616 | 2022-05-122 | 8 | DIBBS |
| 4730-01-542-7616 | 2022-04-112 | 52 | DIBBS |
| 4730-01-542-7616 | 2022-04-108 | 16 | DIBBS |
| 4730-01-542-7616 | 2022-03-90 | 52 | DIBBS |
| 4730-01-542-7616 | 2021-10-280 | 66 | DIBBS |
| 4730-01-542-7616 | 2021-07-182 | 54 | DIBBS |
| MS2191324 | 2020-05-139 | 6 | United States |
| MS21913V24P | 2019-06-162 | 10 | United States |
| 4730-01-542-7616 | 2019-01-17 | 122 | DIBBS |
| 4730-01-542-7616 | 2018-10-284 | 93 | DIBBS |
| 4730-01-542-7616 | 2018-03-72 | 111 | DIBBS |
| 4730-01-542-7616 | 2017-11-306 | 73 | DIBBS |
| 4730-01-542-7616 | 2017-08-218 | 58 | DIBBS |
| 4730-01-542-7616 | 2017-01-12 | 4 | United States |
| MS21913V24P | 2016-08-237 | 25 | US |
| AS18280 | 2014-10-280 | 1 | US |
| AS21913 | 2012-12-360 | 1 | CN |
| 4730-01-542-7616 | 2012-02-48 | 45 | DIBBS |
| 4730-01-542-7616 | 2011-07-210 | 42 | DIBBS |
| 4730-01-542-7616 | 2011-01-18 | 41 | DIBBS |
| 4730-01-542-7616 | 2010-08-228 | 32 | DIBBS |
| 4730-01-542-7616 | 2009-10-296 | 84 | DIBBS |
| 4730-01-542-7616 | 2009-10-288 | 85 | DIBBS |
| 4730-01-542-7616 | 2009-08-232 | 25 | DIBBS |
| 4730-01-542-7616 | 2009-01-22 | 32 | DIBBS |
| 4730-01-542-7616 | 2008-11-316 | 39 | DIBBS |
Cross Reference | NSN 4730-01-542-7616
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21913 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21913-24 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21913-24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21913V249 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21913V24P | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-542-7616
Related Products | NSN 4730-01-542-7616
Technical Data | NSN 4730-01-542-7616
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 15-5PH OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | C43 PLUG, TUBE FITTING FLARELESS |

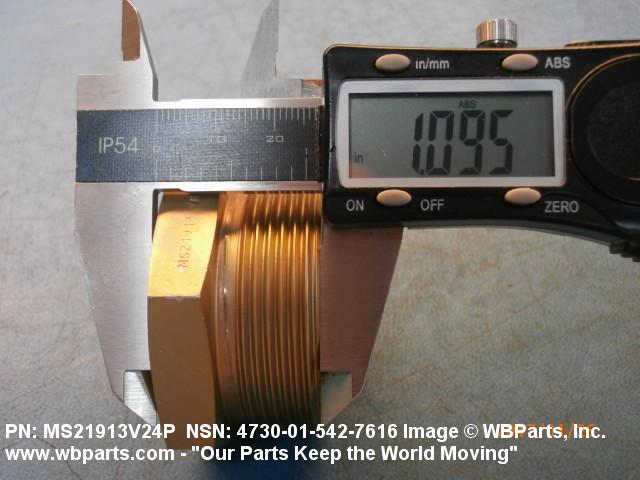

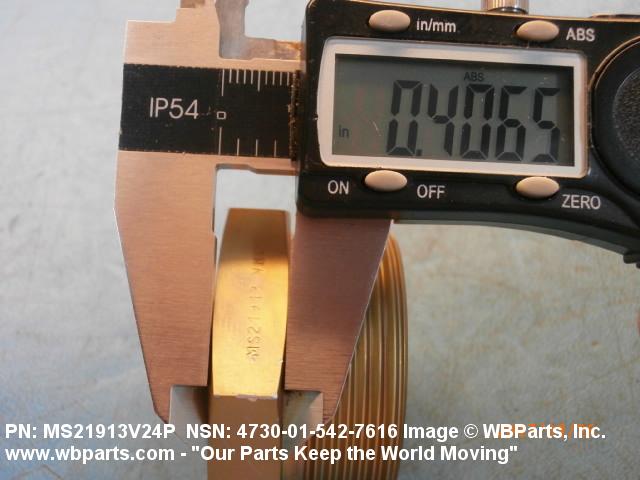

| HEAD HEIGHT | 0.375 INCHES NOMINAL |
| OVERALL LENGTH | 1.094 INCHES NOMINAL |
| CONNECTION STYLE | J5 FLARELESS |
| THREAD SERIES DESIGNATOR | UNJ EXTERNAL |

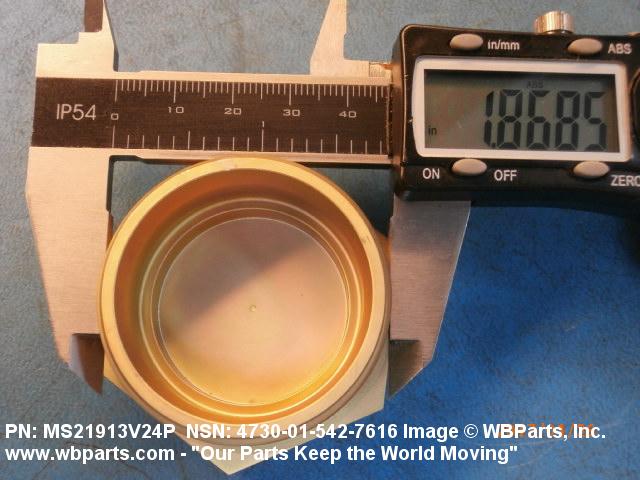

| NOMINAL THREAD SIZE | 1.875 INCHES EXTERNAL |

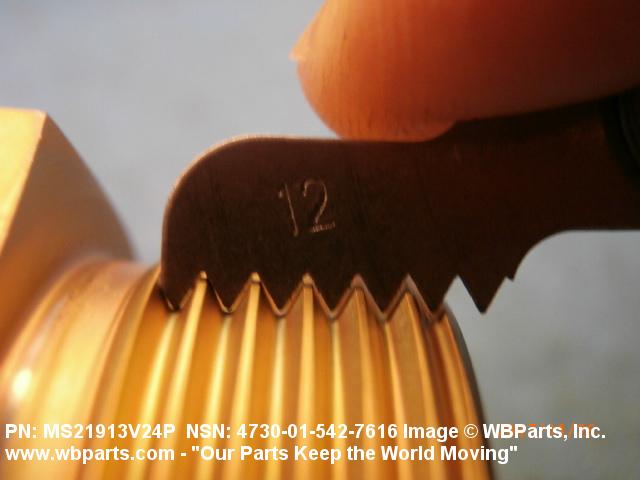

| THREAD QUANTITY PER INCH | 12 EXTERNAL |
