Product Details | PIPE TO TUBE ELBOW
4730-01-560-5128 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 1B24388C, 1B243-8-8C, 4730-01-560-5128, 01-560-5128, 4730015605128, 015605128
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 FEB 2008 | 01-560-5128 | 03770 ( ELBOW, PIPE TO TUBE ) |
Drawings & Photos | NSN 4730-01-560-5128
Cross Reference | NSN 4730-01-560-5128
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1B243-8-8C | 87373 | PARKER-HANNIFIN CORPORATION DBA HOSE PRODUCTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-560-5128
Technical Data | NSN 4730-01-560-5128
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

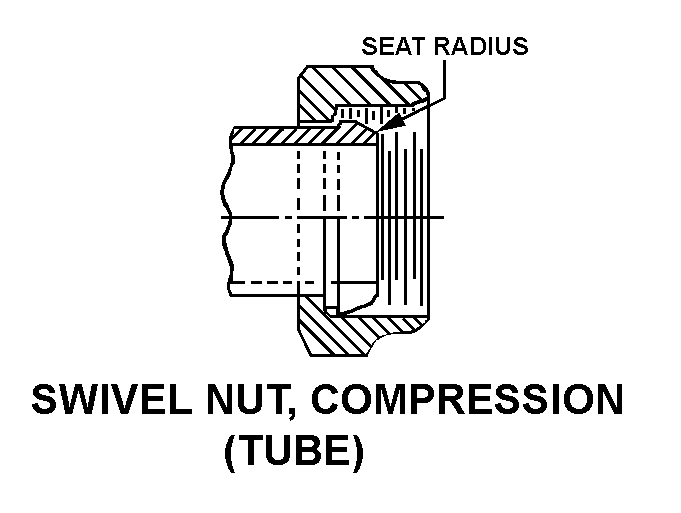

| CONNECTION STYLE | K11 NUT, COMPRESSION (TUBE) 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES ALL ENDS |
| NOMINAL OVERALL LENGTH | 2.900 INCHES |
| FLOW ANGLE | 90.0 RADIANS |
| BEND CENTER TO CENTER NOMINAL DISTANCE | 1.570 INCHES |
| SPECIAL FEATURES | PERMANENT FITTING; HOSE COUPLING |
