NSN 4730-01-599-2407 HAR1238, 300F, 01-599-2407
Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-599-2407 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: HAR1238, 300F, 4730-01-599-2407, 01-599-2407, 4730015992407, 015992407
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 19 SEP 2011 | 01-599-2407 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-599-2407
Demand History | NSN 4730-01-599-2407
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 300F | 2023-02-46 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-599-2407
Technical Data | NSN 4730-01-599-2407
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC OVERALL |
| NOMINAL OUTSIDE DIAMETER | 3.0 INCHES |
| CONNECTION TYPE | THREADED EXTERNAL PIPE FIRST FLUID END CONNECTION |
| CONNECTION STYLE | CAM OR LEVER (EXTERNAL) FIRST QUICK DISCONNECT END |
| MATERIAL DOCUMENT AND CLASSIFICATION | POLYPROPYLENE PER VENDOR'S CATALOG AND WEBSITE MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| CONNECTION STYLE | PLAIN FIRST FLUID END CONNECTION |
| END ITEM IDENTIFICATION | 3 INCH QUICK DISCONNECT COUPLING |
| QUICK DISCONNECT METHOD | CAM-LOCKING FIRST QUICK DISCONNECT END |

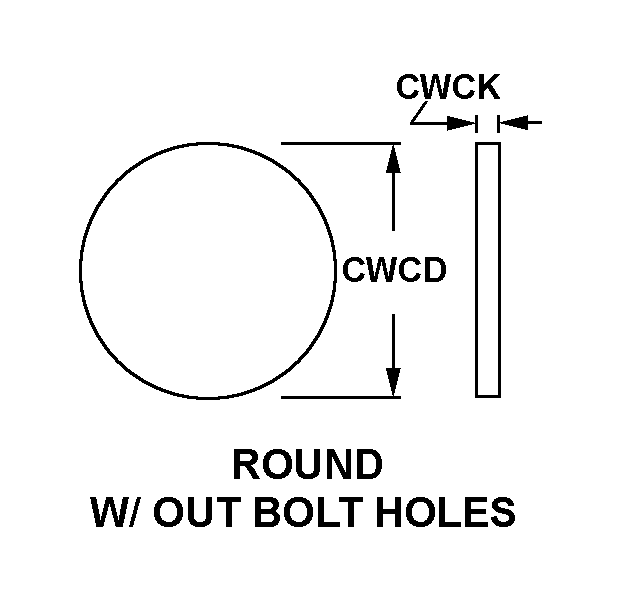

| BASIC SHAPE STYLE | 3A ROUND W/OUT BOLT HOLES ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 3.0 INCHES FIRST FLUID END CONNECTION |
| NOMINAL THREAD SIZE | 3.0 INCHES FIRST FLUID END CONNECTION |
| MAXIMUM OPERATING PRESSURE | 75.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| OVERALL LENGTH | 4.3125 INCHES NOMINAL |
| STYLE DESIGNATOR | MALE COUPLING HALF |
| THREAD SERIES DESIGNATOR | NPT FIRST FLUID END CONNECTION |
| CONNECTION TYPE | EXTERNAL QUICK DISCONNECT FIRST QUICK DISCONNECT END |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | MALE ADAPTER 3 INCH |
Restrictions/Controls & Freight Information | NSN 4730-01-599-2407
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
