NSN 4810-00-007-4738 AV160700008, AV160700-008, AV1607002
Product Details | SOLENOID VALVE
4810-00-007-4738 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: AV160700008, AV160700-008, AV1607002, AV160-700-2, AV160-700-2 115, AV1607002115, AV1607008, AV-160700-8 , AV160700-8, AV781561, AV78-156-1, 3155547, 3155547PC118, 4810-00-007-4738, 00-007-4738, 4810000074738, 000074738
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 14 JUL 1972 | 00-007-4738 | 10998 ( VALVE, SOLENOID ) |

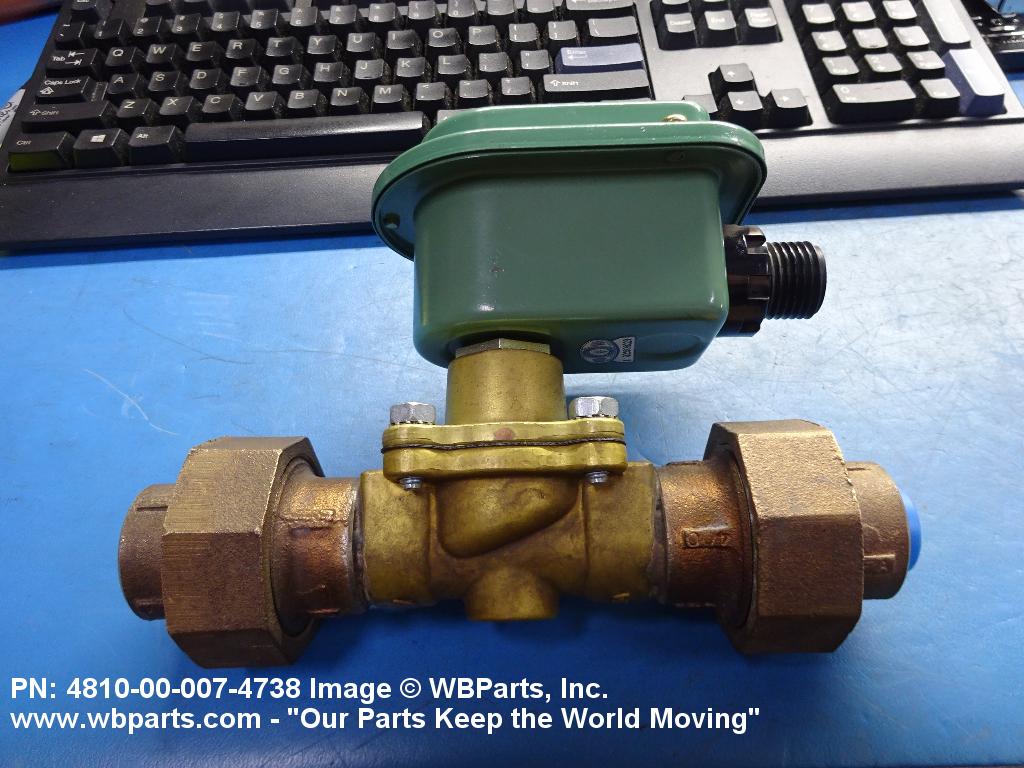

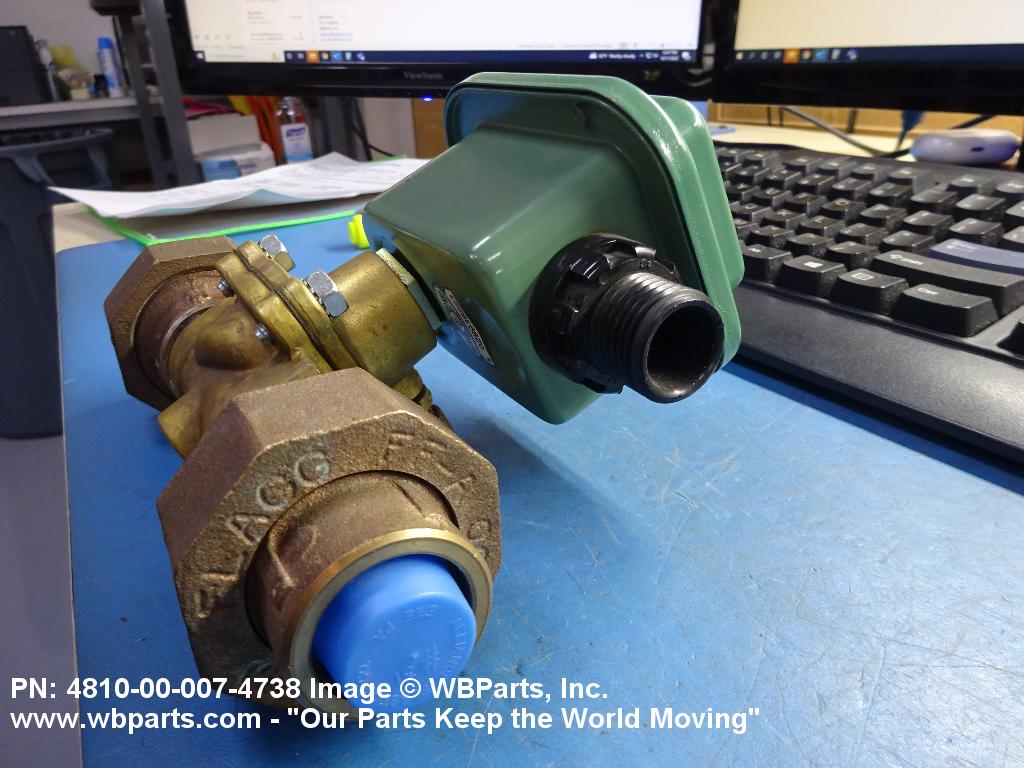

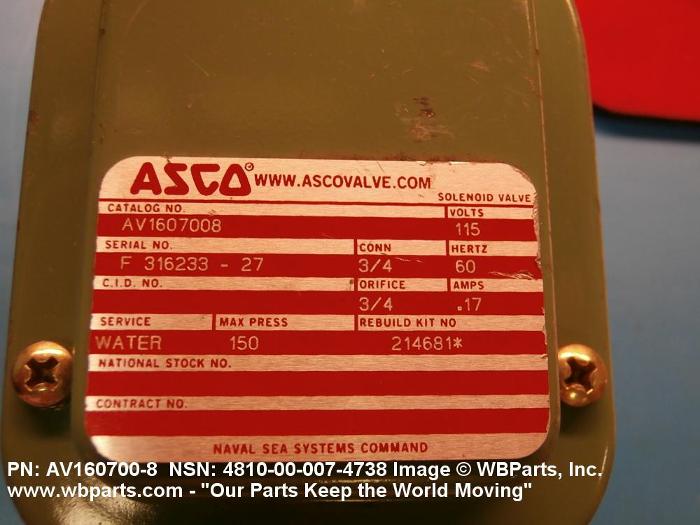

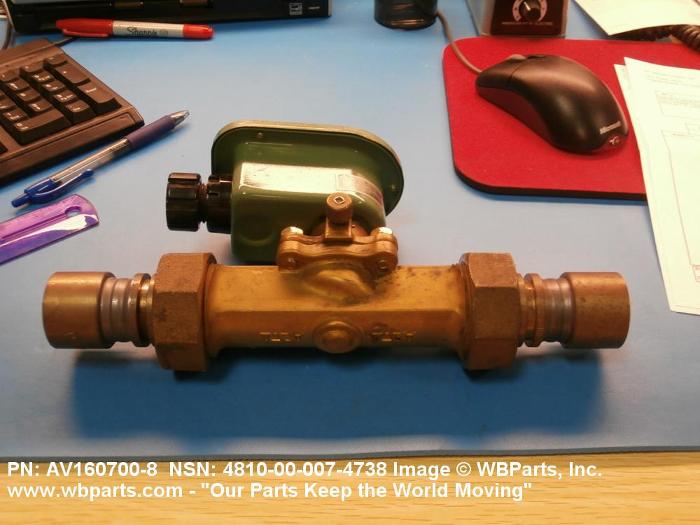

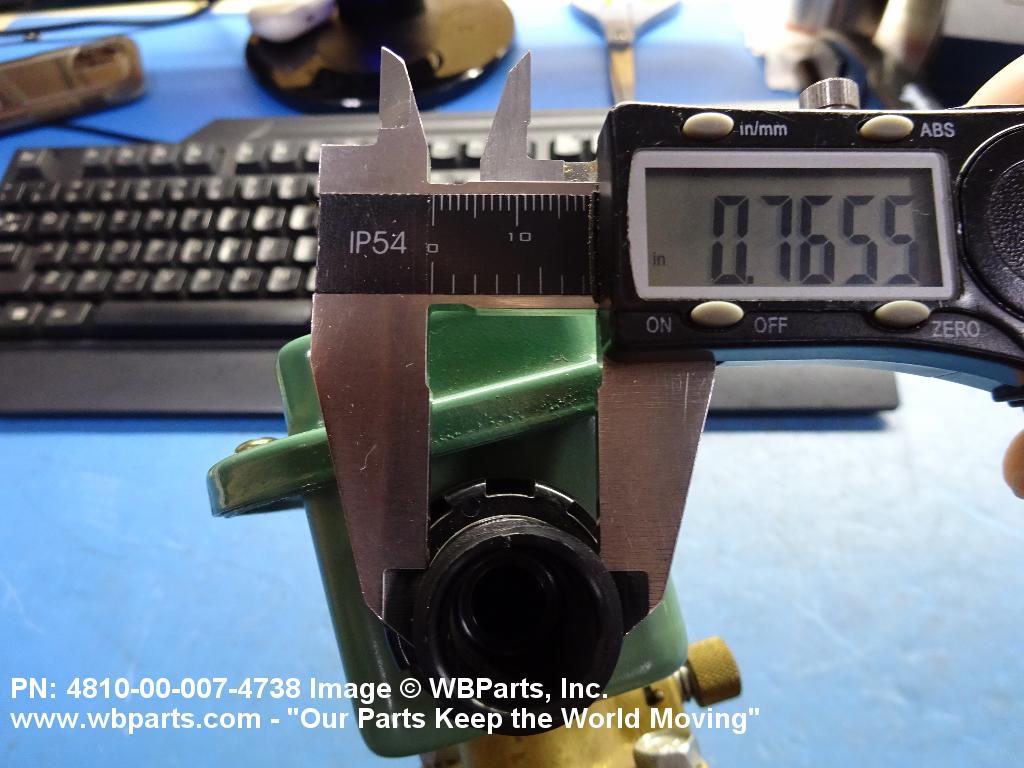

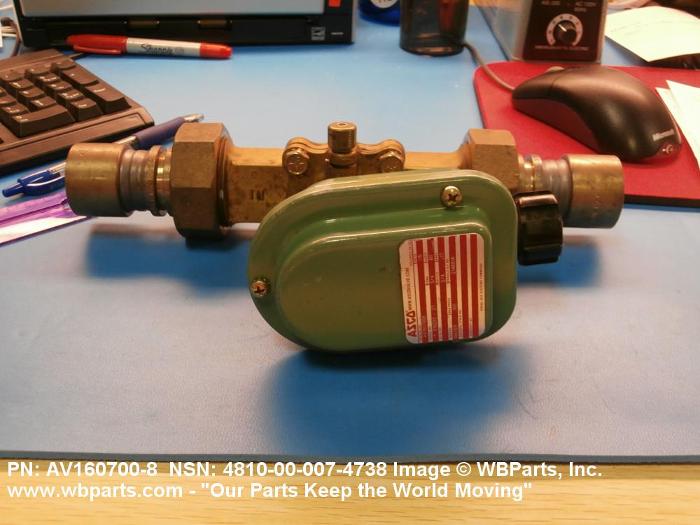

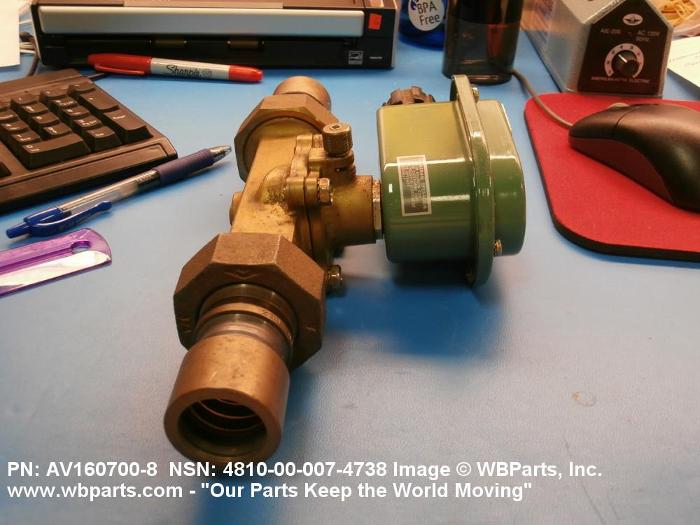

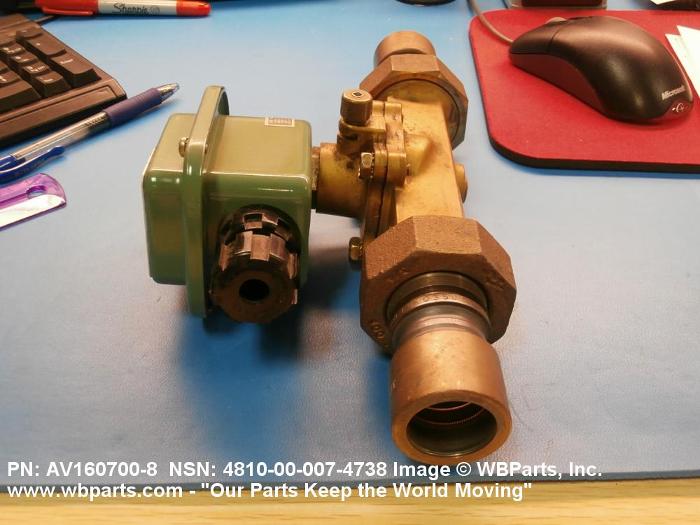

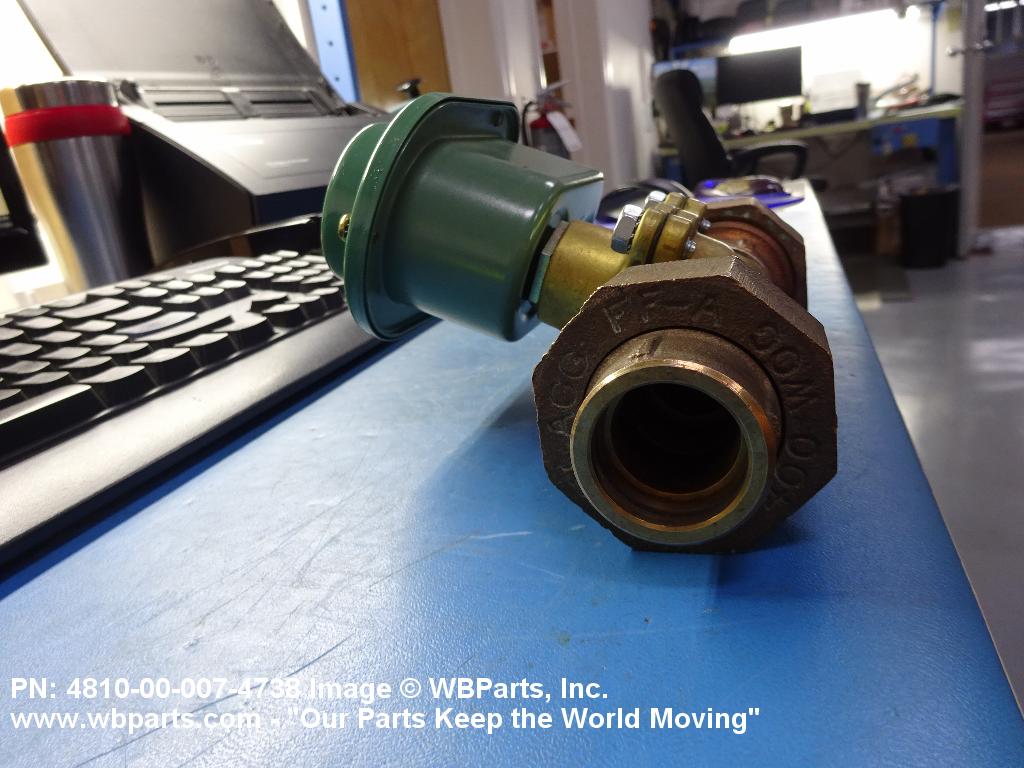

Drawings & Photos | NSN 4810-00-007-4738
Demand History | NSN 4810-00-007-4738
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AV507874-8 | 2025-11-331 | 28 | DIBBS |
| AV507874-8 | 2025-11-313 | 82 | DIBBS |
| AV507874-8 | 2025-08-216 | 49 | DIBBS |
| AV507874-8 | 2025-07-205 | 49 | DIBBS |
| AV507874-8 | 2025-04-118 | 27 | DIBBS |
| AV507874-8 | 2025-04-107 | 27 | DIBBS |
| AV507874-8 | 2025-04-97 | 18 | DIBBS |
| AV507874-8 | 2025-03-86 | 18 | DIBBS |
| AV507874-8 | 2024-10-277 | 34 | DIBBS |
| AV507874-8 | 2024-03-67 | 12 | DIBBS |
| 4810-00-007-4738 | 2023-11-310 | 1 | United States |
| 4810-00-007-4738 | 2023-10-296 | 1 | US |
| 4810-00-007-4738 | 2023-10-291 | 1 | United States |
| AV507874-8 | 2023-09-271 | 1 | DIBBS |
| AV507874-8 | 2023-09-250 | 1 | DIBBS |
| AV507874-8 | 2023-08-236 | 25 | DIBBS |
| AV507874-8 | 2023-08-215 | 5 | DIBBS |
| AV507874-8 | 2023-07-201 | 12 | DIBBS |
| AV507874-8 | 2023-07-187 | 14 | DIBBS |
| AV507874-8 | 2022-12-356 | 15 | DIBBS |
| 4810-00-007-4738 | 2022-10-294 | 1 | United States |
| 4810-00-007-4738 | 2022-09-256 | 1 | United States |
| AV507874-8 | 2022-06-181 | 25 | DIBBS |
| 4810-00-007-4738 | 2022-03-82 | 36 | US |
| AV507874-8 | 2022-03-76 | 36 | DIBBS |
| AV507874-8 | 2022-03-62 | 14 | DIBBS |
| 4810-00-007-4738 | 2021-09-249 | 1 | AU |
| AV507874-8 | 2021-06-154 | 8 | DIBBS |
| AV507874-8 | 2021-04-98 | 12 | DIBBS |
| AV507874-8 | 2021-03-84 | 6 | DIBBS |
| AV507874-8 | 2020-12-342 | 15 | DIBBS |
| AV507874-8 | 2020-10-282 | 29 | DIBBS |
| AV160700-8 | 2020-04-114 | 21 | DIBBS |
| AV160700-8 | 2019-12-335 | 19 | DIBBS |
| AV160700-8 | 2019-05-136 | 58 | DIBBS |
| AV160700-8 | 2019-04-115 | 11 | DIBBS |
| AV160700-8 | 2019-03-87 | 23 | DIBBS |
| 4810-00-007-4738 | 2019-03-67 | 1 | United States |
| 4810-00-007-4738 | 2018-08-232 | 30 | US |
| 4810-00-007-4738 | 2018-08-228 | 30 | DIBBS |
| 4810-00-007-4738 | 2017-09-244 | 33 | US |
| 4810-00-007-4738 | 2017-08-243 | 33 | DIBBS |
| 4810-00-007-4738 | 2016-10-298 | 53 | DIBBS |
| 4810-00-007-4738 | 2016-03-80 | 47 | DIBBS |
| 4810-00-007-4738 | 2015-12-344 | 65 | DIBBS |
| 4810-00-007-4738 | 2015-11-315 | 2 | Taiwan |
| 4810-00-007-4738 | 2015-06-152 | 50 | DIBBS |
| 4810-00-007-4738 | 2015-04-118 | 1 | US |
| 4810-00-007-4738 | 2014-05-148 | 54 | DIBBS |
| 4810-00-007-4738 | 2014-05-134 | 1 | KR |
| 4810-00-007-4738 | 2014-05-131 | 1 | KR |
| 4810-00-007-4738 | 2013-10-304 | 72 | DIBBS |
| 4810-00-007-4738 | 2013-05-137 | 4 | Taiwan |
| 4810-00-007-4738 | 2013-04-92 | 6 | TW |
| 4810-00-007-4738 | 2013-03-70 | 68 | DIBBS |
| 4810-00-007-4738 | 2012-09-255 | 1 | United States |
| 4810-00-007-4738 | 2012-08-240 | 46 | DIBBS |
| 4810-00-007-4738 | 2012-08-240 | 73 | DIBBS |
| 4810-00-007-4738 | 2010-12-341 | 102 | DIBBS |
| 4810-00-007-4738 | 2010-07-207 | 65 | DIBBS |
| 4810-00-007-4738 | 2010-02-43 | 17 | DIBBS |
| 4810-00-007-4738 | 2009-10-293 | 80 | DIBBS |
Cross Reference | NSN 4810-00-007-4738
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3155547 | 24047 | COOPER INDUSTRIES INC DBA COOPER TOOLS |
| 3155547PC118 | 24047 | COOPER INDUSTRIES INC DBA COOPER TOOLS |
| 3155547PC118 | 6X081 | COOPER INDUSTRIES INDUSTRIAL MACHINERY DIV |
| AV-160700-8 | 60XL5 | ASCO VALVE MANUFACTURING LLC |
| AV160-700-2 | 04845 | AUTOMATIC SWITCH COMPANY |
| AV160-700-2 115 | 04845 | AUTOMATIC SWITCH COMPANY |
| AV160700-008 | 04845 | AUTOMATIC SWITCH COMPANY |
| AV160700-8 | 04845 | AUTOMATIC SWITCH COMPANY |
| AV78-156-1 | 04845 | AUTOMATIC SWITCH COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-00-007-4738
Related Products | NSN 4810-00-007-4738
Technical Data | NSN 4810-00-007-4738
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR AND PLASTIC POLYAMIDE FLOW CONTROL DEVICE STEEL COMP 303 SEAT |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B283 ASSN STD SINGLE MATERIAL RESPONSE BODY AISI 303 ASSN STD SINGLE MATERIAL RESPONSE SEAT |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| MEDIA FOR WHICH DESIGNED | AIR 1ST RESPONSE WATER-OIL-GAS 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 100.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE |
| CURRENT RATING IN AMPS | 0.170 |
| FLOW CONTROL DEVICE NORMAL OPERATION POSITION | CLOSED |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | G20A SOCKET ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.750 INCHES ALL ENDS |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| SPECIAL FEATURES | MANUAL OVERRIDE |
| TEST DATA DOCUMENT | 81349-MIL-S-901 SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 4810-00-007-4738
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-00-007-4738
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
