Product Details | SOLENOID VALVE
4810-00-494-7222 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: 26930981, 4810-00-494-7222, 00-494-7222, 4810004947222, 004947222
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 18 FEB 1970 | 00-494-7222 | 10998 ( VALVE, SOLENOID ) |
Drawings & Photos | NSN 4810-00-494-7222
Demand History | NSN 4810-00-494-7222
Cross Reference | NSN 4810-00-494-7222
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26930981 | 45153 | HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS |
| 26930981 | 70236 | TACTAIR FLUID CONTROLS, INC. |
| 26930981 | 79318 | MEGGITT (NORTH HOLLYWOOD), INC. |
| 26930981 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 26930981 | 99215 | KAISER FLUID TECHNOLOGIES INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4810-00-494-7222
Related Products | NSN 4810-00-494-7222
4810-00-494-8380, 4810-00-494-9496, 4810-00-494-9626, 4810-00-495-2996, 4810-00-495-3008
Technical Data | NSN 4810-00-494-7222
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |

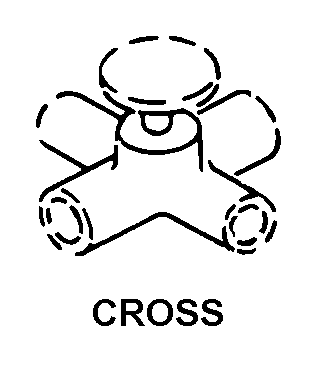

| STYLE DESIGNATOR | A3 CROSS |
| FLOW CONTROL DEVICE | BALL |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 17.0 DC AND 29.0 DC |
| FLOW CONTROL DEVICE NORMAL OPERATION POSITION | CLOSED |
| CONNECTION TYPE | FLANGE 1ST END |
| FLANGE SHAPE | RECTANGULAR WITH HOLES 1ST END |
| NOMINAL THICKNESS | 0.305 INCHES 1ST END |
| NOMINAL LENGTH | 1.178 INCHES 1ST END |
| NOMINAL WIDTH | 1.178 INCHES 1ST END |
| BOLT HOLE QUANTITY | 4 1ST END |
| BOLT HOLE NOMINAL DIAMETER | 0.138 INCHES 1ST END |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 0.890 INCHES 1ST END |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 0.890 INCHES 1ST END |
| FLANGE FACE DESIGN | RAISED STRAIGHT 1ST END |
| RAISED FACE NOMINAL HEIGHT | 0.575 INCHES 1ST END |
| RAISED FACE NOMINAL DIAMETER | 0.550 INCHES 1ST END |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| SPECIAL FEATURES | TWO FREE FLOWING OUTLET OPENINGS |
