NSN 4810-01-165-5842 AV16070010115VAC, AV-160-700-10-115VAC, AV-160-700-4 115VAC
Product Details | SOLENOID VALVE

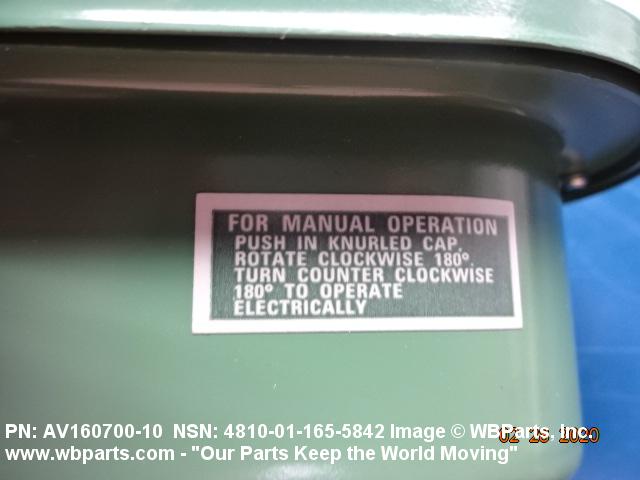

4810-01-165-5842 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: AV16070010115VAC, AV-160-700-10-115VAC, AV-160-700-4 115VAC, AV1607004115VAC, 4810-01-165-5842, 01-165-5842, 4810011655842, 011655842
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 31 OCT 1983 | 01-165-5842 | 10998 ( VALVE, SOLENOID ) |

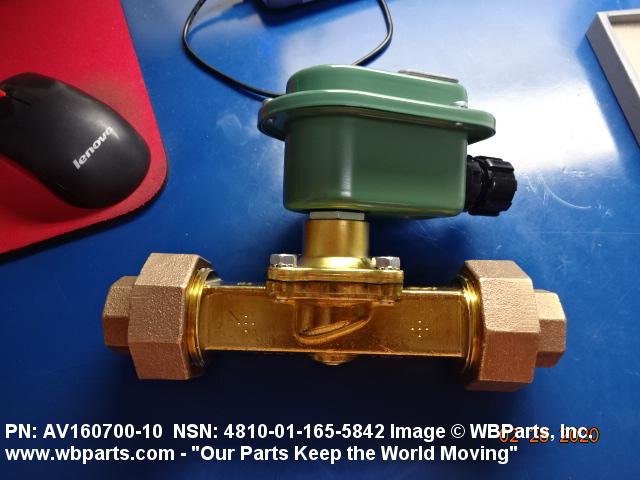

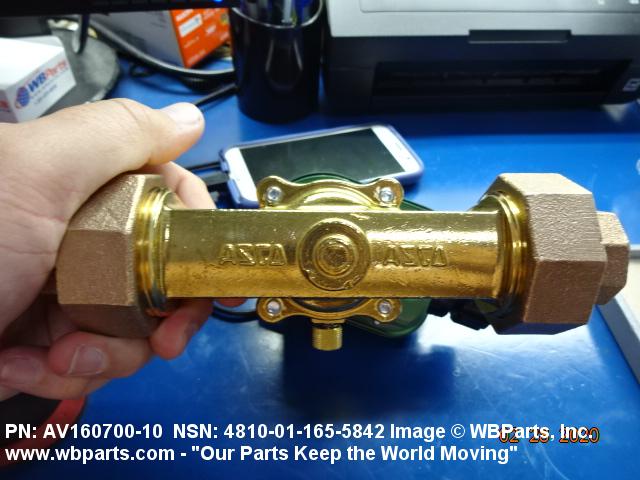

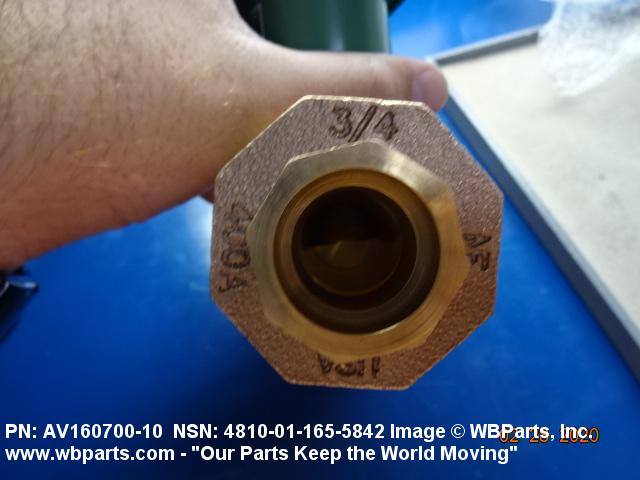

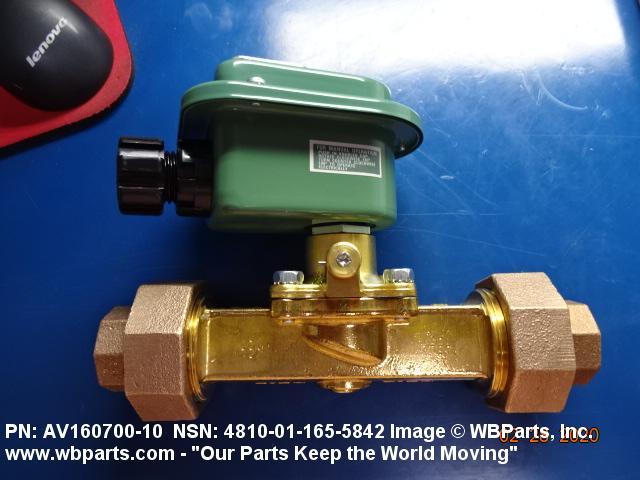

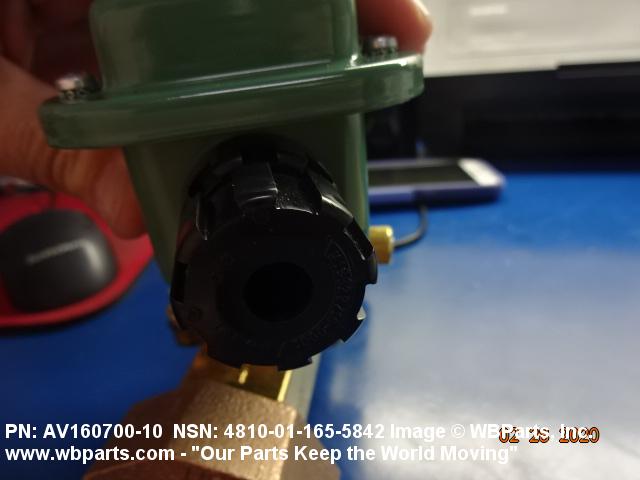

Drawings & Photos | NSN 4810-01-165-5842
Demand History | NSN 4810-01-165-5842
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AV-160-700-10-115VAC | 2021-02-39 | 9 | DIBBS |
| 4810-01-165-5842 | 2020-02-38 | 1 | United States |
| AV16070010115VAC | 2018-12-354 | 29 | US |
| 4810-01-165-5842 | 2018-12-353 | 29 | DIBBS |
| 4810-01-165-5842 | 2018-07-188 | 25 | US |
| 4810-01-165-5842 | 2018-07-182 | 25 | DIBBS |
| 4810-01-165-5842 | 2018-06-155 | 11 | DIBBS |
| 4810-01-165-5842 | 2018-03-72 | 15 | DIBBS |
| 4810-01-165-5842 | 2016-03-90 | 49 | DIBBS |
| 4810-01-165-5842 | 2016-03-63 | 17 | DIBBS |
| 4810-01-165-5842 | 2013-03-78 | 25 | DIBBS |
| 4810-01-165-5842 | 2013-03-60 | 25 | DIBBS |
| 4810-01-165-5842 | 2012-08-226 | 12 | DIBBS |
| 4810-01-165-5842 | 2012-02-33 | 35 | DIBBS |
| 4810-01-165-5842 | 2011-11-307 | 6 | DIBBS |
| 4810-01-165-5842 | 2011-09-271 | 20 | DIBBS |
| 4810-01-165-5842 | 2011-04-104 | 36 | DIBBS |
| 4810-01-165-5842 | 2011-02-49 | 12 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4810-01-165-5842
Technical Data | NSN 4810-01-165-5842
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY STEEL COMP 303 SEAT |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 100.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE |
| CURRENT RATING IN AMPS | 0.260 |
| FLOW CONTROL DEVICE NORMAL OPERATION POSITION | CLOSED |

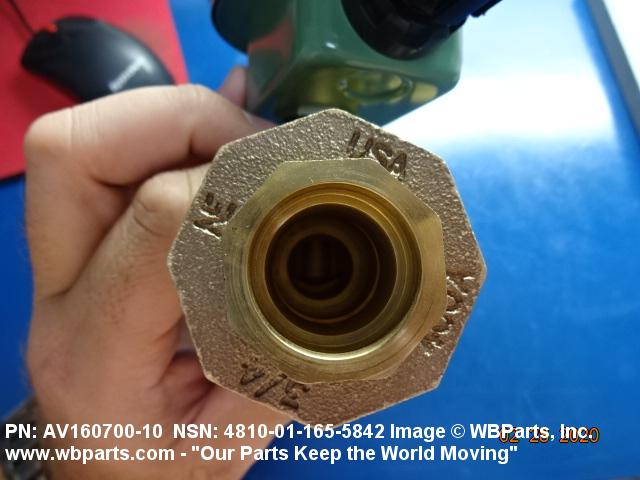

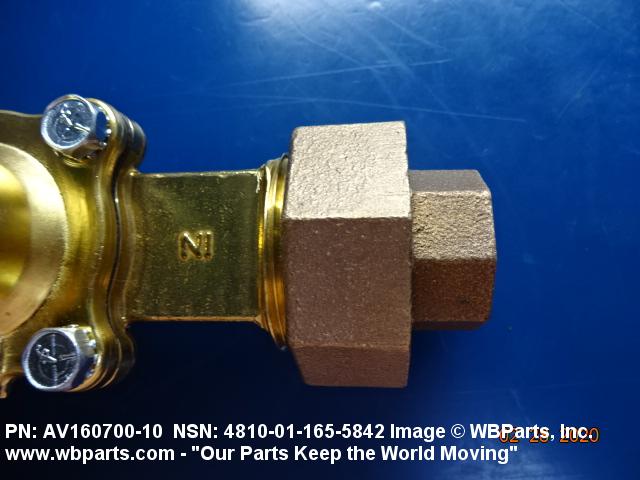

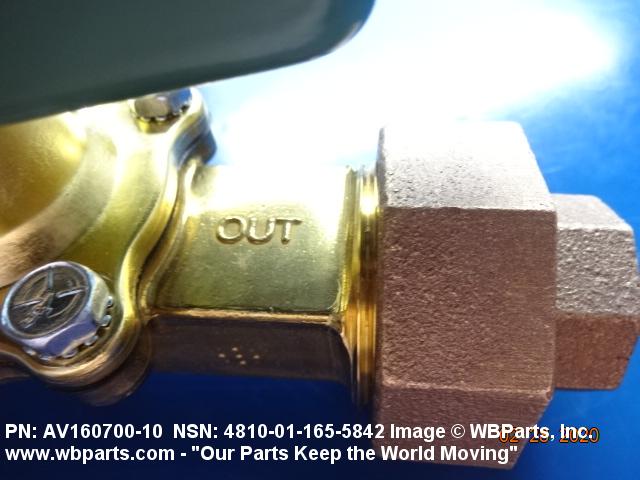

| CONNECTION TYPE | UNTHREADED INTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | G21B STREAMLINED WITH ONE BRAZING RING ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES ALL ENDS |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
Restrictions/Controls & Freight Information | NSN 4810-01-165-5842
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-01-165-5842
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
