NSN 4810-01-271-2998 11466334, 11466334-4, 893672080400

Product Details | FLUID PRESSURE REGULATING VALVE


4810-01-271-2998 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: 11466334, 11466334-4, 893672080400, 8936-7208-0400, 4810-01-271-2998, 01-271-2998, 4810012712998, 012712998, 114663344

Valves | Valves, Powered

Supply Group (FSG) NSN Assign. NIIN
48 22 JAN 1988 01-271-2998

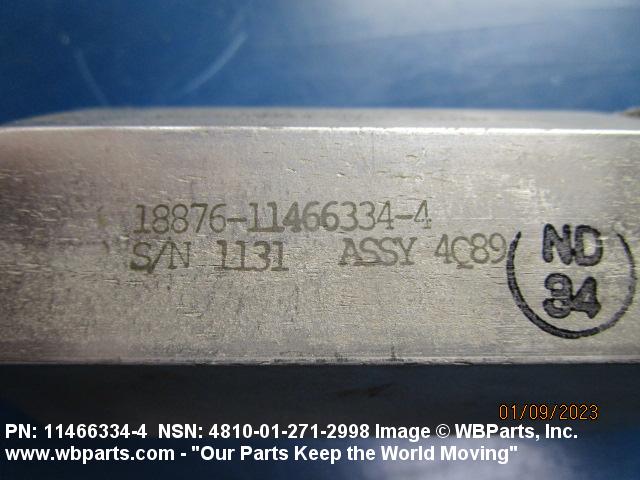

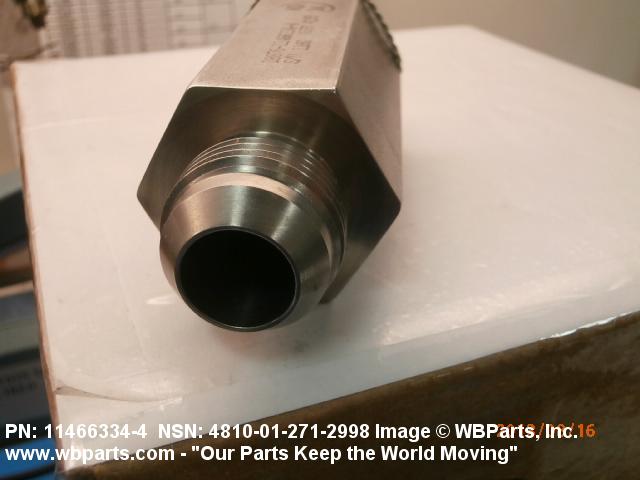

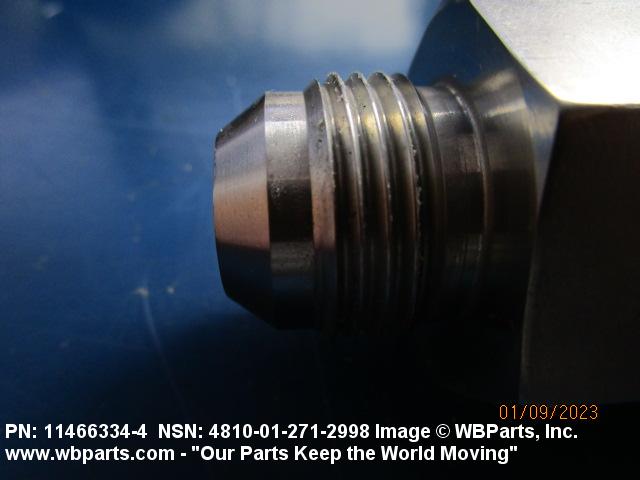

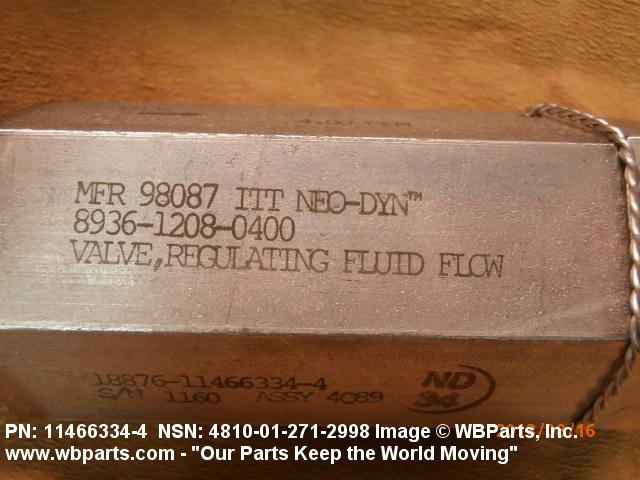

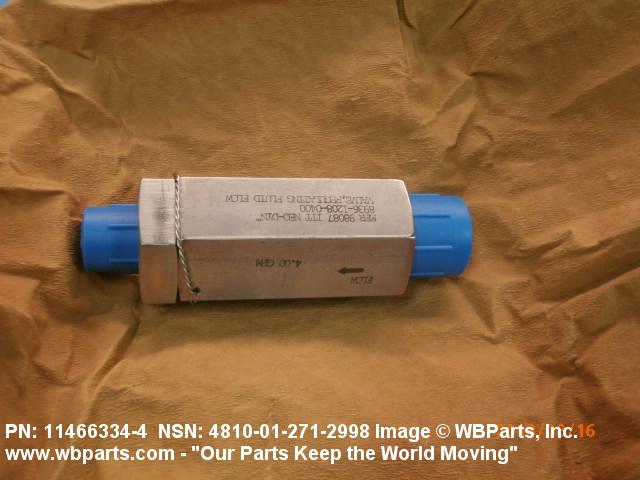

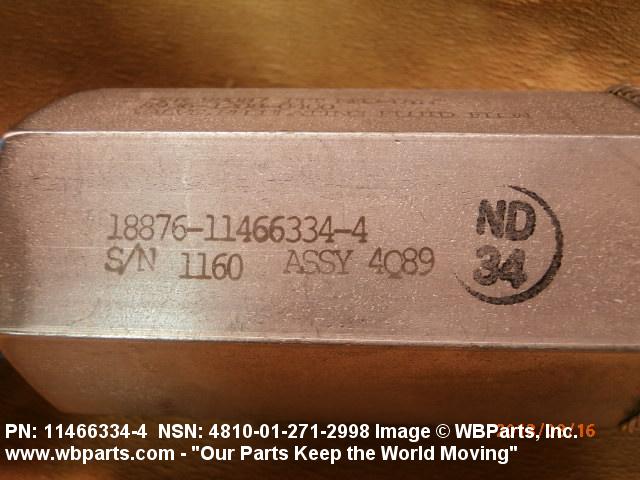

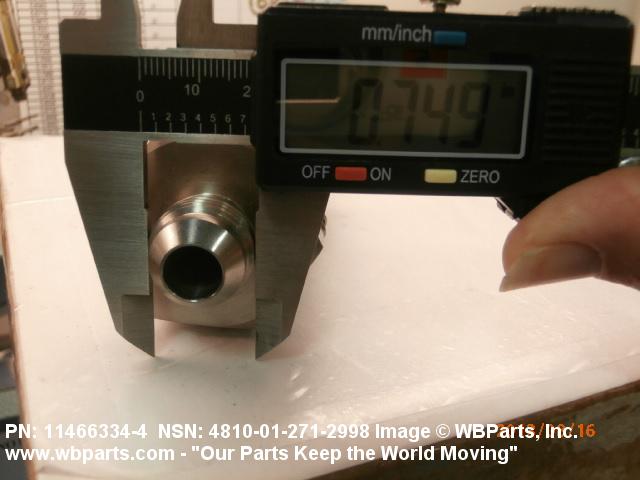

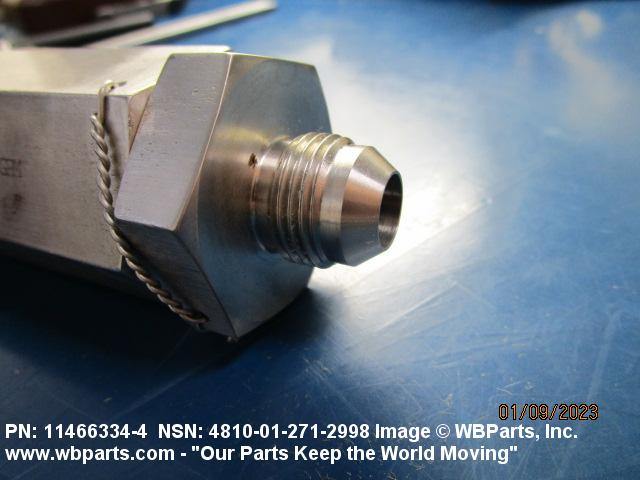

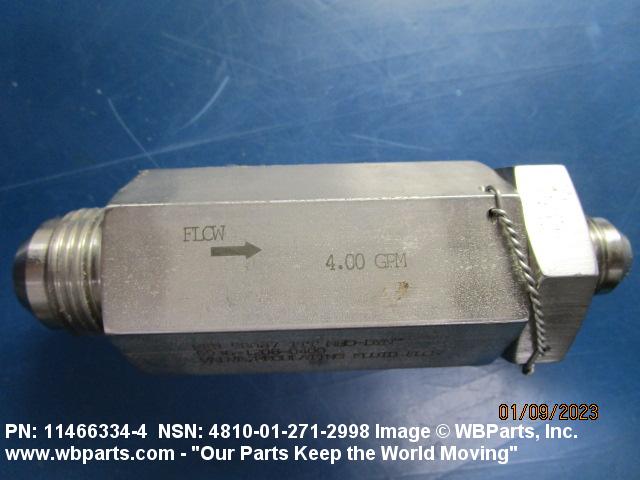

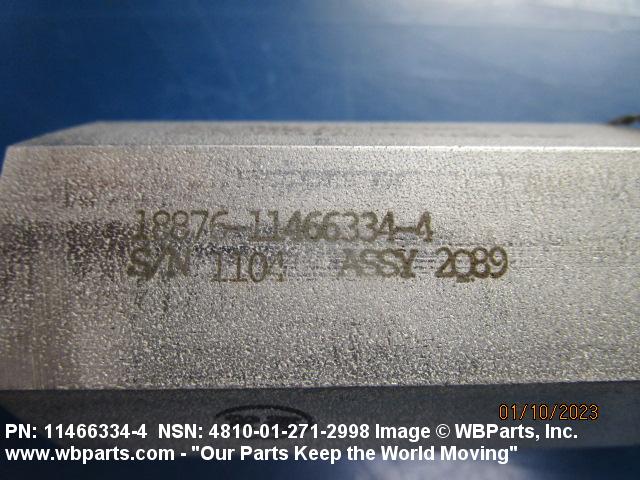

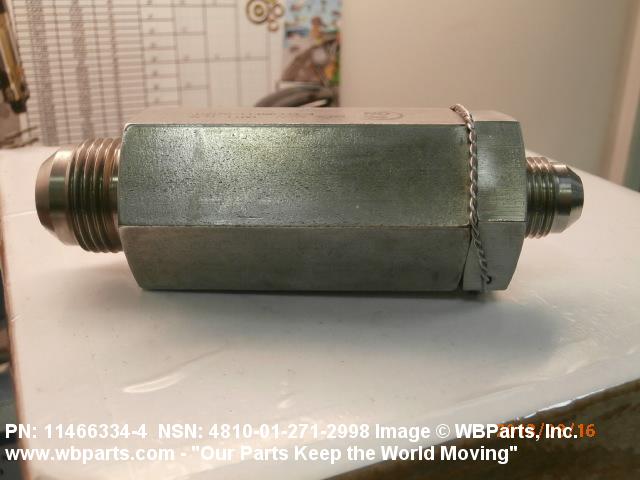

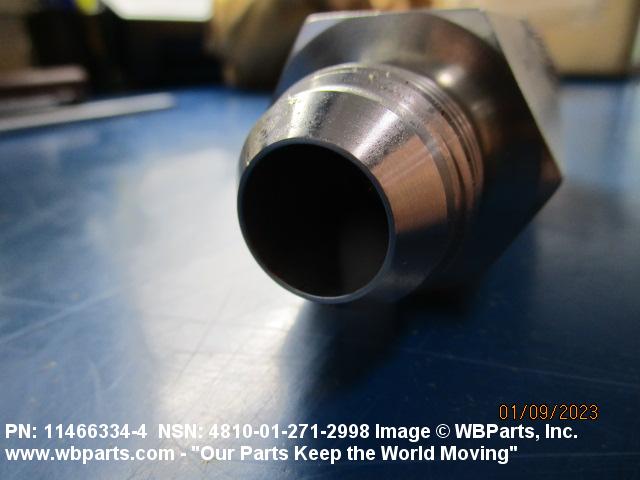

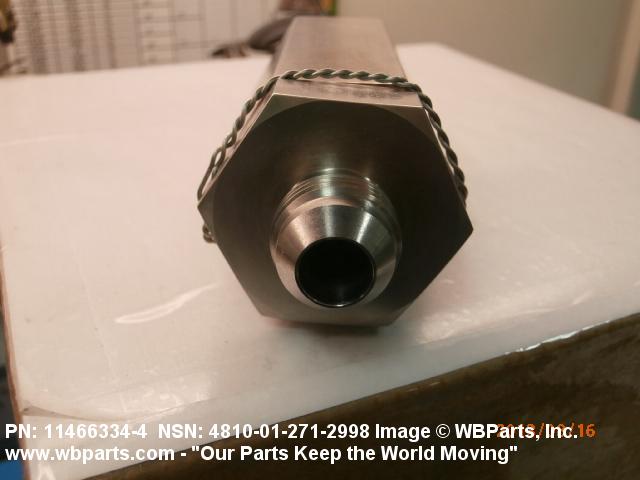

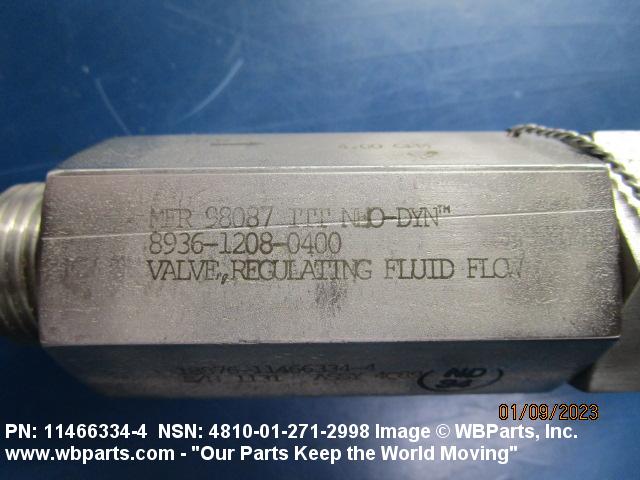

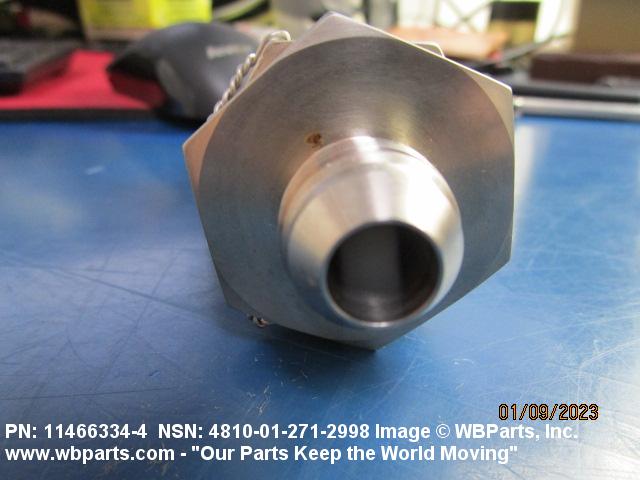

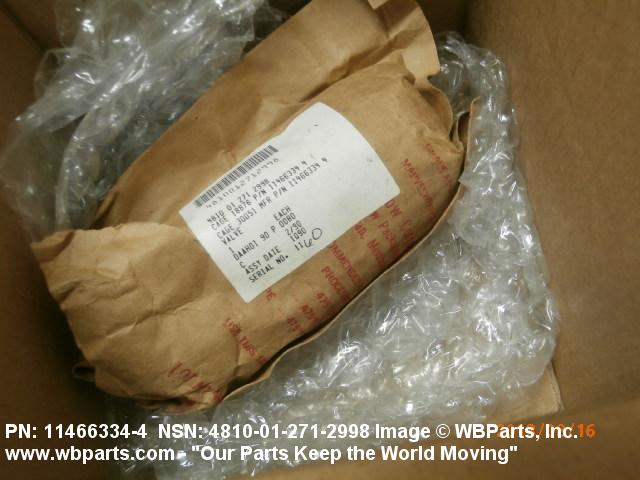

Drawings & Photos | NSN 4810-01-271-2998



Demand History | NSN 4810-01-271-2998


Part Number Request Date QTY Origin
4810-01-271-2998 2020-03-16 2 DIBBS
4810-01-271-2998 2019-11-03 1 DIBBS
4810-01-271-2998 2019-09-30 2 DIBBS
4810-01-271-2998 2019-01-03 6 DIBBS
4810-01-271-2998 2018-08-13 1 DIBBS
4810-01-271-2998 2017-06-14 2 DIBBS
4810-01-271-2998 2017-06-14 4 DIBBS
114663344 2017-06-05 3 United States
4810-01-271-2998 2015-12-10 2 DIBBS
4810-01-271-2998 2013-08-05 1 United States

Cross Reference | NSN 4810-01-271-2998


Part Number Cage Code Manufacturer
11466334 18876 U S ARMY AVIATION AND MISSILE COMMAND
11466334-4 18876 U S ARMY AVIATION AND MISSILE COMMAND
8936-7208-0400 98087 ITT CORPORATION DBA ITT AEROSPACE CONTROLS UNIT S

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 4810-01-271-2998


Technical Data | NSN 4810-01-271-2998


Characteristic Specifications
BODY MATERIAL STEEL, CORROSION RESISTING
FLOW CONTROL DEVICE POPPET
END CONNECTION QUANTITY 2
FIRST END CONNECTION TYPE THREADED EXTERNAL TUBE

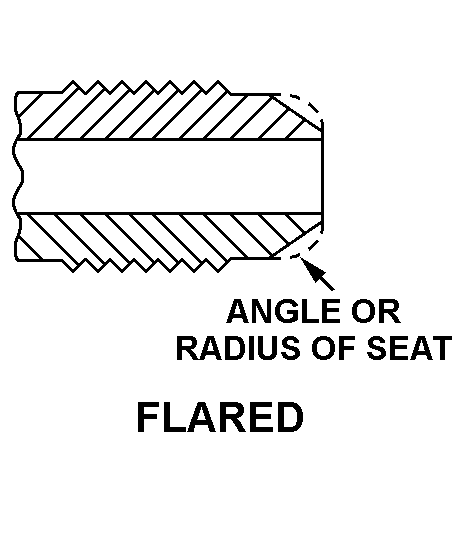

FIRST END STYLE DESIGNATOR D3 FLARED
FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED 0.750 INCHES NOMINAL
FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR 1 1/16-12 UNJ
FIRST END THREAD CLASS 3A
FIRST END THREAD DIRECTION RIGHT-HAND
FIRST END SEAT ANGLE IN DEG 37.0
SECOND END RELATIONSHIP WITH FIRST END NOT IDENTICAL
SECOND END CONNECTION TYPE THREADED EXTERNAL TUBE
SECOND END STYLE DESIGNATOR D3 FLARED
SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED 0.500 INCHES NOMINAL
SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR 3/4-16 UNJF
SECOND END THREAD CLASS 3A
SECOND END THREAD DIRECTION RIGHT-HAND
SECOND END SEAT ANGLE IN DEG 37.0
BODY STYLE A1 STRAIGHT THRU

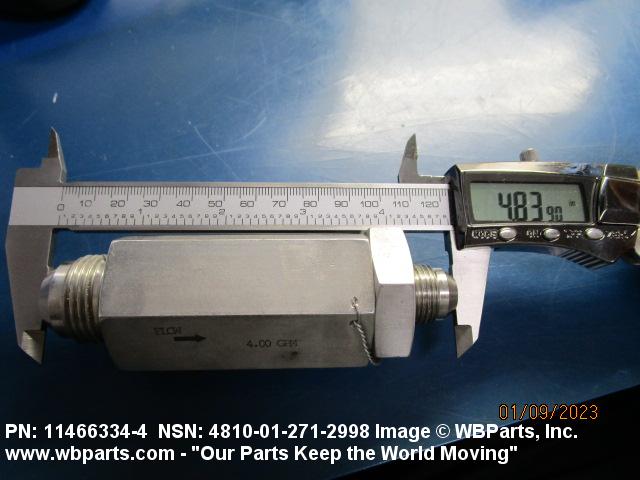

FACE TO FACE DISTANCE 4.830 INCHES NOMINAL
MEDIA FOR WHICH DESIGNED ETHYLENE GLYCOL
REGULATION TYPE AUTOMATIC SINGLE STAGE
VALVE LOADING METHOD SPRING
TEMP RATING 100.0 DEG FAHRENHEIT MAXIMUM
FILTER NOT INCLUDED

Restrictions/Controls & Freight Information | NSN 4810-01-271-2998


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 051080 FAUCETS,BIBCOCKS,GATES VALVES
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 576 unknown
Originating Activity Code BD U.S. Army Aviation and Missile Command
Redstone Arsenal, AL 35898-5230
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4810-01-271-2998


Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
