Product Details | SOLENOID VALVE
4810-01-316-2501 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: 3203878, 320387-8, 4810-01-316-2501, 01-316-2501, 4810013162501, 013162501
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 07 MAR 1990 | 01-316-2501 | 10998 ( VALVE, SOLENOID ) |
Drawings & Photos | NSN 4810-01-316-2501
Cross Reference | NSN 4810-01-316-2501
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 320387-8 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4810-01-316-2501
Related Products | NSN 4810-01-316-2501
4810-01-316-2595, 4810-01-316-2629, 4810-01-316-3718, 4810-01-316-3979, 4810-01-316-4749
Technical Data | NSN 4810-01-316-2501
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |

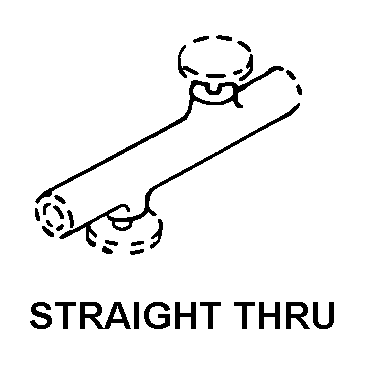

| STYLE DESIGNATOR | A32 STRAIGHT THRU |
| FLOW CONTROL DEVICE | BALL |
| VALVE OPERATION METHOD | SOLENOID |
| FLOW CONTROL DEVICE NORMAL OPERATION POSITION | CLOSED |
| MOUNTING POSITION | VERTICAL |
| III END ITEM IDENTIFICATION | 4810-01-245-9872 VALVE,REGULATINGFLUID PRESSURE |
| III FSC APPLICATION DATA | AH-64 HELICOPTER |
| MANUFACTURERS CODE | 59364 |
| DESIGN CONTROL REFERENCE | 320387-8 |
