NSN 4820-00-070-8558 465C62NL5, 61122, 6112-2
Product Details | POPPET DRAIN COCK
4820-00-070-8558 An item designed to drain fluids from fuel systems, tanks, filters, or similar items. It has a mounting end, a free flowing end, and a quick-acting nonmetallic sealed closure, usually spring loaded, that holds it in an "off" position. It requires no lubrication other than from the fluid being drained.
Part Alternates: 465C62NL5, 61122, 6112-2, 6682275, 668227-5, 96625002, 96625-002, 4820-00-070-8558, 00-070-8558, 4820000708558, 000708558
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-070-8558 | 16989 ( COCK, POPPET DRAIN ) |

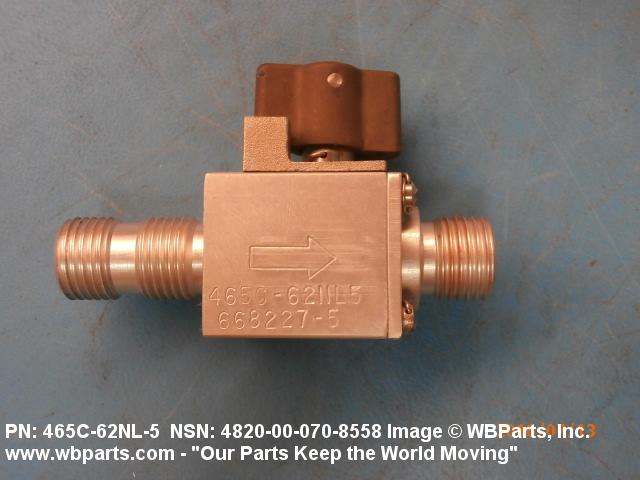

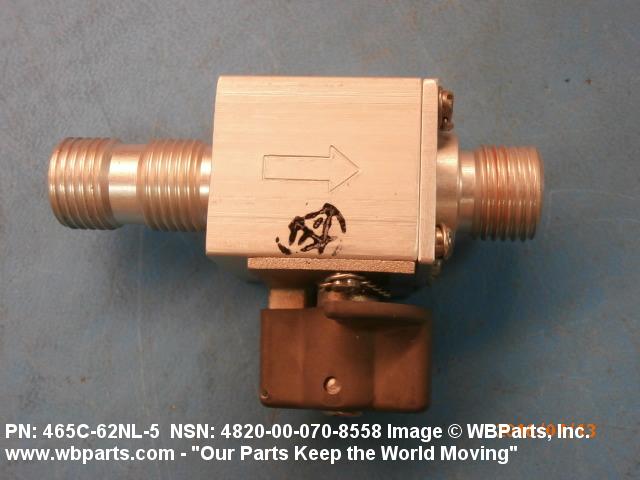

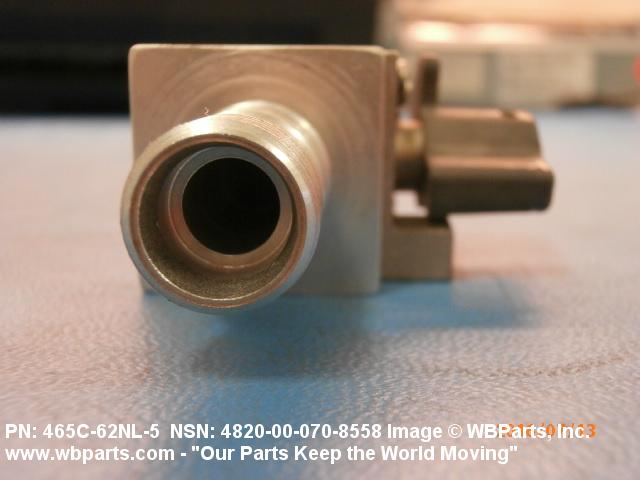

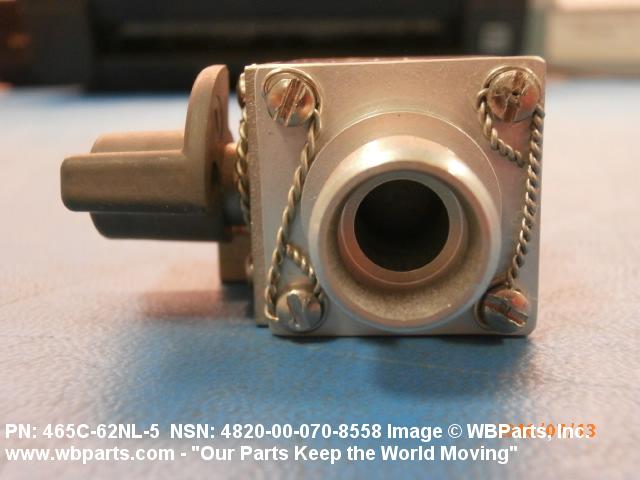

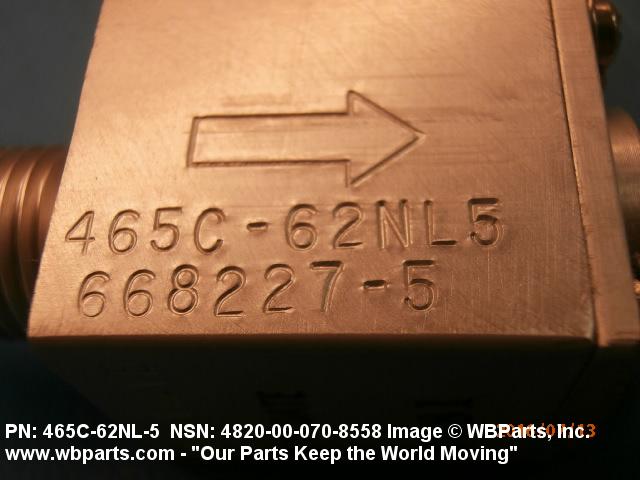

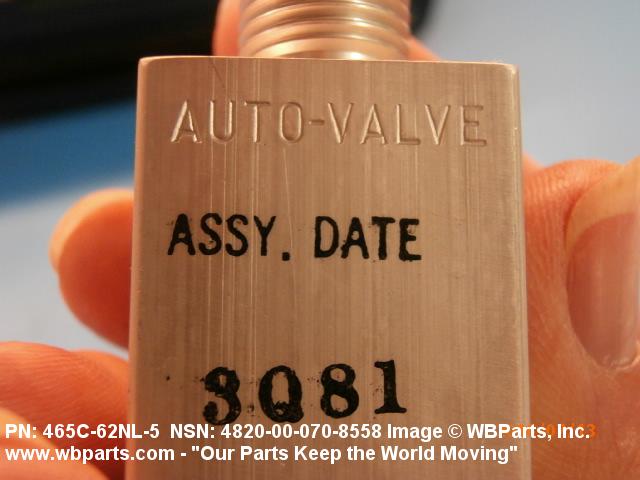

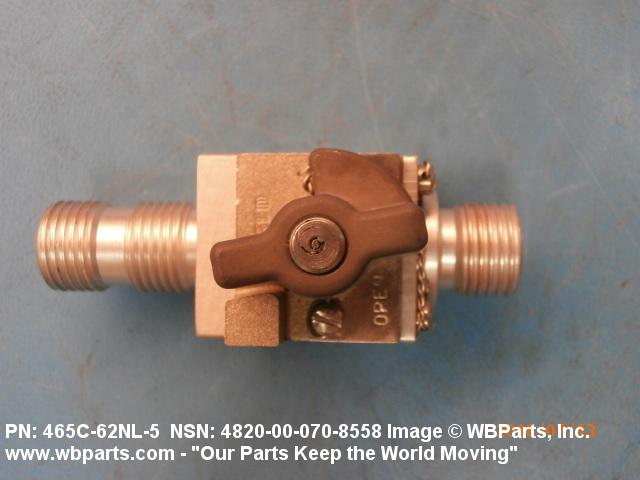

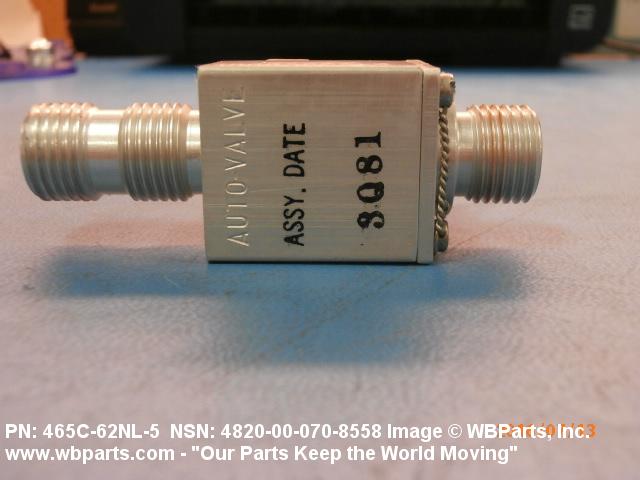

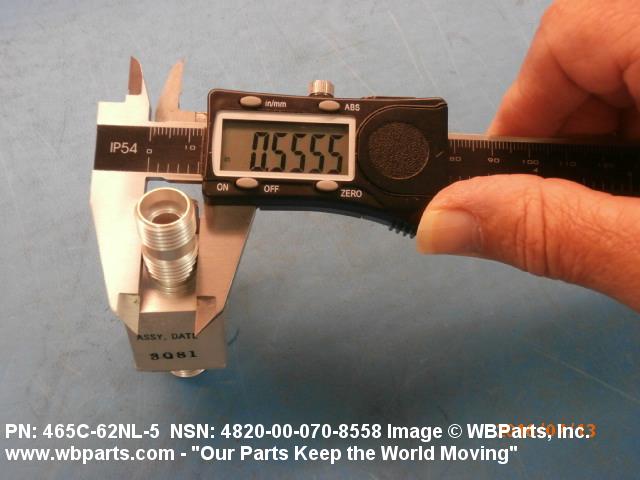

Drawings & Photos | NSN 4820-00-070-8558
Demand History | NSN 4820-00-070-8558
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 465C62NL5 | 2019-12-343 | 32 | DIBBS |
| 6112-2 | 2019-12-343 | 32 | DIBBS |
| 96625-002 | 2019-12-343 | 32 | DIBBS |
| 465C62NL5 | 2019-11-330 | 32 | DIBBS |
| 6112-2 | 2019-11-330 | 32 | DIBBS |
| 96625-002 | 2019-11-330 | 32 | DIBBS |
| 4820-00-070-8558 | 2018-08-239 | 27 | DIBBS |
| 4820-00-070-8558 | 2018-08-228 | 27 | DIBBS |
| 4820-00-070-8558 | 2017-12-352 | 1 | US |
| 4820-00-070-8558 | 2017-09-257 | 18 | DIBBS |
| 4820-00-070-8558 | 2016-12-355 | 1 | United States |
| 4820-00-070-8558 | 2016-06-165 | 1 | United States |
| 4820-00-070-8558 | 2016-06-153 | 16 | DIBBS |
| 4820-00-070-8558 | 2016-02-35 | 1 | DIBBS-RFPs |
| 4820-00-070-8558 | 2014-09-260 | 15 | DIBBS |
| 4820-00-070-8558 | 2013-11-319 | 10 | DIBBS |
| 4820-00-070-8558 | 2013-11-318 | 10 | DIBBS |
| 4820-00-070-8558 | 2013-10-303 | 10 | DIBBS |
| 4820-00-070-8558 | 2011-09-245 | 22 | DIBBS |
| 4820-00-070-8558 | 2011-03-67 | 15 | DIBBS |
| 4820-00-070-8558 | 2011-01-21 | 16 | DIBBS |
| 4820-00-070-8558 | 2010-09-266 | 14 | DIBBS |
| 4820-00-070-8558 | 2010-04-93 | 23 | DIBBS |
| 4820-00-070-8558 | 2010-01-29 | 16 | DIBBS |
| 4820-00-070-8558 | 2009-09-259 | 14 | DIBBS |
| 4820-00-070-8558 | 2008-12-365 | 25 | DIBBS |
Cross Reference | NSN 4820-00-070-8558
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 465C62NL5 | 91511 | AUTO-VALVE, INC. |
| 6112-2 | 78357 | PARKER-HANNIFIN CORPORATION DBA SNAP TITE QD & V |
| 668227-5 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 96625-002 | 71503 | CLARY CORPORATION |
| 96625-002 | 78357 | PARKER-HANNIFIN CORPORATION DBA SNAP TITE QD & V |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-070-8558
Related Products | NSN 4820-00-070-8558
Technical Data | NSN 4820-00-070-8558
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | OIL, HYDRAULIC SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 50.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 160.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B45 FLARELESS ALL ENDS |
| SEAT ANGLE | 12.0 DEGREES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
Restrictions/Controls & Freight Information | NSN 4820-00-070-8558
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-070-8558
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
