Product Details | VALVE SEAT
4820-00-075-2255 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 14521, 4820-00-075-2255, 00-075-2255, 4820000752255, 000752255
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-075-2255 | 22113 ( SEAT, VALVE ) |
Drawings & Photos | NSN 4820-00-075-2255
Cross Reference | NSN 4820-00-075-2255
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14521 | 99643 | EATON CORPORATION DBA EATON AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-075-2255
Technical Data | NSN 4820-00-075-2255
| Characteristic | Specifications |
|---|---|

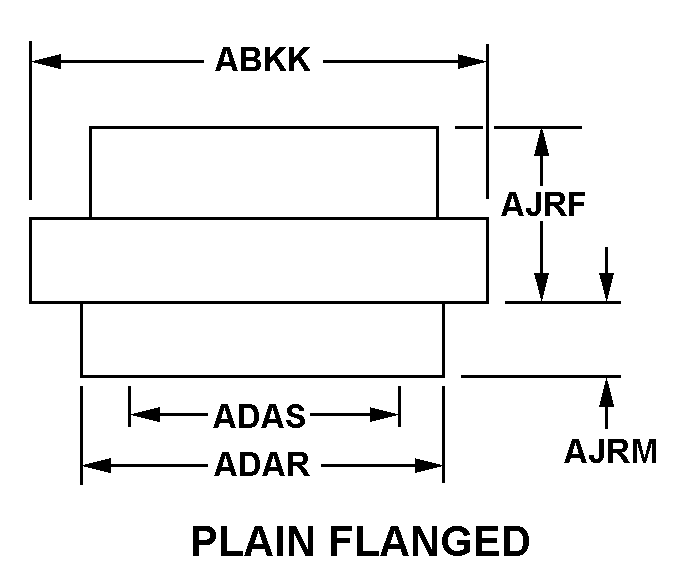

| STYLE DESIGNATOR | B14A PLAIN FLANGED |
| FLANGE DIAMETER | 0.371 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.262 INCHES MINIMUM AND 0.264 INCHES MAXIMUM |
| FLANGE SEAT TO DISK END HEIGHT | 0.200 INCHES MINIMUM AND 0.202 INCHES MAXIMUM |
| UNDER FLANGE HEIGHT | 0.138 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
| BODY STEPPED INSIDE DIAMETER | 0.125 INCHES NOMINAL FIRST STEP 0.094 INCHES MINIMUM AND 0.095 INCHES MAXIMUM SECOND STEP |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 CL 416 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 25.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| SEATING SURFACE SHAPE | FLAT |
| MANUFACTURERS CODE | 99643 |
| DESIGN CONTROL REFERENCE | 14521 |
