Product Details | CROSS VALVE

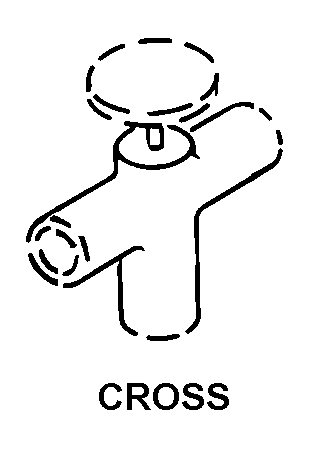

4820-00-549-4746 A valve with two connections on the run and a third and sometimes fourth connection at 90 degree (1.5708 radians) angle(s) to the run. The flow is controlled by the action of a stem which lifts a disk perpendicularly off of the center axis of its seat.20248100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: 2681193, 2AG986, 9405480312, 9-4054-80-312, 4820-00-549-4746, 00-549-4746, 4820005494746, 005494746

Valves | Valves, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
48 18 OCT 1974 00-549-4746

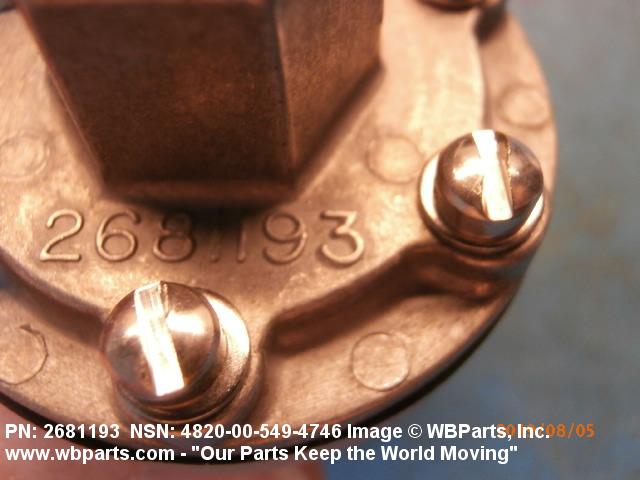

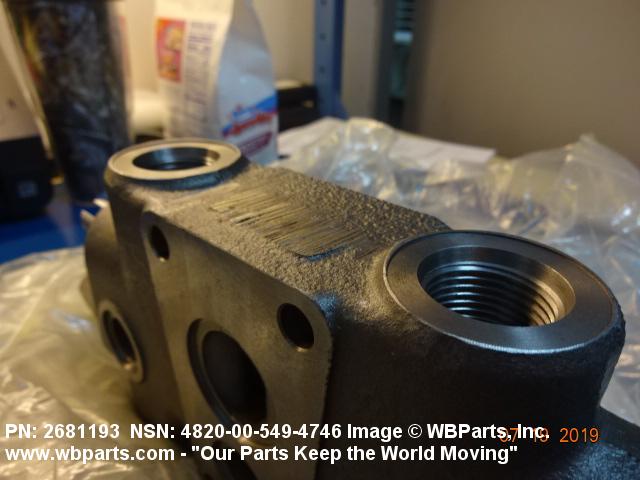

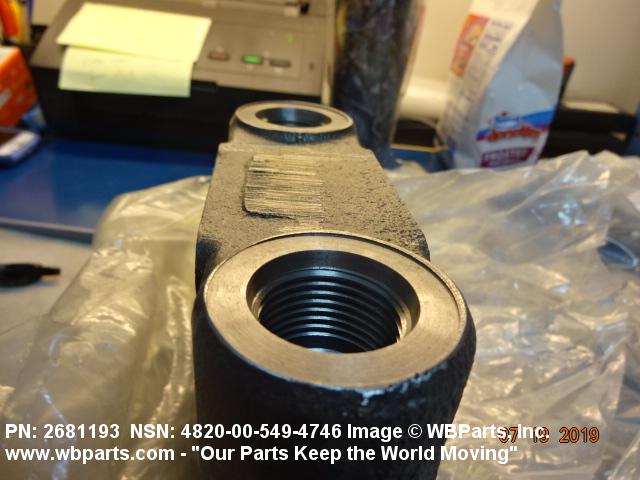

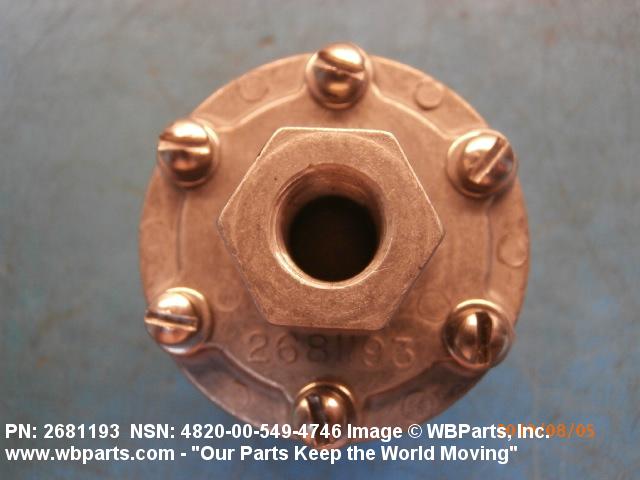

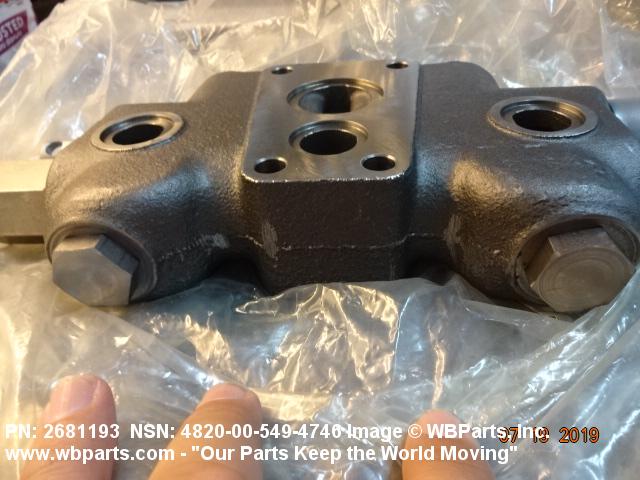

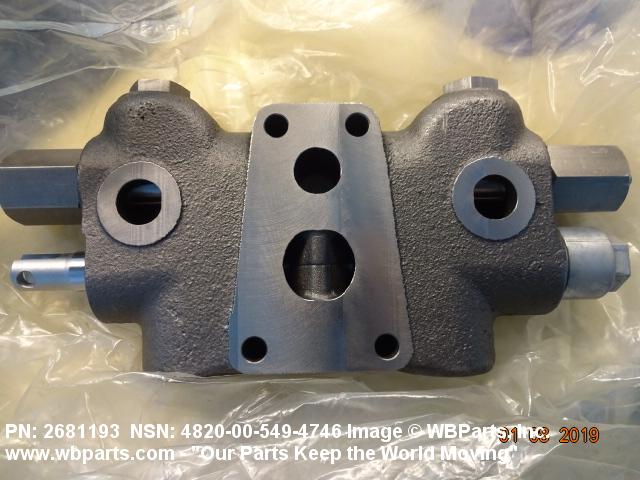

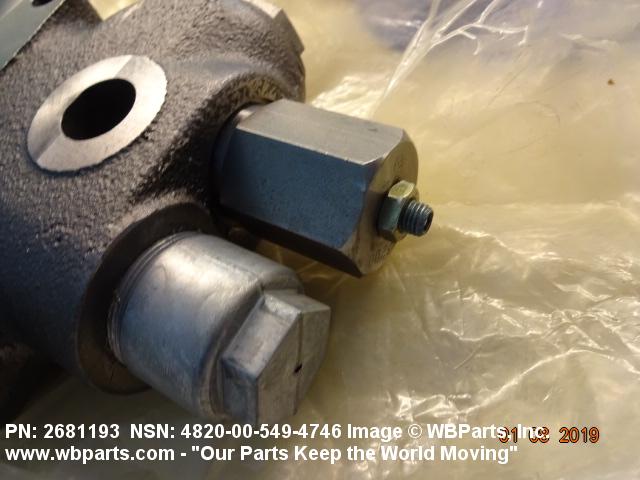

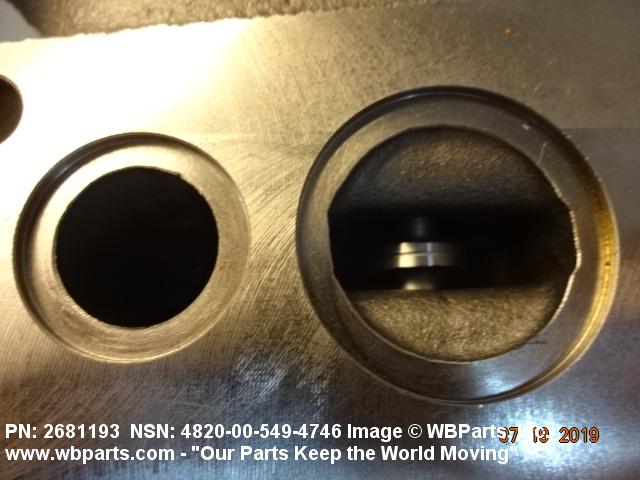

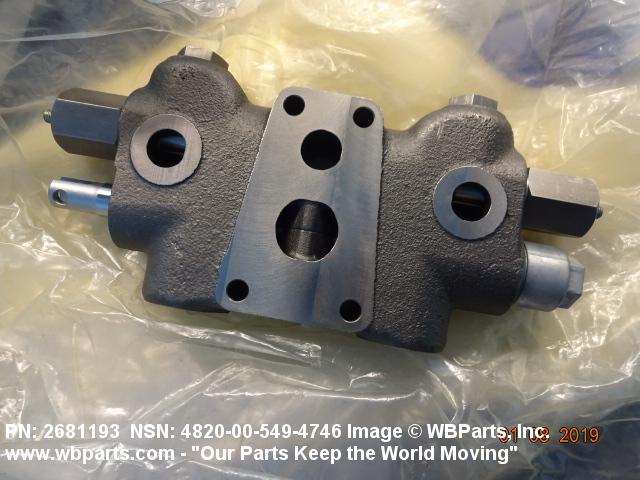

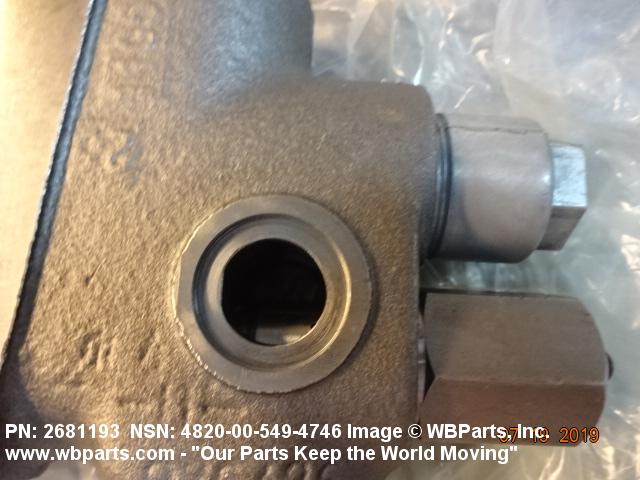

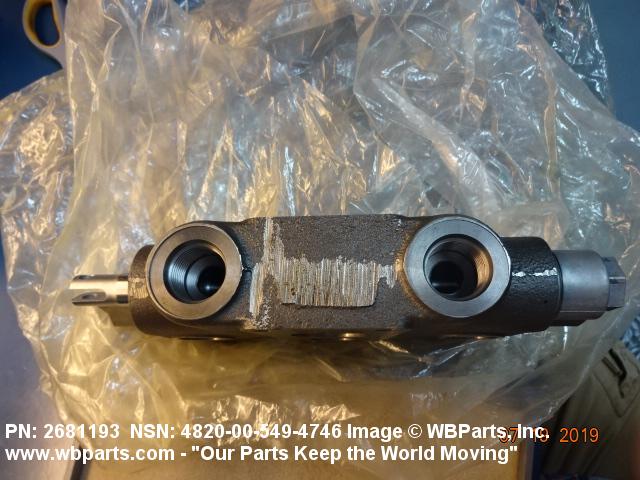

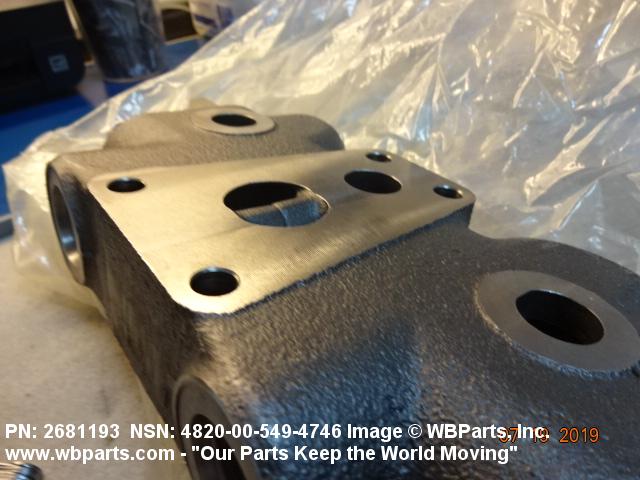

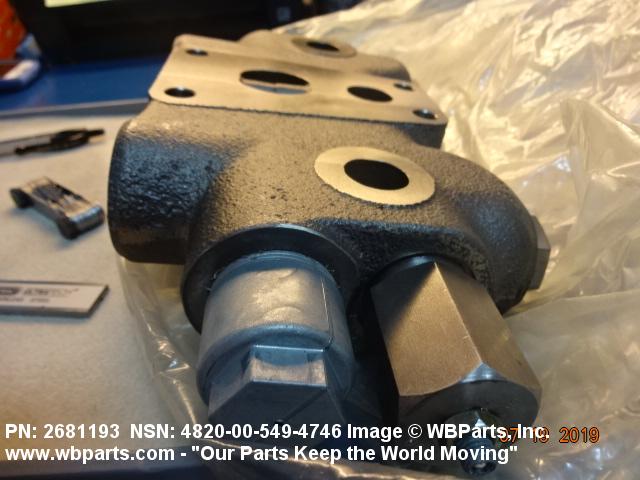

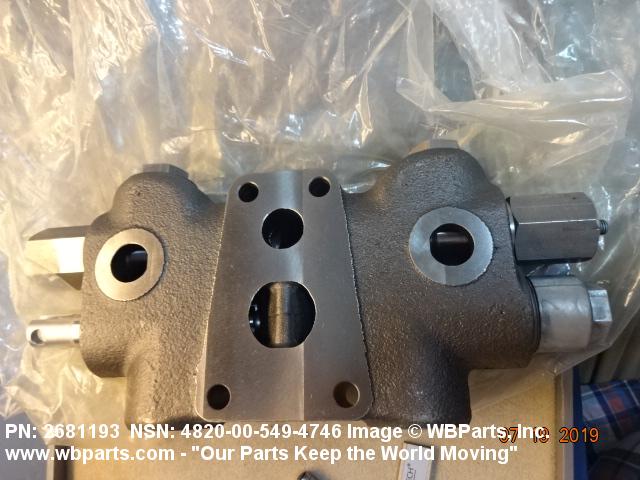

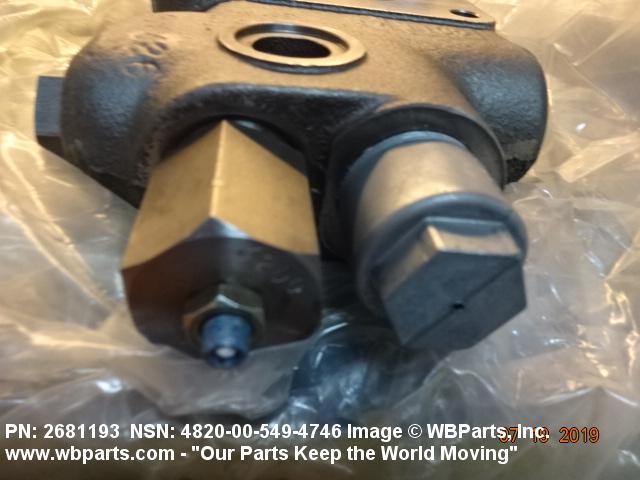

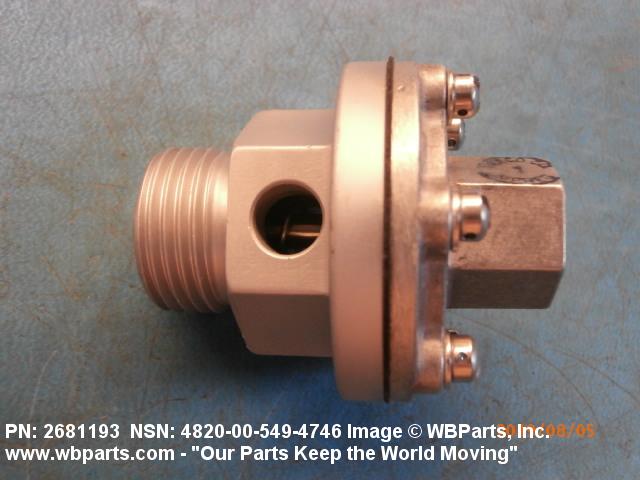

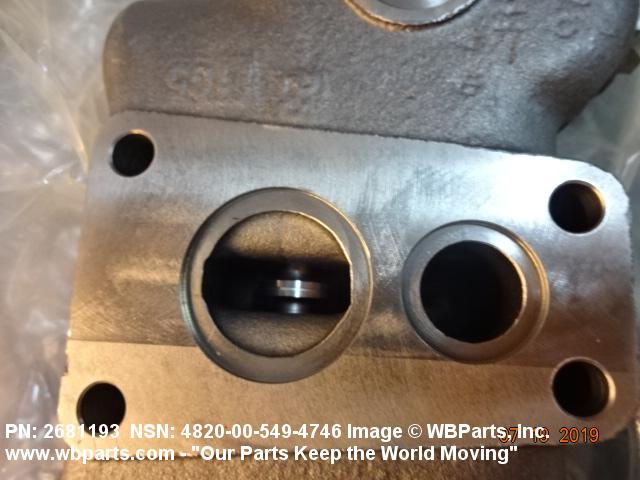

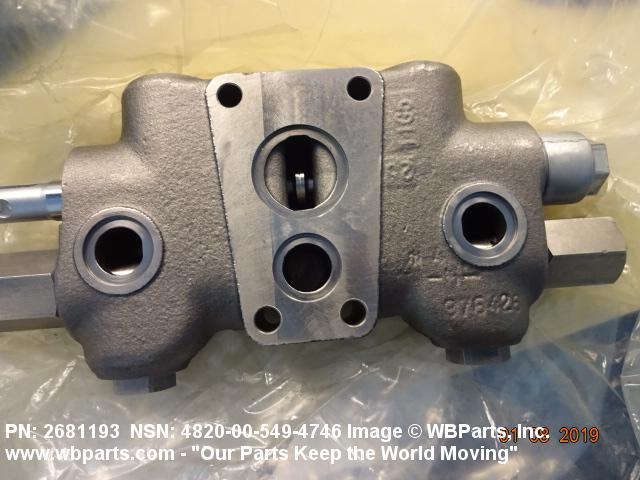

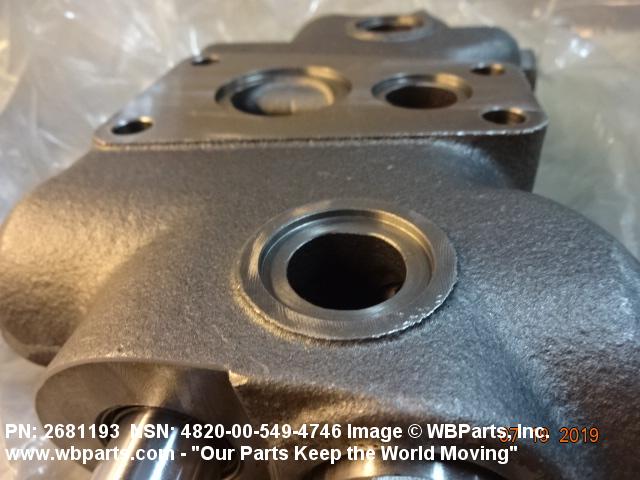

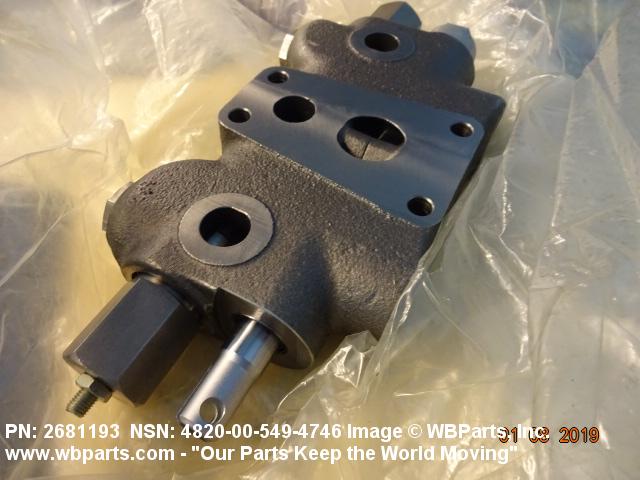

Drawings & Photos | NSN 4820-00-549-4746



Demand History | NSN 4820-00-549-4746


Part Number Request Date QTY Origin
4820-00-549-4746 2020-02-12 1 United States
2681193 2019-11-13 66 DIBBS
4820-00-549-4746 2019-06-25 1 United States
4820-00-549-4746 2019-04-24 1 United States
4820-00-549-4746 2018-10-18 68 DIBBS
4820-00-549-4746 2017-11-02 42 DIBBS
4820-00-549-4746 2017-04-12 42 DIBBS
4820-00-549-4746 2015-07-10 31 United States
4820-00-549-4746 2014-11-16 42 DIBBS
4820-00-549-4746 2013-06-05 31 DIBBS
4820-00-549-4746 2013-05-21 31 DIBBS
4820-00-549-4746 2011-09-02 23 DIBBS
4820-00-549-4746 2011-07-12 7 DIBBS
4820-00-549-4746 2010-03-10 6 DIBBS
4820-00-549-4746 2009-12-14 3 DIBBS

Cross Reference | NSN 4820-00-549-4746


Part Number Cage Code Manufacturer
2681193 79318 MEGGITT (NORTH HOLLYWOOD), INC.
2681193 92003 PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
2AG986 45152 OSHKOSH CORPORATION
9-4054-80-312 16565 NEW PROGRESS INC

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 4820-00-549-4746


Technical Data | NSN 4820-00-549-4746


Characteristic Specifications
MATERIAL ALUMINUM ALLOY BODY STEEL CORROSION RESISTING FLOW CONTROL DEVICE
STYLE DESIGNATOR A2 CROSS
FLOW CONTROL DEVICE POPPET
VALVE OPERATION METHOD AUTOMATIC
CONNECTION TYPE UNTHREADED INTERNAL TUBE 1ST END UNTHREADED INTERNAL TUBE 2ND END THREADED EXTERNAL BOSS 3RD END

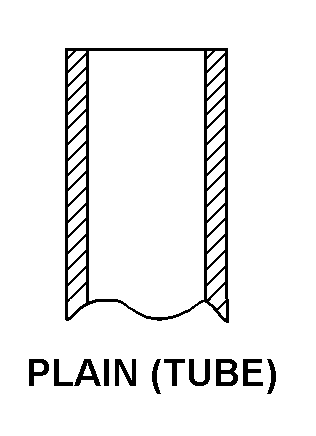

CONNECTION STYLE G26 PLAIN 1ST END G26 PLAIN 2ND END G50 EXTERNAL SEAT FOR GASKET SEAL 3RD END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED 0.313 INCHES 1ST END 0.313 INCHES 2ND END
THREAD SERIES DESIGNATOR UNF 3RD END
NOMINAL THREAD SIZE 0.875 INCHES 3RD END
THREAD CLASS 2A 3RD END
THREAD DIRECTION RIGHT-HAND 3RD END
BONNET TYPE PACKING RETAINING
FEATURES PROVIDED BONNET PACKING
