Product Details | VALVE STEM GUIDE
4820-00-550-6563 A replaceable cylindrical item designed to provide wear surface and maintain alignment of a reciprocating valve stem and the like, it may have a flange(s) and/or grooves.20728050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps45100033Plumbing Fixtures and Accessories48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 5506563, 4820-00-550-6563, 00-550-6563, 4820005506563, 005506563
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1960 | 00-550-6563 | 32562 ( GUIDE, VALVE STEM ) |
Drawings & Photos | NSN 4820-00-550-6563
Cross Reference | NSN 4820-00-550-6563
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5506563 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4820-00-550-6563
Related Products | NSN 4820-00-550-6563
4820-00-550-6786, 4820-00-550-8766, 4820-00-551-0757, 4820-00-551-0758, 4820-00-551-1094
Technical Data | NSN 4820-00-550-6563
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AISI 1045 |
| METALLIC HARDNESS RATING | 16.0 MINIMUM ROCKWELL C AND 27.0 MAXIMUM ROCKWELL C |

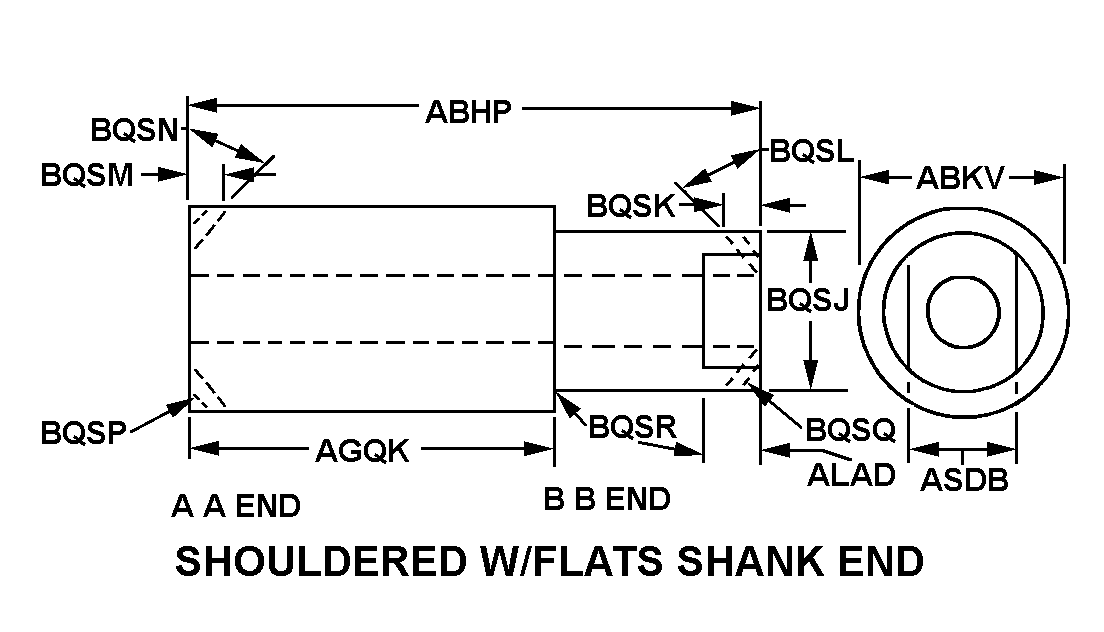

| STYLE DESIGNATOR | H4 SHOULDERED W/FLATS SHANK END |
| OVERALL LENGTH | 3.468 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.030 INCHES NOMINAL |
| MAJOR DIAMETER LENGTH | 0.700 INCHES NOMINAL |
| FLATS LENGTH | 0.625 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL |
| BB END SHANK DIAMETER | 0.875 INCHES NOMINAL |
| BORE DIAMETER | 0.5620 INCHES NOMINAL |
| BORE COUNTERBORE | INCLUDED |
| COUNTERBORE LOCATION | AA END |
| COUNTERBORE DIAMETER | 1.275 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.437 INCHES NOMINAL |
| SPECIAL FEATURES | INTERNAL KEYSLOT SECOND END 0.156W X 0.043 H X 0.400 LG TERMINATING IN 0.156 DIA HOLE THROUGH WALL 90 DEG RADIAL FROM FLATS; FIRST END THREADED 1.000-14NF-3A X 0.775 LG INCL 1/16 RELIEF; FIRST END ENLARGED TO 1.519 OD W/GROOVE 1.4359 DIA X 0.125 W AND 1.500-12NF-3A THD 0.468 LG; 63AA FINISH BORE |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 5506563 |
