Product Details | ANGLE VALVE
4820-00-768-0532 A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. The flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. It may be inline or cartridge (manifold) design. Excludes VALVE (1), Y; VALVE, STOP-CHECK; and COCK, SHUTOFF, SCREW STEM.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: A11789, 4820-00-768-0532, 00-768-0532, 4820007680532, 007680532
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1962 | 00-768-0532 | 05483 ( VALVE, ANGLE ) |
Drawings & Photos | NSN 4820-00-768-0532
Cross Reference | NSN 4820-00-768-0532
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A11789 | 74965 | CLARK-RELIANCE CORPORATION DBA JERGUSON GAGE & VALVE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-768-0532
Technical Data | NSN 4820-00-768-0532
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PAINT |

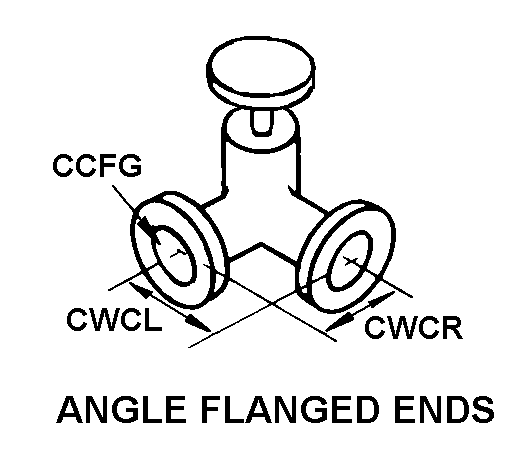

| STYLE DESIGNATOR | A12A ANGLE FLANGED ENDS |
| FIRST CONNECTION FACE TO CENTERLINE DISTANCE | 4.250 INCHES |
| SECOND CONNECTION FACE TO CENTERLINE DISTANCE | 2.750 INCHES |
| VALVE SIZE | 0.375 INCHES |
| FLOW CONTROL DEVICE | DISK |
| MAXIMUM OPERATING PRESSURE | 650.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | FLANGE 1ST END FLANGE 2ND END |
| FLANGE SHAPE | ROUND WITH HOLES 1ST END ROUND WITH HOLES 2ND END |
| NOMINAL OUTSIDE DIAMETER | 4.635 INCHES 1ST END 3.755 INCHES 2ND END |
| NOMINAL THICKNESS | 0.640 INCHES 1ST END 0.575 INCHES 2ND END |
| BOLT HOLE QUANTITY | 4 1ST END 4 2ND END |
| BOLT HOLE NOMINAL DIAMETER | 0.690 INCHES 1ST END 0.565 INCHES 2ND END |
| BOLT CIRCLE NOMINAL DIAMETER | 3.250 INCHES 1ST END 2.625 INCHES 2ND END |
| FLANGE FACE DESIGN | RAISED STRAIGHT 1ST END RAISED STRAIGHT 2ND END |
| RAISED FACE NOMINAL HEIGHT | 0.250 INCHES 1ST END 0.250 INCHES 2ND END |
| RAISED FACE NOMINAL DIAMETER | 2.500 INCHES 1ST END 2.000 INCHES 2ND END |
| BONNET TYPE | OUTSIDE SCREW-YOKE |
| BONNET ATTACHMENT METHOD | BOLTED |
| MOUNTING FACILITY | BRACKET |
| SPECIAL FEATURES | VALVE BODY HAS TWO BUILT-IN BALL-TYPE CHECK VALVES |
