4820-00-808-4970 - ANGLE VALVE, 1513X4P, 151-3X4P, 00-808-4970

Product Details | ANGLE VALVE

4820-00-808-4970 A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. The flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. It may be inline or cartridge (manifold) design. Excludes VALVE (1), Y; VALVE, STOP-CHECK; and COCK, SHUTOFF, SCREW STEM.20248100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: 1513X4P, 151-3X4P, 4820-00-808-4970, 00-808-4970, 4820008084970, 008084970

Valves | Valves, Nonpowered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
48	01 JAN 1962	00-808-4970	05483 ( VALVE, ANGLE )

Drawings & Photos | NSN 4820-00-808-4970

Cross Reference | NSN 4820-00-808-4970

Part Number	Cage Code	Manufacturer
151-3X4P	86768	TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 4820-00-808-4970

Compare

Related Products | NSN 4820-00-808-4970

4820-00-808-4977, 4820-00-808-4992, 4820-00-808-4995, 4820-00-808-5036, 4820-00-808-6024

Technical Data | NSN 4820-00-808-4970

Characteristic	Specifications
MATERIAL	COPPER ALLOY BODY STEEL COMP 303 FLOW CONTROL DEVICE COPPER ALLOY SEAT
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD SINGLE MATERIAL RESPONSE FLOW CONTROL DEVICE
STYLE DESIGNATOR	A7 ANGLE
FLOW CONTROL DEVICE	NEEDLE
MEDIA FOR WHICH DESIGNED	WATER-OIL-GAS SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	5000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	350.0 DEG FAHRENHEIT SINGLE RESPONSE
VALVE OPERATION METHOD	MANUAL
CONNECTION TYPE	THREADED EXTERNAL TUBE ALL ENDS
CONNECTION STYLE	G44 COMPRESSION ALL ENDS

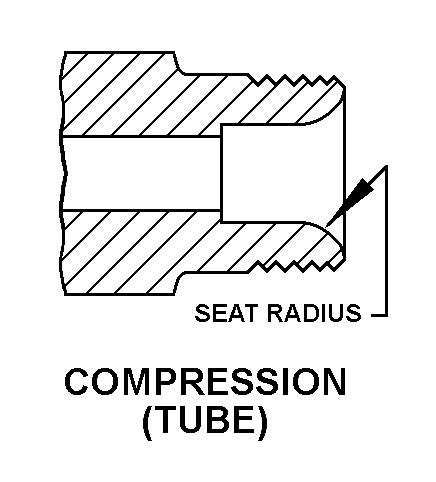

SEAT NOMINAL RADIUS	0.125 INCHES ALL ENDS
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNF ALL ENDS
NOMINAL THREAD SIZE	0.437 INCHES ALL ENDS
THREAD QUANTITY PER INCH	20 ALL ENDS
THREAD CLASS	3A ALL ENDS
THREAD DIRECTION	RIGHT-HAND ALL ENDS
BONNET TYPE	INSIDE SCREW
BONNET ATTACHMENT METHOD	INTEGRAL
MOUNTING FACILITY	BULKHEAD
FEATURES PROVIDED	BONNET PACKING
MANUFACTURERS CODE	86768
DESIGN CONTROL REFERENCE	151-3X4P
