NSN 4820-00-870-3061 51624, 51-6-24, 00-870-3061
Product Details | ANGLE VALVE
4820-00-870-3061 A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. The flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. It may be inline or cartridge (manifold) design. Excludes VALVE (1), Y; VALVE, STOP-CHECK; and COCK, SHUTOFF, SCREW STEM.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 51624, 51-6-24, 4820-00-870-3061, 00-870-3061, 4820008703061, 008703061
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-870-3061 | 05483 ( VALVE, ANGLE ) |

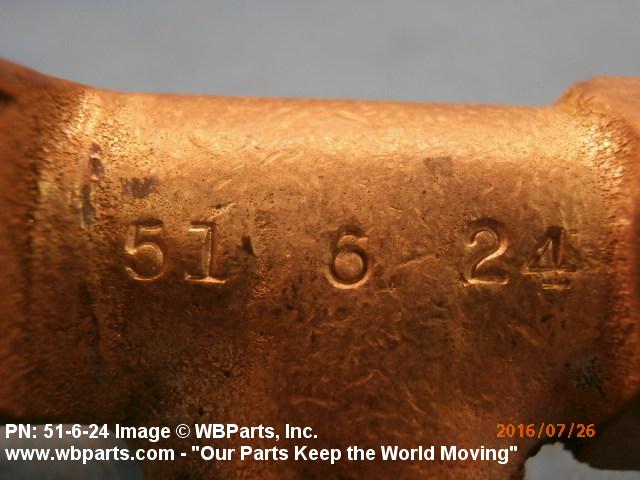

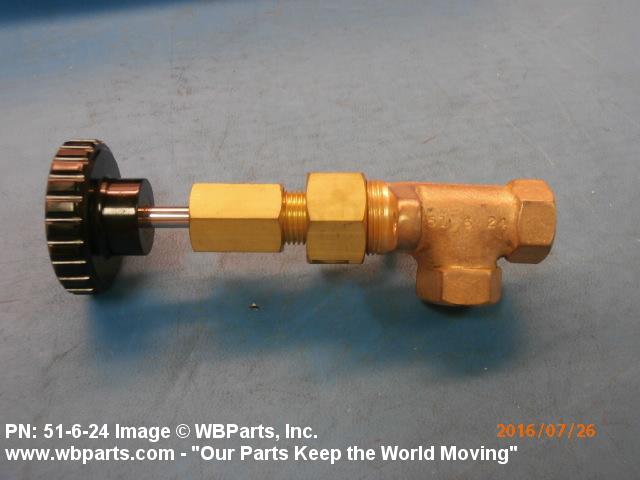

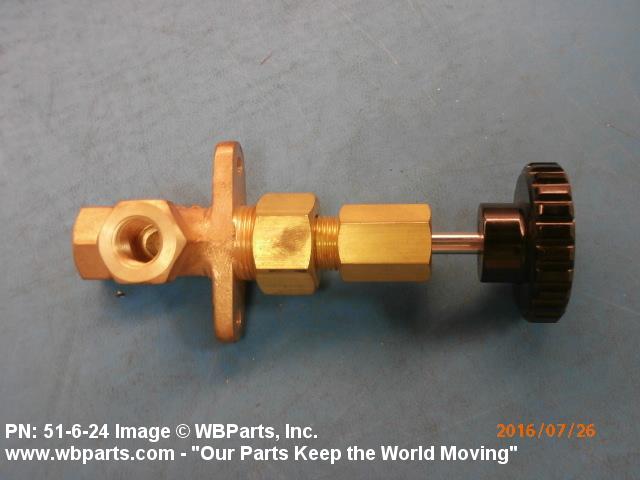

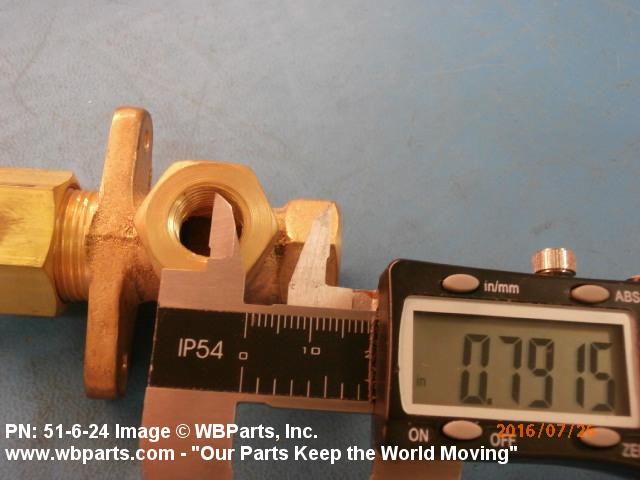

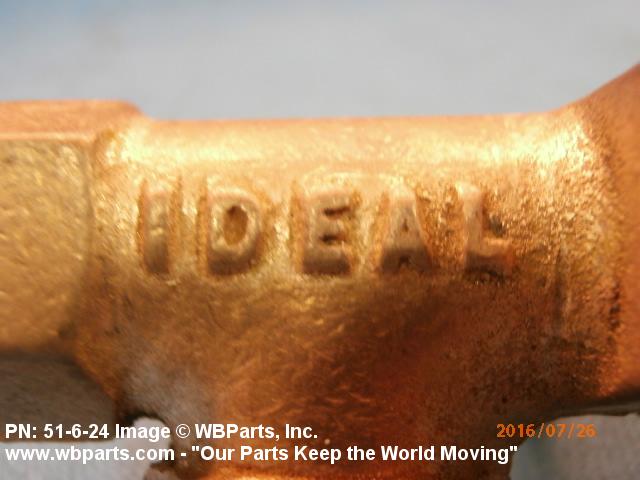

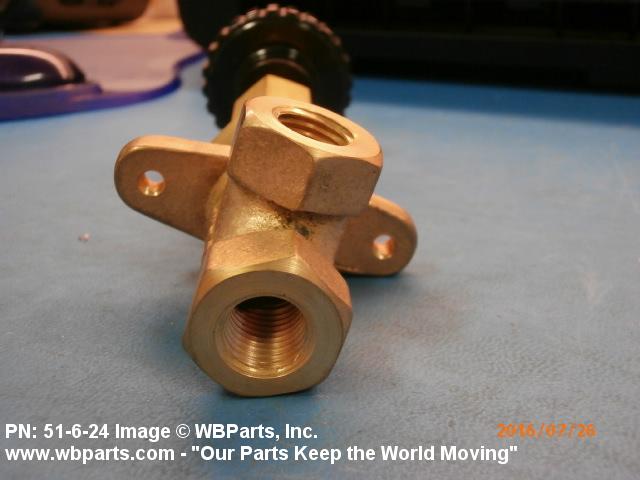

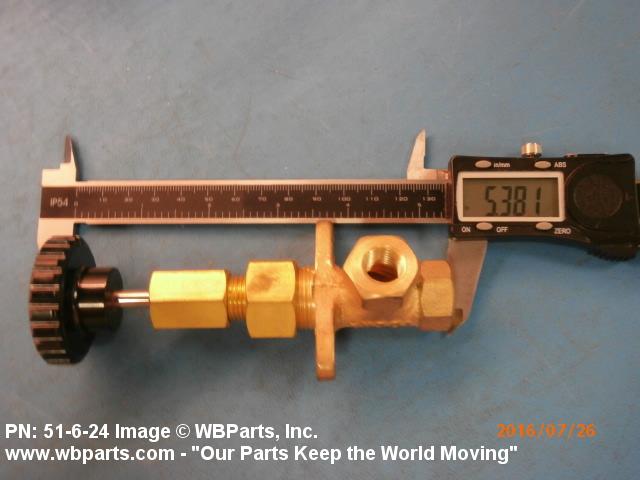

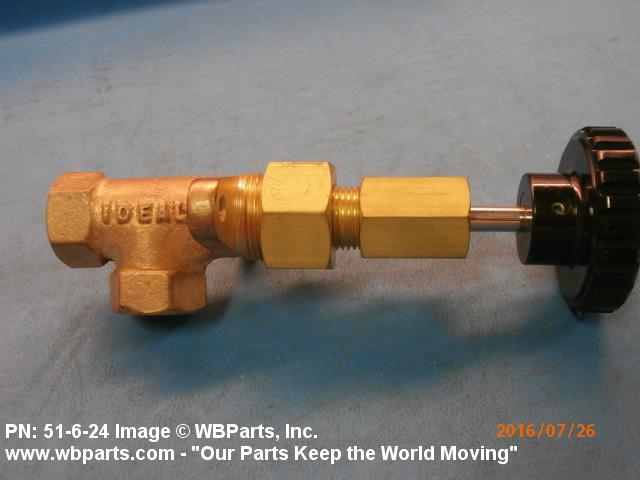

Drawings & Photos | NSN 4820-00-870-3061
Demand History | NSN 4820-00-870-3061
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 51624 | 2016-07-197 | 1 | United States |
Cross Reference | NSN 4820-00-870-3061
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 51-6-24 | 30120 | IDEAL AEROSMITH, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-870-3061
Technical Data | NSN 4820-00-870-3061
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY STEEL CORROSION RESISTING FLOW CONTROL DEVICE STEEL CORROSION RESISTING SEAT STEEL CORROSION RESISTING STEM |
| STYLE DESIGNATOR | A7 ANGLE |
| FLOW CONTROL DEVICE | NEEDLE |
| MEDIA FOR WHICH DESIGNED | GAS, NATURAL 1ST RESPONSE LIQUID, INGESTED 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 1000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | G9 PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.250 INCHES ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | THREADED |
| FEATURES PROVIDED | BONNET PACKING |
| III END ITEM IDENTIFICATION | GRUMMAN AEROSPACE A-10 AIRCRAFT |
| MANUFACTURERS CODE | 30120 |
| DESIGN CONTROL REFERENCE | 51-6-24 |
Restrictions/Controls & Freight Information | NSN 4820-00-870-3061
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
