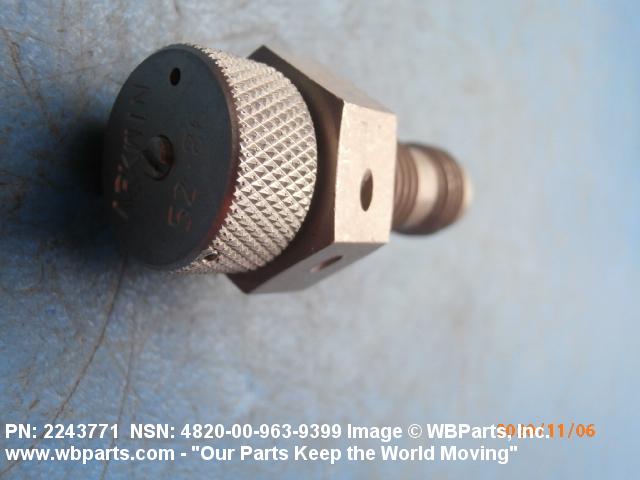

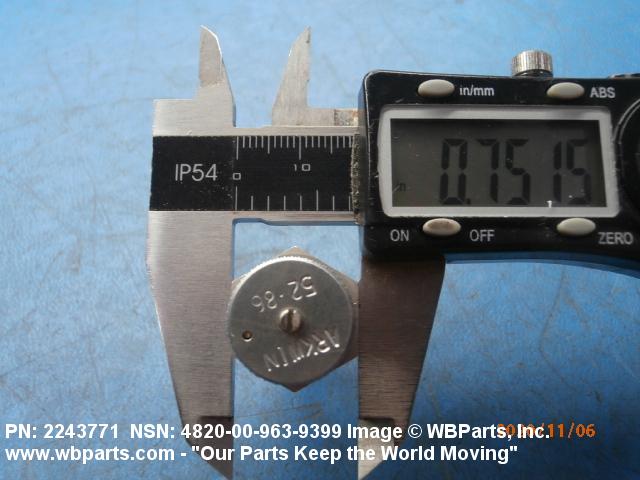

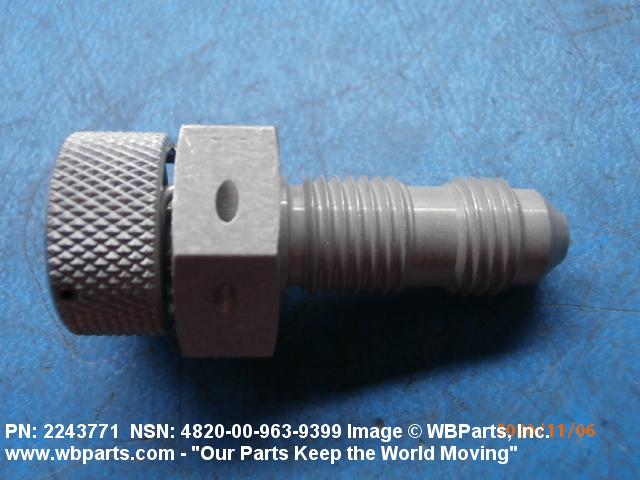

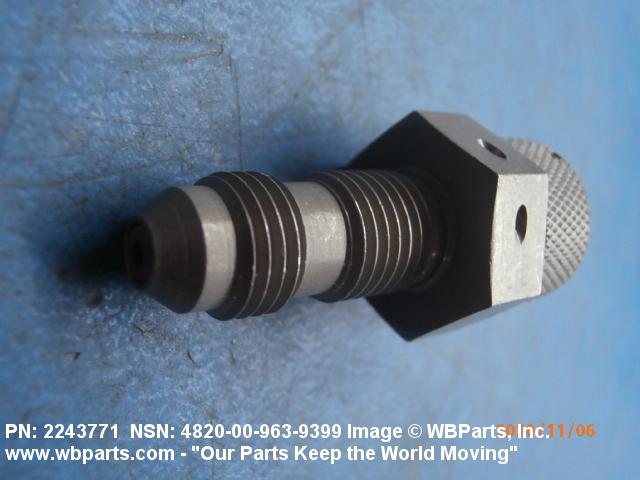

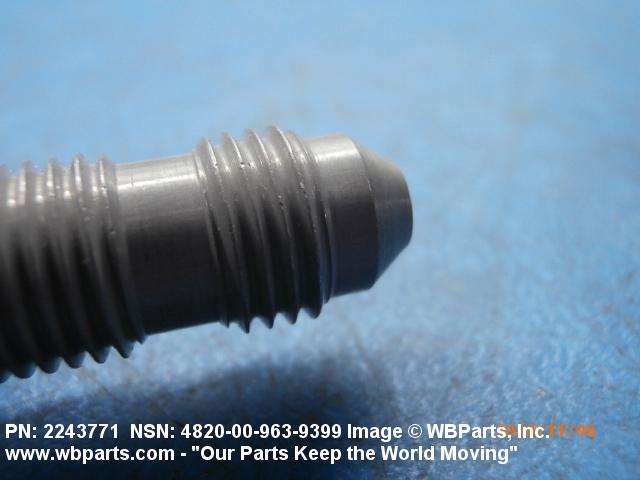

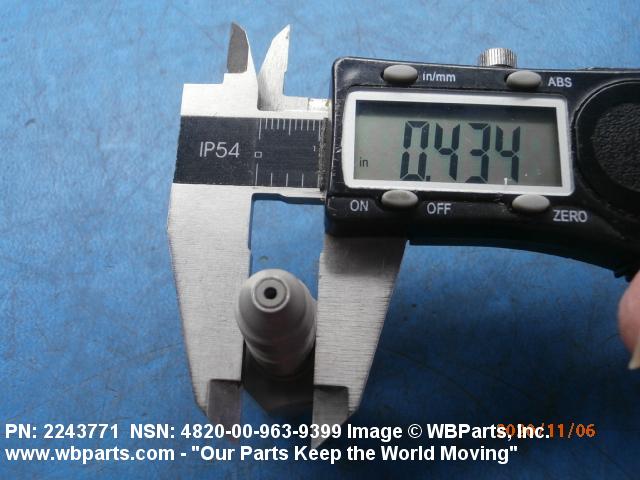

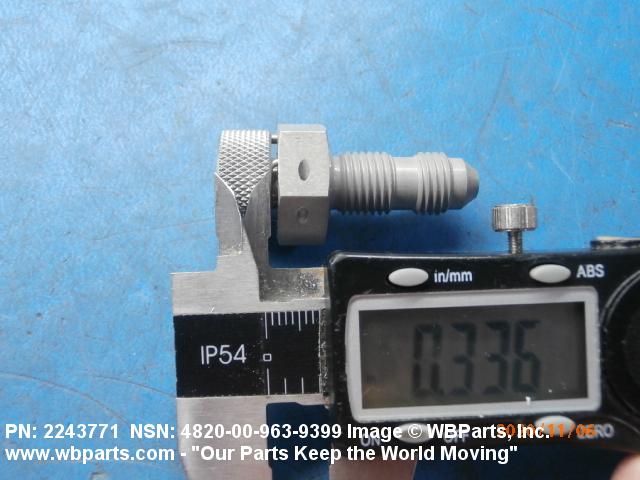

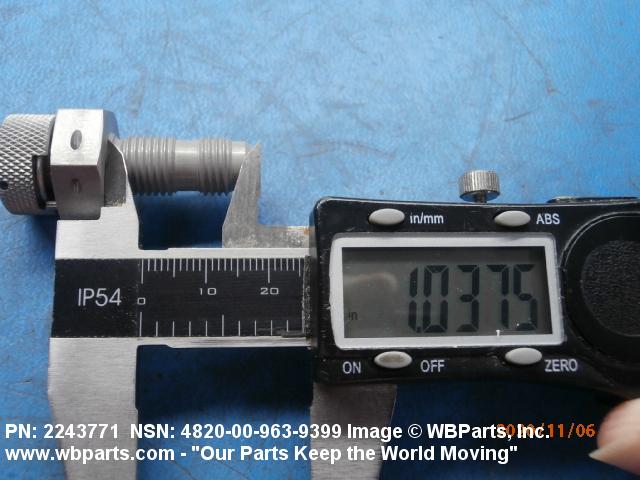

Product Details | ANGLE VALVE
4820-00-963-9399 A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. The flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. It may be inline or cartridge (manifold) design. Excludes VALVE (1), Y; VALVE, STOP-CHECK; and COCK, SHUTOFF, SCREW STEM.20248100015Valves, Powered48200018Valves, Nonpowered

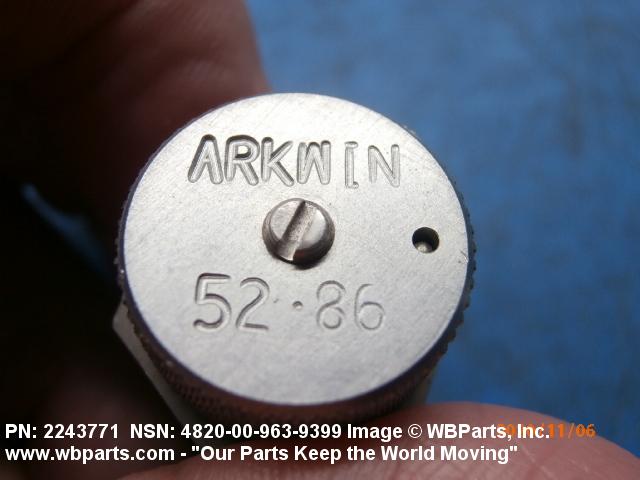

Part Alternates: 2243771, 37F39748, 5211086001, 5211086-001, 52861, 52-86-1, 65652-09025-101, 4820-00-963-9399, 00-963-9399, 4820009639399, 6565209025101, 009639399
