NSN 4820-01-076-6435 H24-1/4, H2414, HB241 U 112
Product Details | ANGLE VALVE

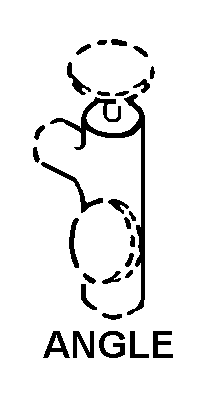

4820-01-076-6435 A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. The flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. It may be inline or cartridge (manifold) design. Excludes VALVE (1), Y; VALVE, STOP-CHECK; and COCK, SHUTOFF, SCREW STEM.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: H24-1/4, H2414, HB241 U 112, HB241U112, 8449339, 4820-01-076-6435, 01-076-6435, 4820010766435, 010766435
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 09 MAY 1979 | 01-076-6435 | 05483 ( VALVE, ANGLE ) |
Drawings & Photos | NSN 4820-01-076-6435
Demand History | NSN 4820-01-076-6435
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| H2414 | 2020-02-45 | 500 | IN |
| 4820-01-076-6435 | 2018-12-348 | 1 | DIBBS-KIT |
| 8449339 | 2018-12-348 | 1 | |
| H24-1/4 | 2018-12-348 | 1 | |
| HB241 U 112 | 2018-12-348 | 1 | |
| 4820-01-076-6435 | 2018-06-172 | 63 | DIBBS |
| 4820-01-076-6435 | 2014-09-271 | 18 | DIBBS |
| 4820-01-076-6435 | 2014-05-133 | 18 | DIBBS |
| 4820-01-076-6435 | 2012-09-270 | 1 | MANUAL |
| 4820-01-076-6435 | 2011-06-174 | 21 | DIBBS |
| 4820-01-076-6435 | 2011-03-68 | 24 | DIBBS |
| 4820-01-076-6435 | 2011-01-06 | 3 | DIBBS |
| 4820-01-076-6435 | 2010-10-302 | 11 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-076-6435
Related Products | NSN 4820-01-076-6435
Technical Data | NSN 4820-01-076-6435
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A39 ANGLE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END |
| CONNECTION STYLE | G46B PLAIN 1ST END |
| THREAD SERIES DESIGNATOR | NPT 1ST END |
| NOMINAL THREAD SIZE | 0.250 INCHES 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| III END ITEM IDENTIFICATION | 2350-01-031-0586 |
| MANUFACTURERS CODE | 19200 |
| MFR SOURCE CONTROLLING REFERENCE | 8449339 |
Restrictions/Controls & Freight Information | NSN 4820-01-076-6435
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
