NSN 4820-01-085-3349 C9589, C95891, C9589-1
Product Details | POPPET DRAIN COCK
4820-01-085-3349 An item designed to drain fluids from fuel systems, tanks, filters, or similar items. It has a mounting end, a free flowing end, and a quick-acting nonmetallic sealed closure, usually spring loaded, that holds it in an "off" position. It requires no lubrication other than from the fluid being drained.
Part Alternates: C9589, C95891, C9589-1, 4D301, 750C11, 4820-01-085-3349, 01-085-3349, 4820010853349, 010853349
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 06 NOV 1979 | 01-085-3349 | 16989 ( COCK, POPPET DRAIN ) |

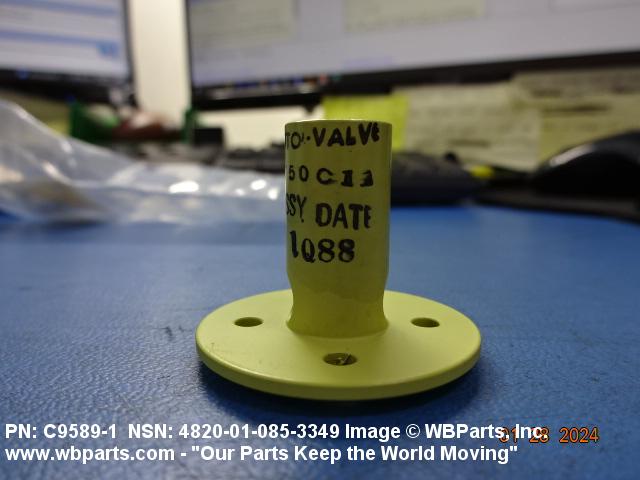

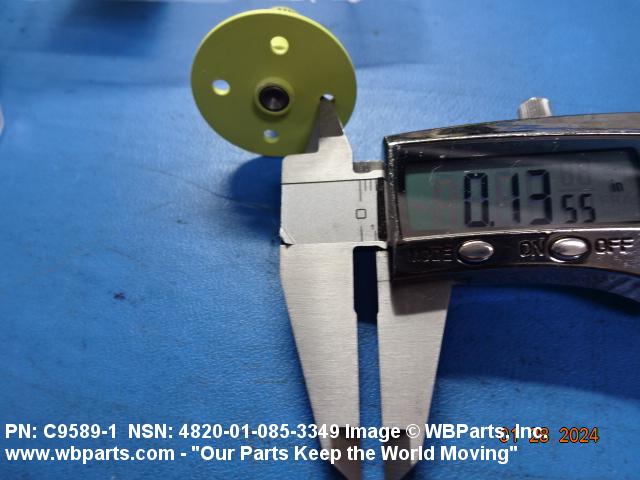

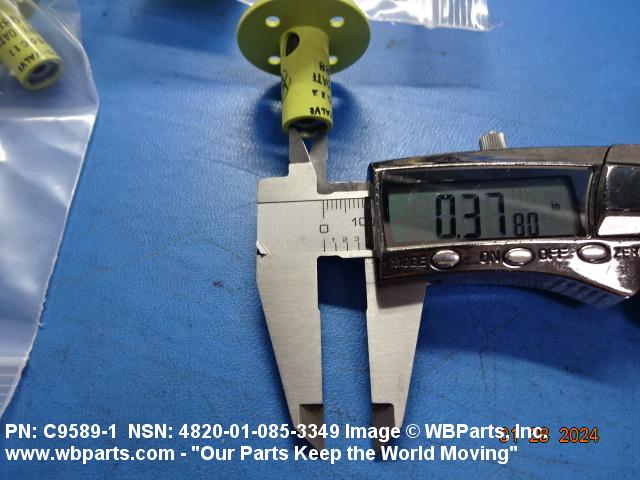

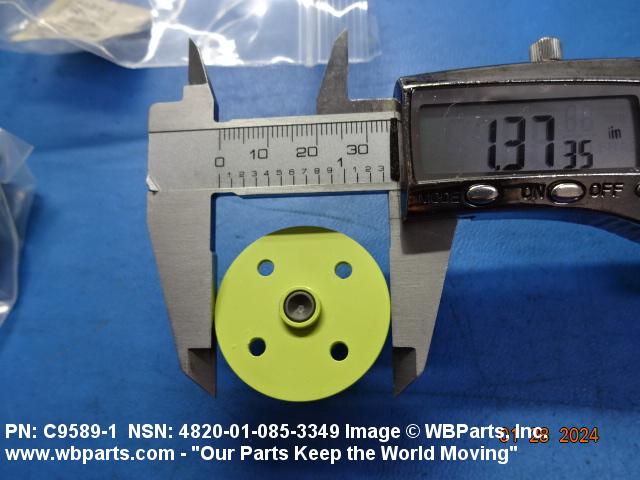

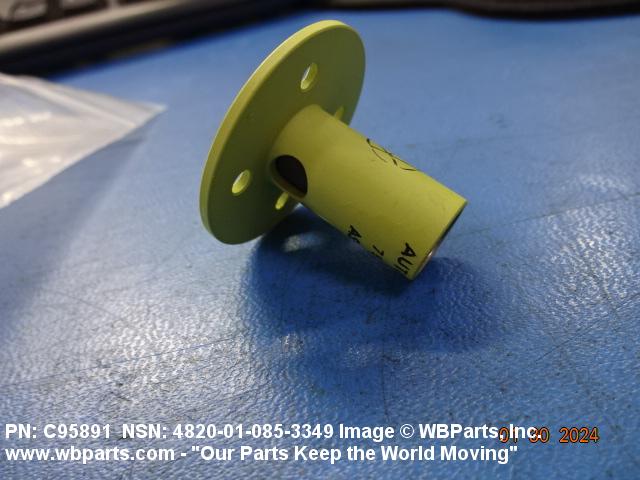

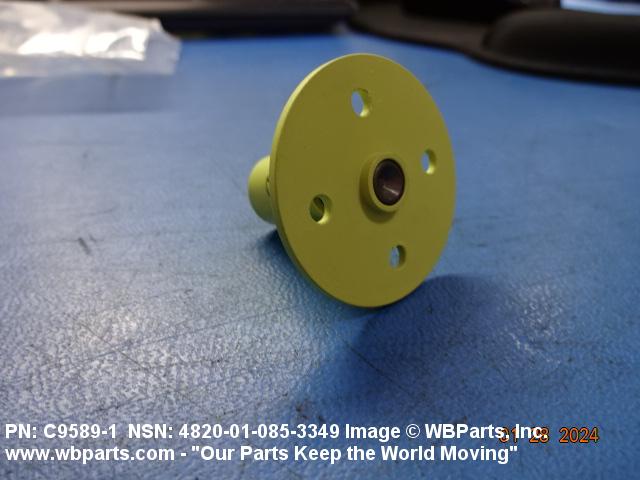

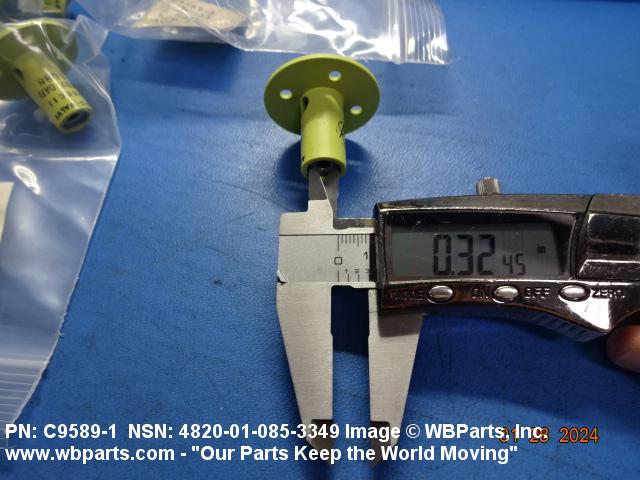

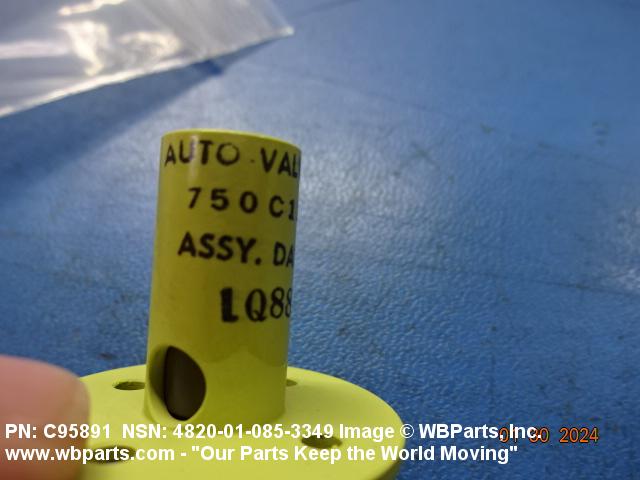

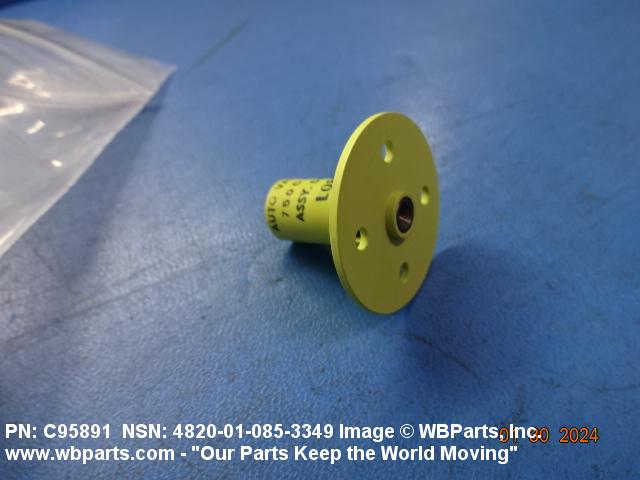

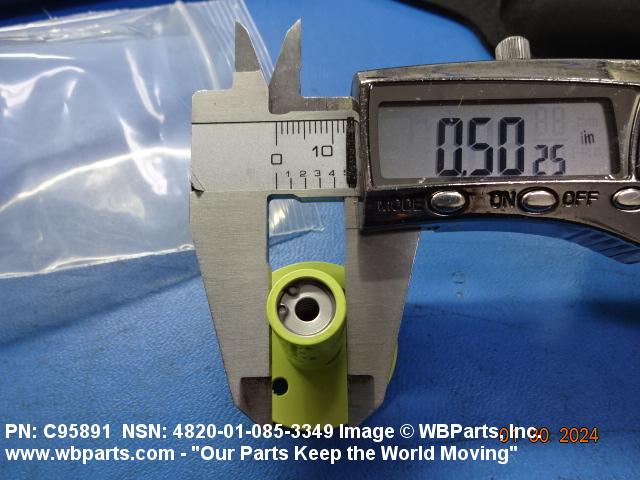

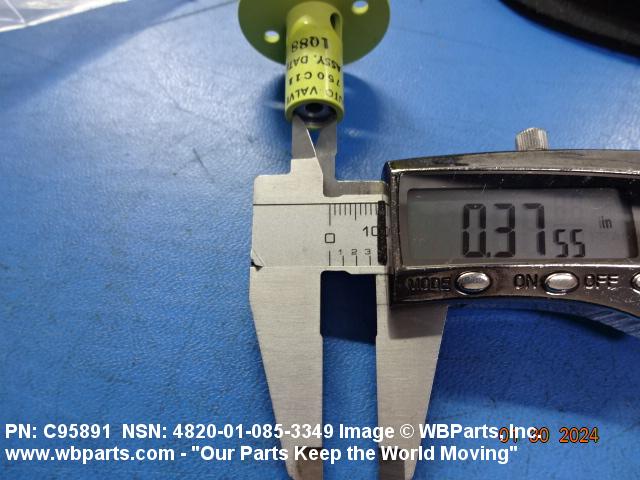

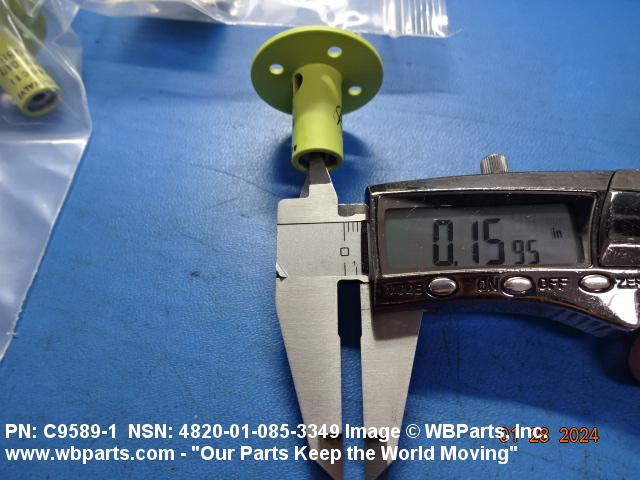

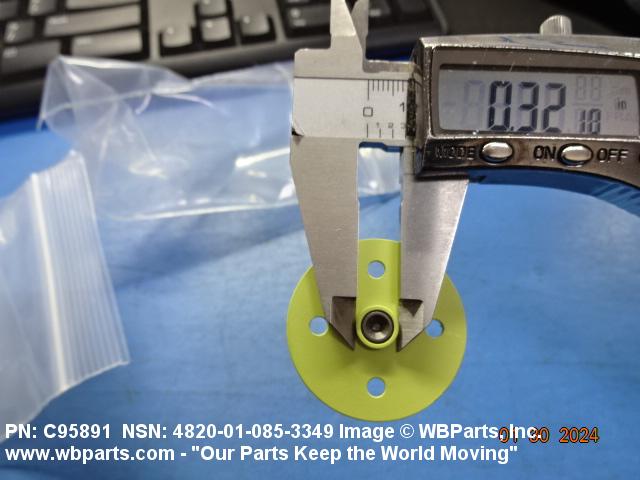

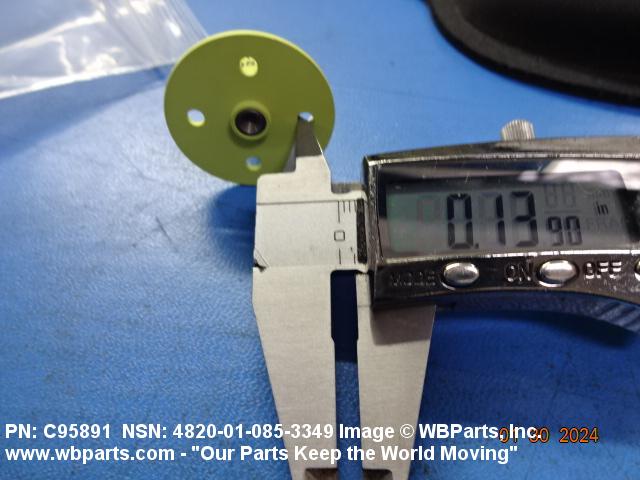

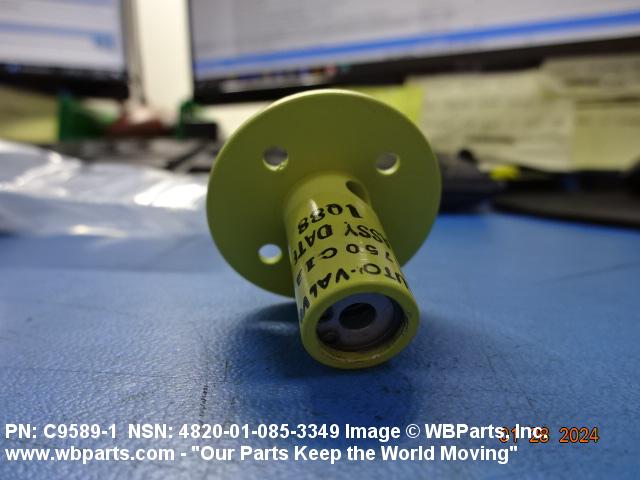

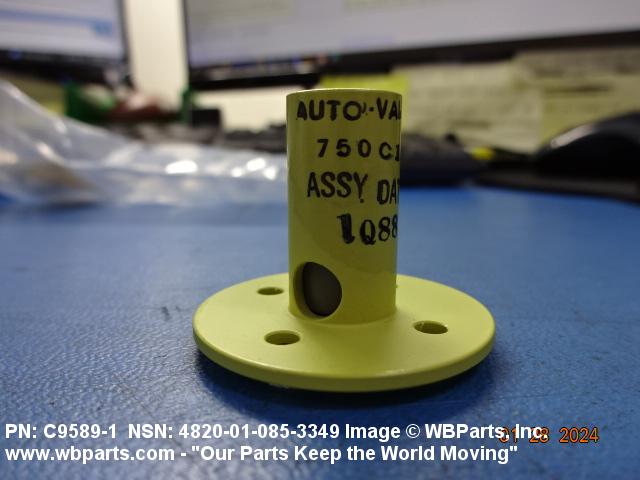

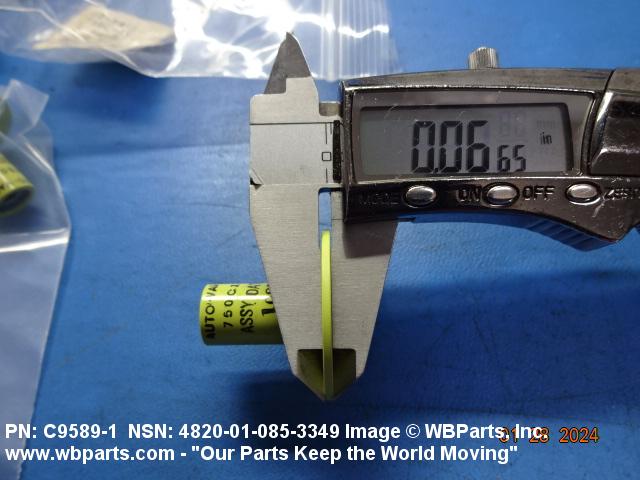

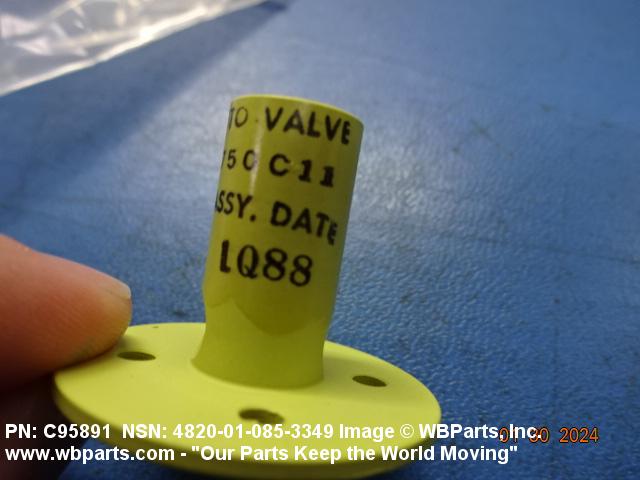

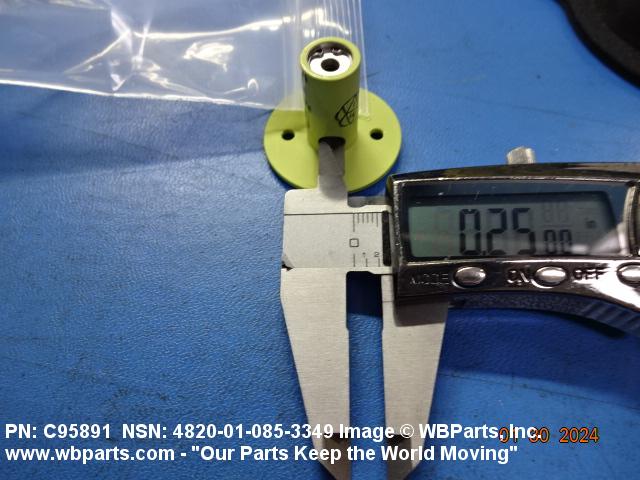

Drawings & Photos | NSN 4820-01-085-3349
Demand History | NSN 4820-01-085-3349
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4D301 | 2025-11-310 | 312 | DIBBS |
| 750C11 | 2025-11-310 | 312 | DIBBS |
| 4D301 | 2025-10-300 | 152 | DIBBS |
| 750C11 | 2025-10-300 | 152 | DIBBS |
| 4D301 | 2025-10-287 | 152 | DIBBS |
| 750C11 | 2025-10-287 | 152 | DIBBS |
| 4D301 | 2025-07-212 | 166 | DIBBS |
| 750C11 | 2025-07-212 | 166 | DIBBS |
| 4D301 | 2025-07-198 | 469 | DIBBS |
| 750C11 | 2025-07-198 | 469 | DIBBS |
| 4820-01-085-3349 | 2025-06-156 | 20 | US |
| 4D301 | 2025-04-114 | 156 | DIBBS |
| 750C11 | 2025-04-114 | 156 | DIBBS |
| 4D301 | 2025-03-83 | 230 | DIBBS |
| 750C11 | 2025-03-83 | 230 | DIBBS |
| 4D301 | 2025-03-72 | 230 | DIBBS |
| 750C11 | 2025-03-72 | 230 | DIBBS |
| 4820-01-085-3349 | 2024-08-227 | 4 | United States |
| 4820-01-085-3349 | 2024-01-23 | 8 | United States |
| C95891 | 2024-01-12 | 10 | United States |
| 4820-01-085-3349 | 2018-04-116 | 166 | DIBBS |
| 4820-01-085-3349 | 2018-03-74 | 76 | DIBBS |
| 4820-01-085-3349 | 2018-02-35 | 56 | DIBBS |
| 4820-01-085-3349 | 2017-08-239 | 56 | DIBBS |
| 4820-01-085-3349 | 2017-02-33 | 94 | DIBBS |
| 4820-01-085-3349 | 2016-03-67 | 42 | DIBBS |
| 4820-01-085-3349 | 2016-02-54 | 42 | DIBBS |
| 4820-01-085-3349 | 2016-02-35 | 1 | DIBBS-RFPs |
| 4820-01-085-3349 | 2015-12-340 | 53 | DIBBS |
| 4820-01-085-3349 | 2015-10-302 | 22 | DIBBS |
| 4820-01-085-3349 | 2015-10-281 | 7 | DIBBS |
| 4820-01-085-3349 | 2015-09-246 | 7 | DIBBS |
| 4820-01-085-3349 | 2015-08-228 | 6 | DIBBS |
| 4820-01-085-3349 | 2015-07-197 | 7 | DIBBS |
| 4820-01-085-3349 | 2014-03-86 | 21 | DIBBS |
| 4820-01-085-3349 | 2011-02-34 | 10 | DIBBS |
| 4820-01-085-3349 | 2010-06-159 | 4 | DIBBS |
| 4820-01-085-3349 | 2010-04-100 | 3 | DIBBS |
| 4820-01-085-3349 | 2008-12-339 | 7 | DIBBS |
| 4820-01-085-3349 | 2008-11-331 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-085-3349
Related Products | NSN 4820-01-085-3349
Technical Data | NSN 4820-01-085-3349
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY STEEL CORROSION RESISTING AND RUBBER SYNTHETIC FLOW CONTROL DEVICE |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | A20 ANGLE |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 60.0 POUNDS PER SQUARE INCH 1ST RESPONSE |
| MAXIMUM OPERATING TEMP | 160.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | FLANGE 1ST END |
| FLANGE SHAPE | ROUND 1ST END |

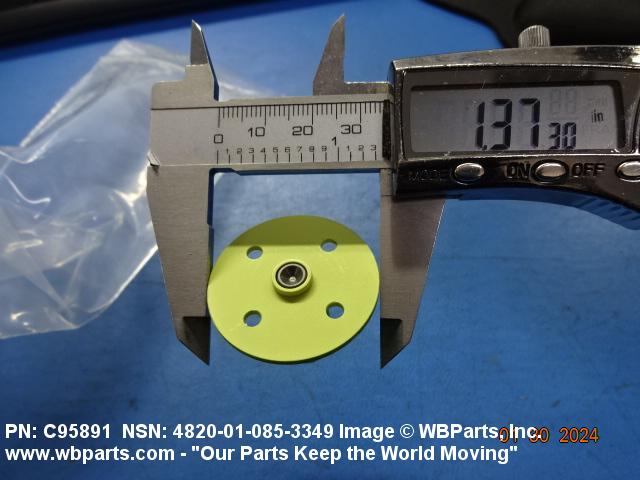

| NOMINAL OUTSIDE DIAMETER | 1.403 INCHES 1ST END |
| NOMINAL THICKNESS | 0.071 INCHES 1ST END |
| BOLT HOLE QUANTITY | 4 1ST END |
| BOLT HOLE NOMINAL DIAMETER | 0.125 INCHES 1ST END |
| BOLT CIRCLE NOMINAL DIAMETER | 0.875 INCHES 1ST END |
| FLANGE FACE DESIGN | PLAIN 1ST END |
Restrictions/Controls & Freight Information | NSN 4820-01-085-3349
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-085-3349
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
