NSN 4820-01-119-7893 11629017, 01-119-7893, 011197893
Product Details | VALVE STEM GUIDE
4820-01-119-7893 A replaceable cylindrical item designed to provide wear surface and maintain alignment of a reciprocating valve stem and the like, it may have a flange(s) and/or grooves.20728050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps45100033Plumbing Fixtures and Accessories48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 11629017, 4820-01-119-7893, 01-119-7893, 4820011197893, 011197893
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 06 OCT 1981 | 01-119-7893 | 32562 ( GUIDE, VALVE STEM ) |
Drawings & Photos | NSN 4820-01-119-7893
Demand History | NSN 4820-01-119-7893
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-119-7893 | 2025-07-196 | 6 | DIBBS |
| 4820-01-119-7893 | 2022-07-192 | 3 | DIBBS |
| 4820-01-119-7893 | 2021-05-132 | 10 | DIBBS |
Cross Reference | NSN 4820-01-119-7893
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11629017 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-119-7893
Technical Data | NSN 4820-01-119-7893
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

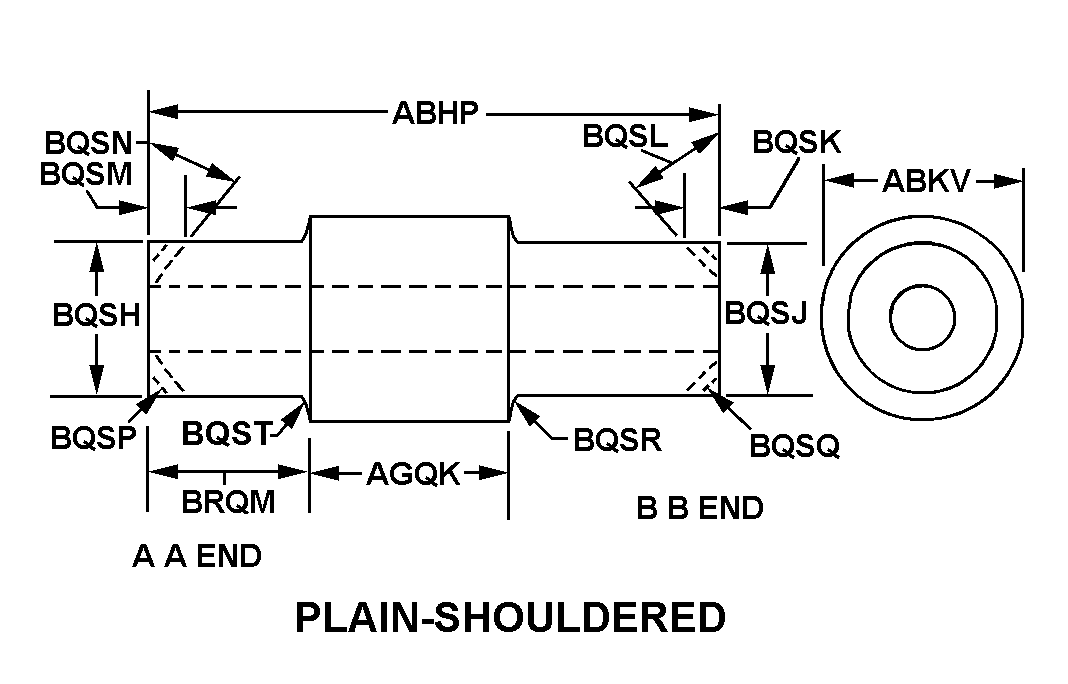

| STYLE DESIGNATOR | H7 PLAIN-SHOULDERED |
| OVERALL LENGTH | 0.650 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.496 INCHES NOMINAL |
| MAJOR DIAMETER LENGTH | 0.250 INCHES NOMINAL |
| AA END DIAMETER | 0.290 INCHES NOMINAL |
| BB END SHANK DIAMETER | 0.290 INCHES NOMINAL |
| SHOULDER FIRST FILLET RADIUS | 0.020 INCHES NOMINAL |
| SHOULDER SECOND FILLET RADIUS | 0.020 INCHES NOMINAL |
| LENGTH FROM AA END TO LARGEST DIAMETER FACE | 0.200 INCHES NOMINAL |
| BORE DIAMETER | 0.1250 INCHES NOMINAL |
| BORE COUNTERSINK | NOT INCLUDED |
| BORE COUNTERBORE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4820-01-119-7893
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-119-7893
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
