NSN 4820-01-147-7190 TV6806155WITHN680NP842N862A, 1100580K, 1100-580K
Product Details | ANGLE VALVE
4820-01-147-7190 A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. The flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. It may be inline or cartridge (manifold) design. Excludes VALVE (1), Y; VALVE, STOP-CHECK; and COCK, SHUTOFF, SCREW STEM.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: TV6806155WITHN680NP842N862A, 1100580K, 1100-580K, 4820-01-147-7190, 01-147-7190, 4820011477190, 011477190
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 22 FEB 1983 | 01-147-7190 | 05483 ( VALVE, ANGLE ) |
Drawings & Photos | NSN 4820-01-147-7190
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-147-7190
Technical Data | NSN 4820-01-147-7190
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY PLASTIC POLYAMIDE SEAT |
| STYLE DESIGNATOR | A7 ANGLE |
| FLOW CONTROL DEVICE | STEM |
| MEDIA FOR WHICH DESIGNED | HELIUM 1ST RESPONSE NITROGEN, GASEOUS 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 6000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL GAS FITTING 2ND END |

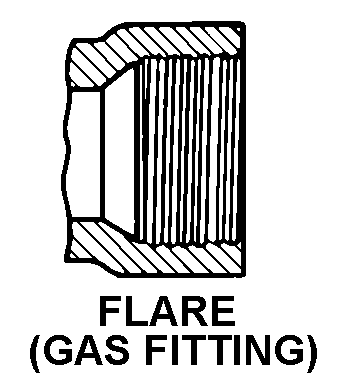

| CONNECTION STYLE | G5B FLARE 2ND END |
| THREAD SERIES DESIGNATOR | NPTF 1ST END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END 0.965 INCHES 2ND END |
| THREAD DIRECTION | RIGHT-HAND 1ST END RIGHT-HAND 2ND END |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | THREADED |
| MANUFACTURERS CODE | 58553 |
| DESIGN CONTROL REFERENCE | TV68061-55 WITH N680,NP842,N862A |
Restrictions/Controls & Freight Information | NSN 4820-01-147-7190
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
