Product Details | SAFETY RELIEF VALVE
4820-01-270-4290 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: 0204300016, 0204-300-016, 4820-01-270-4290, 01-270-4290, 4820012704290, 012704290
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 06 JAN 1988 | 01-270-4290 | 05488 ( VALVE, SAFETY RELIEF ) |

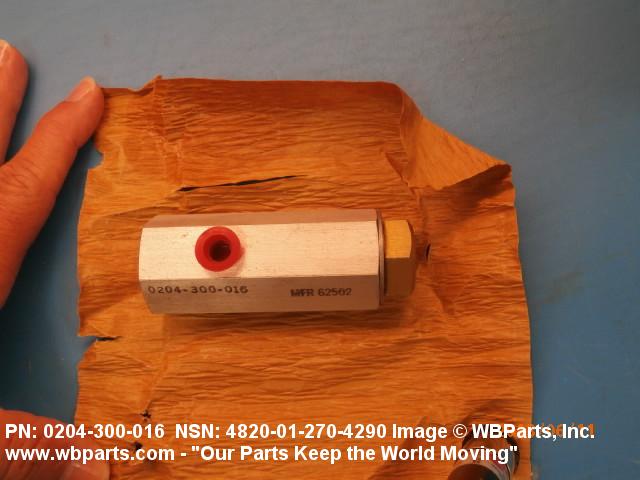

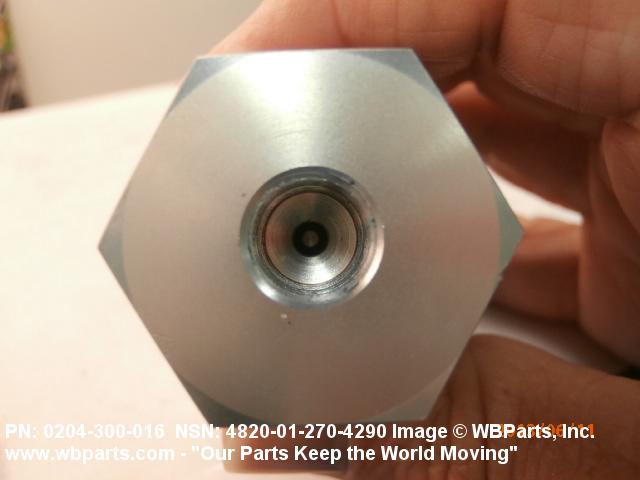

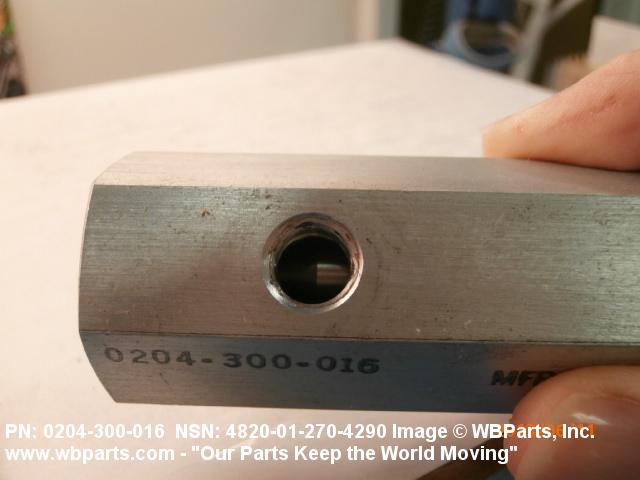

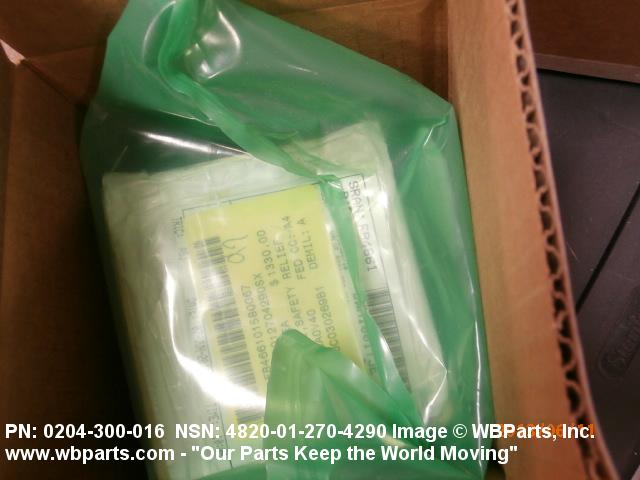

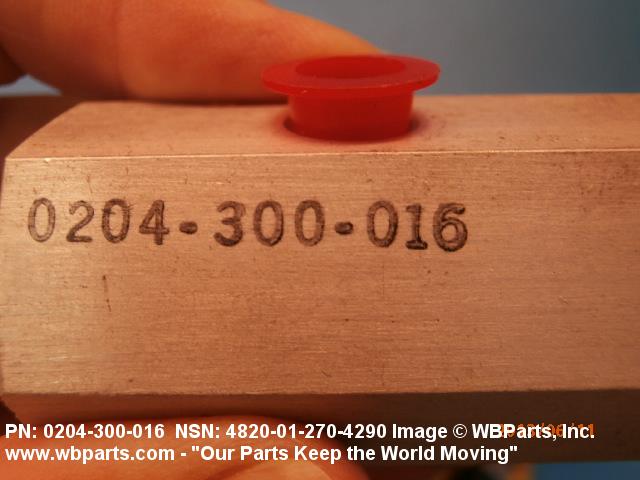

Drawings & Photos | NSN 4820-01-270-4290
Demand History | NSN 4820-01-270-4290
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0204300016 | 2013-05-31 | 1 | United States |
| 4820-01-270-4290 | 2013-02-01 | 7 | DIBBS |
| 4820-01-270-4290 | 2010-08-03 | 3 | DIBBS |
| 4820-01-270-4290 | 2010-03-16 | 5 | DIBBS |
| 4820-01-270-4290 | 2010-02-18 | 2 | DIBBS |
| 4820-01-270-4290 | 2010-02-05 | 1 | DIBBS |
| 4820-01-270-4290 | 2010-01-11 | 2 | DIBBS |
Cross Reference | NSN 4820-01-270-4290
| Part Number | Cage Code | Manufacturer |
|---|---|---|

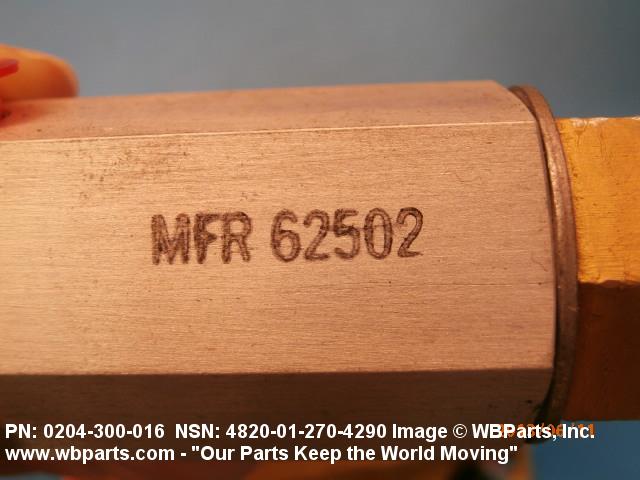

| 0204-300-016 | 62502 | GOODMAN BALL, INC. DBA GBI |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4820-01-270-4290
4820-01-270-4313, 4820-01-270-4314, 4820-01-270-4315, 4820-01-270-4316, 4820-01-270-4354
Technical Data | NSN 4820-01-270-4290
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |

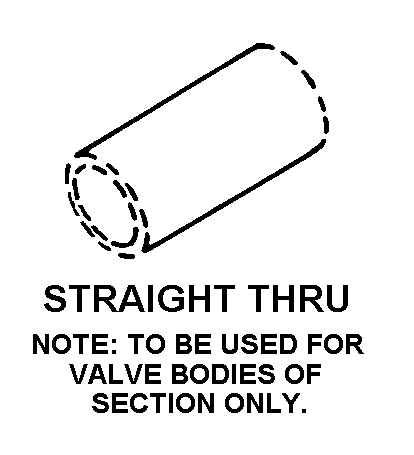

| STYLE DESIGNATOR | C8 STRAIGHT THRU |
| FLOW CONTROL DEVICE | PLUG |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | G9 PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.125 INCHES ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | THREADED |
| OPENING PRESSURE SETTING | 3000.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 4820-01-270-4290
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
