NSN 4820-00-736-0235 007360235

Product Details | SAFETY RELIEF VALVE


4820-00-736-0235 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.

Part Alternates: 007360235

Valves | Valves, Powered

Supply Group (FSG) NSN Assign. NIIN
48 00-736-0235

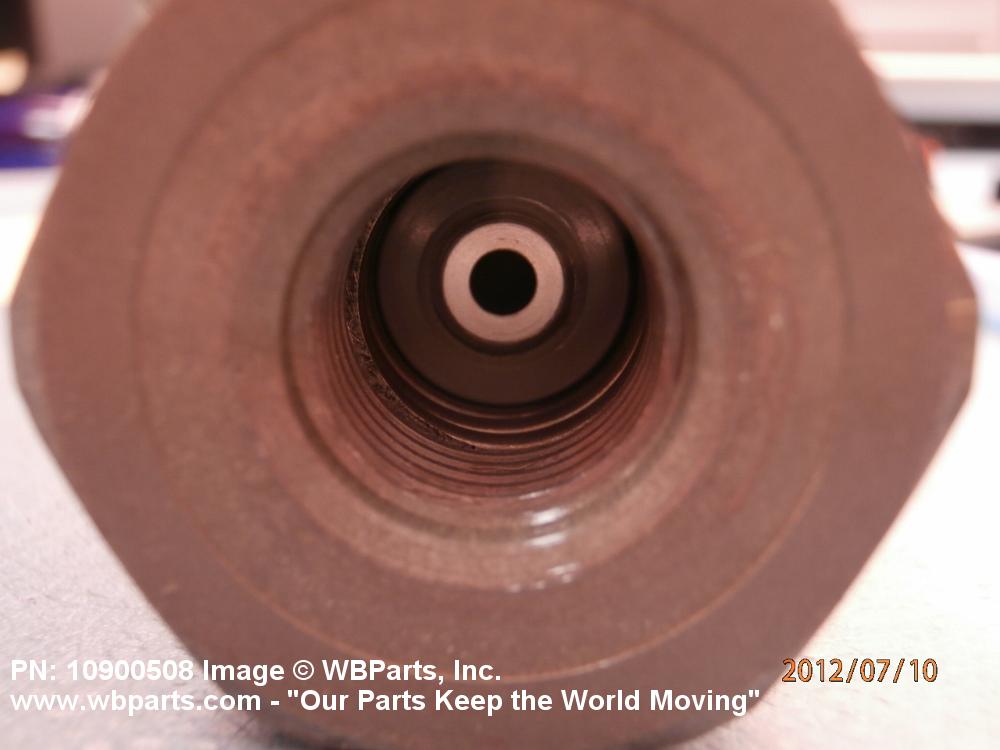

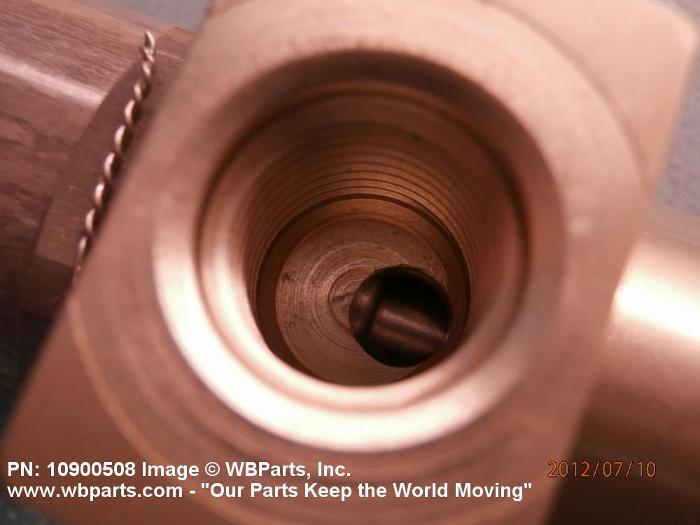

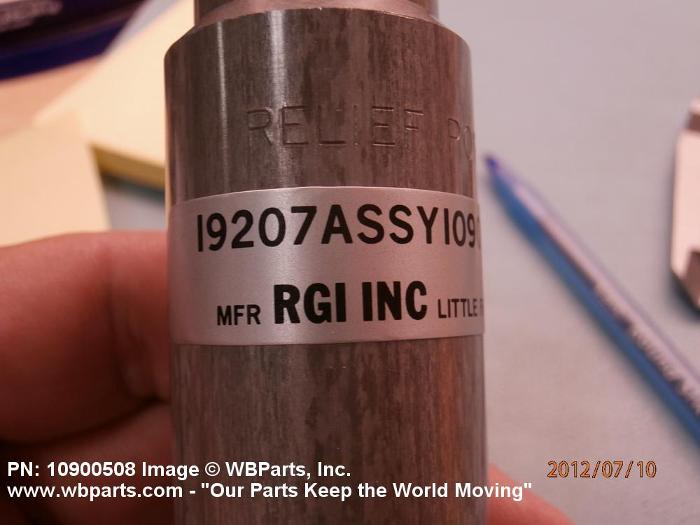

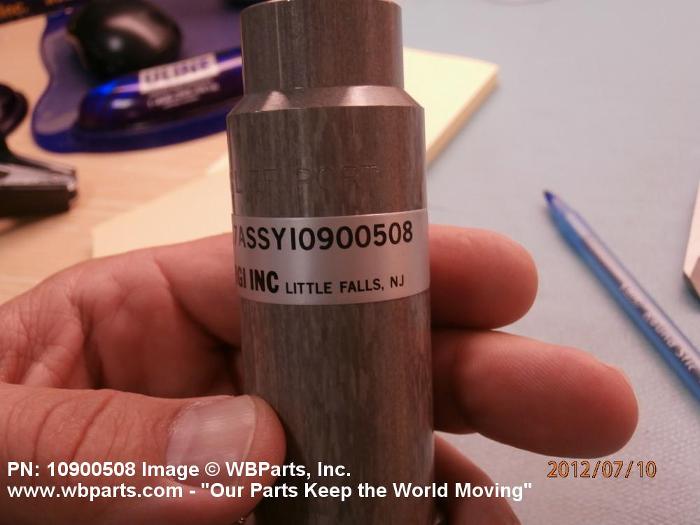

Drawings & Photos | NSN 4810-00-736-0235



Demand History | NSN 4820-00-736-0235


Part Number Request Date QTY Origin
4810-00-736-0235 2015-02-10 25 US
4810-00-736-0235 2012-09-26 82 Turkey
4810-00-736-0235 2012-09-16 80 Turkey
4810-00-736-0235 2011-09-16 80 TR
4810-00-736-0235 2011-09-13 80 TR
4810-00-736-0235 2010-01-29 4 DIBBS
4810-00-736-0235 2009-03-05 10 DIBBS

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 4820-00-736-0235


Technical Data | NSN 4820-00-736-0235


Characteristic Specifications
STYLE DESIGNATOR C7 STRAIGHT THRU
VALVE DISCHARGE FLOW RATE 200.0 GALLONS PER MINUTE
VALVE OPERATION METHOD HYDRAULIC
POWER DRIVE OPERATING PRESSURE 1200.0 POUNDS PER SQUARE INCH NOMINAL

Restrictions/Controls & Freight Information | NSN 4820-00-736-0235


Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Controlled Inventory Item Code:UUNCLASSIFIED
Category Code Description
No Freight Information
