Product Details | FACE SPANNER WRENCH SOCKET
5120-00-044-1426 An item designed to be driven by an external or internal drive. It has a face type spanner end.
Part Alternates: T101414, 4920HU1001, 4920HU1-001, 5120-00-044-1426, 00-044-1426, 5120000441426, 000441426
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1961 | 00-044-1426 | 03543 ( SOCKET, WRENCH, FACE SPANNER ) |

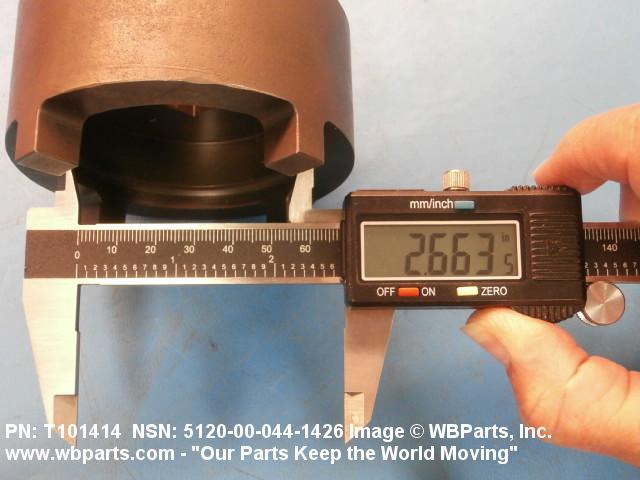

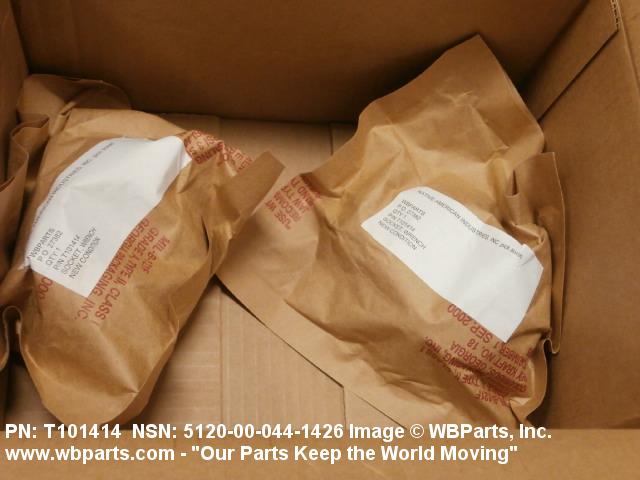

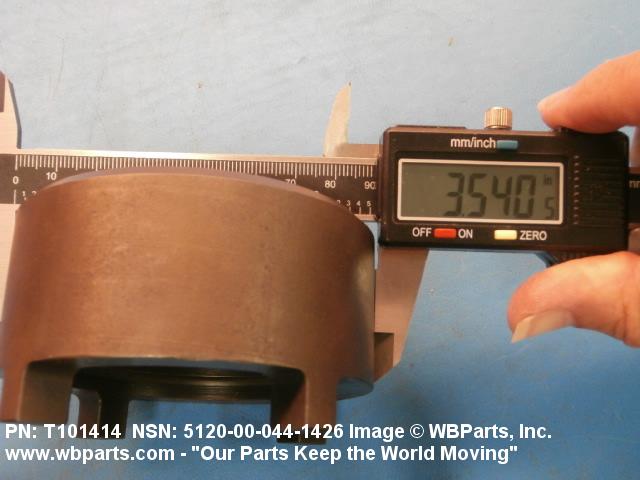

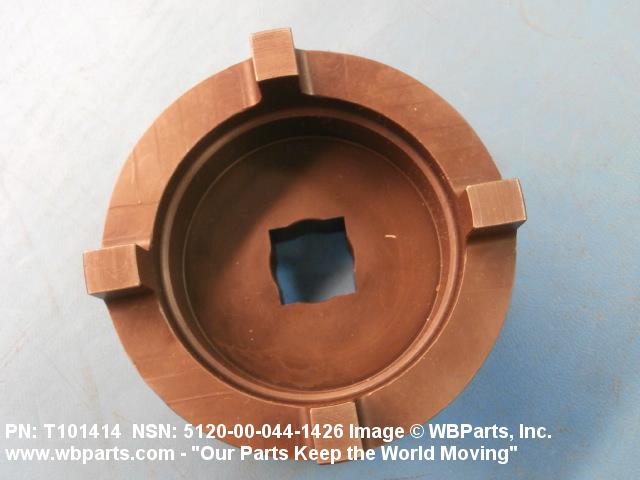

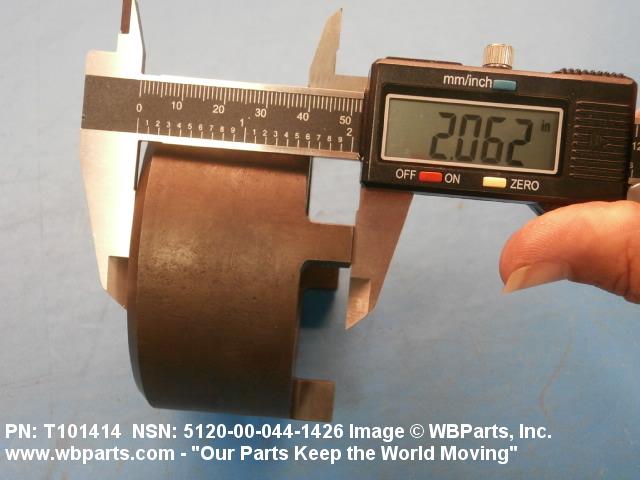

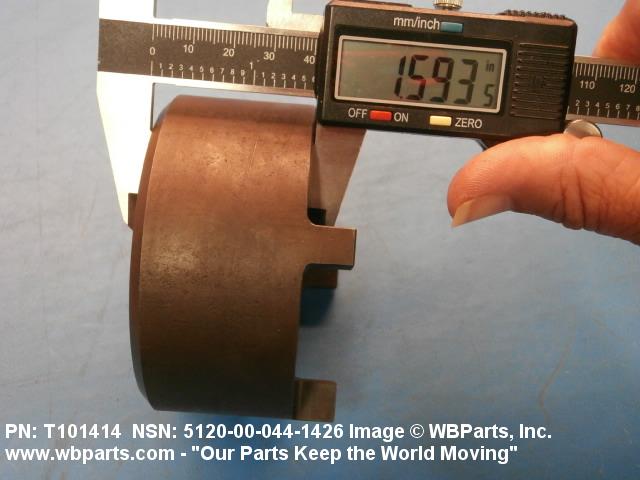

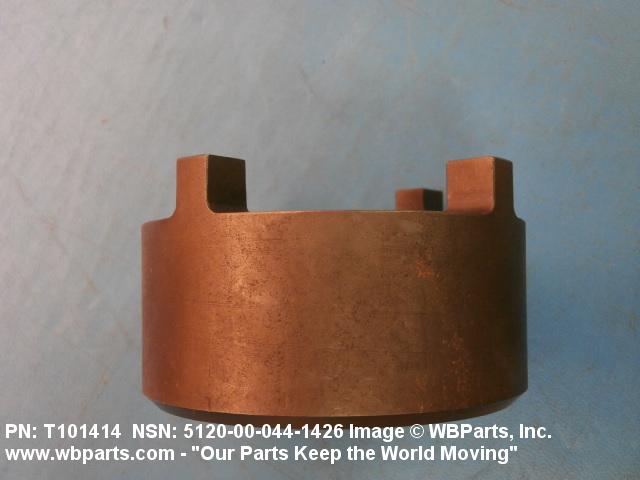

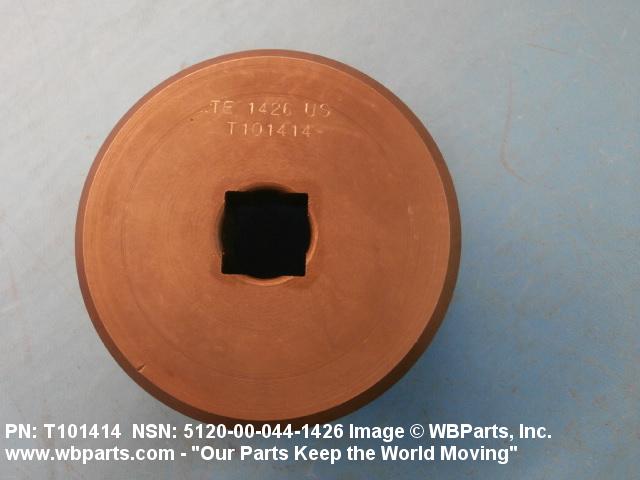

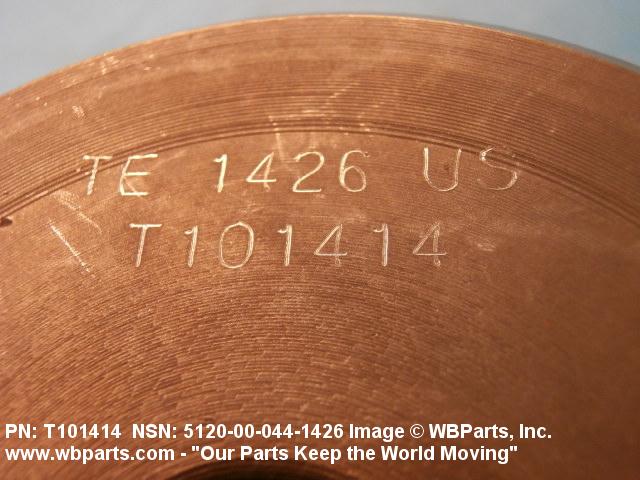

Drawings & Photos | NSN 5120-00-044-1426
Demand History | NSN 5120-00-044-1426
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-044-1426 | 2023-07-13 | 1 | US |
| 5120-00-044-1426 | 2021-06-30 | 2 | US |
| 5120-00-044-1426 | 2019-09-14 | 1 | US |
| 5120-00-044-1426 | 2019-05-29 | 1 | CA |
| T101414 | 2015-06-02 | 1 | US |
| 5120-00-044-1426 | 2014-05-29 | 2 | United States |
| 5120-00-044-1426 | 2013-11-13 | 1 | AU |
| 5120-00-044-1426 | 2013-10-15 | 2 | US |
| T101414 | 2013-04-12 | 1 | United States |
| T101414 | 2013-01-07 | 1 | Indonesia |
| T101414 | 2012-10-05 | 1 | United States |
| T101414 | 2011-08-08 | 1 | United States |
| 5120-00-044-1426 | 2008-05-18 | 1 | IL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5120-00-044-1426
Related Products | NSN 5120-00-044-1426
5120-00-044-1718, 5120-00-044-2391, 5120-00-044-2962, 5120-00-044-2979, 5120-00-044-2983
Technical Data | NSN 5120-00-044-1426
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-628 FED SPEC 1ST MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE OR CHROMIUM OR NICKEL OVERALL |
| STYLE DESIGNATOR | 175 LUG |
| OVERALL LENGTH | 1.850 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.000 INCHES NOMINAL |
| OPENING DIAMETER | 2.670 INCHES NOMINAL |

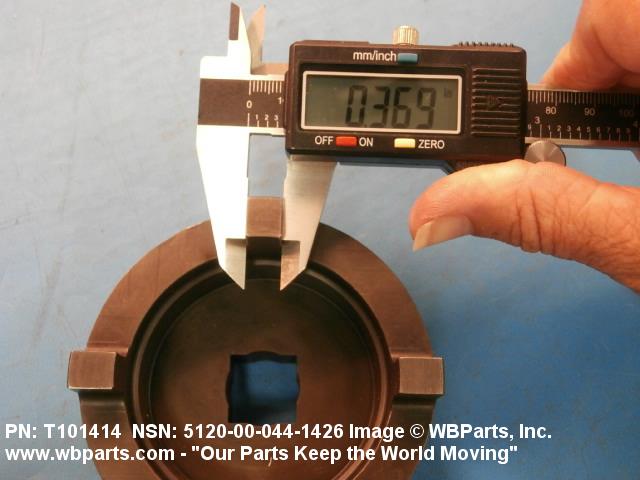

| LUG WIDTH | 0.350 INCHES MINIMUM AND 0.360 INCHES MAXIMUM |

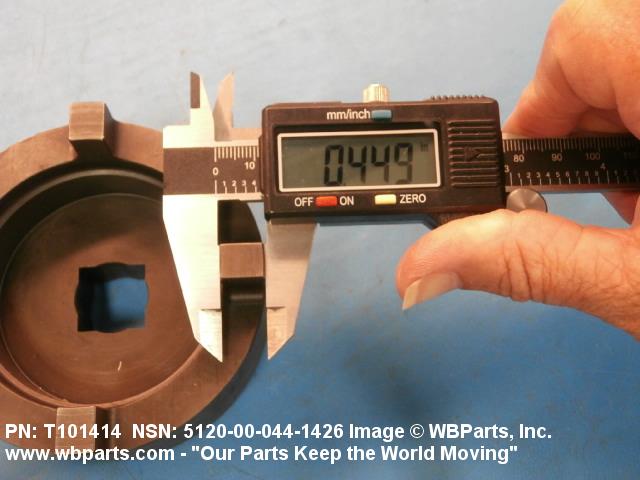

| LUG LENGTH | 0.470 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 90.0 DEGREES NOMINAL |
| DRIVE SURFACE SIZE | 0.754 INCHES MINIMUM AND 0.765 INCHES MAXIMUM SINGLE END |
| DRIVE END SHAPE | SQUARE SINGLE END INTERNAL |
| SPECIAL FEATURES | 6 WRENCHES TO PKG,6 PKGS TO BOX |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY SFTT TREATMENT |
Restrictions/Controls & Freight Information | NSN 5120-00-044-1426
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-044-1426
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
