Product Details | FACE SPANNER WRENCH SOCKET
5120-00-755-6697 An item designed to be driven by an external or internal drive. It has a face type spanner end.
Part Alternates: 114E589614, 114E5896-14, 5120-00-755-6697, 00-755-6697, 5120007556697, 007556697
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1960 | 00-755-6697 | 03543 ( SOCKET, WRENCH, FACE SPANNER ) |

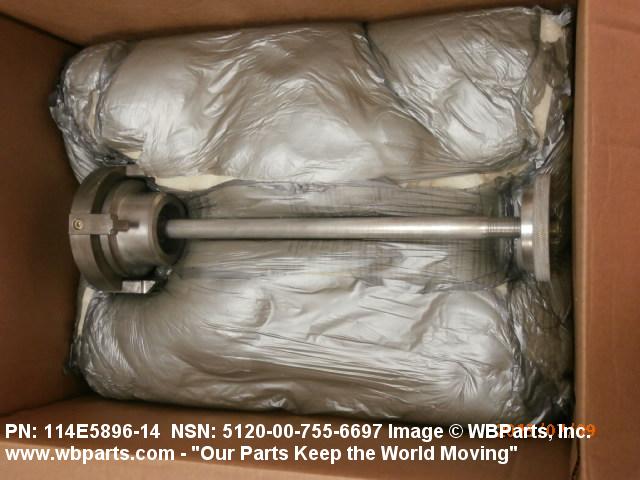

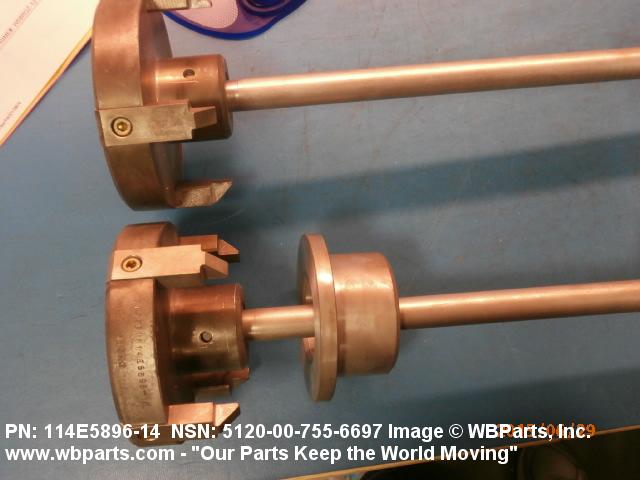

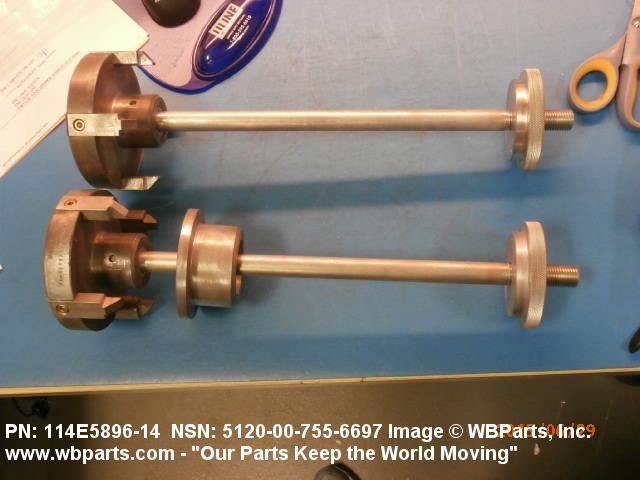

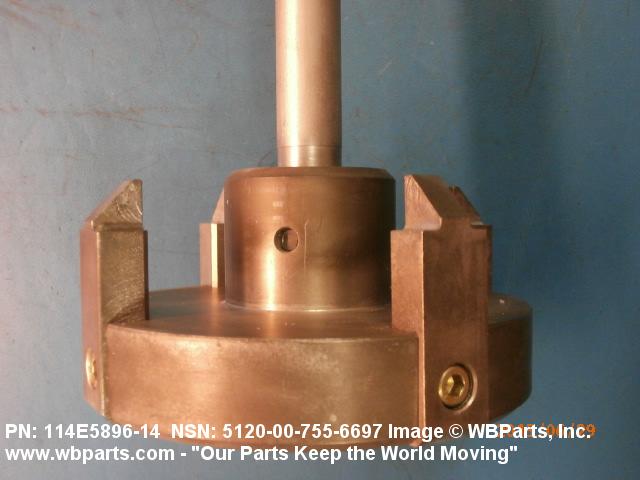

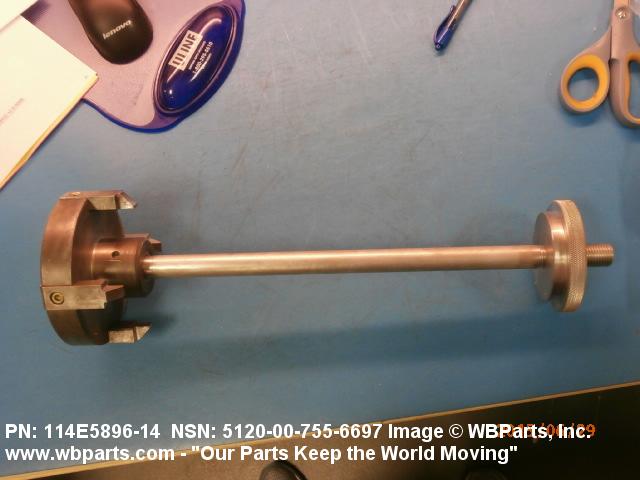

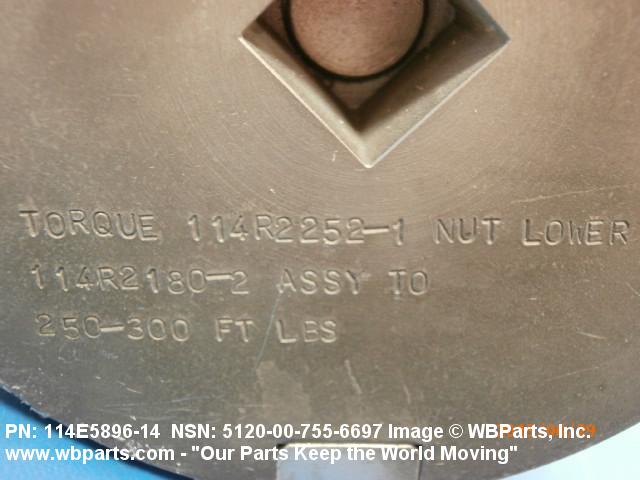

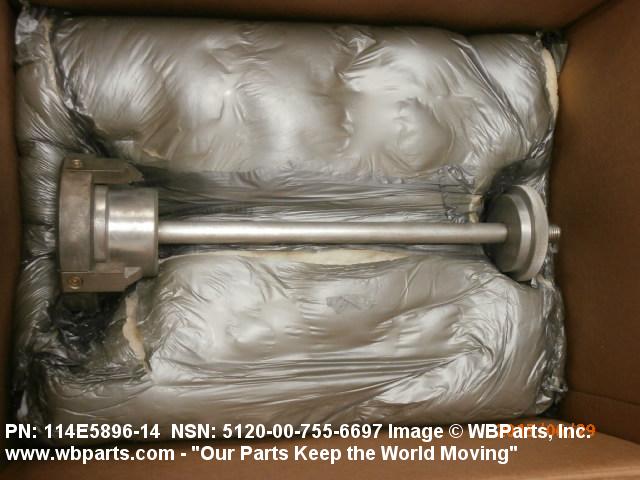

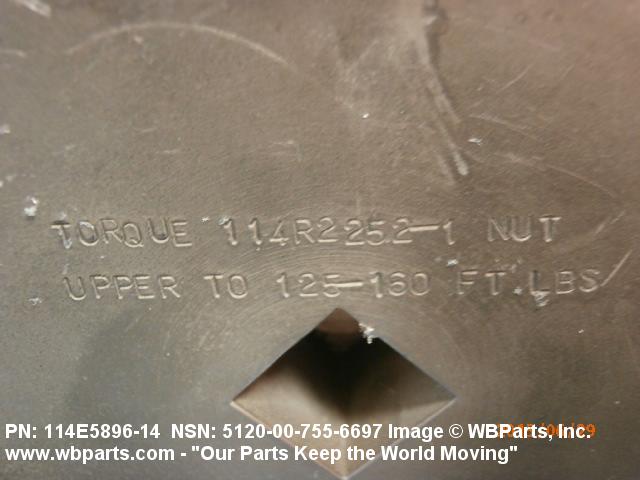

Drawings & Photos | NSN 5120-00-755-6697
Demand History | NSN 5120-00-755-6697
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-755-6697 | 2023-10-04 | 5 | US |
| 5120-00-755-6697 | 2020-03-26 | 1 | CA |
| 5120-00-755-6697 | 2020-01-20 | 1 | United States |
| 5120-00-755-6697 | 2019-08-26 | 1 | United States |
| 114E589614 | 2019-05-02 | 1 | United States |
| 114E589614 | 2016-02-25 | 12 | us |
| 5120-00-755-6697 | 2015-06-10 | 3 | United States |
| 5120-00-755-6697 | 2015-03-24 | 1 | United States |
| 5120-00-755-6697 | 2015-01-05 | 3 | AU |
| 5120-00-755-6697 | 2014-12-08 | 4 | us |
| 5120-00-755-6697 | 2011-01-28 | 1 | United States |
| 114E589614 | 2011-01-19 | 1 | United States |
| 5120-00-755-6697 | 2009-10-28 | 1 | United Arab Emirates |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5120-00-755-6697
Related Products | NSN 5120-00-755-6697
5120-00-755-9818, 5120-00-755-9823, 5120-00-755-9824, 5120-00-756-0924, 5120-00-756-0925
Technical Data | NSN 5120-00-755-6697
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 AND STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE AND MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 175 LUG |
| OVERALL LENGTH | 2.380 INCHES NOMINAL |

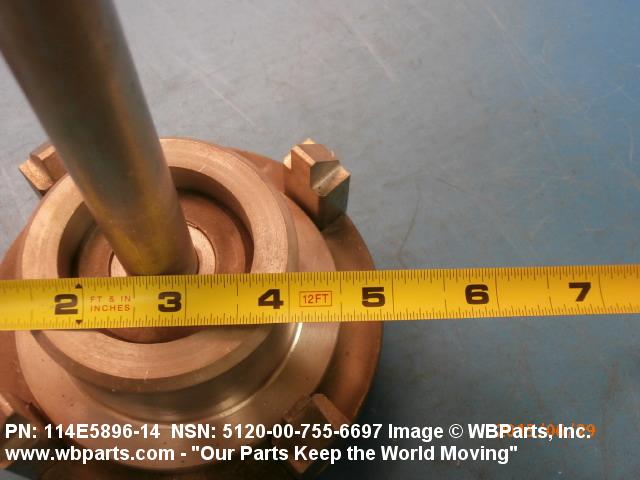

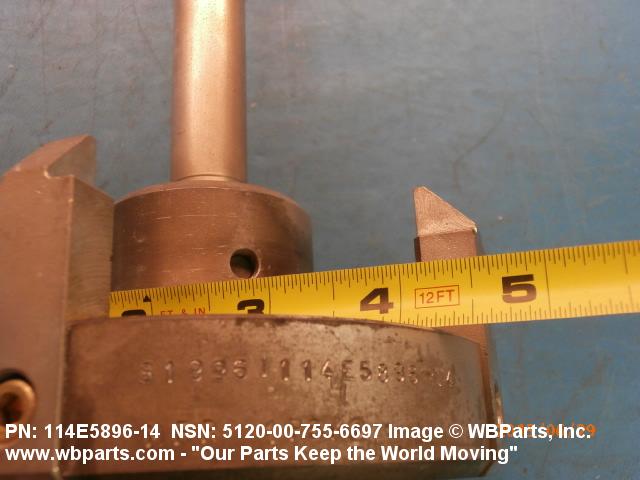

| OUTSIDE DIAMETER | 5.000 INCHES NOMINAL |
| OPENING DIAMETER | 4.030 INCHES MINIMUM AND 4.035 INCHES MAXIMUM |

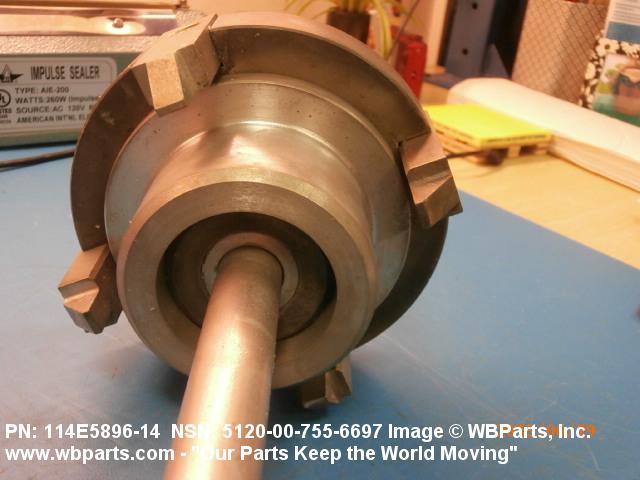

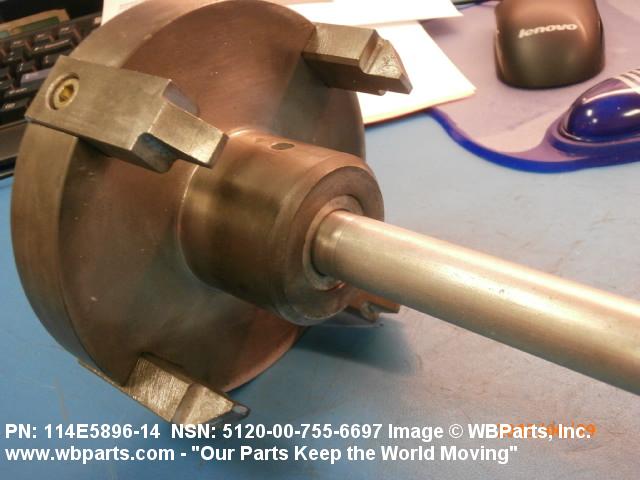

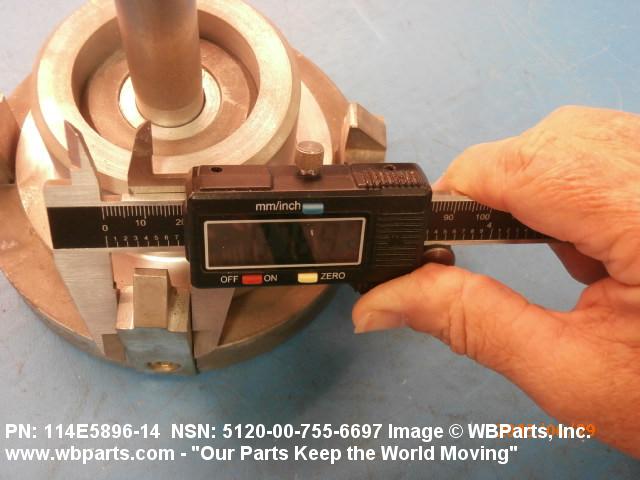

| LUG WIDTH | 0.740 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |

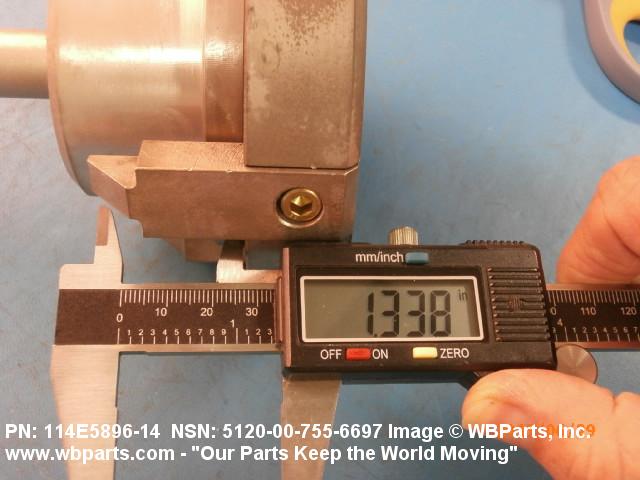

| LUG LENGTH | 1.380 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 90.0 DEGREES NOMINAL |

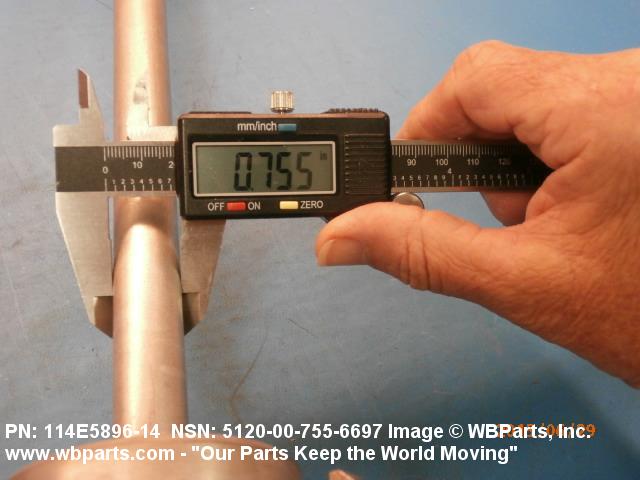

| DRIVE SURFACE SIZE | 0.754 INCHES MINIMUM AND 0.765 INCHES MAXIMUM SINGLE END |

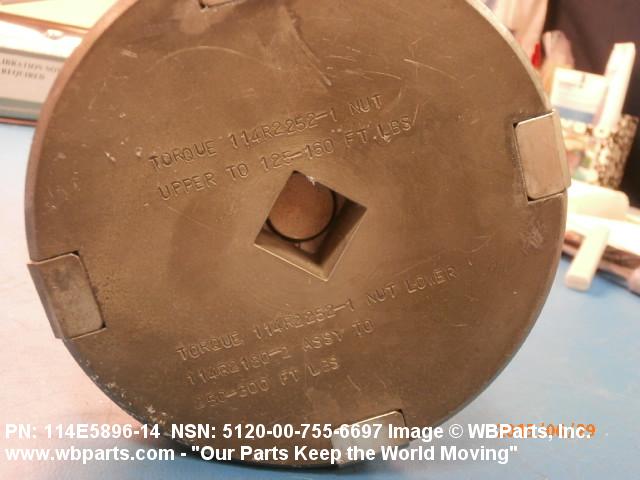

| DRIVE END SHAPE | SQUARE SINGLE END INTERNAL |

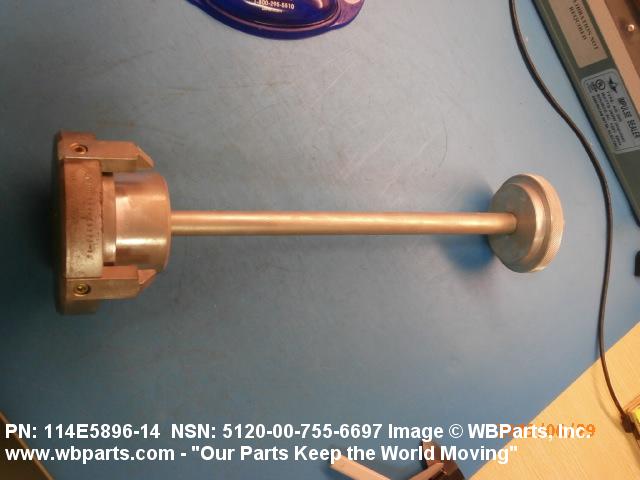

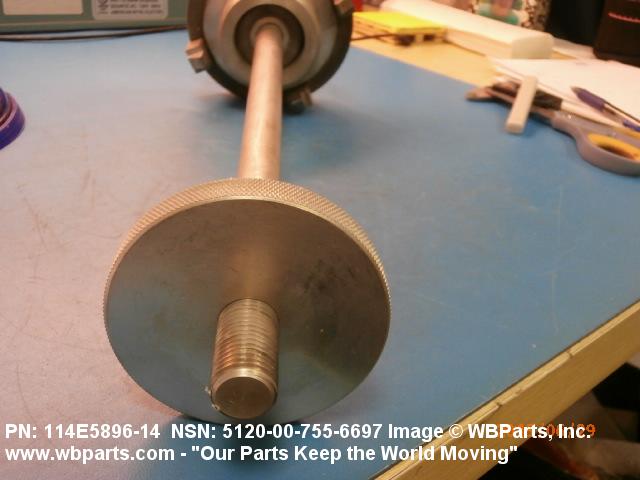

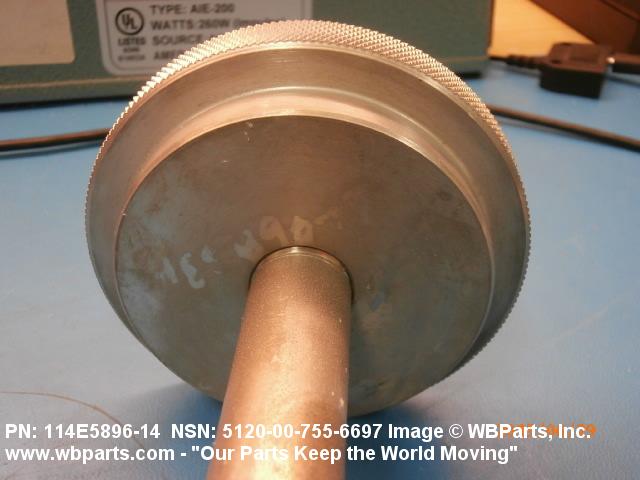

| SPECIAL FEATURES | IST MATERIAL FOR SOCKET BODY,2ND MATERIAL FOR WRENCHING LUGS;16.250 IN.NOM STUD,KNURLED NUT AND 3.900 IN. NOMDIA COLLAR WHICH ARE ATTACHED TO SOCKET BODY ARE MADE OF CRES |
| MANUFACTURERS CODE | 77272 |

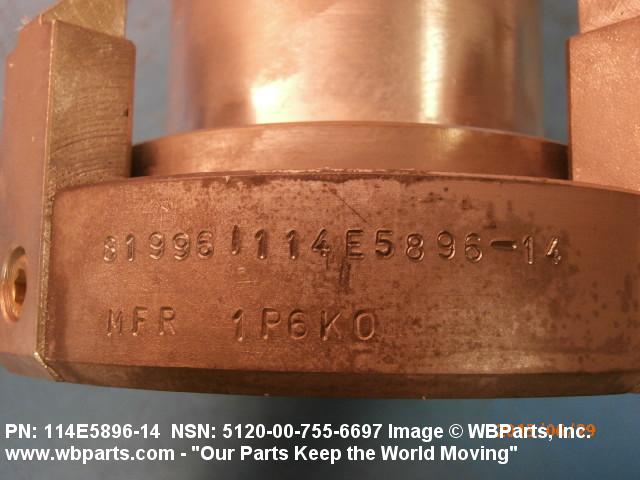

| DESIGN CONTROL REFERENCE | 114E5896-14 |
Restrictions/Controls & Freight Information | NSN 5120-00-755-6697
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-755-6697
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
