NSN 5120-00-116-9553 FIG826, 00-116-9553, 001169553
Product Details | SPANNER WRENCH
5120-00-116-9553 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: FIG826, 5120-00-116-9553, 00-116-9553, 5120001169553, 001169553
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 00-116-9553 | 03476 ( WRENCH, SPANNER ) |

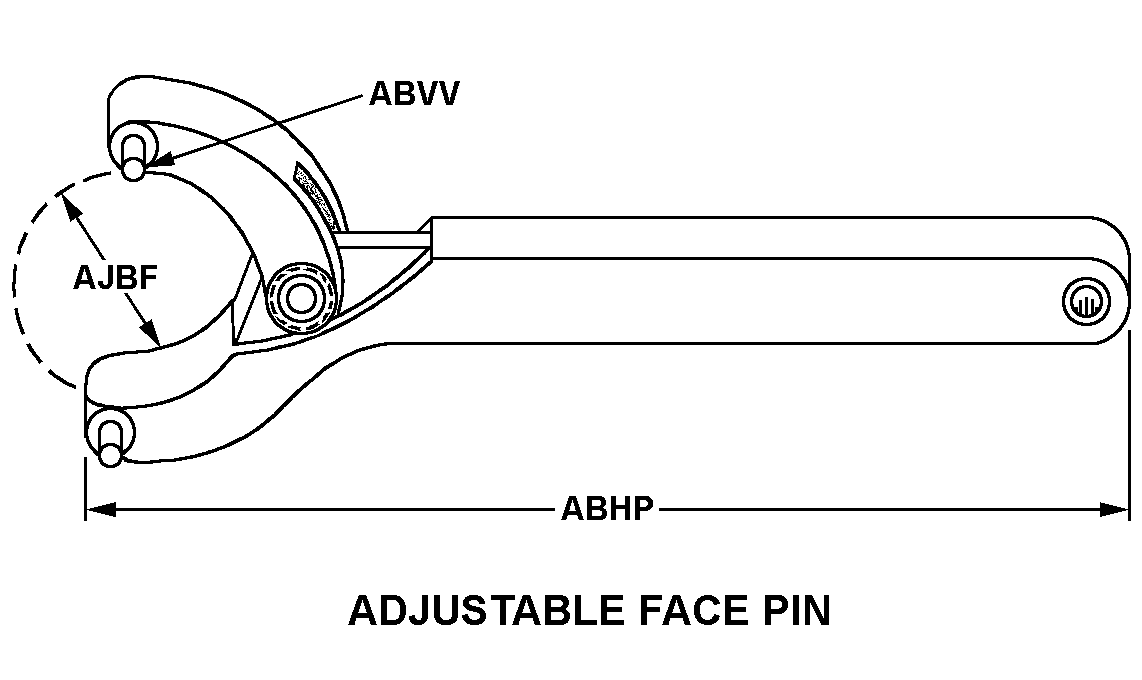

Drawings & Photos | NSN 5120-00-116-9553
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-116-9553
Technical Data | NSN 5120-00-116-9553
| Characteristic | Specifications |
|---|---|
| MATERIAL | ZINC OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| STYLE DESIGNATOR | 737A ADJUSTABLE FACE PIN |
| OVERALL LENGTH | 8.500 INCHES NOMINAL |
| CIRCLE RANGE DIAMETER | 8.000 INCHES NOMINAL |
| SPECIAL FEATURES | PIN DIA 0.250 IN. FIRST END,0.312 SECOND END; ADJUSTABLE AND REVERSIBLE |
| MANUFACTURERS CODE | 46576 |
| DESIGN CONTROL REFERENCE | FIG826 |
Restrictions/Controls & Freight Information | NSN 5120-00-116-9553
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
