NSN 5120-00-317-1433 A88144791, A8814479-1, 00-317-1433

Product Details | SPANNER WRENCH


5120-00-317-1433 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.

Part Alternates: A88144791, A8814479-1, 5120-00-317-1433, 00-317-1433, 5120003171433, 003171433

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 01 JAN 1963 00-317-1433

Drawings & Photos | NSN 5120-00-317-1433




Cross Reference | NSN 5120-00-317-1433


Part Number Cage Code Manufacturer
A8814479-1 21921 RCA CORP DISTRIBUTOR AND SPECIAL PRODUCTS DIV
A8814479-1 49671 LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5120-00-317-1433


Technical Data | NSN 5120-00-317-1433


Characteristic Specifications
MATERIAL STEEL COMP 304 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION MIL-S-854 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT PASSIVATE OVERALL

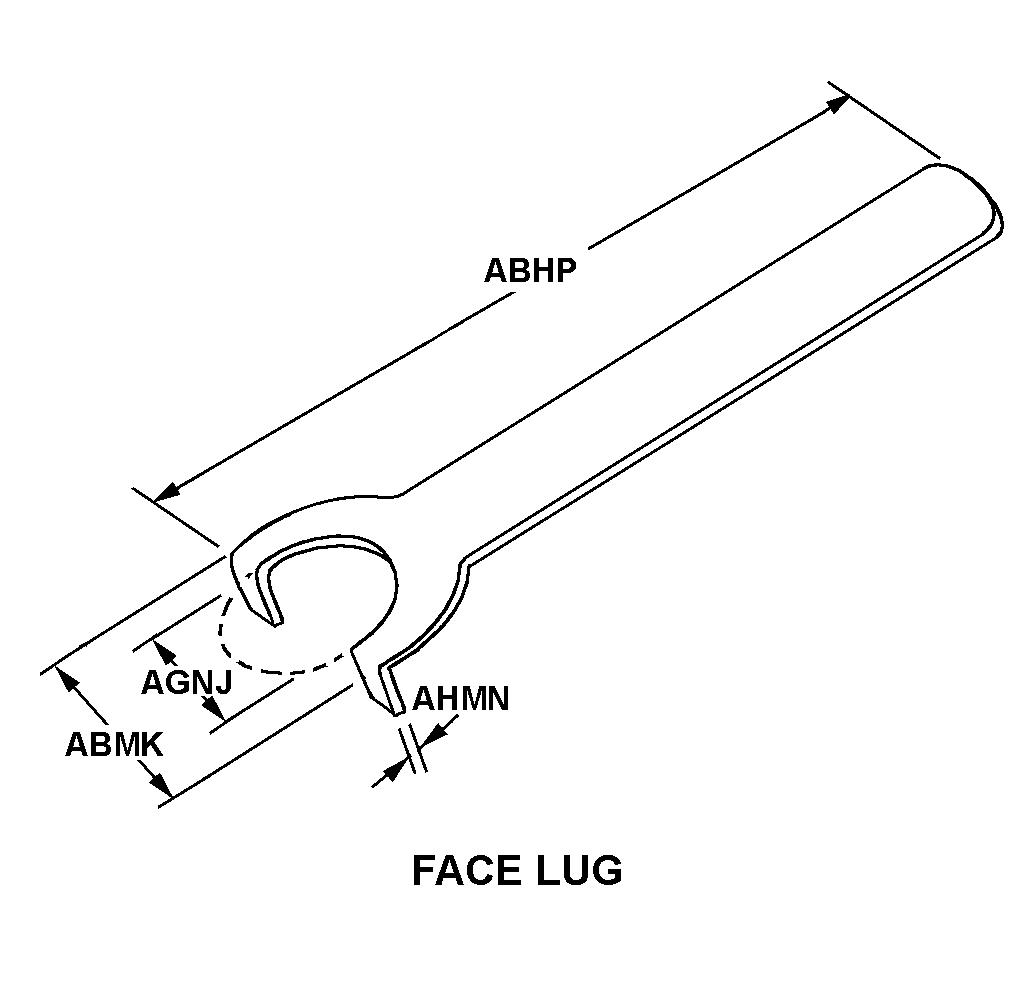

STYLE DESIGNATOR 670 FACE LUG
OVERALL LENGTH 6.000 INCHES NOMINAL
OVERALL WIDTH 3.062 INCHES NOMINAL
OPENING DIAMETER 1.843 INCHES MINIMUM AND 1.906 INCHES MAXIMUM
LUG THICKNESS 0.125 INCHES NOMINAL
SPECIAL FEATURES 0.250 IN. HOLE LOCATED ON CENTERLINE OF HANDLE 2.312 IN. FROM 0.062 IN. RADIUS BEND OF LUGS
MANUFACTURERS CODE 21921
DESIGN CONTROL REFERENCE A8814479-1

Restrictions/Controls & Freight Information | NSN 5120-00-317-1433


Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 186620 TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating Q 70
Less than truck load rating W Rating Variable
Water commodity Code 732 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Y Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions.
Special Handling Code 5 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
