NSN 5120-00-884-8618 HS9457, DWG5120008848618, DWG5120-00-884-8618
Product Details | SPANNER WRENCH
5120-00-884-8618 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: HS9457, DWG5120008848618, DWG5120-00-884-8618, 5120-00-884-8618, 00-884-8618, 5120008848618, 008848618
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1962 | 00-884-8618 | 03476 ( WRENCH, SPANNER ) |

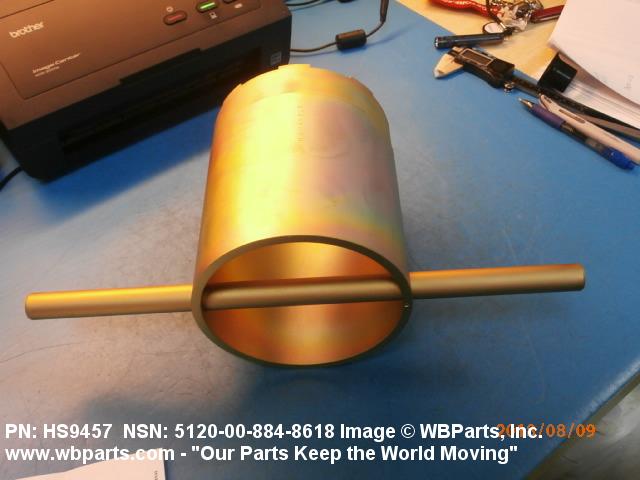

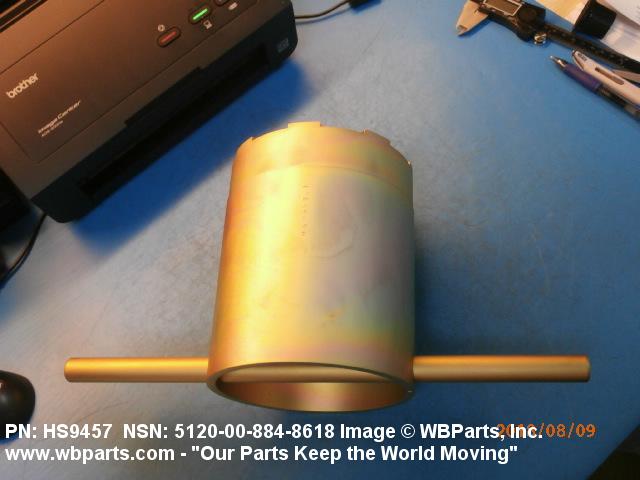

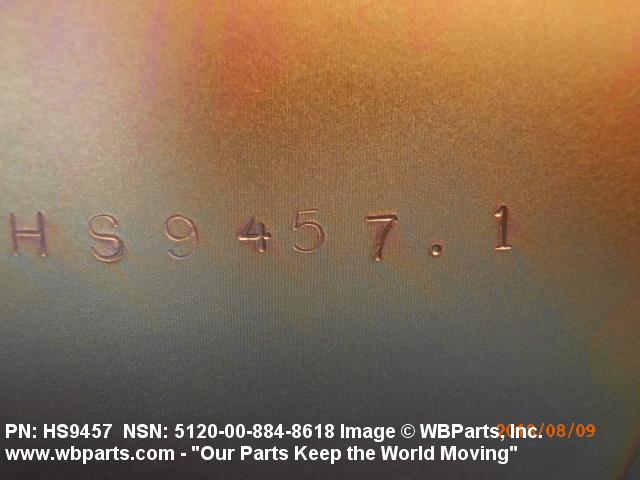

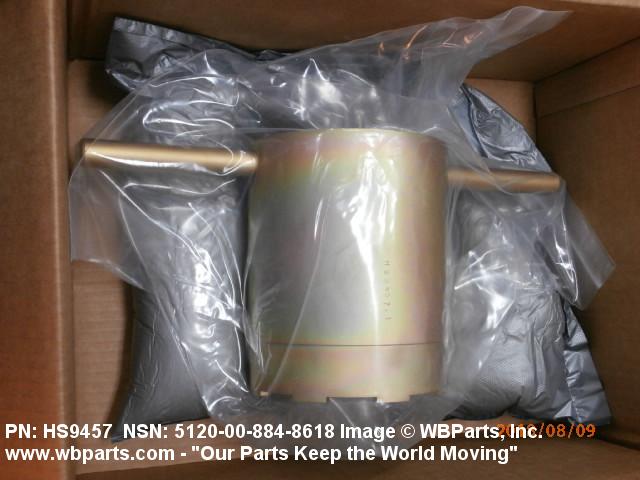

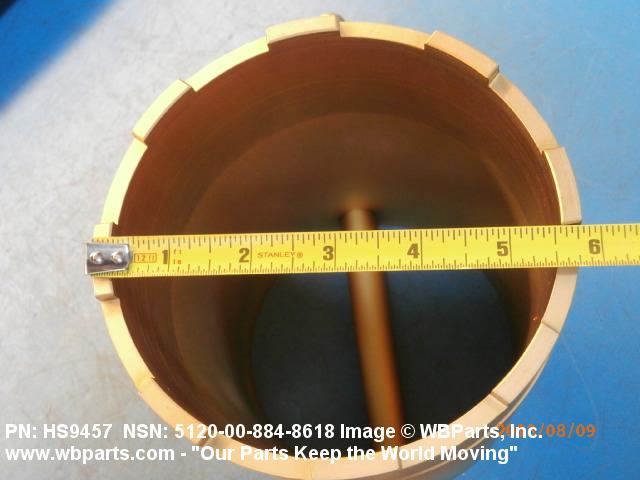

Drawings & Photos | NSN 5120-00-884-8618
Demand History | NSN 5120-00-884-8618
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HS9457 | 2025-04-106 | 1 | France |
| 5120-00-884-8618 | 2024-10-298 | 1 | France |
| 5120-00-884-8618 | 2023-09-272 | 1 | Colombia |
| HS9457 | 2019-03-66 | 1 | MY |
| 5120-00-884-8618 | 2018-07-204 | 1 | United States |
| 5120-00-884-8618 | 2018-07-204 | 1 | United States |
| 5120-00-884-8618 | 2016-08-235 | 1 | United States |
| HS9457 | 2014-08-213 | 1 | US |
| 5120-00-884-8618 | 2014-02-36 | 1 | United States |
| 5120-00-884-8618 | 2013-12-361 | 1 | United States |
| HS9457 | 2011-07-207 | 1 | |
| HS9457 | 2011-05-132 | 1 | |
| HS9457 | 2011-04-104 | 1 | |
| 5120-00-884-8618 | 2007-02-59 | 1 | US |
| 5120-00-884-8618 | 2006-01-09 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-884-8618
Related Products | NSN 5120-00-884-8618
Technical Data | NSN 5120-00-884-8618
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI-4037H ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE OR PHOSPHATE OVERALL |

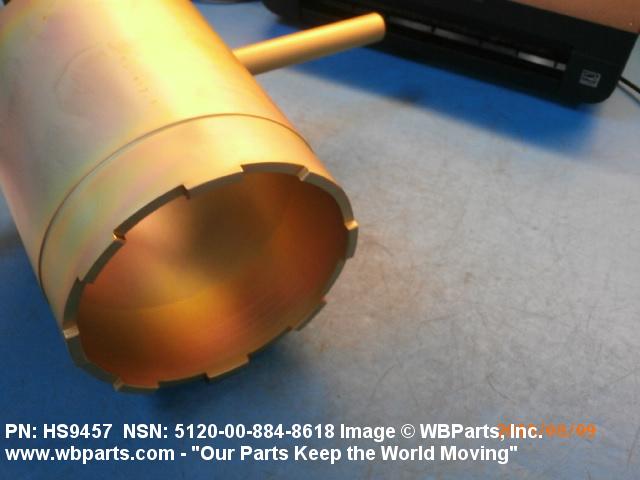

| STYLE DESIGNATOR | 764 TUBULAR LUG |

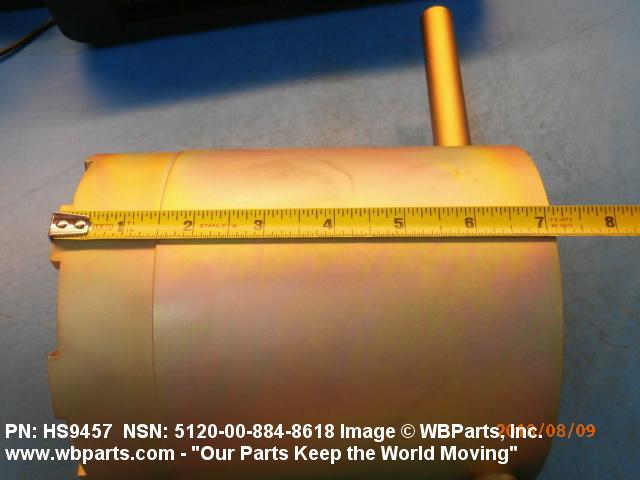

| OVERALL LENGTH | 7.130 INCHES NOMINAL |
| OVERALL WIDTH | 5.880 INCHES NOMINAL |

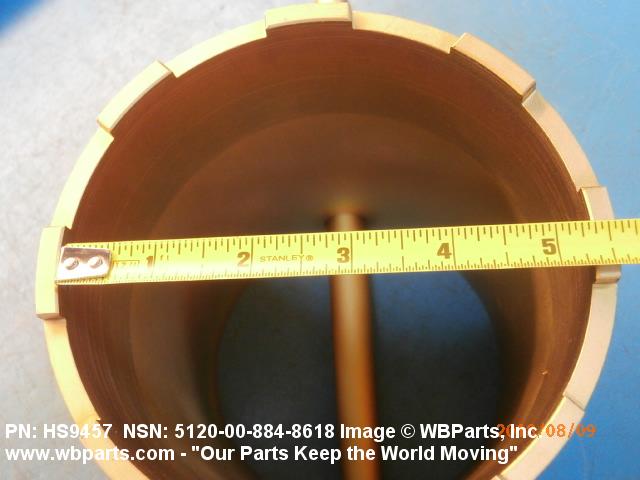

| OPENING DIAMETER | 5.340 INCHES MINIMUM AND 5.360 INCHES MAXIMUM |

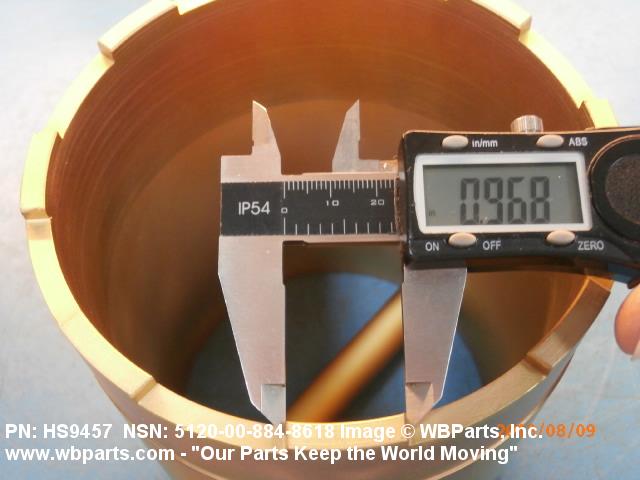

| LUG WIDTH | 0.960 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 45.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 80244 |
| DESIGN CONTROL REFERENCE | 00-884-8618 |
Restrictions/Controls & Freight Information | NSN 5120-00-884-8618
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-884-8618
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
6 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
6 EA : Each |
