NSN 5120-00-918-2185 T600651, 00-918-2185, 009182185
Product Details | SPANNER WRENCH
5120-00-918-2185 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: T600651, 5120-00-918-2185, 00-918-2185, 5120009182185, 009182185
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1960 | 00-918-2185 | 03476 ( WRENCH, SPANNER ) |
Drawings & Photos | NSN 5120-00-918-2185
Cross Reference | NSN 5120-00-918-2185
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T600651 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-918-2185
Technical Data | NSN 5120-00-918-2185
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |

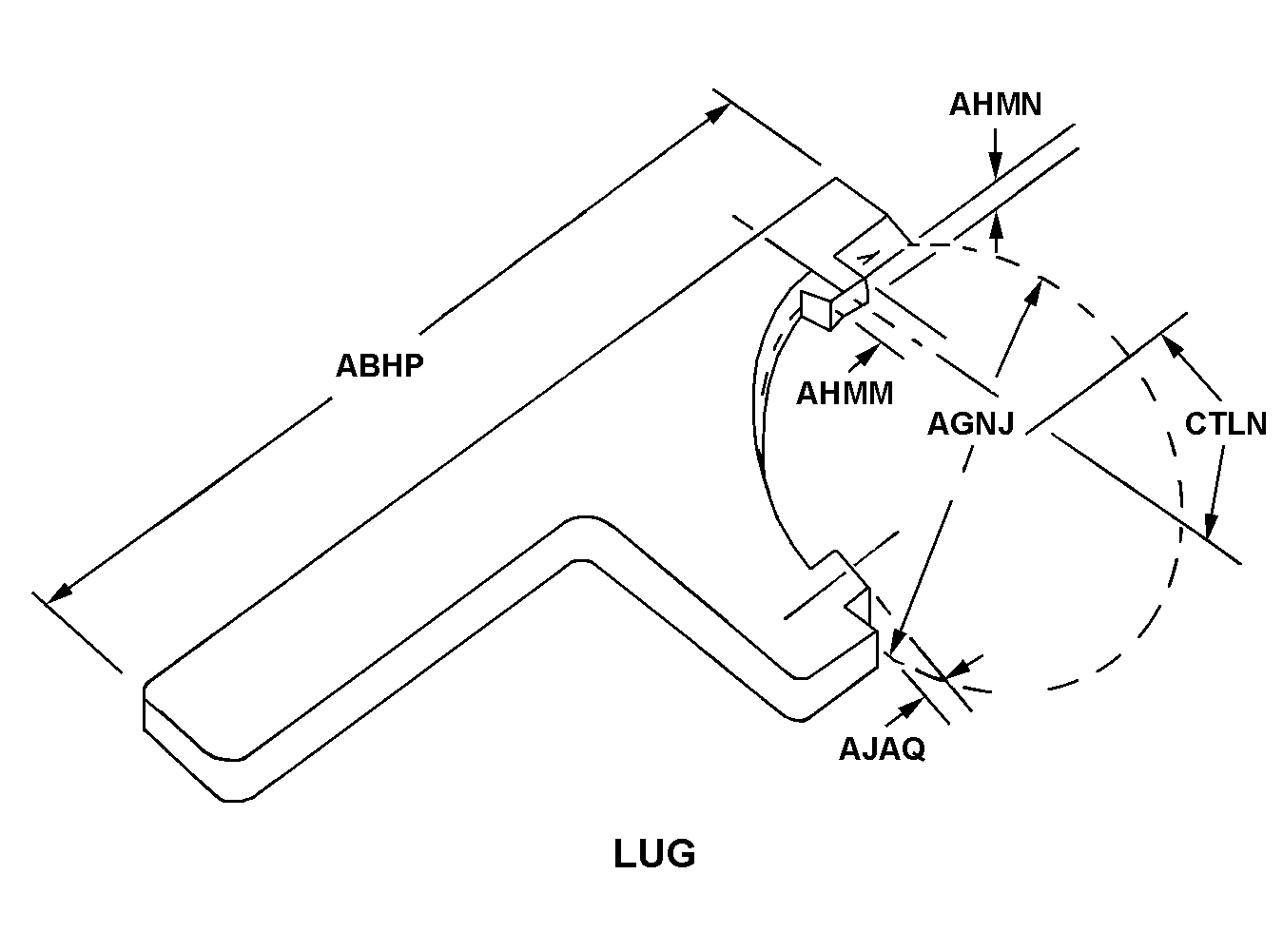

| STYLE DESIGNATOR | 602 LUG |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| OPENING DIAMETER | 2.865 INCHES NOMINAL |
| LUG WIDTH | 0.110 INCHES NOMINAL |
| LUG THICKNESS | 0.063 INCHES NOMINAL |
| LUG LENGTH | 0.150 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 120.0 DEGREES NOMINAL |
| HARDNESS RATING | 43.0 ROCKWELL C MINIMUM AND 48.0 ROCKWELL C MAXIMUM |
| III FUNCTIONAL DESCRIPTION | USED TO ADJUST SYNCHRO STATOR 600559 |
Restrictions/Controls & Freight Information | NSN 5120-00-918-2185
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
