NSN 5120-00-945-9202 PWA13220, 00-945-9202, 009459202
Product Details | BEARING AND BUSHING INSERTER
5120-00-945-9202 A hand tool designed to install bearings and/or bushings onto shafts and/or into holes. It may be operated by a pushing or a striking force.
Part Alternates: PWA13220, 5120-00-945-9202, 00-945-9202, 5120009459202, 009459202
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 14 MAR 1966 | 00-945-9202 | 35961 ( INSERTER, BEARING AND BUSHING ) |

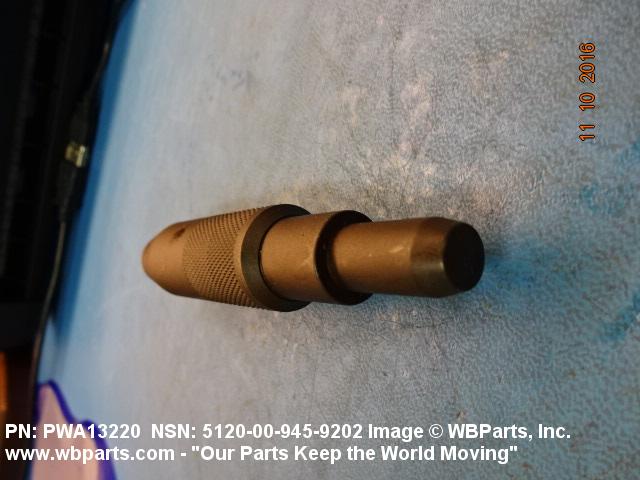

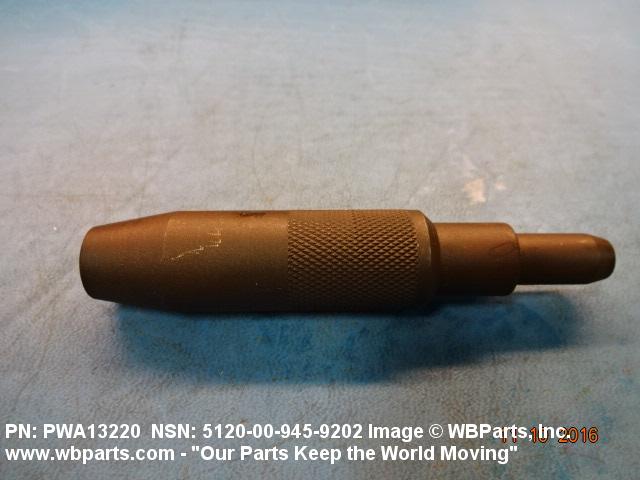

Drawings & Photos | NSN 5120-00-945-9202
Demand History | NSN 5120-00-945-9202
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PWA13220 | 2016-09-259 | 1 | United States |
Cross Reference | NSN 5120-00-945-9202
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA13220 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-945-9202
Technical Data | NSN 5120-00-945-9202
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

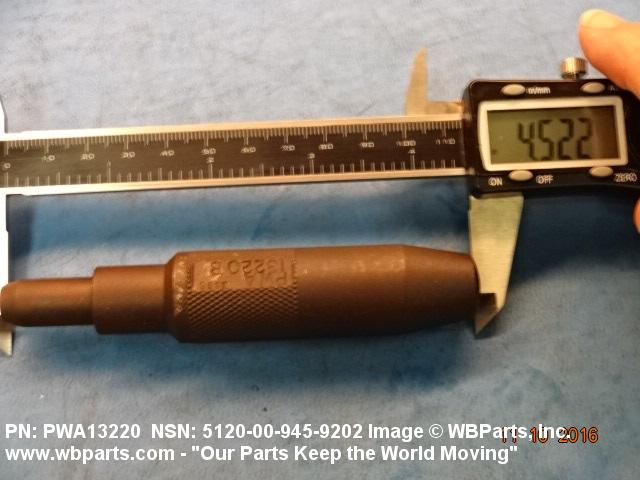

| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| DIAMETER ACROSS FLATS | 0.875 INCHES NOMINAL |
| DRIVE END TYPE | BOSS AND PILOT |

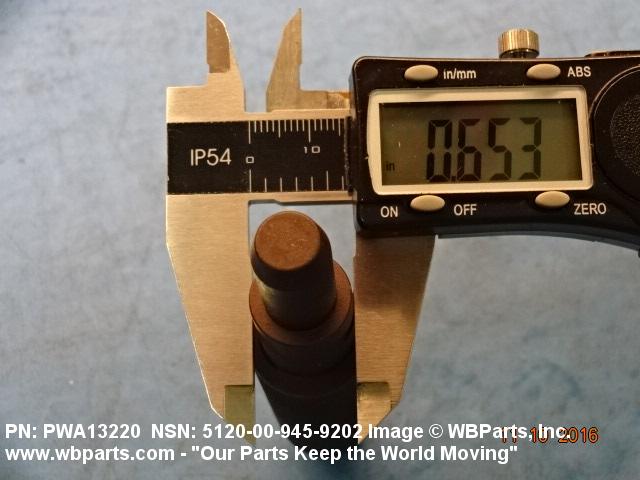

| BOSS DIAMETER | 0.650 INCHES NOMINAL |

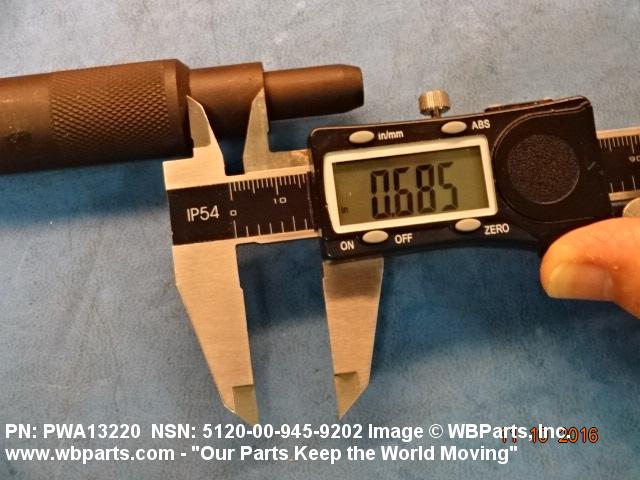

| BOSS LENGTH | 0.687 INCHES NOMINAL |

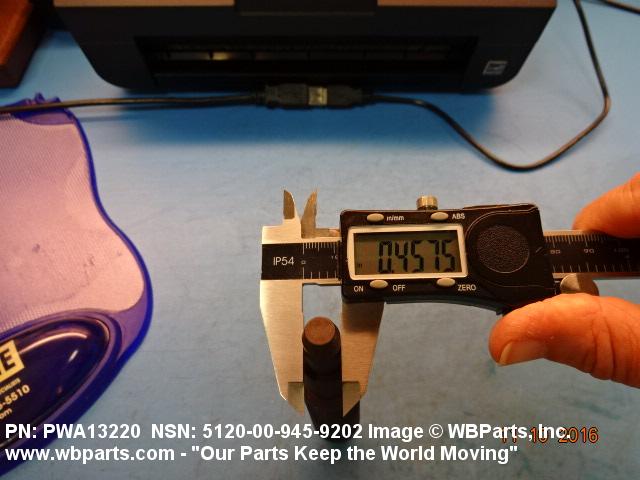

| PILOT DIAMETER | 0.458 INCHES NOMINAL |

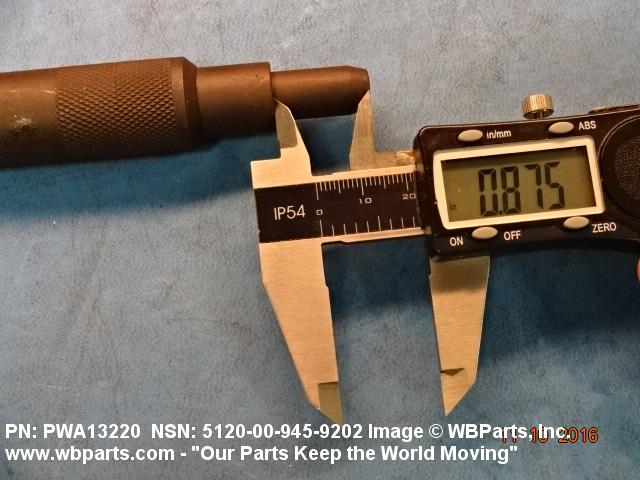

| PILOT LENGTH | 0.875 INCHES NOMINAL |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | PWA13220 |
Restrictions/Controls & Freight Information | NSN 5120-00-945-9202
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | SR | Air Force Services Agency San Antonio, TX 78216-4138 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
