NSN 5120-01-116-5026 23002215, 23007638, 01-116-5026

Product Details | SOCKET WRENCH


5120-01-116-5026 A wrench consisting of one or more sockets, integral with shank(s) or body. It may not be furnished with a handle when the handle is removable or when it is the "double end socket" and "single socket bar" types, each designed for use with the other or similar items. Excludes SOCKET, SOCKET WRENCH.

Part Alternates: 23002215, 23007638, 5120-01-116-5026, 01-116-5026, 5120011165026, 011165026

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 29 JUL 1981 01-116-5026

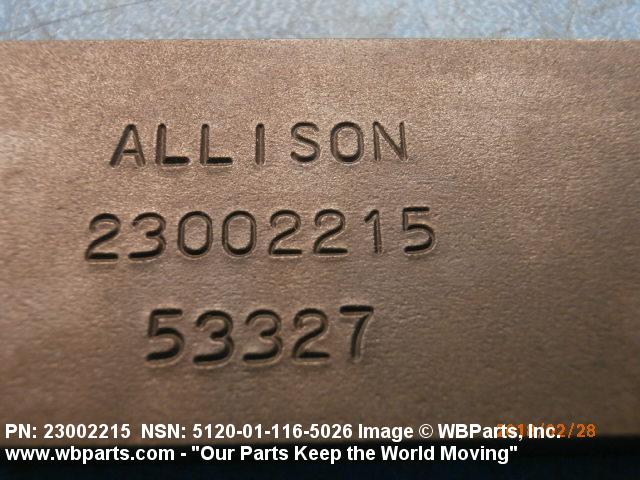

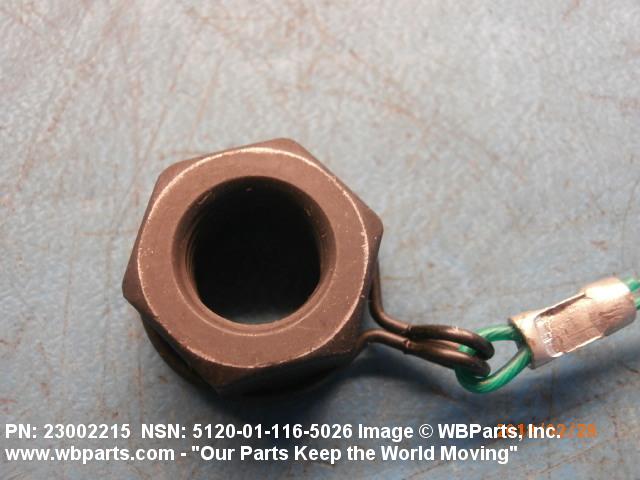

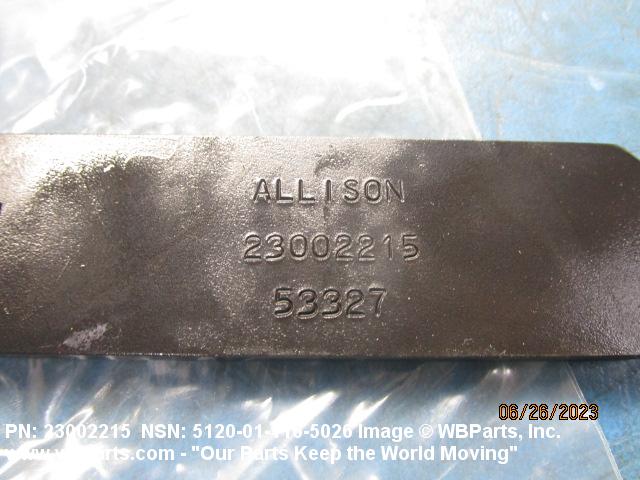

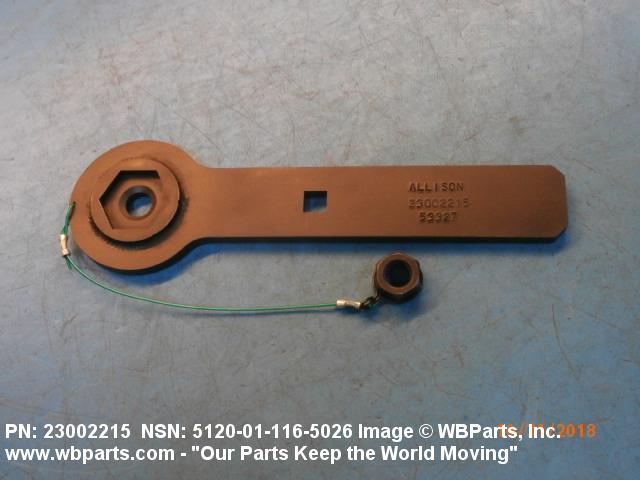

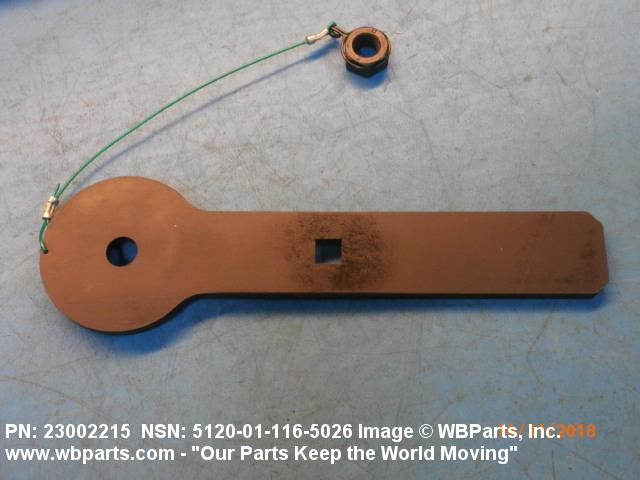

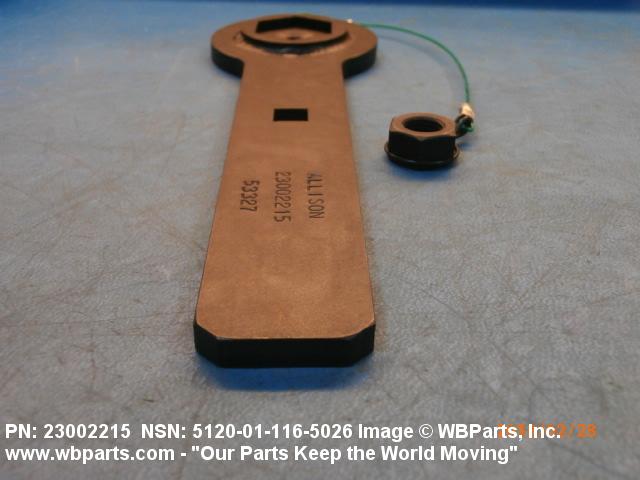

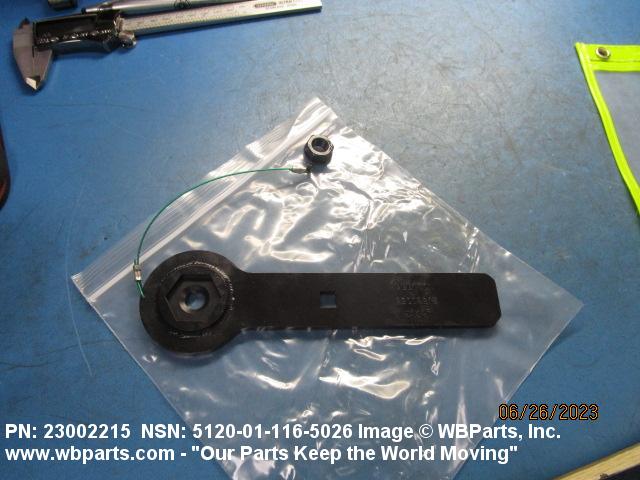

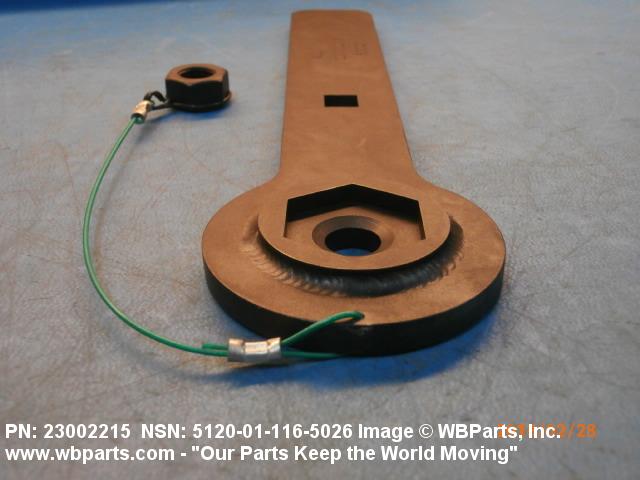

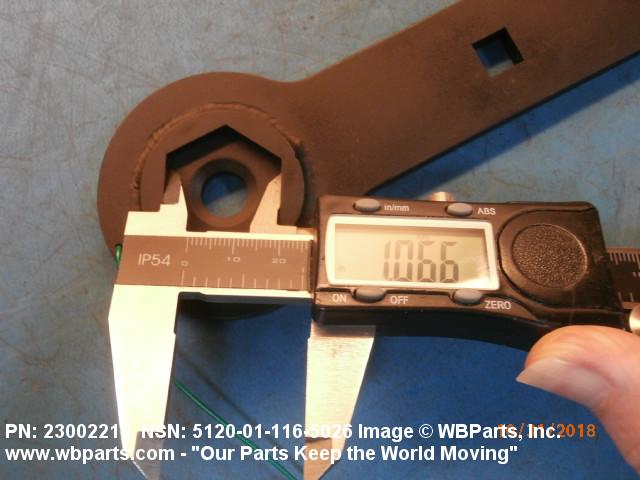

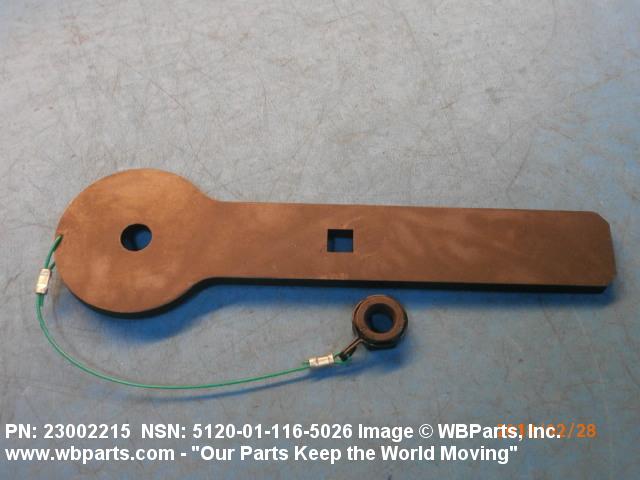

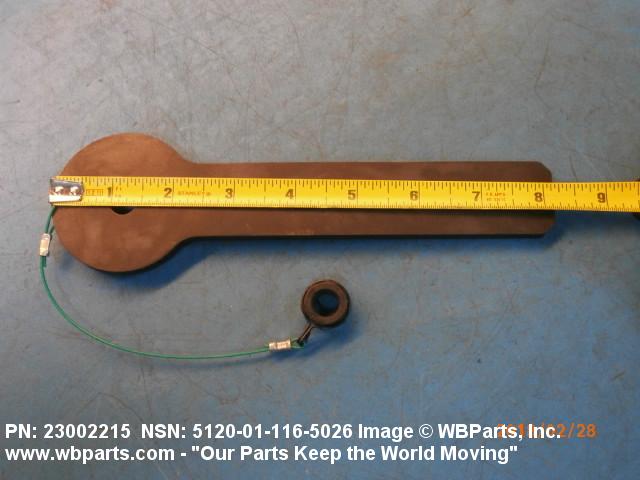

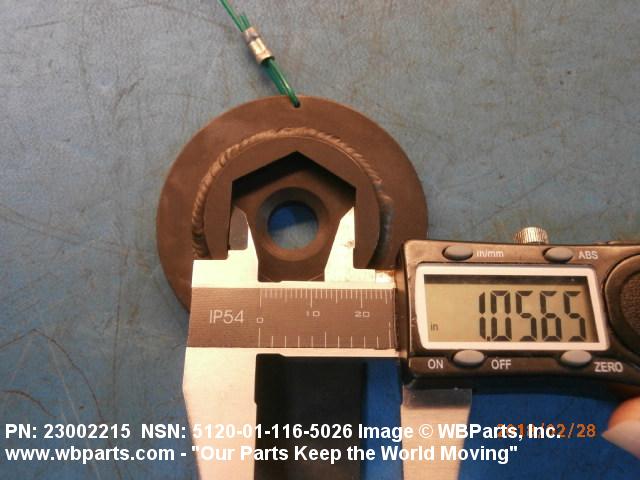

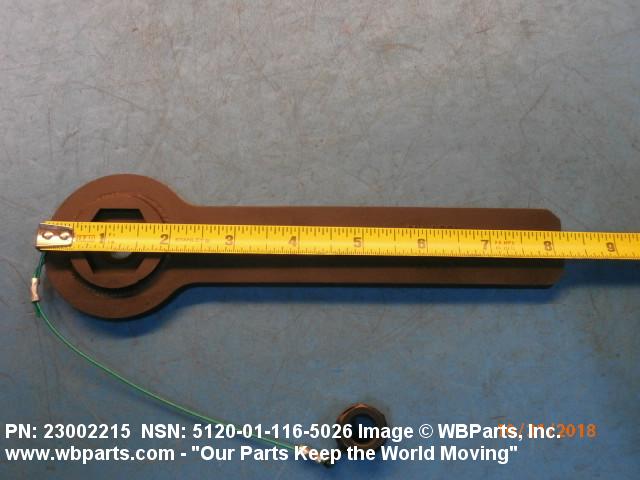

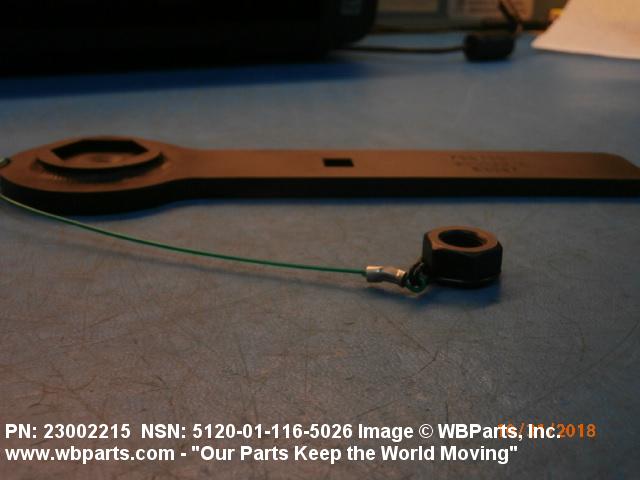

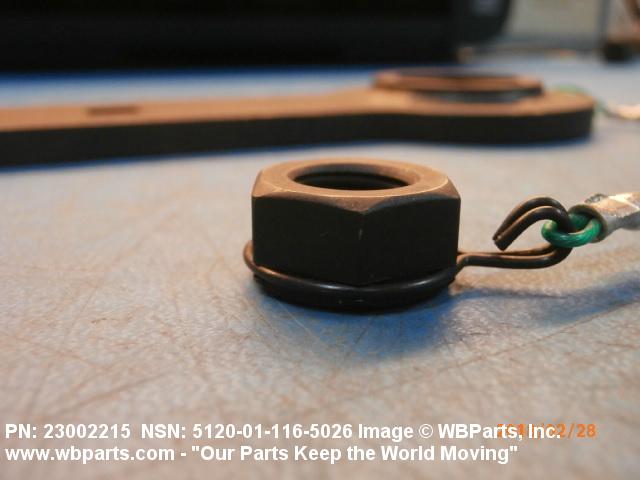

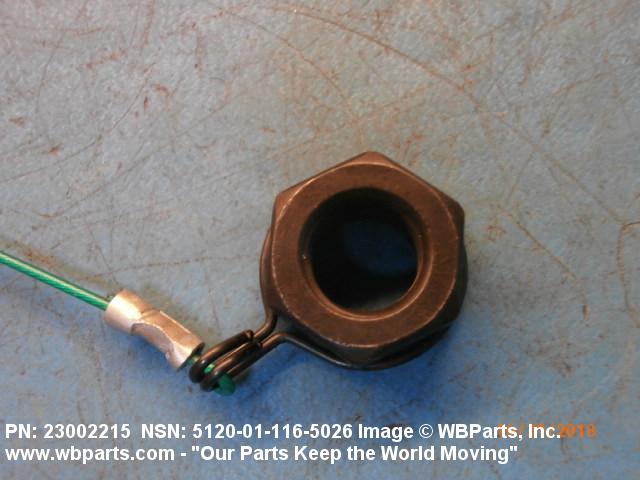

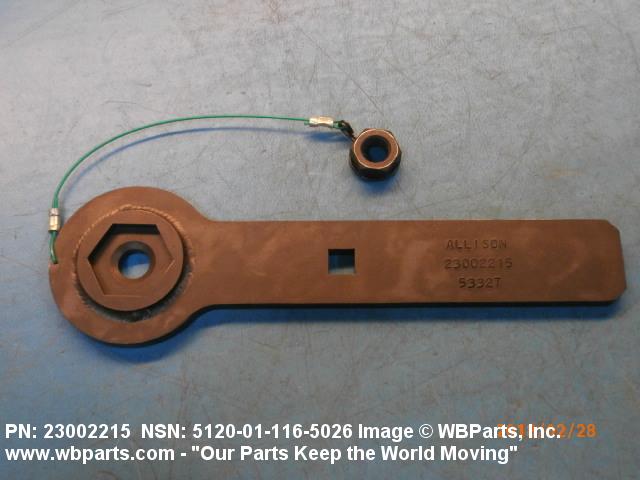

Drawings & Photos | NSN 5120-01-116-5026



Demand History | NSN 5120-01-116-5026


Part Number Request Date QTY Origin
5120-01-116-5026 2021-01-20 1 US
5120-01-116-5026 2020-04-23 13 US
23002215 2019-03-13 1 ID
23002215 2019-01-29 1 IN
5120-01-116-5026 2018-10-24 1 United States
5120-01-116-5026 2018-05-30 1 CN
5120-01-116-5026 2018-02-22 2 United States
5120-01-116-5026 2018-02-14 2 US
5120-01-116-5026 2012-11-26 1 US
5120-01-116-5026 2012-01-23 1 AU
5120-01-116-5026 2011-11-25 1 ZA
23002215 2011-11-21 1 India
23002215 2011-11-12 1 IN
23007638 2011-11-12 1 IN
5120-01-116-5026 2011-05-21 1 US
23007638 2009-07-05 2 AR
23002215 2008-07-15 1 MX
23007638 2007-04-21 1 United States

Cross Reference | NSN 5120-01-116-5026


Part Number Cage Code Manufacturer
23002215 73342 ALLISON TRANSMISSION, INC.
23007638 73342 ALLISON TRANSMISSION, INC.

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5120-01-116-5026


Technical Data | NSN 5120-01-116-5026


Characteristic Specifications
MATERIAL STEEL OVERALL

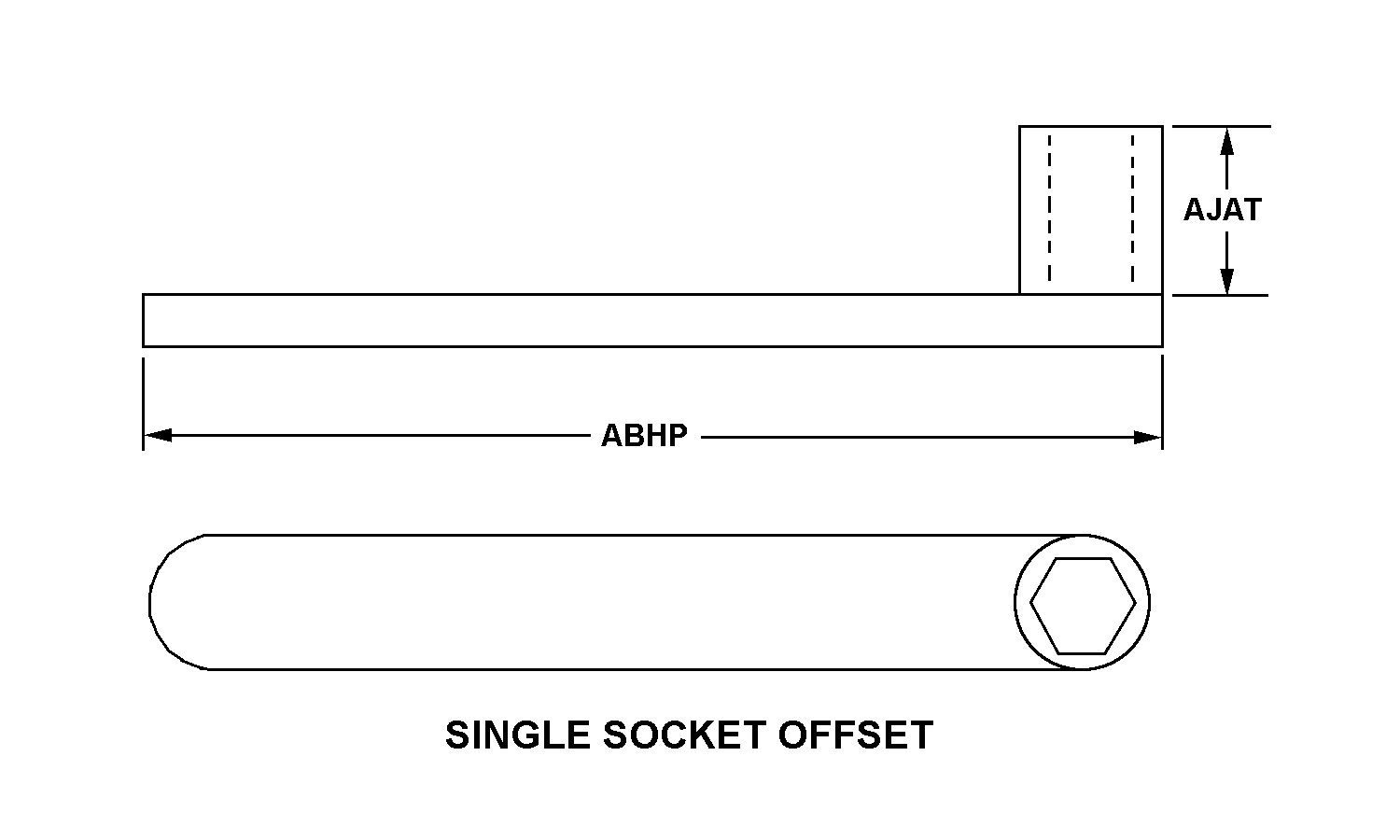

STYLE DESIGNATOR 171 SINGLE SOCKET OFFSET
OVERALL LENGTH 7.750 INCHES NOMINAL
OFFSET HEIGHT 0.150 INCHES NOMINAL
WRENCHING SURFACE SIZE 1.062 INCHES NOMINAL SINGLE END
WRENCHING SURFACE SHAPE HEXAGON SINGLE END INTERNAL

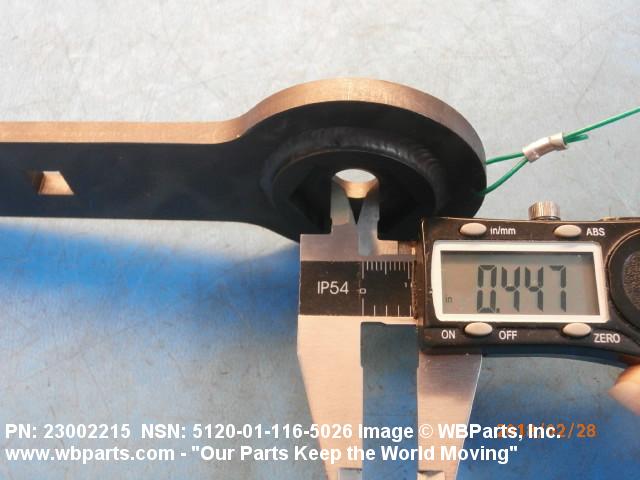

SPECIAL FEATURES 3/8 IN. SQ DRIVE THRU HANDLE; 0.450 IN. DIA HOLE THRU HANDLE AND SOCKET
END ITEM IDENTIFICATION ALLISON 250-C18, -B15G, -C20, -C20B, -C20F, -C20J, -B17, -B17B AND B-17C; 250-C28B, -C28C, -C30, -C30L, -C30M, -C30P, -C30R AND C30S; T63-A5A, A700 AND A720 ENGINES
FUNCTIONAL DESCRIPTION FUEL INJECTOR WRENCH

Restrictions/Controls & Freight Information | NSN 5120-01-116-5026


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 5120-01-116-5026


Category Code Description
Materiel Category and Inventory ManagerE General Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeD Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items.
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeMHANDTOOLS AND SHOP EQUIPMENT
Shelf Life Code0Nondeteriorative
Category Code Description
Cognizance Codes9QNavy-owned stocks of items accepted by the General Services Administration for support of Navy requirements
Naval Inventory Control Point, Mechanicsburg
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
