Product Details | SPANNER WRENCH
5120-01-169-3585 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: ZW-1B, ZW1B, 5120-01-169-3585, 01-169-3585, 5120011693585, 011693585
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 06 JAN 1984 | 01-169-3585 | 03476 ( WRENCH, SPANNER ) |
Drawings & Photos | NSN 5120-01-169-3585
Demand History | NSN 5120-01-169-3585
Cross Reference | NSN 5120-01-169-3585
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ZW-1B | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIA INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5120-01-169-3585
Related Products | NSN 5120-01-169-3585
5120-01-169-3606, 5120-01-169-4871, 5120-01-169-4873, 5120-01-169-4875, 5120-01-169-4876
Technical Data | NSN 5120-01-169-3585
| Characteristic | Specifications |
|---|---|

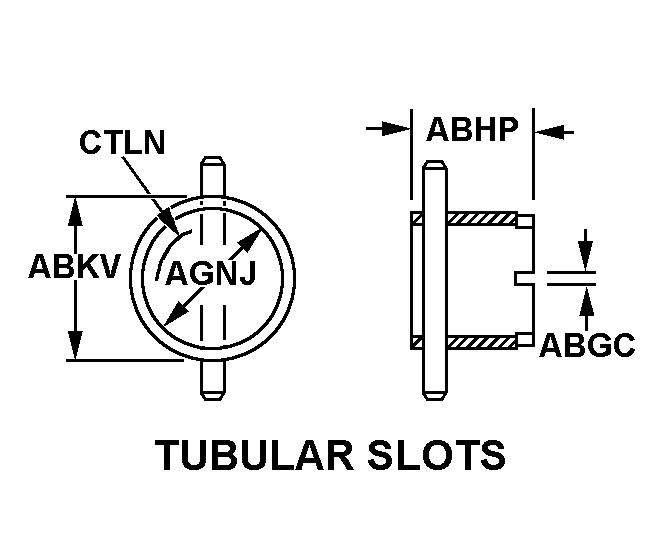

| STYLE DESIGNATOR | 820 TUBULAR SLOTS |

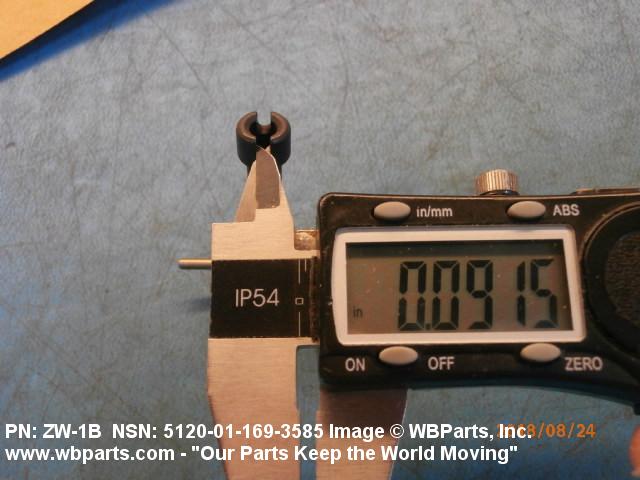

| SLOT WIDTH | 0.090 INCHES NOMINAL |

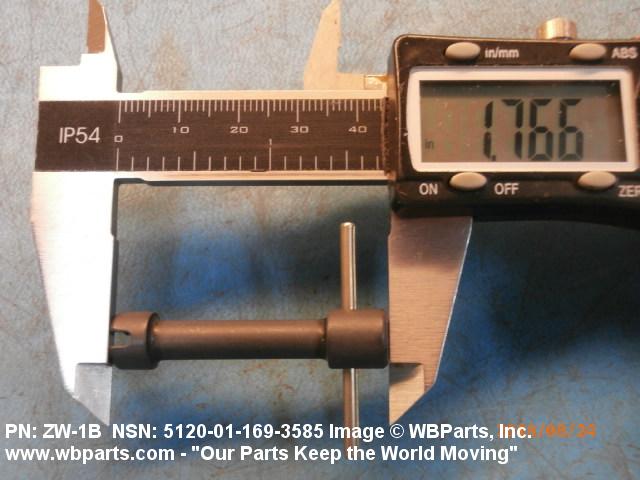

| OVERALL LENGTH | 1.750 INCHES NOMINAL |

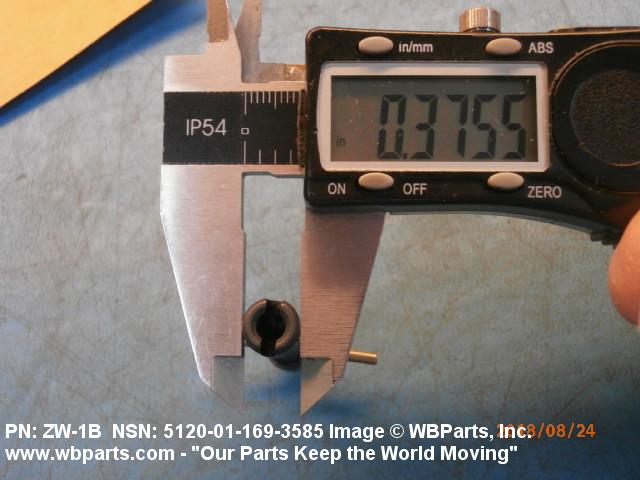

| OPENING DIAMETER | 0.375 INCHES NOMINAL |
| III FUNCTIONAL DESCRIPTION | USED TO RELEASE/ENGAGE ZIF FASTENERS |
| MANUFACTURERS CODE | 98978 |
| DESIGN CONTROL REFERENCE | ZW-1B |
