Product Details | SOCKET WRENCH ATTACHMENT UNIVERSAL JOINT
5120-01-477-8906 A connection for socket wrenches and handles. Consists of an internal drive on one end and an external drive on the opposite end, of the same size, connected by a cross pin device to permit swivel up to 90 degrees (1.6 radians).20251200032Hand Tools, Nonedged, Nonpowered51300024Hand Tools, Power Driven
Part Alternates: FUB8A, FUB8, 5120-01-477-8906, 01-477-8906, 5120014778906, 014778906
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 22 AUG 2000 | 01-477-8906 | 17017 ( UNIVERSAL JOINT, SOCKET WRENCH ATTACHMENT ) |
Drawings & Photos | NSN 5120-01-477-8906
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5120-01-477-8906
5120-01-477-9530, 5120-01-477-9546, 5120-01-477-9554, 5120-01-477-9556, 5120-01-477-9873
Technical Data | NSN 5120-01-477-8906
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

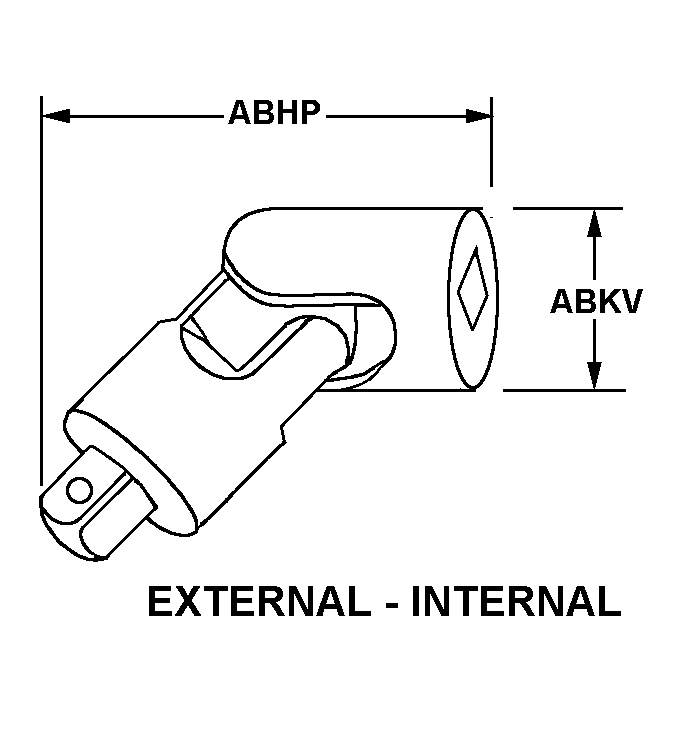

| STYLE DESIGNATOR | 208 EXTERNAL-INTERNAL |
| OVERALL LENGTH | 2.125 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| DRIVE SURFACE SIZE | 0.375 INCHES NOMINAL BOTH ENDS |
| DRIVE END SHAPE | SQUARE FIRST END EXTERNAL SQUARE SECOND END INTERNAL |
Restrictions/Controls & Freight Information | NSN 5120-01-477-8906
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
